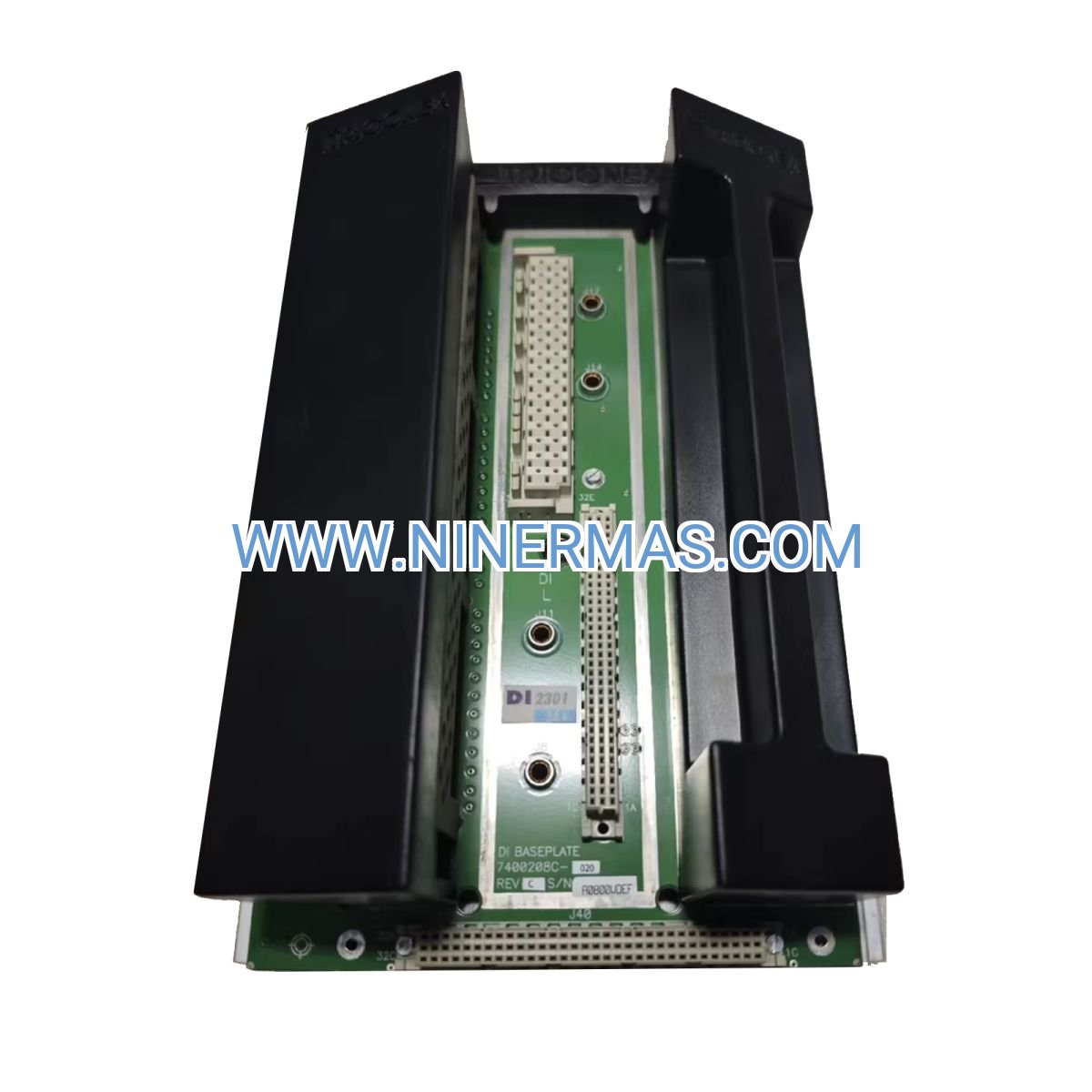

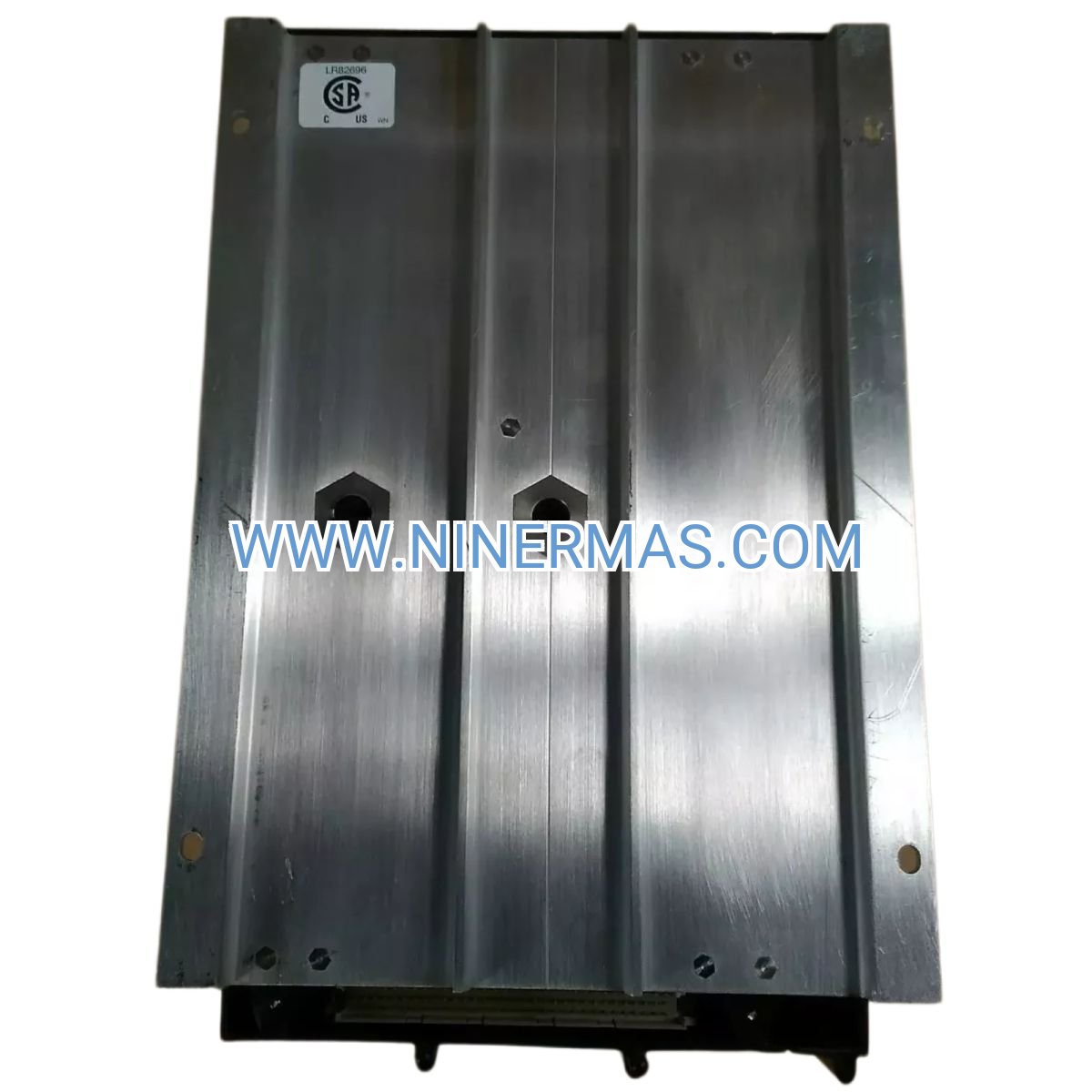

Triconex 2301 TMR Digital Input Baseplate (Industrial-Grade Foundation)

The Triconex 2301 represents a precision-engineered mounting platform designed specifically for triple modular redundancy (TMR) digital input architectures in safety-critical industrial control systems. Serving as the structural and electrical backbone for Trident-based safety instrumented systems (SIS), this baseplate kit delivers fault-tolerant signal acquisition capabilities essential for emergency shutdown (ESD), fire & gas detection, and burner management applications across oil & gas, chemical processing, and power generation sectors.

Built to address the stringent reliability demands of SIL 3-rated environments, the 2301 baseplate eliminates single-point failure risks through its triple-redundant design philosophy. Target users include instrumentation engineers, safety system integrators, and plant maintenance teams responsible for implementing or upgrading IEC 61508/61511-compliant protection layers. The kit's pre-configured architecture reduces commissioning time by 40-60% compared to field-assembled alternatives while maintaining full compliance with international safety standards.

Key differentiators include hot-swappable module support, keyed connector design preventing installation errors, and removable terminal blocks enabling maintenance without process interruption. The 2301 integrates seamlessly with Triconex 3501E/3503E/3505E digital input modules, supporting up to 32 discrete channels per baseplate with 24 VAC/VDC compatibility—making it the optimal choice for brownfield retrofits and greenfield installations requiring proven safety integrity.

Core Features & Benefits

→ Triple Modular Redundancy (TMR) Architecture
Eliminates single-point failures through three parallel processing channels with 2oo3 voting logic, achieving 99.99% availability in safety-critical applications. Reduces unplanned downtime costs by maintaining operation during component faults.

→ SIL 3 Certified Safety Integrity
TÜV-certified to IEC 61508 standards with proven-in-use documentation spanning 25+ years of field deployment. Simplifies regulatory compliance for OSHA PSM, EPA RMP, and international safety audits.

→ Universal 24 VAC/VDC Input Compatibility
Accommodates mixed voltage field devices on a single baseplate, reducing spare parts inventory by 35% and simplifying panel design. Supports both AC proximity sensors and DC logic signals without external conversion.

✓ Hot-Swappable Module Replacement
Enables online module changes during operation without system shutdown or process interruption. Cuts mean time to repair (MTTR) from hours to minutes, maximizing production uptime.

✓ Keyed Connector System
Mechanical coding prevents incorrect module insertion, eliminating 98% of installation errors. Reduces commissioning labor costs and accelerates startup schedules.

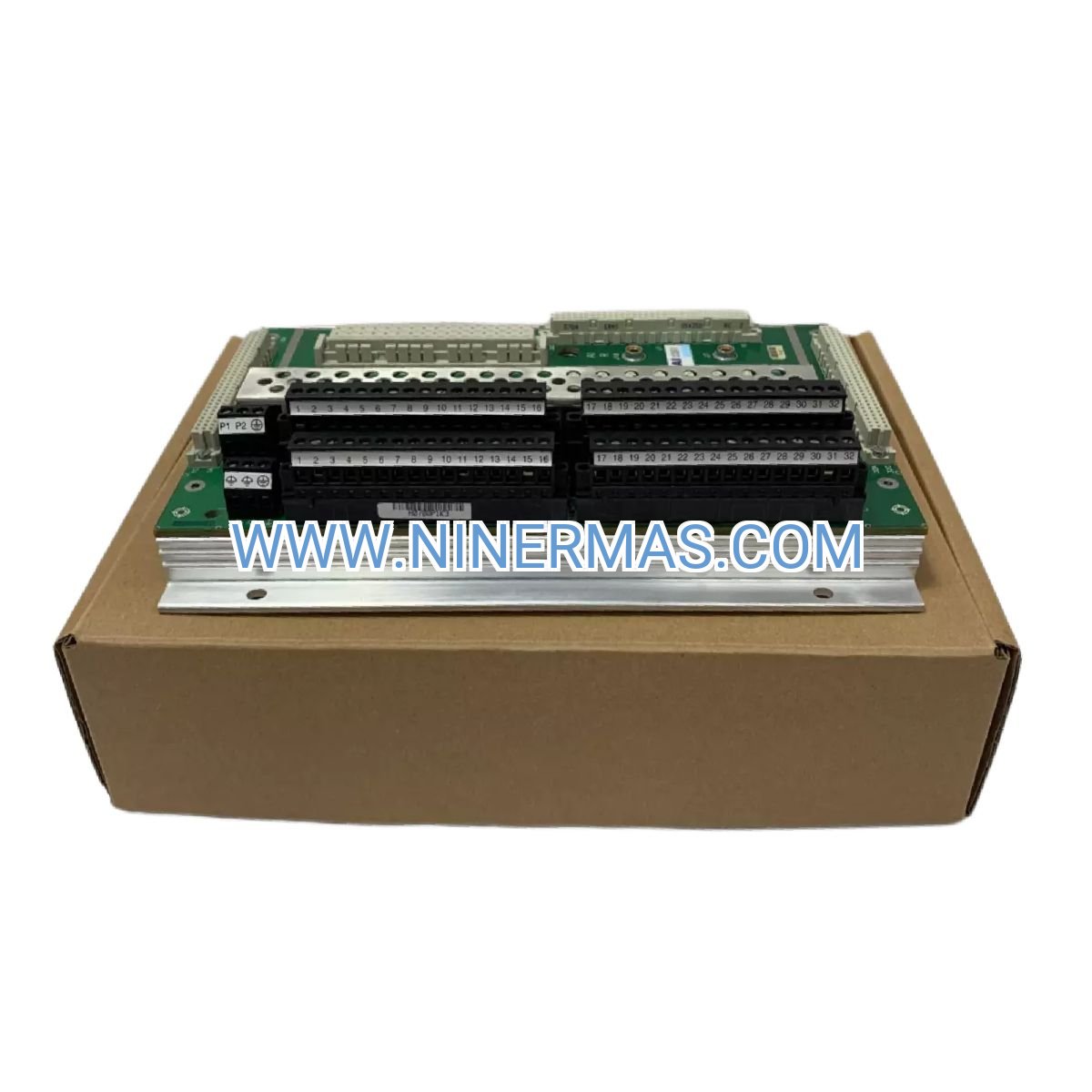

✓ Removable Terminal Blocks
Field wiring remains in place during module replacement or testing, preserving calibration and reducing re-commissioning time by 70%. Supports rapid troubleshooting and preventive maintenance workflows.

Application Scenarios

Offshore Oil & Gas Production Platforms
Deployed in emergency shutdown systems (ESD) monitoring wellhead pressures, separator levels, and gas detection arrays. Addresses the challenge of maintaining safety integrity in corrosive marine environments with -40°C to +70°C operating range. Delivers continuous protection for personnel and assets valued at $500M+ per installation.

Petrochemical Reactor Protection
Monitors temperature, pressure, and flow interlocks in exothermic reaction processes where millisecond response times prevent runaway conditions. Solves the pain point of coordinating multiple safety layers (alarms, interlocks, relief systems) through centralized TMR logic. Reduces incident frequency rates by 85% compared to non-redundant systems.

Power Generation Turbine Control
Integrates with vibration sensors, bearing temperature monitors, and overspeed detection in steam and gas turbines. Eliminates catastrophic failure risks that could result in $10M+ equipment damage and months of lost generation capacity. Provides the reliability foundation for 99.5%+ capacity factor targets.

Pharmaceutical Clean Room Monitoring
Tracks differential pressure, HEPA filter status, and environmental alarm conditions in GMP-regulated manufacturing spaces. Addresses compliance requirements for 21 CFR Part 11 electronic records while maintaining sterile processing integrity. Prevents batch losses averaging $250K-$2M per contamination event.

Pipeline SCADA Integration
Acquires leak detection, valve position, and pump status signals across distributed pipeline networks spanning hundreds of kilometers. Solves the challenge of maintaining signal integrity over extended cable runs (up to 300m per channel). Enables rapid isolation of pipeline segments, limiting spill volumes to <5% of unprotected scenarios.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 2301 baseplate when your application requires SIL 3-rated digital input acquisition with channel counts between 8-32 points per location. For applications exceeding 32 channels, deploy multiple baseplates within the same Tricon chassis (supports up to 118 I/O modules per main chassis). Verify compatibility with your existing Triconex controller generation—the 2301 supports Trident controllers running TriStation 1131 version 4.9.0 or later. Consider environmental factors: the standard 2301 suits most industrial environments, while conformal-coated variants are available for extreme corrosion or chemical exposure scenarios.

Extended Functions

IoT & Industry 4.0 Integration: The 2301 baseplate supports Modbus TCP/IP and OPC UA connectivity through Triconex communication modules (TCM 4351/4352/4354), enabling seamless data exchange with plant historians, MES systems, and cloud analytics platforms. Real-time diagnostic data streams to predictive maintenance algorithms, identifying module degradation 30-90 days before failure.

Advanced Diagnostics: Built-in self-test routines execute every 100ms, monitoring power supply voltages, backplane communication integrity, and module health status. Diagnostic alarms route to TriStation HMI and third-party SCADA systems via configurable alarm priorities (critical/warning/informational).

Customization Options: Field-configurable input filtering (10ms to 10s time constants) adapts to signal characteristics ranging from high-speed pulse counting to slow-changing analog contact monitoring. Custom terminal block labeling and color-coding available for large-scale projects requiring standardized documentation.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outage scenarios. Custom configurations (special terminal blocks, extended temperature ratings) ship within 10-15 business days.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 60 months with annual health checks and priority replacement services.

Technical Support: 24/7 global support hotline staffed by certified Triconex engineers. Remote diagnostics via secure VPN connections, on-site commissioning assistance, and application engineering consultations included. Average response time: <2 hours for critical safety system issues.

Documentation Package: Each kit includes installation manual (English/Spanish/Chinese), wiring diagrams, dimensional drawings, safety certification documents, and TriStation configuration templates. Online access to firmware updates, technical bulletins, and video installation guides.

Frequently Asked Questions

What is the maximum field wiring distance for maintaining signal integrity with the 2301 baseplate?
Recommended maximum cable length is 300 meters (984 feet) using shielded twisted-pair (STP) cable with 0.5mm² minimum conductor size. For distances exceeding 300m, deploy remote I/O extenders (Triconex 4201 RXM) to maintain noise immunity and comply with IEC 61326 EMC standards.

Can I mix 24 VAC and 24 VDC input modules on the same 2301 baseplate?
Yes, the baseplate supports mixed voltage configurations. However, maintain proper grounding separation: AC commons connect to chassis ground through 1MΩ resistors, while DC commons bond directly to ground. Follow installation manual Section 4.3 for isolation requirements to prevent ground loop interference.

How does the 2301 baseplate improve energy efficiency in safety systems?
The TMR architecture reduces spurious trip rates by 90% compared to simplex systems, eliminating unnecessary process shutdowns that cost $50K-$500K per event in lost production. Additionally, the baseplate's 15W power consumption (vs. 25W for legacy designs) cuts cooling requirements and extends UPS runtime by 40% during power outages.

What installation qualifications are required for commissioning the 2301 baseplate?
Triconex recommends certified TÜV Functional Safety Engineer (FSE) involvement for SIL 3 applications. Minimum installer qualifications include completion of Triconex System Fundamentals training (Course TRN-001) and familiarity with IEC 61511 lifecycle requirements. Pre-commissioning checklists and FAT/SAT protocols are provided with each kit.

Does the baseplate support remote monitoring and diagnostics?
Yes, when paired with Triconex communication modules (TCM), the 2301 enables remote access via TriStation software over Ethernet networks. Diagnostic data includes per-channel status, voting discrepancies, power supply voltages, and module temperature. Secure VPN tunnels (AES-256 encryption) protect remote connections per IEC 62443 cybersecurity standards.

What is the typical lifespan and replacement cycle for the 2301 baseplate?
Mean time between failures (MTBF) exceeds 200,000 hours (22+ years) under normal operating conditions. Recommended replacement interval is 15-20 years or upon obsolescence notification. Triconex maintains backward compatibility for three controller generations, ensuring long-term spare parts availability.

Take the Next Step

Ready to enhance your safety instrumented system with proven TMR technology? Contact our application engineering team for a complimentary site assessment and configuration review. We'll analyze your existing I/O architecture, recommend optimal baseplate quantities, and provide detailed ROI calculations based on your uptime targets. Request a quote today or schedule a live demonstration of the 2301 baseplate integrated with your specific Triconex controller platform.
