SST SST-PBMS-P Retrofit-Compatible PCI Multi-Slave Card

SST SST-PBMS-P Retrofit-Compatible PCI Multi-Slave Card: Legacy System Upgrade & Smooth Migration

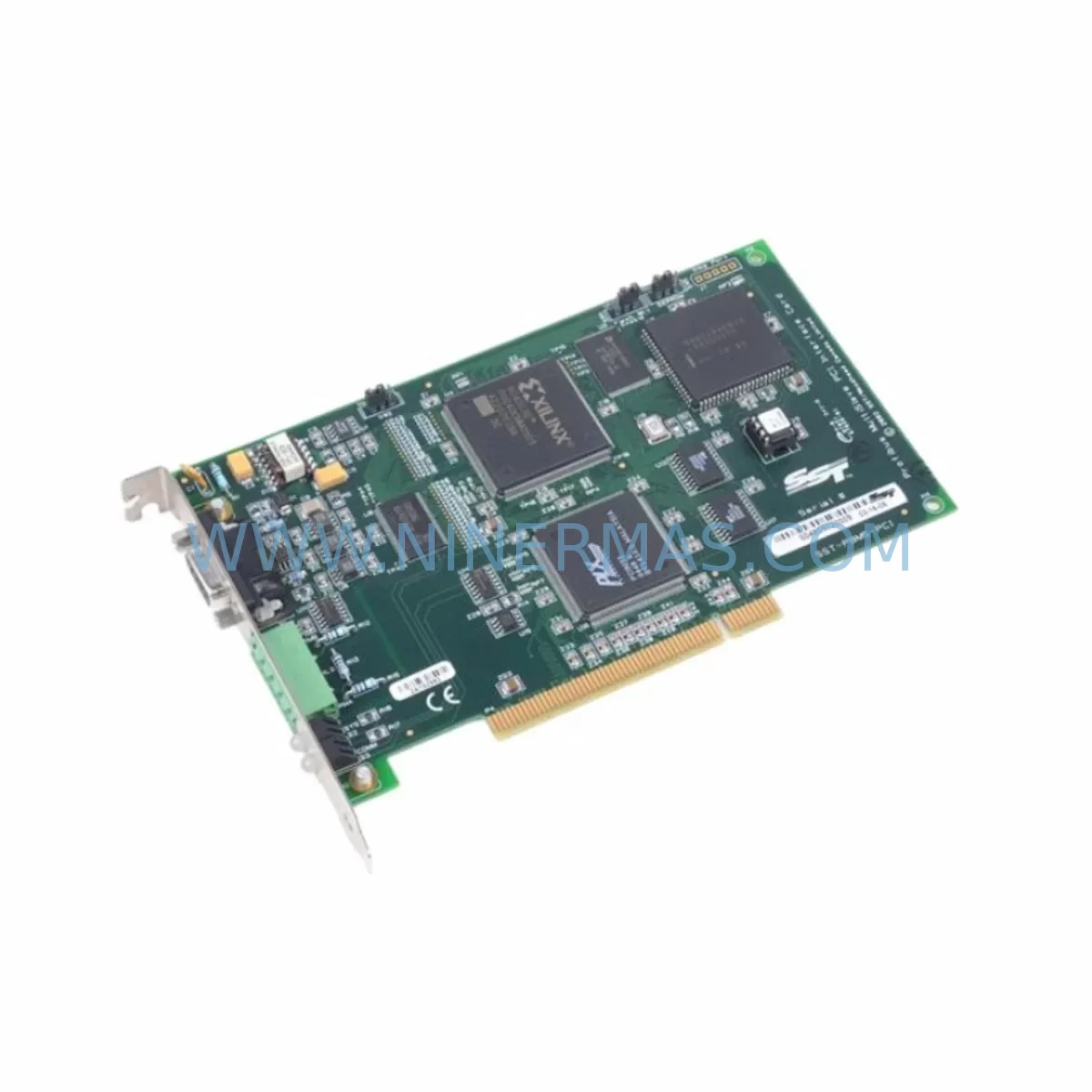

The SST SST-PBMS-P is a PCI-bus PROFIBUS Multi-Slave communication card engineered for industrial automation environments where legacy fieldbus infrastructure must be preserved, extended, or migrated without full system replacement. As production lines age and original OEM support for older PROFIBUS master controllers is discontinued, the SST-PBMS-P provides a proven, cost-effective path to restore communication integrity, expand I/O capacity, and maintain control continuity across existing control cabinets and backplane architectures.

Whether you are replacing a failed card in a legacy Siemens S5 or early S7 environment, upgrading a Rockwell Automation PLC rack to support additional PROFIBUS slave nodes, or migrating a distributed I/O network from an obsolete communication platform, the SST-PBMS-P delivers the multi-slave capability and protocol compatibility required to keep your automation system operational with minimal downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SST-PBMS-P into an existing automation environment requires a structured pre-installation assessment. Before removing the legacy card, engineers should document the current PROFIBUS network topology, including the number of active slave nodes, their GSD file versions, and the DP cycle time configured in the master. This baseline is critical when the replacement card must emulate the same slave address map to avoid disrupting upstream PLC logic.

In control cabinets where the SST-PBMS-P is installed alongside other communication modules — such as an SST-PB3-CLX ControlLogix PROFIBUS master card or an SST-DN3-PCI DeviceNet interface — rack space and PCI slot availability must be confirmed before procurement. The card’s standard PCI form factor is compatible with most industrial PC chassis and communication gateways used in legacy DCS and SCADA architectures.

For systems that also rely on SST-PBTCP-CLX Ethernet/IP to PROFIBUS gateway modules or SST-PBMS-VME VME-bus slave cards in parallel network segments, the SST-PBMS-P can be introduced as a PCI-side complement without requiring changes to the existing fieldbus wiring or termination resistors. Terminal block wiring on the PROFIBUS DB9 connector should be verified against the original installation drawing, paying particular attention to shield grounding and bus termination at both ends of the segment.

Where the legacy system includes Siemens CP 5611 or CP 5613 PCI PROFIBUS cards that have reached end-of-life, the SST-PBMS-P offers a compatible migration path. The GSD files from the original slave devices remain valid, and the SST configuration tool allows direct import of existing network configurations, significantly reducing re-engineering time. Engineers should also verify that the host PC’s operating system supports the SST driver stack, particularly in environments still running Windows XP Embedded or Windows 7 on legacy HMI workstations.

In distributed I/O retrofit projects, the SST-PBMS-P is frequently deployed alongside Phoenix Contact PROFIBUS repeaters and Wago 750-303 PROFIBUS DP couplers to extend segment length or bridge between copper and fiber optic PROFIBUS runs. Signal isolators may be required at field junction boxes where long cable runs introduce noise susceptibility. Power supply capacity in the control cabinet should be assessed to confirm that the additional PCI card load does not exceed the available 5 VDC rail budget of the existing backplane power supply.

For projects involving protocol migration — for example, transitioning from PROFIBUS-DP to PROFINET IO — the SST-PBMS-P can serve as an interim slave emulator, allowing the new PROFINET master to communicate with legacy PROFIBUS field devices through a gateway architecture while the full migration is staged across multiple planned maintenance windows.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any legacy control system retrofit. When replacing a failed or end-of-life PROFIBUS communication card with the SST-PBMS-P, the recommended approach is to pre-configure the replacement card on a bench test system before the scheduled maintenance window. Using the SST PROFIBUS Configuration Tool, engineers can load the existing GSD files, assign the correct slave node addresses, and verify the DP cycle time offline — so that the card arrives at the installation site fully configured and ready for a direct swap.

During the physical installation, the original PLC program logic does not require modification if the SST-PBMS-P is configured to present the same slave address map as the card it replaces. This is particularly important in Rockwell Automation ControlLogix or CompactLogix environments where the I/O tree in Studio 5000 references specific module slot addresses and connection paths. Preserving the original address structure eliminates the need for program re-download and reduces the risk of introducing logic errors during the changeover.

HMI screens linked to PROFIBUS device status tags should be reviewed before cutover to confirm that tag addresses remain valid after the card replacement. In WinCC, FactoryTalk View, or Ignition SCADA environments, communication driver settings may need to be updated to reference the new card’s COM port or PCI device index. A pre-cutover checklist should include confirmation of the PROFIBUS segment termination status, verification of the bus baud rate setting, and a functional test of at least one slave device before releasing the line back to production.

For phased migrations where only part of the PROFIBUS network is being upgraded, the SST-PBMS-P supports parallel operation alongside the existing master, allowing engineers to validate the new configuration on a subset of slave nodes before committing to a full cutover. This staged approach is particularly effective in continuous process industries where a full production stop is not feasible and control continuity must be maintained throughout the migration period.

Retrofit Support FAQ

Q1: Is the SST-PBMS-P a direct replacement for discontinued SST PROFIBUS PCI slave cards?
A: Yes. The SST-PBMS-P is designed as a retrofit-compatible replacement for legacy SST PCI-bus PROFIBUS slave cards. Existing GSD files, node address configurations, and DP cycle time settings can be transferred directly using the SST configuration tool, minimizing re-engineering effort during the replacement process.

Q2: What commissioning steps are required after installation?
A: After physical installation in the PCI slot, the SST PROFIBUS Configuration Tool should be used to import the existing network configuration, verify slave node addresses, and confirm the DP cycle time. A live bus scan should be performed to confirm that all slave devices are responding correctly before the system is returned to automatic operation. Terminal wiring on the DB9 PROFIBUS connector should be inspected and the bus termination resistors at both segment ends should be confirmed as active.

Q3: Can the SST-PBMS-P operate in systems that also use PROFINET or Ethernet/IP?
A: Yes. The SST-PBMS-P operates as a PROFIBUS-DP slave card and can coexist in control cabinets that also include PROFINET IO adapters or Ethernet/IP communication modules. In hybrid network architectures, the card is typically used to maintain PROFIBUS connectivity for legacy field devices while the broader system migrates toward Ethernet-based protocols. Gateway modules such as the SST-PBTCP-CLX can be used to bridge PROFIBUS and Ethernet/IP segments within the same control platform.

Q4: What warranty and stock availability can I expect?
A: All SST-PBMS-P units supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment functional testing is performed on each unit. Stock availability is subject to current inventory levels — contact our sales team for lead time confirmation and volume pricing. Units are shipped with full documentation and configuration software access.
