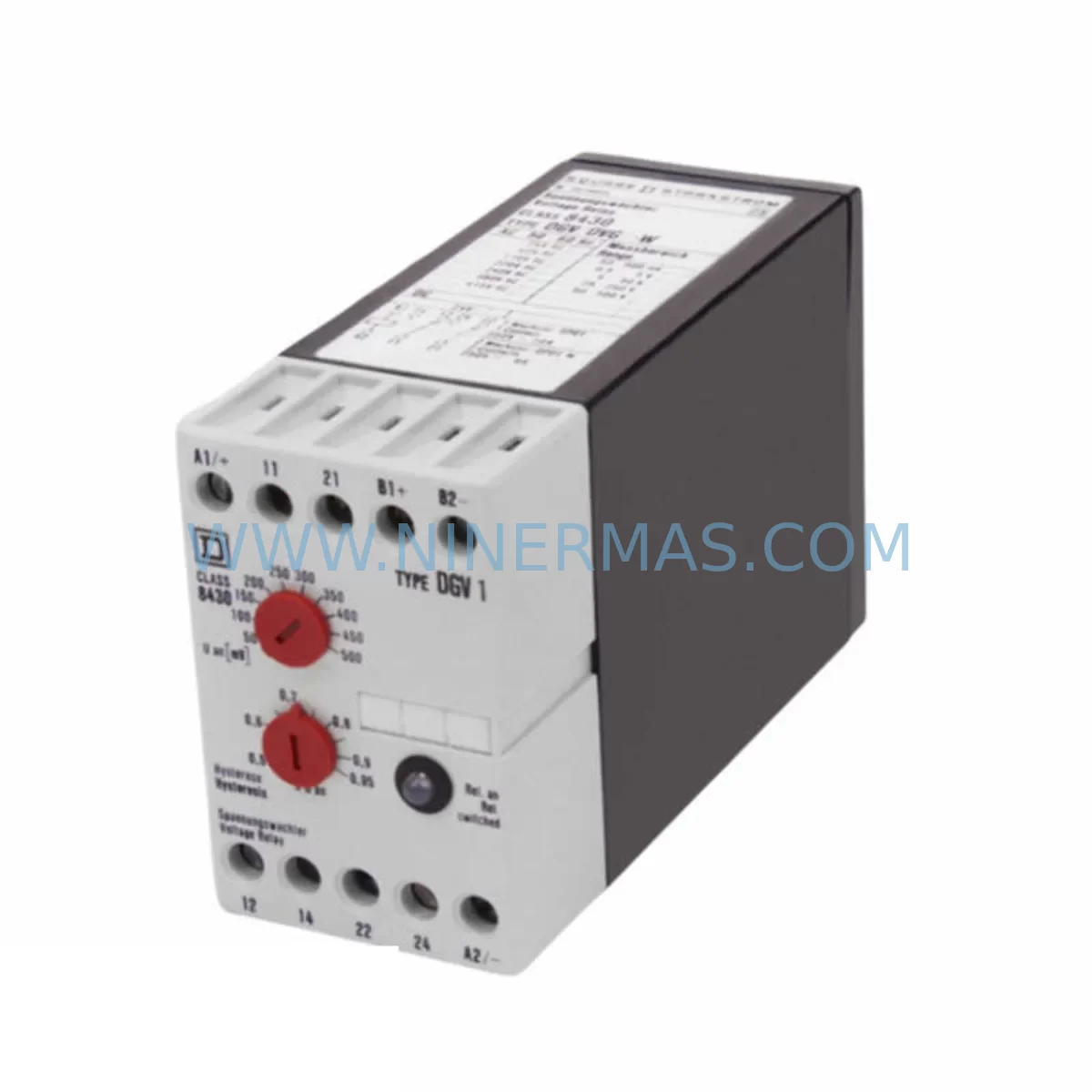

The Square D D8430 is a phase failure relay engineered for the D84 Series motor protection platform — a proven workhorse in industrial control panels across manufacturing, utilities, water treatment, and process automation environments. When a phase loss, phase imbalance, or phase reversal event occurs, the D8430 acts as the first line of defence, tripping the motor circuit before catastrophic winding damage can occur. For maintenance engineers managing aging control infrastructure, having a verified, service-ready D8430 in the spare parts cabinet is not optional — it is a fundamental risk mitigation strategy.

At NINERMAS, every D8430 unit is sourced through controlled procurement channels, individually inspected, and function-tested prior to dispatch. Each unit ships with a 12-month warranty, full traceability documentation, and is packaged to IEC transport standards to prevent transit damage. Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building a strategic MRO buffer stock, the D8430 is available for immediate release from our inventory.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the D8430 in isolation rarely resolves the root cause of a phase-related trip event. Experienced maintenance engineers treat a D8430 replacement as the trigger for a broader control panel inspection. Begin by verifying the incoming three-phase supply voltage at the main disconnect — phase imbalance exceeding 2% at the supply level will cause repeat nuisance trips regardless of relay condition. Check the main circuit breaker or moulded case circuit breaker (MCCB) upstream of the motor starter for contact erosion or thermal derating.

Inspect the Square D TeSys D or TeSys K contactor associated with the motor circuit. Worn main contacts generate resistive heating that mimics phase loss conditions. Alongside the contactor, examine the overload relay — typically a Square D LRD or LR9 series thermal or electronic overload — for correct trip class setting and calibration against the motor’s full-load amperage nameplate.

For panels integrating Altivar 312 or Altivar 61/71 variable frequency drives, confirm that the drive’s internal phase monitoring parameters are not conflicting with the D8430’s external relay logic. Dual-layer phase protection is valid, but trip thresholds must be coordinated to avoid race conditions during motor start-up inrush.

Review the 24 VDC control power supply — a Phaseo ABL7 or equivalent — feeding the relay’s coil circuit. Voltage sag on the control rail during motor start can cause false relay dropout. If the panel uses a Zelio Logic smart relay or a Modicon M221/M241 PLC for sequencing, verify that the D8430’s output contact is correctly wired into the safety interlock chain and that the PLC input module registers the relay state correctly.

Terminal block integrity is frequently overlooked. Inspect Linergy or Entrelec terminal blocks for loose ferrules, oxidised connections, or thermal discolouration — all indicators of high-resistance joints that degrade signal quality to the relay. Replace any suspect terminals during the same maintenance window to avoid a return visit. Finally, if the panel includes a Sepam series protection relay or a PowerLogic power meter for energy monitoring, cross-reference the phase voltage and current readings against the D8430’s trip log to validate the fault history before returning the system to service.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout (LOTO): De-energise the panel at the main isolator. Apply LOTO per site safety procedure. Verify absence of voltage on all three phases using a calibrated CAT III multimeter before opening the enclosure.

Step 2 — Document existing wiring: Photograph or sketch the D8430 terminal connections — supply sensing inputs (L1, L2, L3) and output relay contacts — before removal. Cross-reference against the original panel schematic. Note the relay’s trip delay and sensitivity settings if adjustable.

Step 3 — Remove the failed unit: Loosen terminal screws and withdraw conductors. If DIN rail mounted, depress the rail clip and slide the unit free. Retain the failed unit for failure analysis if required by your maintenance management system (CMMS).

Step 4 — Install the D8430 replacement: Clip the new unit onto the DIN rail or secure panel-mount fasteners. Reconnect all conductors to the correct terminals, matching the documented wiring. Torque terminal screws to the manufacturer’s specified value (typically 0.5–0.8 Nm for this relay class).

Step 5 — Configure trip parameters: Set phase imbalance threshold and trip delay to match the original relay’s settings or the motor protection coordination study values. For legacy D84 Series panels where the original settings are undocumented, apply conservative defaults: 5% imbalance threshold, 3-second delay.

Step 6 — Energise and verify: Re-energise the panel under controlled conditions. Confirm the D8430 powers up without immediate trip. Measure L1–L2, L2–L3, and L1–L3 voltages at the relay sensing terminals. Verify output contact state via the PLC or control system HMI. Conduct a supervised motor start and monitor for stable relay output throughout the start-up transient.

Step 7 — Update maintenance records: Log the replacement in your CMMS with the new unit’s serial number, installation date, and warranty expiry (12 months from NINERMAS dispatch date). Schedule the next inspection interval per your preventive maintenance programme.
