SKF CMON4108 Service-Ready Spare Part for Industrial Maintenance

SKF CMON4108 Service-Ready Spare Part for Industrial Maintenance

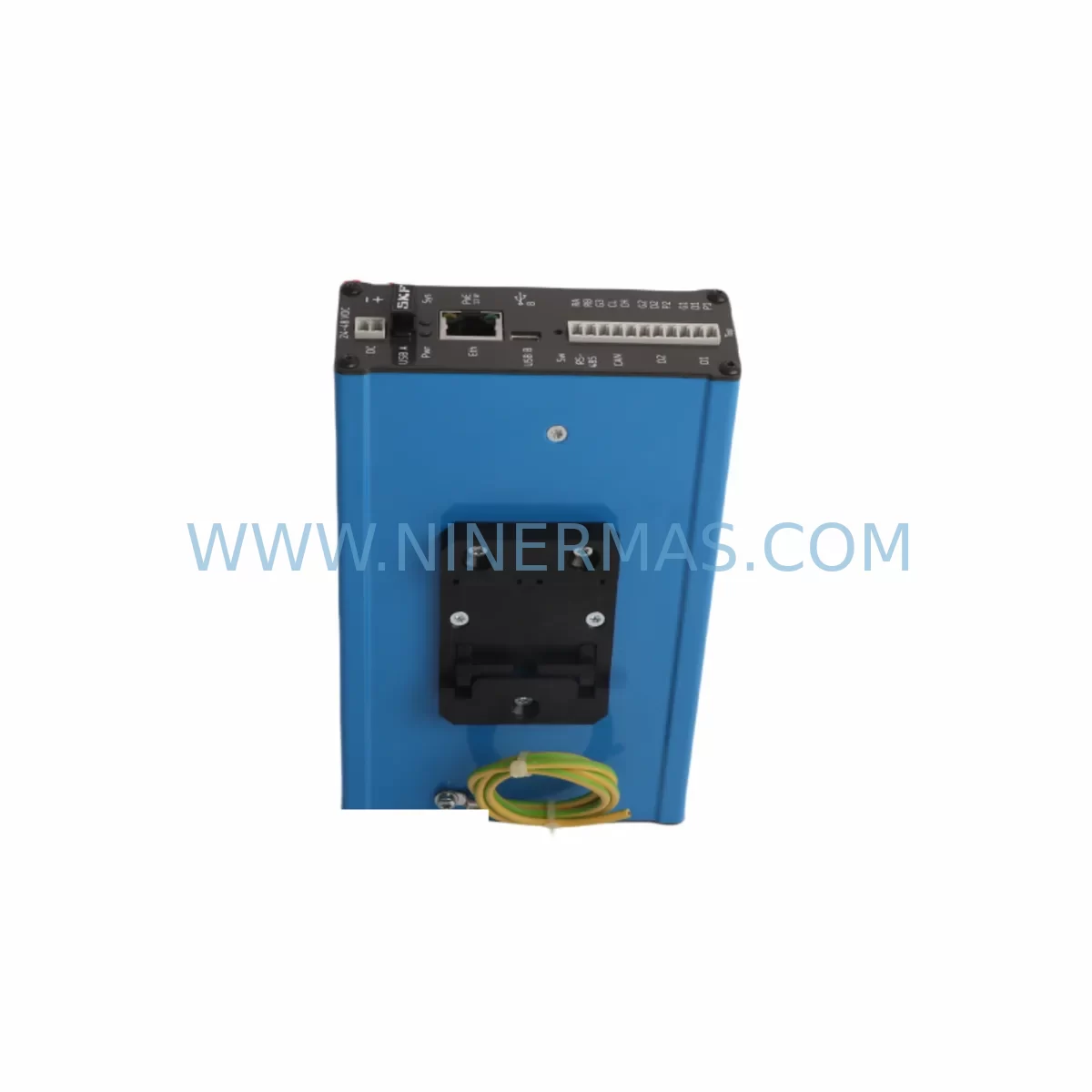

The SKF CMON4108 is an original condition monitoring input module designed for continuous vibration and process parameter acquisition in industrial automation environments. As a critical component within the SKF IMx series online monitoring platform, the CMON4108 supports real-time machinery health surveillance across rotating equipment including motors, pumps, compressors, fans, and gearboxes. Sourced from verified supply channels and pre-shipment tested, this spare part is stocked to support emergency replacement, planned annual overhaul, and long-term lifecycle extension programs for process and discrete manufacturing facilities.

Maintenance engineers and procurement teams managing aging condition monitoring infrastructure rely on the CMON4108 to sustain uninterrupted data acquisition without requiring full system replacement. Its compatibility with the SKF IMx-8, IMx-16, and IMx-S platforms makes it a versatile spare for multi-unit installations. NINERMAS maintains ready stock of the CMON4108 to minimize lead time risk and support critical asset protection strategies across oil & gas, power generation, pulp & paper, and heavy manufacturing sectors.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the CMON4108 in a live condition monitoring cabinet, a structured inspection of adjacent components is essential to prevent repeat failures and ensure data integrity. Begin by verifying the 24 VDC power supply rail feeding the IMx backplane — a degraded SKF PSU or third-party DIN rail power supply can cause intermittent channel dropouts that mimic module failure. Check the backplane connector integrity and confirm that the IMx backplane itself shows no signs of corrosion or mechanical stress at the module slot.

Sensor cabling connected to the CMON4108 input channels should be inspected for shielding continuity and connector seating. Accelerometer cables, proximity probe cables, and thermocouple leads are common sources of signal noise that can be misattributed to module degradation. If the installation uses signal isolators or signal conditioners between field sensors and the CMON4108, verify that these components — such as DIN rail-mounted signal isolators or loop-powered transmitters — are within calibration and free of ground loops.

For installations integrated with a PLC or DCS, confirm that the Modbus TCP or OPC-UA communication link between the CMON4108 and the control system remains stable after module swap. Communication modules, managed Ethernet switches, and fiber media converters within the same panel should be inspected for firmware currency and port health. Where the SKF @ptitude Observer software is used for data trending, verify that the new module’s channel mapping is correctly configured in the software database before returning the asset to monitored service.

Procurement engineers building annual spare parts kits for IMx-based monitoring systems should consider stocking the CMON4108 alongside complementary components: the SKF IMx-8 or IMx-16 main unit, terminal block assemblies, DIN rail power supplies rated at 24 VDC/5A or higher, surge protection devices for sensor inputs, and spare accelerometer connectors. For facilities running extended maintenance intervals, a complete monitoring node spare — including the CMON4108, its associated backplane segment, and a pre-configured communication module — reduces mean time to repair (MTTR) significantly during unplanned outages.

Site Replacement Workflow

Replacing the CMON4108 on-site follows a structured sequence to minimize downtime and preserve historical trend data. Before removal, export the current channel configuration and alarm thresholds from SKF @ptitude Observer or the IMx web interface. This configuration backup ensures that the replacement module can be programmed to identical parameters without manual re-entry, reducing commissioning time from hours to minutes.

Power down the affected IMx node using the system’s controlled shutdown procedure rather than hard-cutting the supply rail, to avoid corrupting the communication buffer. Remove the CMON4108 by releasing the module latch and sliding it clear of the backplane connector. Inspect the backplane pins for debris or oxidation before inserting the replacement unit. After seating the new CMON4108, restore power and confirm that all eight input channels report valid signal levels within the @ptitude Observer dashboard before closing the cabinet.

For legacy IMx installations where the original CMON4108 firmware version is no longer current, coordinate with your SKF service representative or use the IMx firmware update utility to align the replacement module to the system’s active firmware baseline. This step is critical in mixed-version installations where older and newer modules share the same backplane. NINERMAS supplies CMON4108 units with original firmware and can advise on version compatibility based on your IMx system serial number and software revision.

Where the CMON4108 is being used to replace an older or discontinued SKF condition monitoring input card, confirm that the physical connector pinout and channel count match the existing wiring harness. In most IMx-series upgrades, the CMON4108 is a direct form-fit-function replacement, but installations migrating from earlier SKF Multilog or MARLIN-series hardware may require terminal adapter plates or wiring modifications. NINERMAS technical support can provide compatibility guidance prior to shipment to eliminate on-site surprises.

Spare Parts Support FAQ

Q1: Is the CMON4108 compatible with all SKF IMx platform versions?
The CMON4108 is designed for use within the SKF IMx condition monitoring platform, including IMx-8, IMx-16, and IMx-S configurations. Compatibility with specific firmware versions of the IMx main unit should be verified against your system’s software revision. NINERMAS can assist with version matching prior to order confirmation to ensure seamless integration.

Q2: What is included in the 12-month warranty and how does it apply to spare parts?
All CMON4108 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. The warranty period begins from the date of shipment. Warranty claims are supported by NINERMAS directly, with replacement or repair options available depending on failure mode and lead time requirements.

Q3: How quickly can the CMON4108 be shipped for emergency maintenance situations?
NINERMAS maintains ready stock of the CMON4108 to support emergency procurement scenarios. Standard lead time is 3–5 business days for international shipments. For critical plant shutdowns or unplanned outages, expedited shipping options are available. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock availability and arrange priority dispatch.

Q4: Can NINERMAS support long-term supply agreements for the CMON4108 and related IMx spare parts?
Yes. NINERMAS offers long-term spare parts supply programs for industrial facilities managing extended asset lifecycles. These programs include reserved stock commitments, fixed pricing agreements, and scheduled delivery plans for the CMON4108 and complementary IMx-series components. This is particularly valuable for facilities operating beyond the standard product lifecycle where OEM availability is uncertain. Contact our sales team to discuss program terms aligned to your maintenance planning cycle.
