SIPOS 2SY5016-1SB00 Retrofit-Compatible Actuator Control

SIPOS 2SY5016-1SB00 Retrofit-Compatible Actuator Control for Legacy Systems

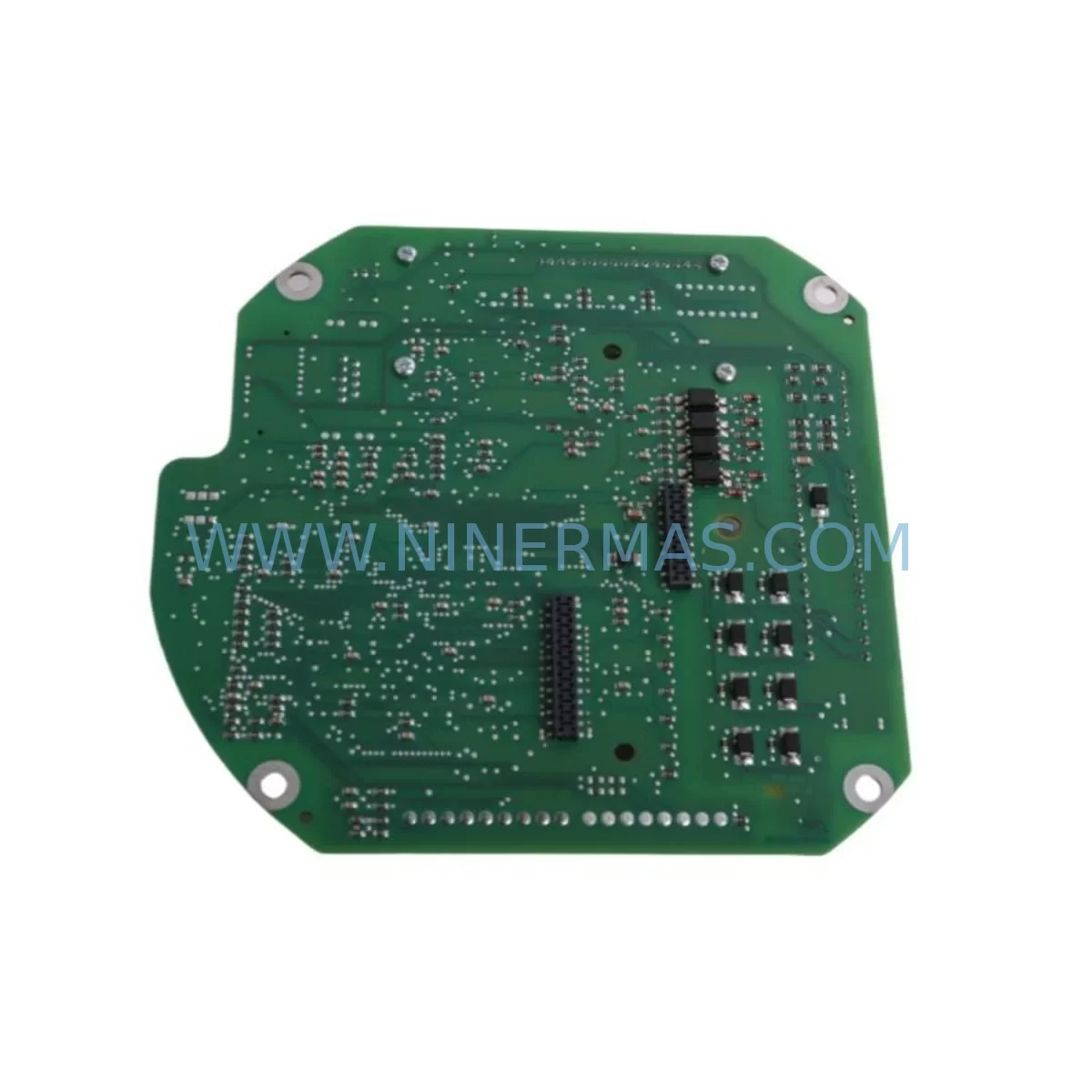

The SIPOS 2SY5016-1SB00 is a ruggedized actuator control board engineered for demanding industrial environments where reliability, longevity, and backward compatibility are non-negotiable. As automation facilities worldwide face the challenge of maintaining aging SIPOS 2SA5 and 5WG series actuator platforms, the 2SY5016-1SB00 has become a critical retrofit component — enabling engineers to restore full control functionality without committing to a complete actuator replacement or a full DCS migration.

Whether you are managing a petrochemical plant, a water treatment facility, a power generation station, or a heavy process industry site, the 2SY5016-1SB00 provides a direct-fit solution for control board failures in legacy SIPOS actuator cabinets. Its ruggedized design ensures stable operation across wide temperature ranges and in high-vibration environments, making it suitable for both indoor control rooms and outdoor field-mounted actuator enclosures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed SIPOS 2SY5016-1SB00 control board in an operating plant requires careful pre-planning to avoid extended downtime and to protect the integrity of the existing control system. Before initiating the board swap, engineers should conduct a full review of the actuator’s current parameterization using the SIPOS PC Tool connected via a USB programming cable. Backing up the existing parameter set — including torque limits, travel limits, control mode (local/remote), and PROFIBUS node address — is essential before powering down the actuator.

In plants running PROFIBUS DP networks, the 2SY5016-1SB00 replacement board must be assigned the same node address as the failed unit to avoid disruption to the PROFIBUS master (typically a Siemens S7-300, S7-400, or S7-1500 PLC). If the site uses a SIMATIC ET 200M or ET 200S distributed I/O rack for actuator signal routing, verify that the DP segment remains intact during the board replacement window. For sites with HART-enabled configurations, confirm that the HART multiplexer or asset management system (such as a Siemens SIMATIC PDM or third-party AMS) can re-establish communication with the new board after parameterization is restored.

Terminal wiring on the 2SY5016-1SB00 should be photographed and documented before disconnection. The board interfaces with the actuator’s internal terminal block, and any miswiring of the position feedback signal, the torque switch circuit, or the motor contactor control lines can result in actuator malfunction or damage. Cross-reference the field wiring against the actuator’s original wiring diagram (available in the SIPOS 2SA5 or 5WG operating manual) before reconnecting.

For control cabinets housing multiple SIPOS actuator drives — particularly in valve manifold stations or multi-actuator skids — it is advisable to also inspect adjacent 2SY5010-series power supply modules and 2SY5020-series I/O expansion boards during the same maintenance window. Aging power supply capacitors in the 2SY5010 PSU can cause intermittent control board resets that mimic a board failure, so replacing the PSU alongside the control board is a common best practice in long-running installations.

Where the retrofit involves migrating from an older SIPOS 5WG platform to the newer 2SA5 architecture, engineers must also account for changes in the PROFIBUS GSD file. The updated GSD file for the 2SA5 series must be imported into the PLC engineering tool (such as Siemens STEP 7 or TIA Portal) and the hardware configuration must be updated accordingly. This step is critical to ensure that the PLC correctly interprets the actuator’s status words, control words, and diagnostic data after the upgrade.

In facilities where the actuator is integrated with a Siemens SIMATIC WinCC or third-party SCADA system, HMI screen objects linked to the actuator’s PROFIBUS data blocks should be reviewed after the board replacement. Position feedback scaling, alarm limits, and interlock logic tied to the actuator’s open/close/fault status bits must be verified against the new board’s data structure before returning the actuator to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a SIPOS 2SY5016-1SB00 control board in a live production environment. The recommended approach is to pre-stage the replacement board — fully parameterized offline using the SIPOS PC Tool — so that the actual on-site swap is reduced to a physical board exchange and a brief functional verification, rather than a full commissioning exercise.

Where process conditions allow, the actuator should be placed in local manual control mode before the board is removed. This ensures that the valve or damper remains in its last commanded position during the replacement window, protecting process continuity. For critical control loops where the actuator cannot be taken offline, coordinate with the DCS or PLC operator to place the associated control loop in manual mode and confirm that any interlock or safety function associated with the actuator is bypassed or acknowledged in the safety system before proceeding.

Once the replacement 2SY5016-1SB00 board is installed and the actuator is powered up, perform a local end-to-end stroke test (open → close → open) before returning the actuator to remote PROFIBUS control. Verify that the position feedback signal (4–20 mA or PROFIBUS position word) matches the physical valve position as observed in the field. Confirm that torque trip values are within the expected range and that no diagnostic alarms are active on the PROFIBUS master or the SCADA system before releasing the actuator to automatic control.

All units supplied by NINERMAS are pre-tested prior to shipment and covered by a 12-month warranty. In-stock availability ensures rapid dispatch, reducing the gap between fault identification and system restoration — a critical factor in minimizing production losses during unplanned actuator failures.

Retrofit Support FAQ

Q1: Is the SIPOS 2SY5016-1SB00 a direct replacement for the board in my existing 2SA5 or 5WG actuator?
A: Yes. The 2SY5016-1SB00 is designed as a direct board-level replacement for the control board in SIPOS 2SA5 and 5WG series actuators. Physical dimensions, backplane connector layout, and terminal block interfaces are compatible. However, always verify the exact actuator model and existing board revision against the replacement unit’s datasheet before installation.

Q2: Do I need to re-parameterize the actuator after replacing the control board?
A: Yes. The 2SY5016-1SB00 does not retain the previous board’s parameter set. You must reload the actuator’s parameterization (torque limits, travel limits, PROFIBUS node address, control mode, etc.) using the SIPOS PC Tool via USB programming cable. If a parameter backup was not taken from the failed board, parameters can be reconstructed from the actuator’s original commissioning documentation or estimated from the process design basis.

Q3: Can I verify the board is functional before installing it in the actuator?
A: All 2SY5016-1SB00 units supplied by NINERMAS are tested prior to shipment. Upon receipt, a basic power-on test can be performed using the SIPOS PC Tool to confirm board communication before installation. Full functional verification (stroke test, torque verification, PROFIBUS communication check) should be completed after installation in the actuator and before returning to automatic control.

Q4: What is the warranty and lead time for the SIPOS 2SY5016-1SB00?
A: NINERMAS provides a 12-month warranty on all supplied units. In-stock units are available for immediate dispatch. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and shipping lead time to your location.
