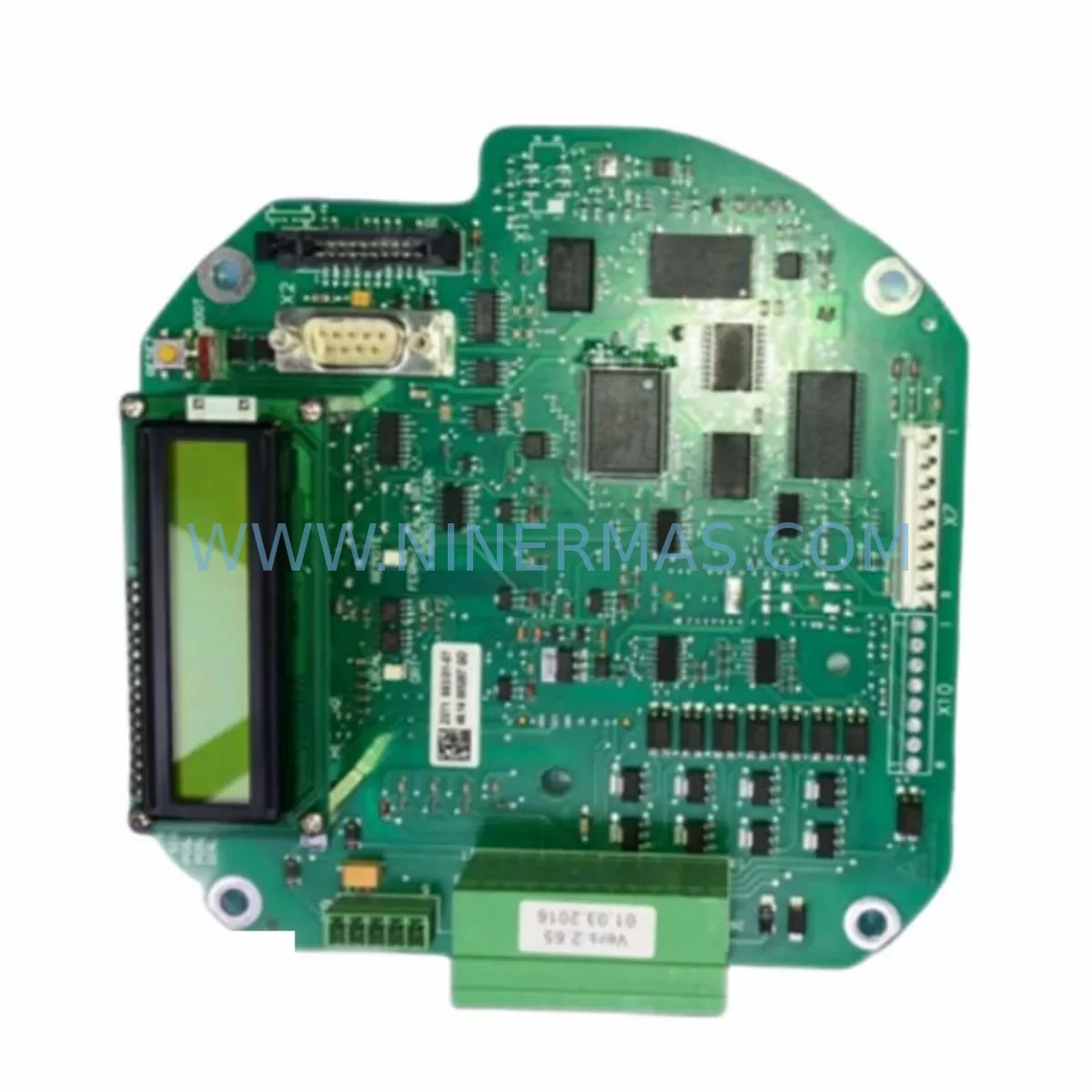

The SIPOS 2SY5016-2SB00 is a genuine control module spare part designed for the SIPOS 2SY5 series electric actuator platform — one of the most widely deployed actuator families in process automation, pipeline control, power generation, and water treatment facilities worldwide. When a 2SY5016-2SB00 fails or reaches end-of-service life, unplanned downtime can cascade across valve control loops, affecting entire process lines. Sourcing a verified, service-ready replacement from a reliable spare parts supplier is the fastest path to restoring full operational capacity.

At NINERMAS, every 2SY5016-2SB00 unit is sourced through controlled procurement channels, inspected prior to dispatch, and covered by a 12-month warranty. We maintain forward stock to support emergency replacement, scheduled annual overhaul, and long-term spare parts inventory programs for maintenance teams managing aging SIPOS actuator fleets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 2SY5016-2SB00 in a SIPOS 2SY5 actuator is rarely an isolated task. Experienced maintenance engineers know that a module failure often signals broader stress across the actuator’s electrical and control architecture. A thorough site replacement should include a systematic inspection of all interconnected components to prevent repeat failures and reduce the risk of secondary downtime.

Begin with the actuator power supply circuit: verify that the incoming 24 VDC or AC control voltage is within tolerance and that the power supply module — such as a SIPOS 2SY5 power board or an equivalent DIN-rail 24 VDC SITOP PSU — is delivering stable, ripple-free output. Voltage fluctuations are a leading cause of premature control module failure and should be ruled out before commissioning the replacement 2SY5016-2SB00.

Next, inspect the position feedback and signal wiring. The 2SY5 series relies on precise position transmitter signals — typically 4–20 mA or potentiometer-based — routed through the control module. Check the signal isolator or galvanic separator in the loop for drift or insulation breakdown. Components such as a SIPOS position transmitter board or a third-party DIN-rail signal isolator in the same cabinet should be tested for accuracy.

The I/O interface and terminal block assembly deserve close attention. Loose or corroded terminals on the actuator’s field wiring — including OPEN, CLOSE, and STOP command inputs — can cause intermittent faults that mimic module failure. Inspect and re-torque all terminal connections, and consider replacing aged Phoenix Contact or Weidmüller terminal blocks if corrosion or mechanical fatigue is evident.

For actuators integrated into a PROFIBUS DP or HART communication loop, verify the fieldbus interface card — such as the SIPOS 2SY5 PROFIBUS module — is correctly addressed and communicating without CRC errors. A faulty fieldbus node can mask or amplify control module faults. Similarly, if the actuator is connected to a Siemens S7-300 or S7-400 PLC via a remote I/O rack, confirm that the corresponding SM321/SM322 digital I/O module is functioning correctly and that the PLC program logic reflects the correct actuator feedback states.

During annual overhaul or planned shutdown maintenance, it is best practice to simultaneously inspect the actuator’s torque switch assembly, limit switch contacts, and motor thermal protection relay. These mechanical and electromechanical components age in parallel with the control electronics and are frequently overlooked until they cause a secondary fault after a module replacement. Stocking a SIPOS 2SY5 limit switch kit or equivalent alongside the 2SY5016-2SB00 ensures a complete restoration rather than a partial repair.

Finally, for control cabinets housing multiple SIPOS actuator drive circuits, review the cabinet-level fuse protection — typically 2A or 4A miniature circuit breakers per actuator branch — and confirm that the 24 VDC bus bar distribution is correctly rated. A blown fuse or undersized MCB protecting the 2SY5016-2SB00 supply rail is a common root cause that must be corrected before the replacement module is energized.

Site Replacement Workflow

Replacing the SIPOS 2SY5016-2SB00 on-site follows a structured sequence to minimize downtime and ensure system compatibility:

1. Isolate and de-energize: Switch off the actuator control supply at the MCB. Apply LOTO (Lockout/Tagout) per site safety procedure. Confirm zero voltage at the actuator terminal box before opening the enclosure.
2. Document existing wiring: Photograph or sketch all terminal connections on the existing module before disconnection. Cross-reference against the SIPOS 2SY5 wiring diagram for your specific actuator variant.
3. Remove the failed module: Unplug or unscrew the 2SY5016-2SB00 from its mounting position. Note any visible signs of burn marks, moisture ingress, or component damage that may indicate a root cause beyond the module itself.
4. Verify replacement compatibility: Confirm the replacement 2SY5016-2SB00 part number and revision level match the actuator’s nameplate and service documentation. SIPOS 2SY5 variants may have sub-variants — always verify before installation.
5. Install and reconnect: Mount the replacement module, reconnect all terminals per the documented wiring layout, and ensure all connectors are fully seated.
6. Power-up and commission: Restore control supply and perform a full actuator stroke test — OPEN, CLOSE, and intermediate position — to confirm correct operation. Verify position feedback signal at the DCS or PLC input.
7. Update maintenance records: Log the replacement date, part number, and any observations in the site CMMS. Schedule the next inspection interval per the actuator’s maintenance plan.

This workflow applies equally to emergency breakdown replacements and planned overhaul scenarios. Having a pre-tested, in-stock 2SY5016-2SB00 on the shelf reduces mean time to repair (MTTR) from days to hours.

Spare Parts Support FAQ

Q1: Is the SIPOS 2SY5016-2SB00 a direct drop-in replacement for all 2SY5 series actuators?
The 2SY5016-2SB00 is designed for specific variants within the SIPOS 2SY5 platform. Compatibility depends on the actuator’s nameplate data, firmware revision, and control configuration. Always cross-reference the actuator’s full model number and service documentation before ordering. NINERMAS technical support can assist with compatibility verification prior to purchase.

Q2: What pre-shipment checks does NINERMAS perform on the 2SY5016-2SB00?
Every unit undergoes a functional inspection and electrical continuity check before dispatch. Units are packaged in anti-static protective packaging to prevent ESD damage during transit. A 12-month warranty is included from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can NINERMAS support long-term or blanket order supply for the 2SY5016-2SB00?
Yes. NINERMAS supports annual maintenance contracts and blanket purchase order programs for critical spare parts including the 2SY5016-2SB00. This is particularly valuable for facilities operating large fleets of SIPOS 2SY5 actuators where lifecycle planning and guaranteed stock availability are essential for operational continuity. Contact our team to discuss volume pricing and lead-time commitments.

Q4: What should I do if the replacement 2SY5016-2SB00 does not resolve the actuator fault?
If the actuator fault persists after module replacement, the root cause likely lies in an upstream or downstream component — power supply instability, fieldbus communication errors, wiring faults, or mechanical actuator issues. NINERMAS recommends a systematic diagnostic approach covering the full actuator control loop before concluding that the replacement module is defective. Our technical support team is available to assist with fault isolation guidance.
