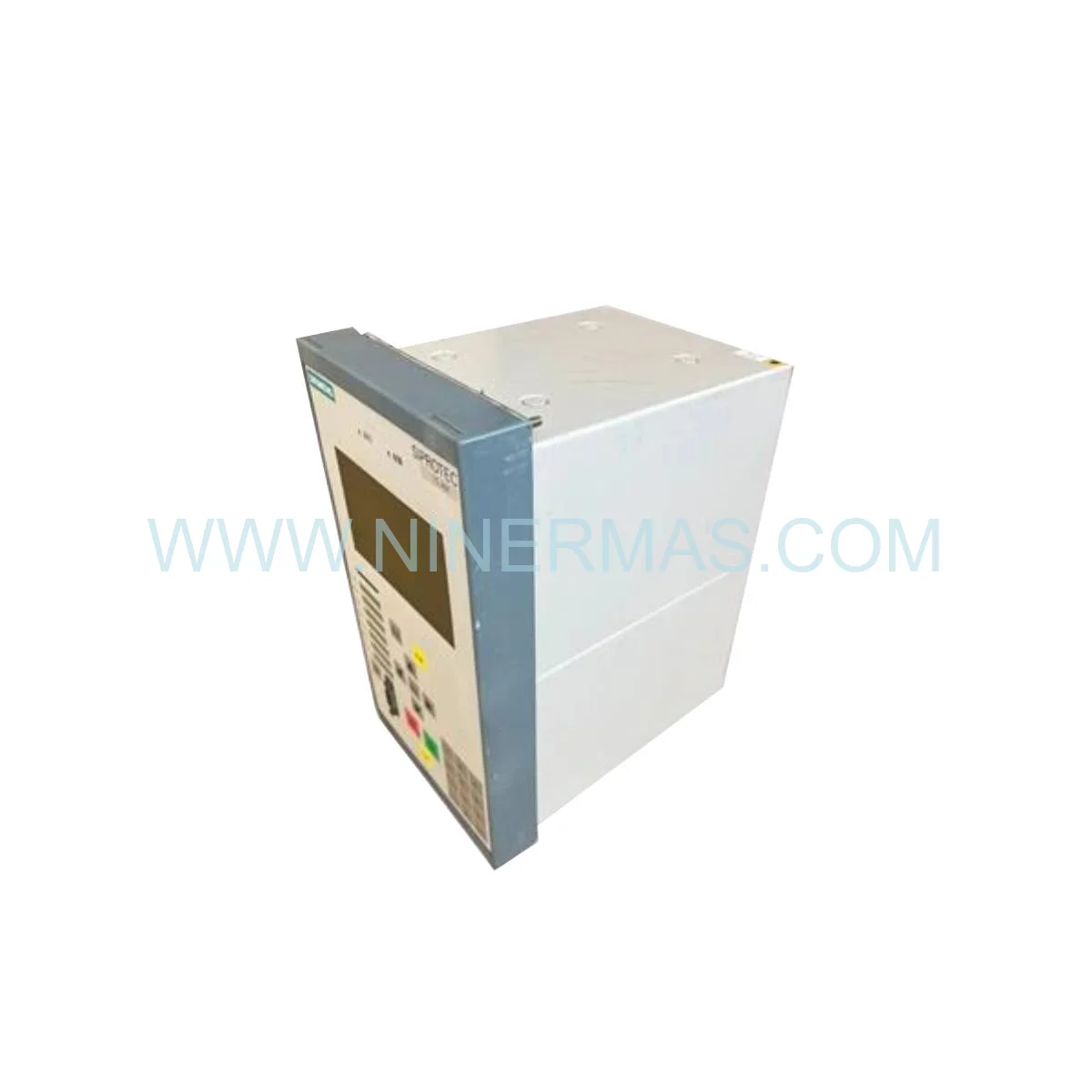

SIEMENS SIPROTEC 7SJ6825-4EW20-0FE0/BB Overcurrent Relay — New & Original

SIEMENS SIPROTEC 7SJ6825-4EW20-0FE0/BB | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical power infrastructure, the SIEMENS 7SJ6825-4EW20-0FE0/BB stands as a cornerstone of system availability assurance. Deployed across medium-voltage feeders, industrial bus sections, and substation protection panels, this SIPROTEC unit delivers deterministic fault isolation — a non-negotiable requirement when unplanned downtime translates directly into production loss. Its multi-function protection architecture (ANSI 50/51, 50N/51N, 67) enables a single device to replace multiple discrete relays, reducing panel complexity and improving overall system uptime.

In harsh industrial environments — including petrochemical plants, steel mills, and offshore platforms — the 7SJ6825-4EW20-0FE0/BB demonstrates exceptional resilience. Rated for operation between -25°C and +70°C with a sealed housing compliant to IP40, it withstands vibration, humidity, and electromagnetic interference without performance degradation. During installation, engineers should verify auxiliary supply polarity (100-240V AC/DC), confirm CT secondary wiring integrity before energization, and apply DIGSI 4 software for parameter upload to eliminate manual entry errors.

As a strategic spare-parts holding, the 7SJ6825-4EW20-0FE0/BB is increasingly difficult to source through standard distribution channels as the SIPROTEC 4 generation matures. Maintaining at least one unit in your critical spares inventory eliminates the risk of extended lead times — often 12-26 weeks for factory orders — during an emergency replacement scenario. Process Optimization begins with proactive inventory management of automation components like this one.

Key Operational Features

Redundant Protection Logic: Simultaneous phase and earth fault supervision with independent trip outputs ensures High Availability even under complex fault conditions.
Seamless Integration via IEC 61850: Native GOOSE messaging and MMS reporting enable direct integration into modern substation automation architectures without protocol converters.
Programmable Characteristic Curves: IEC/IEEE definite-time and inverse-time curves (Normal Inverse, Very Inverse, Extremely Inverse) configurable per feeder application.
Directional Element (ANSI 67/67N): Distinguishes fault direction in ring-bus and meshed network topologies — critical for Operational Excellence in complex grid configurations.
Integrated Fault Recorder: 8-channel disturbance recording at up to 1 kHz sampling rate supports post-event forensic analysis and System Integration with SCADA historians.
Self-Monitoring & Watchdog: Continuous hardware diagnostics with alarm output guarantee relay readiness — a fundamental requirement for Mission-Critical I/O Modules and protection devices.

Maintenance & Performance Benchmarks

The 7SJ6825-4EW20-0FE0/BB is engineered to adapt across industrial network architectures of varying scale and complexity. In small-to-medium installations (single radial feeders, motor protection panels), the relay operates as a standalone protection device with local HMI control via its graphical LCD. Configuration is completed in under 4 hours using DIGSI 4 software on a standard laptop via the front RS-232 port.

In large-scale substation environments with centralized SCADA control, the relay participates as a full IEC 61850 Logical Node, publishing real-time measurements, protection status, and event logs to the station bus. PROFIBUS DP and Modbus RTU interfaces provide backward compatibility with legacy DCS platforms, ensuring smooth System Integration without infrastructure replacement.

Recommended maintenance intervals: functional trip testing every 12 months, insulation resistance verification every 24 months, and firmware version audit at each scheduled outage. SIEMENS recommends DIGSI 4 V4.92 or later for full feature compatibility with this variant. Mean Time Between Failures (MTBF) for the SIPROTEC 7SJ68 series exceeds 100,000 hours under standard operating conditions — a benchmark that underpins its role as a trusted Automation Component in long-lifecycle industrial assets.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 7SJ6825-4EW20-0FE0/BB is dispatched in Original Factory Packaging with full SIEMENS labeling, serial number traceability, and factory test certificates included. This guarantees authenticity verification upon receipt — a critical requirement for regulated industries such as nuclear, oil & gas, and utilities.

Same-Day Dispatch is available for in-stock units when orders are confirmed before 14:00 CST. Express courier options (DHL, FedEx, UPS) support delivery to major industrial hubs across North America, Europe, Southeast Asia, and the Middle East within 3-7 business days.

As a specialist in End-of-Life (EOL) and Legacy Module Sourcing, we maintain global supply channels for discontinued SIPROTEC 4 variants. Whether you require a single emergency replacement or a bulk procurement for a fleet-wide maintenance program, our sourcing network covers factory-new, surplus-new, and certified-refurbished stock with full documentation. Operational Excellence in spare parts management starts with a reliable supply partner.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 7SJ6825-4EW20-0FE0/BB?
A: Begin by verifying panel cutout dimensions (177-254 mm). Mount the relay using the supplied brackets. Wire CT secondaries (1A or 5A) to the rear terminal block per the wiring diagram in the SIEMENS manual C53000-G1176-C159. Connect auxiliary supply (100-240V AC/DC) and binary input/output wiring. Connect the DIGSI 4 laptop via front RS-232 or rear Ethernet port. Upload the parameter file, perform a secondary injection test, and verify trip output continuity before energization.

Q2: Which firmware versions are compatible with this relay variant?
A: The 7SJ6825-4EW20-0FE0/BB ships with factory-installed firmware. DIGSI 4 V4.92 or later is required for full parameter access. Firmware upgrades must be performed by qualified personnel using the SIEMENS firmware loader utility. Contact SIEMENS technical support or our engineering team to confirm the installed firmware version before any upgrade attempt.

Q3: Does this relay support IEC 61850 GOOSE messaging for inter-relay communication?
A: Yes. The Ethernet interface supports IEC 61850 Edition 1 with GOOSE publishing and subscription, enabling high-speed inter-relay blocking and tripping schemes without hardwired connections. This is essential for busbar protection and breaker failure schemes in modern substation automation architectures.

Q4: How is the warranty claim process handled?
A: All units carry a 12-month warranty from the date of invoice. In the event of a defect, contact sale@ninermas.com with the serial number, purchase order reference, and a description of the fault symptom. We will arrange return shipping (prepaid label provided), perform technical evaluation within 5 business days, and dispatch a replacement unit or issue a credit note upon confirmation of a valid warranty claim.

Q5: Can this relay replace an older 7SJ6x series unit directly?
A: The 7SJ6825-4EW20-0FE0/BB is dimensionally and functionally compatible with other SIPROTEC 4 7SJ68 variants. However, parameter files from earlier 7SJ61/62/63 series are not directly transferable — a parameter migration using DIGSI 4 is required. Terminal wiring assignments should be verified against the specific variant’s wiring diagram before installation.

Q6: Is documentation (manual, test report, certificate of conformance) included with the shipment?
A: Yes. Each shipment includes the SIEMENS factory test certificate, CE declaration of conformity, and a reference to the applicable SIEMENS technical manual (available for download from the SIEMENS Industry Online Support portal). A certificate of origin (Germany) is available upon request for customs and regulatory compliance purposes.
