Field Application & Operational Analysis

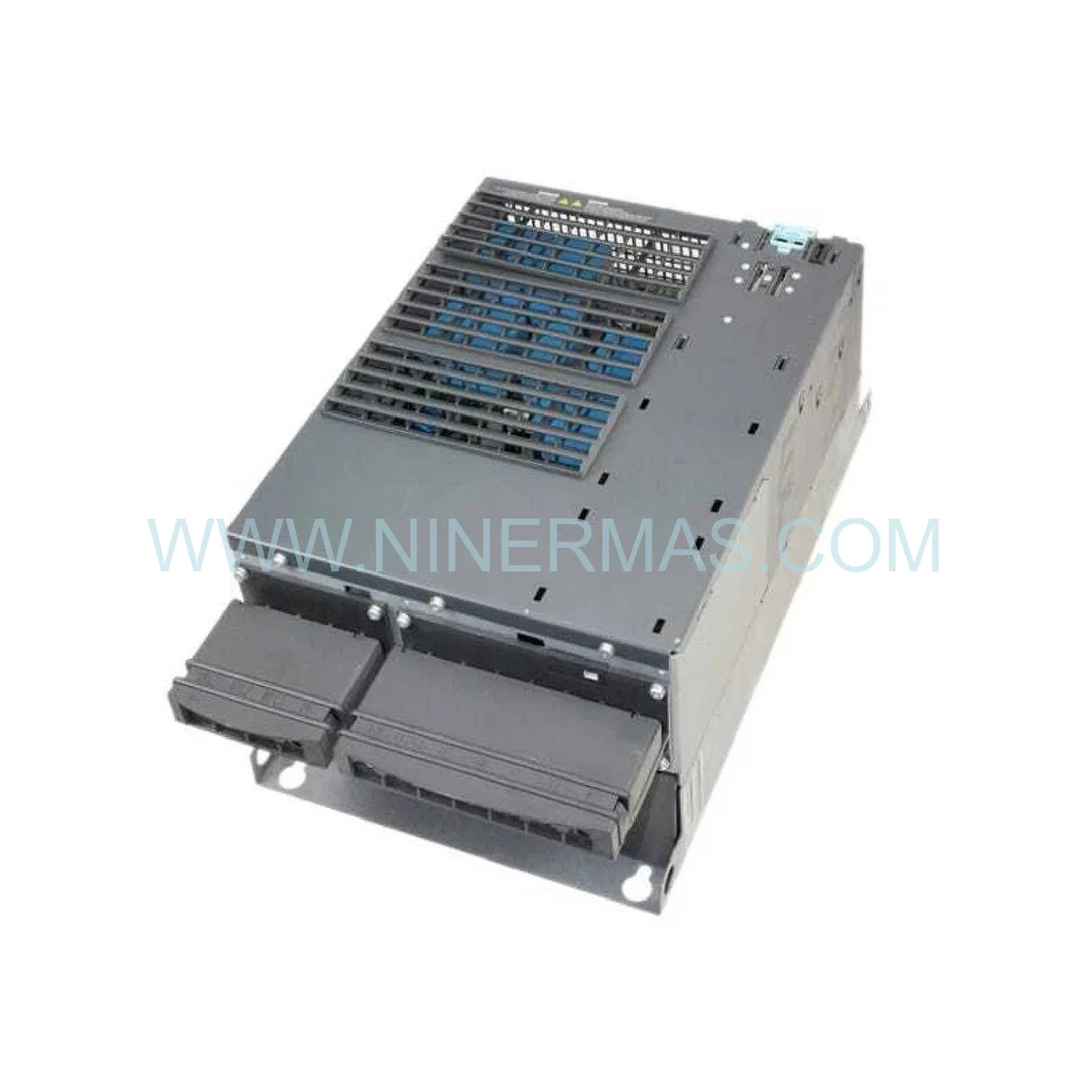

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Siemens 6SL3225-0BE32-2AA0 stands as a cornerstone component for sustaining system availability in high-demand industrial environments. As a PM250 power module within the SINAMICS G120 modular drive platform, the 6SL3225-0BE32-2AA0 delivers 30kW of precisely regulated motor output, enabling seamless integration into pump stations, conveyor systems, and process automation lines where unplanned downtime carries severe operational and financial consequences.

Engineered for durability under harsh industrial conditions, the 6SL3225-0BE32-2AA0 operates reliably across an ambient temperature range of -10°C to +50°C, with an IP20 protection class suited for controlled cabinet installations. During commissioning, engineers should verify adequate ventilation clearances, confirm input voltage compatibility at 380-480V AC (3-phase), and ensure the paired control unit firmware aligns with the module’s parameter set to prevent initialization faults.

Maintaining a certified spare unit of this module on-site is a recognized best practice in operational excellence frameworks. Given the extended lead times often associated with legacy or high-demand automation components, pre-positioning the 6SL3225-0BE32-2AA0 as a critical inventory item directly reduces mean time to repair (MTTR) and protects production continuity.

Key Operational Features

High Availability Architecture: Modular PM250 design allows rapid hot-swap replacement without rewiring the entire drive cabinet, minimizing downtime during corrective maintenance.
Redundancy-Ready Platform: Compatible with SINAMICS G120 control units supporting Safe Torque Off (STO) and Safe Stop 1 (SS1) safety functions for redundant shutdown paths.
Seamless System Integration: Interfaces with PROFINET, PROFIBUS DP, Modbus RTU, and USS protocols via paired CU modules, enabling plug-and-play connectivity into existing DCS/SCADA architectures.
Advanced Vector Control: Supports both V/f and closed-loop vector control modes, delivering precise torque regulation across the full speed range — critical for process optimization in variable-load applications.
Robust Overload Tolerance: Rated at 150% overload for 60 seconds and 200% for 3 seconds, accommodating demanding start cycles in compressor and mixer applications.
Energy Recovery Capability: PM250 topology supports regenerative braking, feeding recovered energy back to the supply network and reducing overall energy consumption.

Maintenance & Performance Benchmarks

The 6SL3225-0BE32-2AA0 is architected to adapt across diverse industrial network scales — from standalone machine-level deployments to plant-wide distributed control systems. In small-scale installations, the module pairs directly with a CU240E-2 control unit for local parameter control via BOP-2 operator panel, requiring no additional network infrastructure. In mid-scale architectures, PROFIBUS DP connectivity enables centralized PLC supervision of multiple drive nodes, supporting coordinated motion sequences across production lines.

For enterprise-level I/O Module integration within Industry 4.0 frameworks, the SINAMICS G120 ecosystem supports PROFINET IRT communication, enabling deterministic cycle times below 1ms — a prerequisite for synchronized multi-axis applications. Predictive maintenance strategies benefit from the drive’s built-in diagnostic registers, which log thermal load history, fault codes, and operating hours, allowing maintenance teams to schedule interventions before failures occur. This data-driven approach to system integration is fundamental to achieving operational excellence benchmarks in modern manufacturing environments.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6SL3225-0BE32-2AA0 dispatched from our facility is supplied in Original Factory Packaging, complete with Siemens factory labels, serial number traceability, and tamper-evident seals — guaranteeing authenticity from source to installation. For urgent production recovery scenarios, same-day dispatch is available for in-stock units when orders are confirmed before the daily cut-off time, with worldwide express logistics options via DHL, FedEx, and UPS to minimize transit lead times.

We maintain dedicated inventory of both current-production and End-of-Life (EOL) / Legacy Module variants to support long-running plant assets that cannot be easily upgraded. Our global supply network spans authorized distribution channels across Europe, Asia-Pacific, and the Americas, ensuring consistent access to genuine Siemens automation components regardless of regional availability constraints. All units undergo pre-shipment inspection including visual verification, packaging integrity check, and barcode validation against manufacturer records.

Engineering Support & FAQ

Q1: What control unit is compatible with the 6SL3225-0BE32-2AA0 for PROFINET communication?
A: The PM250 power module requires a separate SINAMICS G120 control unit. For PROFINET connectivity, the CU240E-2 PN or CU250S-2 PN are the recommended pairings. Ensure the CU firmware version is V4.7 or later for full parameter compatibility with this power module variant.

Q2: What are the installation clearance requirements for this module?
A: Siemens specifies a minimum of 100mm clearance above and below the unit for adequate convection cooling. Side-by-side mounting is permissible with 0mm lateral clearance when using the standard booksize format, but ambient temperature derating applies above 40°C. Always consult the SINAMICS G120 PM250 Hardware Installation Manual (A5E03263466) for site-specific guidance.

Q3: Which firmware version should be loaded for optimal performance?
A: Siemens recommends aligning the control unit firmware with the drive’s parameter backup file. For new installations, firmware V4.9 SP2 or later is advised for access to the latest safety function certifications and bug fixes. Firmware packages are available via the Siemens Industry Online Support (SIOS) portal using the module’s MLFB number.

Q4: How is the warranty claim process handled for this module?
A: Units supplied by us carry a 1-Year Warranty covering manufacturing defects and component failures under normal operating conditions. To initiate a warranty claim, contact our technical support team with the unit serial number, fault description, and installation date. We coordinate directly with the logistics process to arrange return, inspection, and replacement or repair within agreed SLA timelines.

Q5: Can this drive be used in a regenerative braking application?
A: Yes. The PM250 designation specifically indicates that this power module supports energy recovery (regenerative operation), feeding braking energy back into the AC supply network. This makes it particularly suitable for applications with frequent deceleration cycles such as centrifuges, hoists, and high-inertia conveyor systems — contributing directly to process optimization and reduced energy costs.

Q6: Is this module suitable for use in SIL 2 safety-rated systems?
A: The 6SL3225-0BE32-2AA0, when paired with a compatible safety-rated control unit (e.g., CU250S-2), supports STO (Safe Torque Off) and SS1 (Safe Stop 1) functions certified to SIL 2 / PLd per IEC 62061 and EN ISO 13849-1. A formal safety assessment by a qualified functional safety engineer is required to validate the complete safety loop design.
