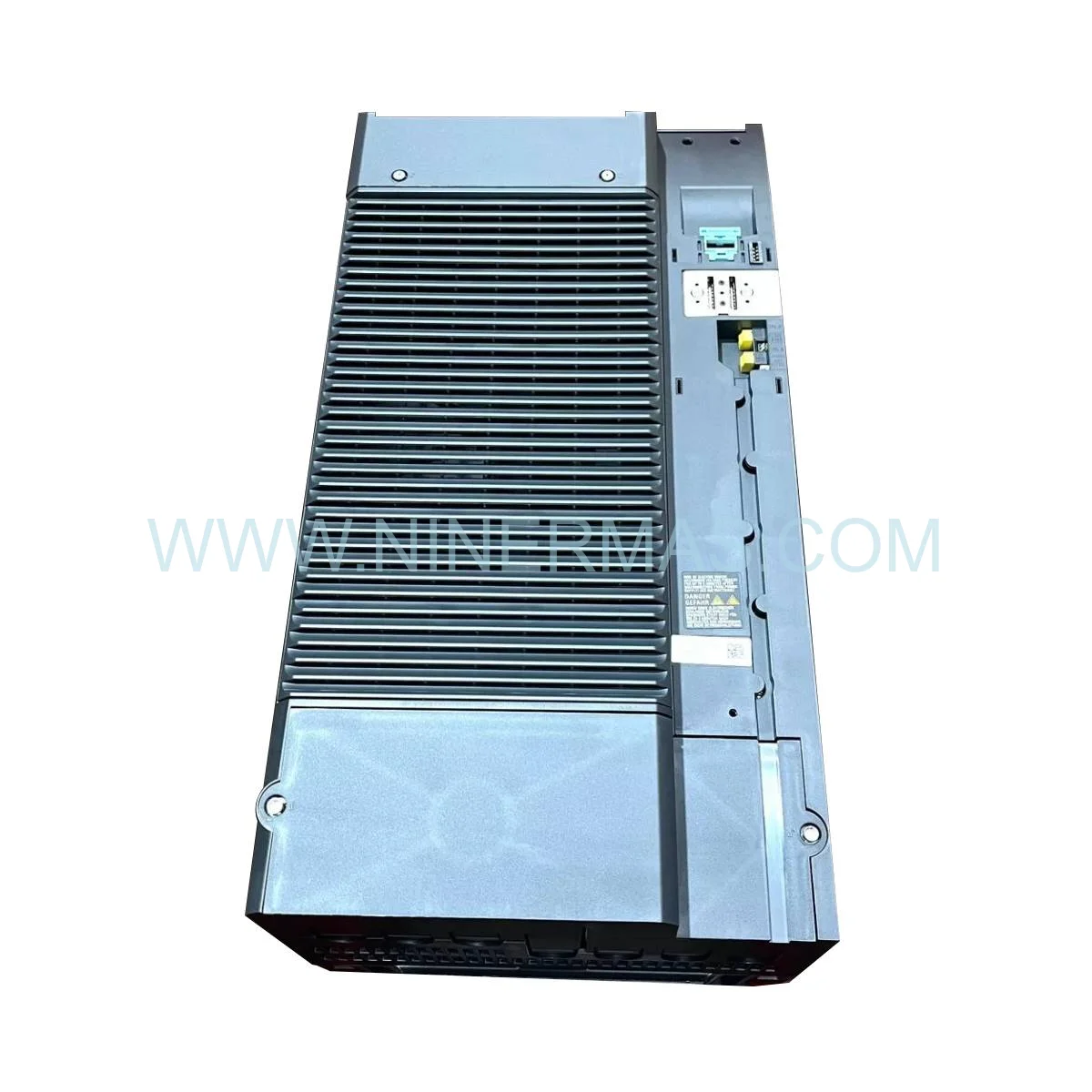

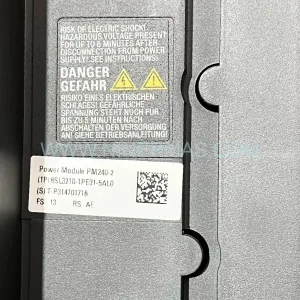

Siemens SINAMICS G120 6SL3210-1PE31-5AL0 Power Module — New & Original

Siemens SINAMICS G120 6SL3210-1PE31-5AL0 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous production environments, the 6SL3210-1PE31-5AL0 is not merely a variable frequency drive — it is a cornerstone of system availability. Deployed within the Siemens SINAMICS G120 modular platform, this 75 kW power module delivers deterministic motor control that directly reduces unplanned downtime in mission-critical applications. Its vector control architecture enables speed regulation with sub-0.5% deviation under sensorless operation, making it indispensable for process optimization across high-throughput production lines.

The 6SL3210-1PE31-5AL0 is engineered to sustain operational excellence in harsh industrial environments — from ambient temperatures spanning -10°C to +50°C, to facilities with elevated humidity and particulate contamination. During installation, engineers must ensure a minimum 100 mm vertical clearance for forced-air convection, and motor cables must be shielded with 360° termination at both ends to suppress EMI interference. Grounding impedance below 0.1 Ω at the PE terminal is non-negotiable for stable IGBT switching performance.

As production lines age and OEM supply chains tighten, maintaining a certified spare unit of this module is a proactive reliability strategy. EOL and legacy system integration demands that procurement teams secure original factory stock before regional availability diminishes — a risk that directly threatens operational continuity.

Key Operational Features

Redundancy-Ready Architecture: Modular design allows hot-swap replacement within the G120 cabinet without full system shutdown, minimizing mean time to repair (MTTR).
High Availability Control Modes: Supports both sensorless vector (±0.5% speed accuracy) and closed-loop encoder feedback (±0.01%) for seamless integration across diverse motor topologies.
Seamless System Integration: Native compatibility with CU240E-2 (PROFINET), CU250S-2 (Safety Integrated), and CU230P-2 (PROFIBUS) control units — zero additional hardware adapters required.
Safe Torque Off (STO) — SIL 2 / PLd: Integrated functional safety eliminates external contactor dependency, reducing panel footprint and wiring complexity.
Overload Capacity: 167A peak output (150% for 60 seconds) accommodates high-inertia load starts without thermal trip events.
Eco Mode Energy Optimization: Reduces motor magnetization losses by up to 15% during partial-load cycles, contributing directly to Operational Excellence KPIs.

Maintenance & Performance Benchmarks

The 6SL3210-1PE31-5AL0 is architected to adapt across industrial network scales — from standalone single-drive installations to distributed multi-axis automation cells. Its switching frequency is adjustable between 2.5 kHz and 16 kHz, allowing engineers to balance acoustic noise, thermal dissipation, and harmonic emission profiles based on site-specific constraints.

Predictive maintenance is embedded at the firmware level: the integrated fan runtime counter, DC bus capacitor aging monitor, and thermal model continuously evaluate component health, generating early-warning fault codes before catastrophic failure occurs. The high-speed Trace Function logs transient electrical events at millisecond resolution — critical for root-cause analysis of intermittent faults in complex I/O Modules and multi-drive topologies.

With a calculated MTBF exceeding 200,000 hours at 40°C per SN 29500 methodology, this module establishes the technical standard for long-cycle reliability in Siemens automation components. Its conformal coating option (3C3/3S3) extends service life in corrosive or high-humidity environments where standard drives fail prematurely.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6SL3210-1PE31-5AL0 dispatched from our inventory is supplied in Original Factory Packaging with full Siemens documentation, including the CE declaration of conformity and factory test certificate. Same-day dispatch is available for in-stock orders confirmed before the daily cut-off, supported by our global express logistics network covering North America, Europe, Southeast Asia, and the Middle East.

We specialize in global supply for EOL (End-of-Life) and legacy automation modules — a critical service for facilities running long-lifecycle production equipment where OEM direct supply has been discontinued. Our procurement team maintains verified stock across multiple regional warehouses, ensuring lead times remain predictable even during global component shortages. All units undergo incoming inspection against Siemens factory specifications before shipment authorization.

Engineering Support & FAQ

Q1: What control units are compatible with the 6SL3210-1PE31-5AL0?
This power module is compatible with the full SINAMICS G120 control unit range, including CU240E-2 (PROFINET/EtherNet/IP), CU250S-2 (Safety Integrated with encoder), and CU230P-2 (PROFIBUS DP). Selection depends on your fieldbus protocol and safety requirements.

Q2: What firmware version should be used during commissioning?
Siemens recommends using STARTER v5.4 or later, or SINAMICS Startdrive within TIA Portal V16+. Always verify that the control unit firmware version is aligned with the power module hardware revision — mismatch can cause parameter incompatibility faults (F01000 series).

Q3: How is the Safe Torque Off (STO) function wired and validated?
STO is activated via the dedicated STO terminals on the control unit (e.g., terminals 9/10 on CU250S-2). Validation requires a proof-test per IEC 62061 or ISO 13849-1, confirming the safety function achieves PLd / SIL 2. Documentation must be retained for machinery directive compliance audits.

Q4: What is the warranty coverage and RMA process?
All units carry a 1-Year Warranty from the date of shipment. In the event of a confirmed hardware defect, contact our technical team at sale@ninermas.com with the unit serial number and fault description. RMA authorization is typically issued within 24 business hours, with replacement dispatch upon receipt of the defective unit.

Q5: Can this module be installed side-by-side with other G120 power modules?
Yes. Side-by-side installation is supported with 0 mm lateral spacing, provided output current derating is applied per Siemens application note. Vertical clearance of minimum 100 mm above and below each unit must be maintained for adequate airflow. Shared DC bus configurations require additional line-side components.

Q6: Is this unit suitable for replacement in an existing G120 installation without full recommissioning?
In most cases, yes — provided the replacement unit shares the same hardware revision as the original. Parameters can be cloned from the control unit’s non-volatile memory or uploaded via STARTER/Startdrive. If the hardware revision differs, a parameter compatibility check is mandatory before energization.
