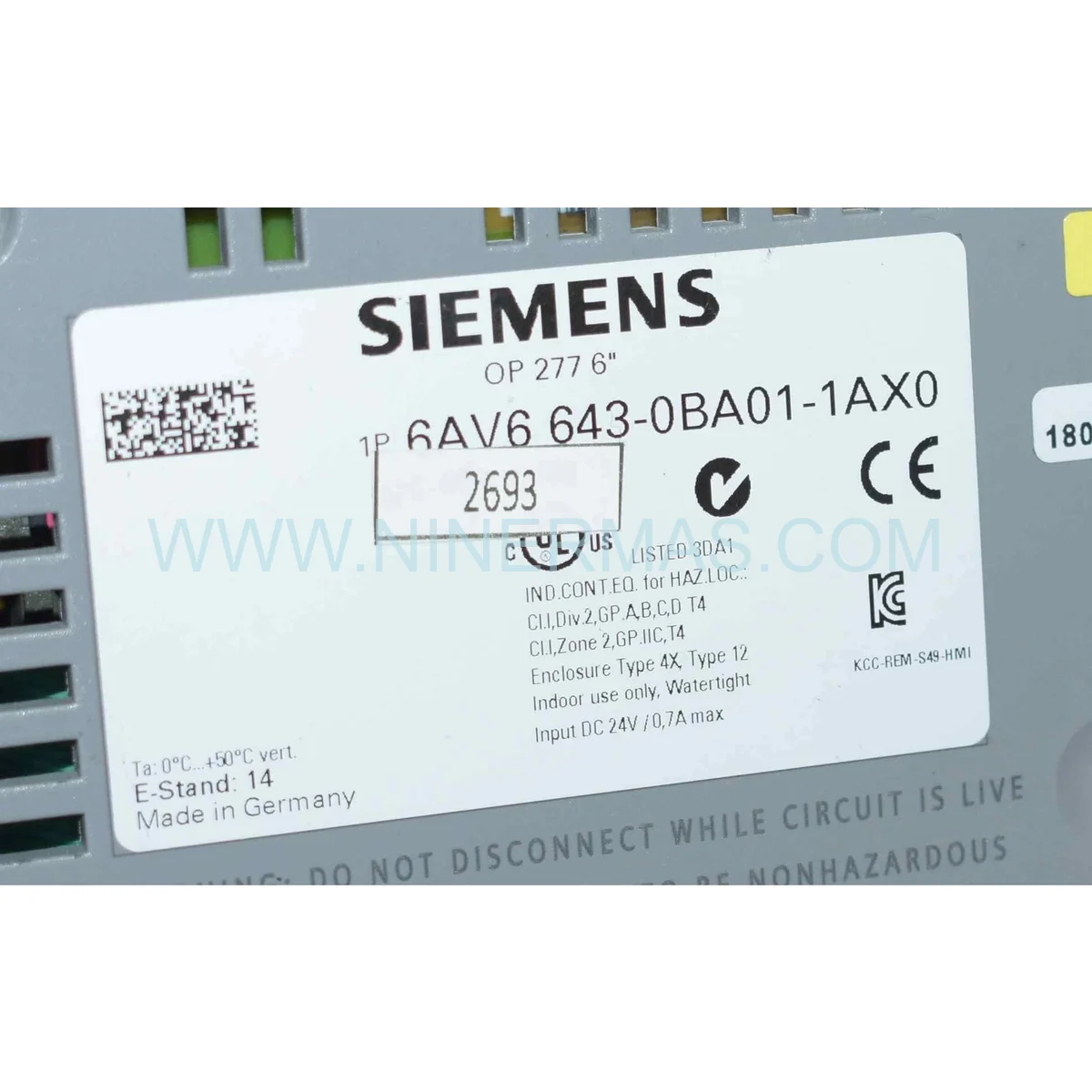

Siemens SIMATIC OP 277 6AV6643-0BA01-1AX0 HMI Panel | New & Original

Siemens SIMATIC OP 277 6AV6643-0BA01-1AX0 | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Siemens 6AV6643-0BA01-1AX0 represents a mission-critical automation component engineered to maximize system availability across continuous production environments. This 6-inch TFT operator panel integrates seamlessly into SIMATIC S7-300/400 architectures via MPI/PROFIBUS-DP, delivering real-time process visualization that directly reduces unplanned downtime — a cornerstone of operational excellence in high-throughput facilities.

Deployed in environments ranging from chemical processing plants to automotive assembly lines, the 6AV6643-0BA01-1AX0 demonstrates exceptional durability under sustained thermal and vibration stress. Its IP65-rated front panel resists particulate ingress and moisture, while the 24V DC power architecture ensures compatibility with standard industrial cabinet configurations. Installation teams should note the 232-174 mm panel cutout requirement and verify grounding continuity to suppress EMI interference common in variable-frequency drive environments.

As production lines age and OEM support windows close, maintaining a certified stock of I/O modules and HMI components like the OP 277 becomes a strategic imperative. Procurement of original, factory-sealed units eliminates the firmware inconsistencies and compatibility risks associated with refurbished alternatives — safeguarding both process integrity and regulatory compliance.

Key Operational Features

High Availability Display: 6-inch TFT color screen (320-240 px) with sustained brightness for 24/7 shift operations
Seamless Integration: Native MPI/PROFIBUS-DP interface for direct SIMATIC S7-300/400 system integration without gateway hardware
Redundancy-Ready Architecture: Supports alarm archiving (500+ events) and recipe management for rapid process changeover
Process Optimization Tools: Trend display, batch monitoring, and multi-language UI via WinCC flexible software
Rugged Industrial Design: IP65 front protection, 0-50°C operating range, vibration-resistant construction
Compact Footprint: 60 mm installation depth enables retrofit into legacy panel cutouts with minimal modification

Maintenance & Performance Benchmarks

The 6AV6643-0BA01-1AX0 is engineered to serve as a reliable node within both small-scale machine control networks and large distributed automation architectures. Its 4 MB user memory accommodates complex visualization projects with multi-screen navigation, recipe datasets, and historical trend logs — without performance degradation under concurrent operator interactions.

For system integrators managing mixed-generation SIMATIC fleets, the OP 277 provides a stable communication bridge between legacy S7-300 PLCs and modern SCADA overlays. Firmware updates are managed through WinCC flexible, with version compatibility verified against Siemens’ published compatibility matrices. Preventive maintenance cycles should include backlight inspection at 40,000-hour intervals and periodic verification of PROFIBUS termination resistors to maintain signal integrity across extended bus segments.

In high-cycle manufacturing environments — such as packaging lines running 20+ product SKUs — the recipe management function reduces changeover time by eliminating manual parameter re-entry, directly contributing to OEE improvement targets. This level of process optimization positions the OP 277 as a value-generating asset, not merely a replacement part.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6AV6643-0BA01-1AX0 dispatched from our facility is sourced directly from authorized distribution channels and ships in original factory packaging with intact tamper-evident seals. This guarantees authenticity, preserves warranty entitlement, and eliminates the counterfeit risk that plagues spot-market procurement for legacy Siemens SIMATIC components.

For time-sensitive maintenance scenarios, same-day dispatch is available on confirmed in-stock units (order cutoff times apply). Our global logistics network covers express delivery to North America, Europe, Southeast Asia, and the Middle East — with full tracking and commercial invoice documentation for customs clearance. We specialize in sourcing end-of-life (EOL) and legacy automation modules, maintaining strategic inventory buffers to support facilities operating equipment beyond standard Siemens product lifecycle windows.

Engineering Support & FAQ

Q1: What are the installation steps for integrating the 6AV6643-0BA01-1AX0 into an existing S7-300 network?
A: Mount the panel into the 232-174 mm cutout and secure with the supplied clamps. Connect 24V DC power and MPI/PROFIBUS-DP cable to the designated port. Set the MPI address via the panel’s startup menu (default: address 1). Load the WinCC flexible project via MPI download cable or memory card. Verify communication by checking the online status in WinCC flexible.

Q2: Which WinCC flexible versions are compatible with this operator panel?
A: The OP 277 is fully supported by WinCC flexible 2008 SP3 and later service packs. Earlier versions (2005, 2007) may lack certain object libraries. Siemens recommends using the latest SP release to ensure full feature compatibility and security patch coverage.

Q3: Can the 6AV6643-0BA01-1AX0 communicate with S7-1200 or S7-1500 PLCs?
A: The OP 277 uses MPI/PROFIBUS-DP exclusively and does not natively support PROFINET or Ethernet-based protocols required by S7-1200/1500. For these controllers, Siemens’ KTP700 Basic or TP700 Comfort panels are the recommended migration path.

Q4: How is the warranty claim process handled?
A: Units exhibiting manufacturing defects within the 12-month warranty period are eligible for replacement or repair at no charge. Submit a warranty request via sale@ninermas.com with the order reference, fault description, and photographic evidence. Our technical team will issue an RMA authorization within 2 business days.

Q5: Is firmware upgrade possible in the field, and what precautions are required?
A: Firmware updates are performed via the Siemens ProSave utility over MPI or USB. Always back up the existing project before initiating an update. Ensure stable 24V DC power throughout the process — power interruption during firmware flashing can render the panel unresponsive and may void warranty coverage.

Q6: What distinguishes original factory units from refurbished alternatives for mission-critical applications?
A: Original units carry full manufacturer traceability, unaltered firmware baselines, and intact component tolerances. Refurbished panels may exhibit degraded backlight luminance, re-flashed firmware with unknown revision history, and compromised IP65 sealing — all unacceptable risks in safety-instrumented or regulated production environments.
