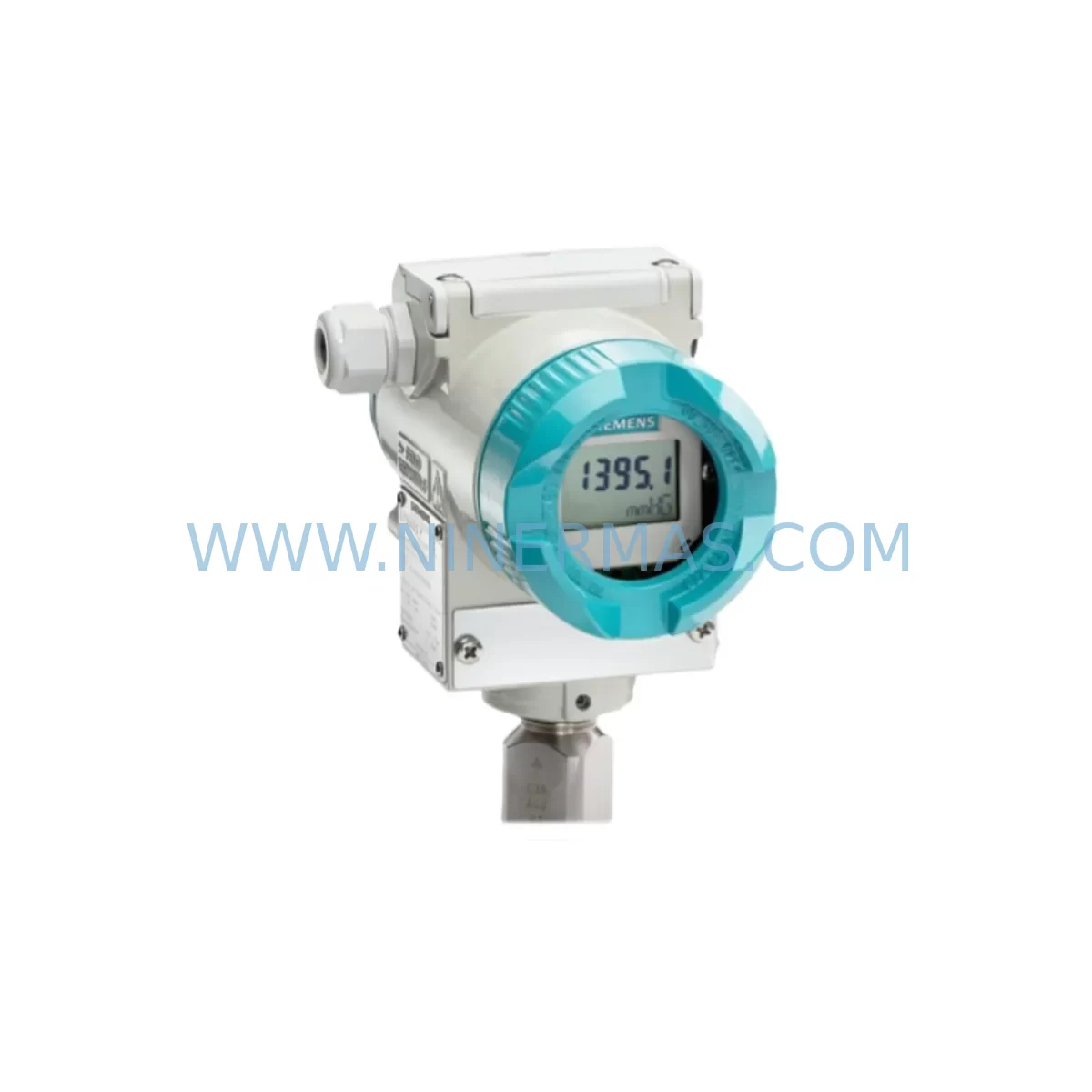

Siemens 7MF0300-1TE01-5AF2-Z Retrofit Pressure Safety Module

Siemens 7MF0300-1TE01-5AF2-Z Retrofit Pressure Safety Module: Legacy System Compatible Upgrade

The Siemens 7MF0300-1TE01-5AF2-Z is a ruggedized, SIL-rated pressure safety module from the SITRANS P series, engineered for demanding industrial environments where measurement integrity and functional safety are non-negotiable. This module is widely deployed in legacy process control architectures across oil & gas, chemical processing, power generation, and water treatment facilities. As original equipment reaches end-of-life or becomes difficult to source, the 7MF0300-1TE01-5AF2-Z serves as a proven retrofit-ready replacement that preserves existing wiring infrastructure, minimizes re-engineering effort, and restores SIL-compliant pressure monitoring without requiring a full system overhaul.

For facilities operating aging Siemens S7-300 or S7-400 PLC platforms with legacy HART-based field instrumentation, this module integrates directly into existing 4–20 mA signal loops. Engineers planning a migration to the S7-1500 or SIMATIC PCS 7 distributed control system will find that the 7MF0300-1TE01-5AF2-Z supports a phased upgrade strategy — allowing field devices to remain in service while the control layer is modernized incrementally.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 7MF0300-1TE01-5AF2-Z into a legacy control environment requires a structured pre-installation review. The first step is confirming that the existing power supply — typically a 24 VDC loop supply from a Siemens PS 307 or PS 405 power supply module — can sustain the additional loop burden introduced by the new transmitter. Most installations with a properly sized power rail will have no issue, but aging power modules with degraded output regulation should be load-tested before commissioning.

Terminal block compatibility is the next critical checkpoint. The 7MF0300-1TE01-5AF2-Z uses a standard M20 cable entry and two-wire terminal connection. In cabinets where the original device used a four-wire configuration, a wiring adapter or terminal reassignment will be required. Document the existing terminal assignments from the original loop drawing before disconnecting any field wiring.

For systems using a Siemens ET 200M distributed I/O station with SM 331 analog input modules, the HART signal from the 7MF0300-1TE01-5AF2-Z is fully compatible. If the installation uses an older IM 153-2 interface module for PROFIBUS DP communication, verify that the firmware version supports HART pass-through if secondary variable monitoring is required. Facilities upgrading to PROFINET-based I/O should consider transitioning to an ET 200SP station with an AI Energy Meter module or a dedicated HART multiplexer to preserve diagnostic transparency.

In control cabinets where space is constrained, the compact housing of the 7MF0300-1TE01-5AF2-Z simplifies installation alongside existing Siemens SITRANS TH300 temperature transmitters, SITRANS F flow measurement devices, and associated signal conditioning equipment. When multiple transmitters share a common junction box or marshalling cabinet, verify that the cable shielding and grounding scheme meets the requirements of the updated loop drawing to prevent ground loop interference on the 4–20 mA signal.

For facilities running SIMATIC WinCC or WinCC OA as the SCADA/HMI layer, no HMI screen modifications are typically required when replacing a like-for-like SITRANS P variant, as the process variable tag and engineering unit remain unchanged. However, if the replacement involves a change in measurement range or output characteristic, the corresponding analog input scaling block in the S7 program — typically a FC105 SCALE function — must be updated to reflect the new span values. This change should be validated in offline simulation before being downloaded to the live CPU.

Facilities that use a Siemens SIMATIC S5 legacy controller with analog input cards should note that the 7MF0300-1TE01-5AF2-Z is fully compatible with S5-compatible 4–20 mA input channels. However, this is an appropriate juncture to evaluate a broader migration to the S7-1500 platform, which offers integrated safety functions, TIA Portal engineering, and native PROFINET connectivity — reducing long-term spare parts exposure across the control architecture.

Downtime Control During System Migration

Minimizing process interruption during a pressure transmitter replacement requires careful sequencing of isolation, substitution, and recommissioning steps. Begin by placing the affected control loop in manual mode at the DCS or PLC level, ensuring that the process remains under operator control throughout the physical swap. If the loop feeds a safety instrumented function, coordinate with the SIS engineer to bypass the safety function in accordance with the site’s Management of Change (MOC) procedure before breaking the field connection.

Once the 7MF0300-1TE01-5AF2-Z is physically installed and wired, use a HART communicator — such as the Emerson 475 Field Communicator or equivalent — to verify device identity, confirm the configured measurement range, and perform a loop test before returning the loop to automatic. This step confirms signal integrity without requiring process pressure to be applied, reducing the risk of a spurious trip during the commissioning phase.

For multi-loop replacement campaigns — common in turnaround or planned shutdown scenarios — pre-configure each 7MF0300-1TE01-5AF2-Z unit on the bench using SIMATIC PDM before deployment. Bench configuration allows range, damping, and HART tag assignment to be completed in advance, reducing field commissioning time per loop to under 15 minutes in most cases. Pre-shipment functional testing performed at our facility ensures that each unit arrives ready for installation, with calibration records available on request.

After recommissioning, perform a live zero check against a calibrated reference pressure source and confirm that the process variable displayed on the HMI matches the field reading within the specified accuracy band. Archive the updated loop drawing, HART device report, and calibration certificate in the plant documentation system before closing the work order.

Retrofit Support FAQ

Q1: Is the 7MF0300-1TE01-5AF2-Z a direct replacement for the SITRANS P DS III?
Yes. The 7MF0300-1TE01-5AF2-Z is dimensionally and electrically compatible with the SITRANS P DS III family. The process connection, terminal block layout, and 4–20 mA HART output are consistent across the replacement path. Minor differences in housing geometry may require a bracket adapter in some panel-mount installations — confirm against the original installation drawing before ordering.

Q2: What commissioning steps are required after installation?
After physical installation, connect a HART communicator or SIMATIC PDM to verify the configured range and perform a loop test. If the measurement range has changed from the original device, update the SCALE function block in the PLC program and re-validate the HMI display. Confirm zero and span against a reference pressure source and document the results.

Q3: Is pre-shipment testing included, and what does it cover?
Yes. Every 7MF0300-1TE01-5AF2-Z unit supplied by NINERMAS undergoes pre-shipment functional testing covering power-up verification, 4–20 mA output linearity check, HART communication confirmation, and enclosure integrity inspection. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can this module be used in SIL 2 safety loops?
Yes, subject to the overall Safety Instrumented System design and proof test interval defined in the SIL verification report. The 7MF0300-1TE01-5AF2-Z carries SIL 2 capability per IEC 61508. Integration into a safety loop must be validated by the SIS engineer in accordance with IEC 61511, including confirmation of the diagnostic coverage, common cause failure factor, and proof test procedure for the specific application.
