Siemens 6SL3330-1TE41-2AA0 Retrofit-Compatible Line Module for Legacy Systems

Siemens 6SL3330-1TE41-2AA0 Retrofit-Compatible Active Line Module for Legacy Systems

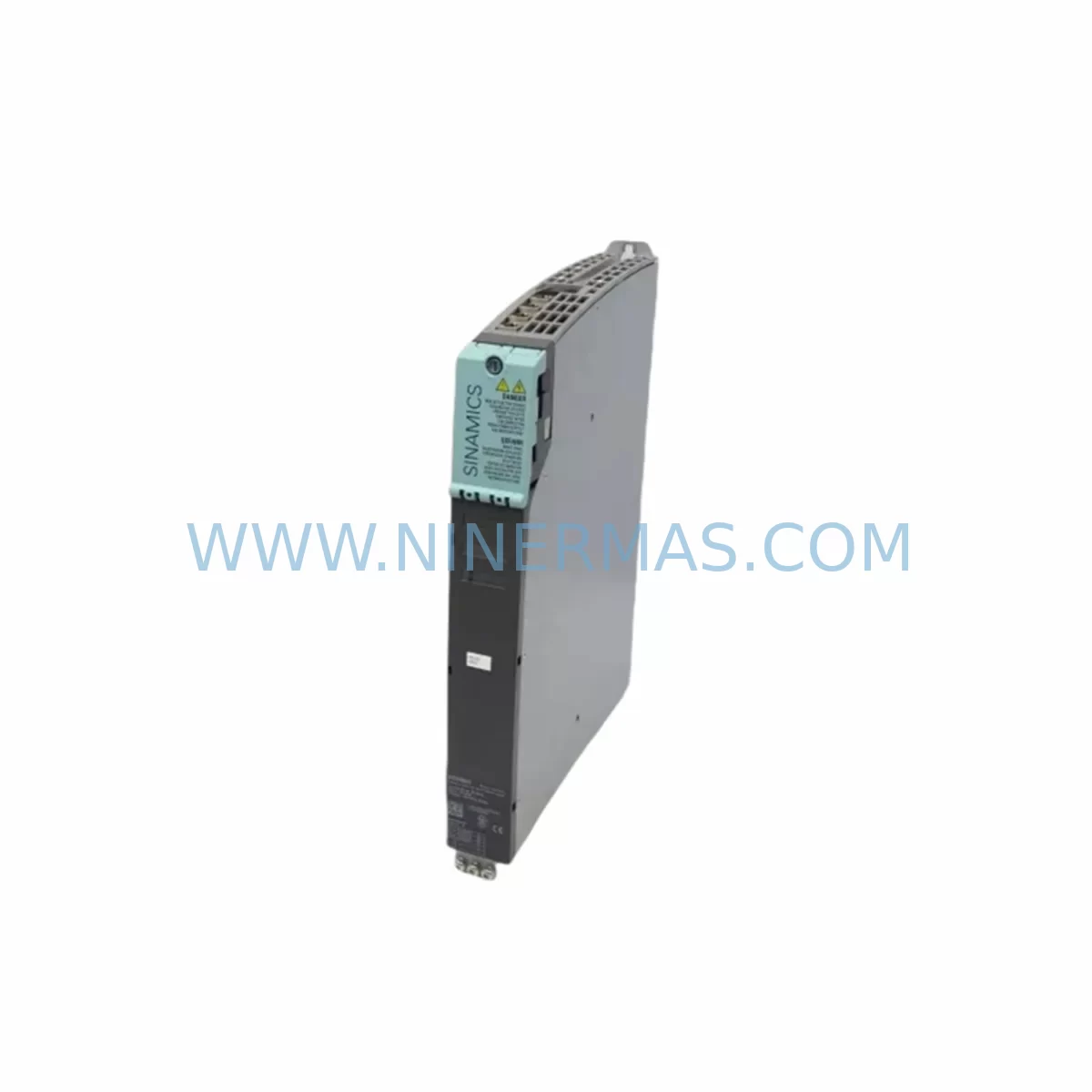

The Siemens 6SL3330-1TE41-2AA0 is a high-power Active Line Module (ALM) within the SINAMICS S120 drive platform, rated at 1,400 kW input power with a 690 V AC supply voltage. Designed for demanding industrial applications including rolling mills, test benches, extruders, and large compressor drives, this module provides sinusoidal line currents, regenerative feedback capability, and active harmonic compensation — making it a preferred retrofit solution for legacy drive cabinets previously equipped with older SIMOVERT MASTERDRIVES or SINAMICS S150 configurations. When sourcing a replacement for discontinued or end-of-life drive components, the 6SL3330-1TE41-2AA0 represents a technically sound and supply-chain-stable upgrade path.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 6SL3330-1TE41-2AA0 into an existing drive cabinet requires a structured approach to avoid commissioning delays and unplanned downtime. The first step is confirming that the incoming supply transformer and upstream circuit breaker are rated for the module’s full load current draw. Engineers should verify the DC bus interconnection with downstream Motor Modules — typically the SINAMICS S120 Double Motor Module 6SL3120-2TE21-8AD0 or Single Motor Module 6SL3120-1TE23-0AD0 — ensuring that the DC link capacitance and pre-charging circuit are correctly matched.

Terminal wiring adaptation is a critical checkpoint. Legacy systems may use older terminal block formats incompatible with the S120 cabinet wiring harness. In such cases, the use of a SINAMICS S120 Cabinet Module adapter kit or custom DIN-rail terminal marshalling is recommended. The 24 V DC auxiliary supply for the Control Unit — typically sourced from a SITOP PSU100S 6EP1334-2BA20 or equivalent — must be verified for current capacity, especially when multiple DRIVE-CLiQ nodes (sensors, encoders, and I/O modules) are connected on the same rail.

For systems previously using PROFIBUS DP as the fieldbus backbone, migration to PROFINET IO via the CU320-2 PN Control Unit is strongly advised to align with current Siemens TIA Portal ecosystem standards. This may also require updating the HMI — such as a SIMATIC TP1500 Comfort Panel or KTP900 Basic — to reflect new drive parameter addresses and alarm structures. The SINAMICS S120 supports standard PROFIdrive profiles, which simplifies PLC-side program adaptation when migrating from a SIMATIC S7-300 to a SIMATIC S7-1500 controller platform.

I/O expansion during retrofit is commonly handled through the SINAMICS S120 Terminal Module TM31 (6SL3055-0AA00-3AA1) for analog and digital I/O, or the TM15 for fast digital I/O with short signal propagation times. Signal isolators may be required at the interface between legacy 4–20 mA field instruments and the new S120 I/O terminals to prevent ground loop interference. Where encoder feedback from legacy motors is retained, the Sensor Module Cabinet-Mounted SMC30 (6SL3055-0AA00-5CA2) provides the necessary interface for HTL/TTL incremental encoders.

Cabinet space planning must account for the physical dimensions of the 6SL3330-1TE41-2AA0 and its associated Line Contactor Module and Braking Module if regenerative braking is not fully handled by the ALM’s feedback capability. A SINAMICS S120 Braking Module 6SL3100-1BE31-0AA0 may be required for emergency stop scenarios in high-inertia load applications. All cable routing should comply with EMC separation rules — power cables and signal cables must be routed in separate cable ducts with minimum 100 mm separation to prevent interference.

Downtime Control During System Migration

Minimizing production interruption during a drive system retrofit requires careful pre-migration preparation. Before the physical swap, a full backup of the existing drive parameters using STARTER or Startdrive should be completed and stored offline. If the legacy system uses a SIMATIC S7-300 or S7-400 PLC, the existing Step 7 program should be exported and reviewed for any drive-specific function blocks (FC/FB) that reference hardware-dependent addresses tied to the old module’s slot configuration.

A parallel commissioning strategy — where the new 6SL3330-1TE41-2AA0 is pre-configured and tested on a bench setup before installation — significantly reduces on-site commissioning time. Using the SINAMICS Startdrive offline project feature, engineers can pre-load all drive parameters, motor data, and control word assignments before the module arrives on site. This approach has been shown to reduce live commissioning time by 40–60% compared to on-site-only configuration.

During the cutover window, the sequence should follow: isolate and lock out the incoming supply, disconnect the legacy module, install and mechanically secure the 6SL3330-1TE41-2AA0, reconnect DC bus links and DRIVE-CLiQ cables, restore 24 V auxiliary power, and perform a controlled power-on sequence with the motor mechanically uncoupled where possible. After initial power-on, verify DC bus voltage, check for active faults via the CU320-2 diagnostics, and confirm PROFINET or PROFIBUS communication with the PLC before reconnecting the motor load. Field calibration of speed reference scaling and torque limits should be validated against the original process setpoints before returning the system to production.

Retrofit Support FAQ

Q1: Is the 6SL3330-1TE41-2AA0 a direct replacement for older SINAMICS S120 Active Line Modules?
A: The 6SL3330-1TE41-2AA0 is compatible with the SINAMICS S120 platform and can replace earlier ALM variants of equivalent power rating. Firmware version alignment between the ALM and the CU320-2 Control Unit must be confirmed using the SINAMICS Compatibility Tool available in the Siemens Industry Online Support portal. Minor parameter adjustments may be required for full functional equivalence.

Q2: What commissioning steps are required after installation?
A: After mechanical and electrical installation, connect the module via DRIVE-CLiQ to the CU320-2 Control Unit and power on the 24 V auxiliary supply. Use SINAMICS Startdrive or STARTER to perform automatic topology recognition, load the pre-configured parameter set, and run the line identification routine (p3410). Verify DC bus voltage regulation, check harmonic compensation performance, and confirm communication with the upstream PLC before enabling the motor modules.

Q3: Can the original motor wiring and encoder feedback be retained during retrofit?
A: In most cases, existing motor power cables can be retained if they meet the current rating and insulation class requirements for the S120 system. Encoder feedback wiring compatibility depends on the encoder type — HTL and TTL encoders are supported via the SMC30 Sensor Module, while resolvers require the SMC10. Terminal adapter plates may be needed to match legacy cable gland sizes to the S120 cabinet entry points.

Q4: What warranty and supply terms apply to this module?
A: All units supplied by NINERMAS COMPANY LIMITED are covered by a 12-month warranty from the date of shipment. Each module undergoes full functional pre-shipment testing including DC bus charge/discharge cycle verification, DRIVE-CLiQ communication check, and thermal performance validation. Long-term supply availability is supported through our spare parts lifecycle program, with committed lead times available for volume orders. Contact sale@ninermas.com for stock confirmation and delivery scheduling.
