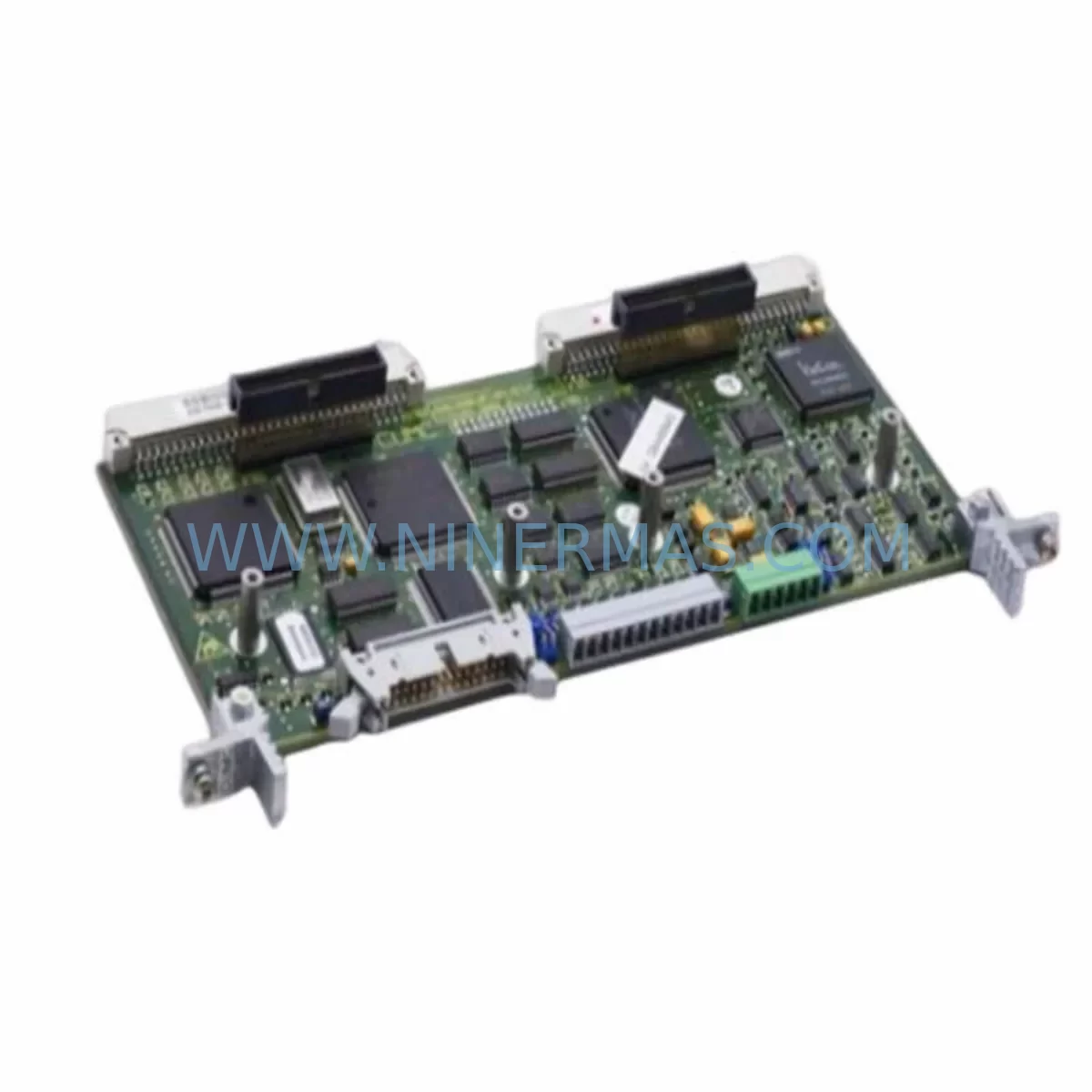

The Siemens 6SE7090-0XX84-0AD0 is a ruggedized control module designed for use within the Siemens MASTERDRIVES MC/VC series variable-speed drive platform — one of the most widely deployed drive families in process industries, utilities, and heavy manufacturing. As aging MASTERDRIVES installations continue to operate beyond their original design life, sourcing a verified, service-ready 6SE7090-0XX84-0AD0 spare part becomes a critical priority for maintenance engineers and procurement teams responsible for keeping production lines operational.

At NINERMAS, every 6SE7090-0XX84-0AD0 unit is sourced, inspected, and pre-shipment tested to confirm electrical integrity and functional readiness before dispatch. Our 12-month warranty covers all supplied spare parts, giving your maintenance team confidence in both the component quality and the long-term supply relationship.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6SE7090-0XX84-0AD0 control module is flagged for replacement — whether during a routine inspection, a fault-code investigation, or an emergency shutdown — experienced maintenance engineers know that the drive cabinet rarely fails in isolation. A thorough site assessment should accompany any control module swap to prevent repeat failures and reduce the risk of secondary downtime.

Begin by verifying the 24 VDC auxiliary power supply feeding the control electronics. A degraded or unstable auxiliary supply is a common root cause of control module faults in MASTERDRIVES installations and should be tested before the new module is commissioned. Alongside this, inspect the MASTERDRIVES power section (6SE70 series) for signs of capacitor aging, IGBT degradation, or DC bus irregularities — conditions that can stress the replacement control module prematurely.

Check all signal cables and shielded control wiring connected to the module’s I/O terminals. Damaged insulation, loose ferrules, or improperly grounded cable shields are frequent contributors to EMI-induced control faults in drive environments. The terminal blocks and DIN rail assemblies within the cabinet should also be inspected for corrosion, loose connections, and thermal discoloration.

If the drive communicates via PROFIBUS-DP or another fieldbus protocol, verify the integrity of the communication module (e.g., 6SE7090-0XX84-0FF5 or equivalent CBC/CBP2 board) and confirm that the network address and baud rate settings are correctly retained after the module replacement. Communication faults post-replacement are a common commissioning issue that can be avoided with pre-swap documentation.

For drives integrated into a larger Siemens S7-300 or S7-400 PLC system, coordinate with the control room team to confirm that the PLC program parameters — speed references, torque limits, and fault response logic — are correctly mapped to the replacement module. Where applicable, review the operator panel (OP1S or similar HMI) parameter set to ensure drive parameters are backed up before the swap.

Additionally, inspect the input fuses and circuit breakers upstream of the drive, the output reactor or dV/dt filter on the motor side, and the braking resistor or chopper module if dynamic braking is part of the application. These components absorb significant electrical stress during fault conditions and may require replacement alongside the control module to restore full system reliability.

For sites running multiple MASTERDRIVES units, a proactive spare parts inventory that includes the 6SE7090-0XX84-0AD0 alongside related modules — such as the 6SE7090-0XX84-0KA1 (technology board), 6SE7090-0XX84-0AB0 (interface board), and 6SE7090-0XX84-0FF0 (PROFIBUS adapter) — significantly reduces mean time to repair (MTTR) during unplanned outages. Procurement engineers should consider establishing a standing spare parts agreement to ensure these critical components are available on-site or within 24–48 hours of a fault event.

Site Replacement Workflow

Replacing the 6SE7090-0XX84-0AD0 on-site follows a structured sequence to minimize downtime and ensure system compatibility:

1. Pre-Replacement Documentation: Record all drive parameters using the OP1S operator panel or STARTER/DriveMonitor software. Photograph the existing wiring layout and label all connectors before disconnection. Confirm the firmware version of the existing module to ensure the replacement unit is compatible.

2. Safe Isolation: Follow LOTO (Lockout/Tagout) procedures. Isolate the drive from the main supply and allow the DC bus capacitors to fully discharge — typically 5 minutes minimum after power-off. Verify zero voltage with a calibrated meter before opening the cabinet.

3. Module Removal and Installation: Carefully disconnect all ribbon cables, signal connectors, and power terminals from the existing control module. Install the replacement 6SE7090-0XX84-0AD0 in the same slot orientation, reconnect all connectors in sequence, and verify seating of all board-to-board connectors on the backplane.

4. Parameter Restore and Commissioning: Restore the saved parameter set to the replacement module. Perform a no-load test run to verify speed reference tracking, fault-free operation, and correct fieldbus communication before reconnecting the motor load.

5. Post-Replacement Verification: Monitor the drive for the first 30–60 minutes of loaded operation. Check for thermal alarms, communication errors, and current waveform anomalies. Document the replacement in the site maintenance log with the new module’s serial number and the date of installation.

This structured approach ensures that the replacement of the 6SE7090-0XX84-0AD0 restores full drive functionality with minimal risk of repeat failure, while maintaining compatibility with the existing MASTERDRIVES system architecture.
