Siemens 6SE7041-2WL84-1JC0 Service-Ready Spare Part

Siemens 6SE7041-2WL84-1JC0 Service-Ready Spare Part: Spare Part Replacement & Downtime Risk Control

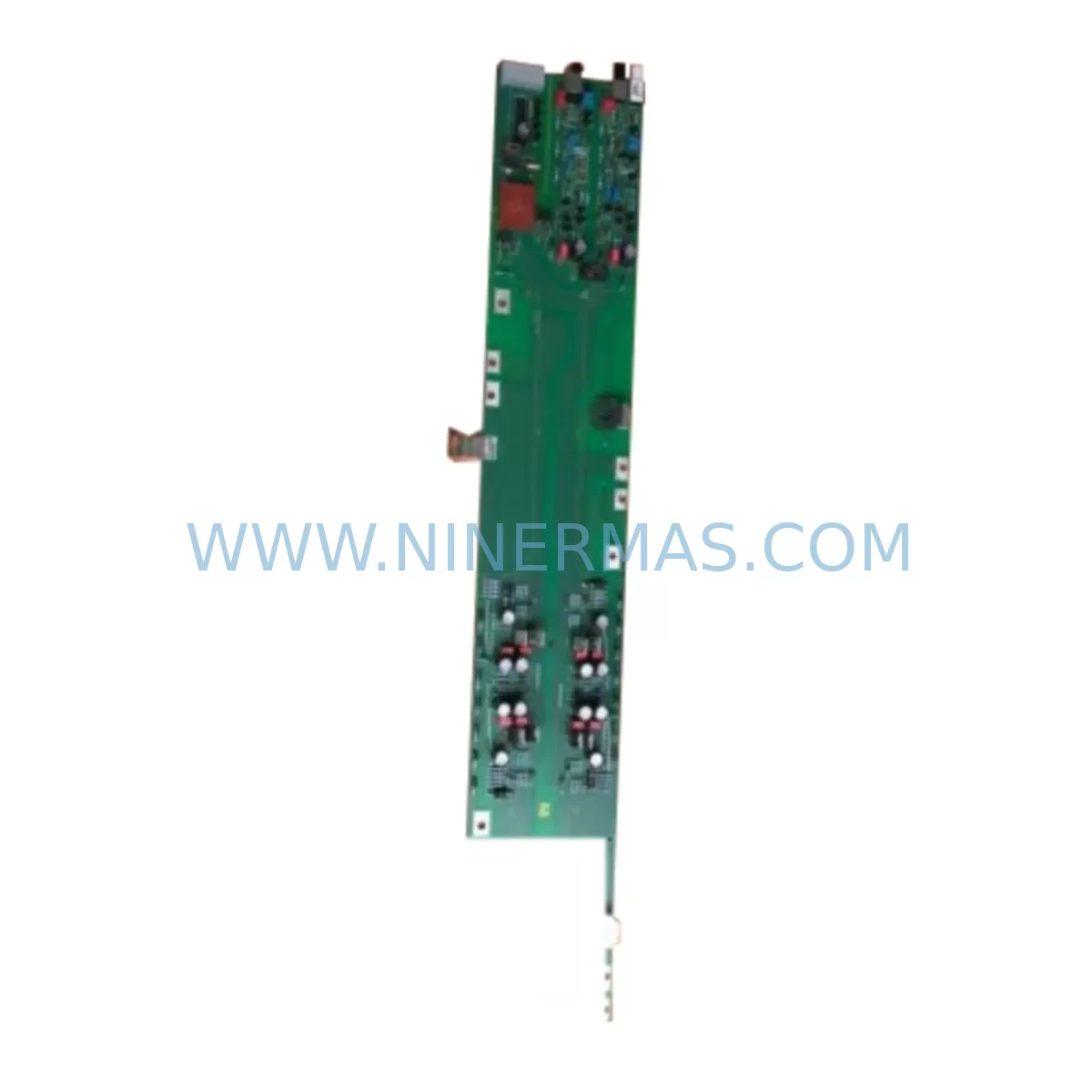

The Siemens 6SE7041-2WL84-1JC0 is a ruggedized AC drive module from the SIMOVERT MASTERDRIVES series, engineered for demanding industrial environments where temperature extremes, vibration, and dust exposure are routine operational conditions. For maintenance engineers managing aging drive systems, this unit represents a critical spare that directly determines whether a production line resumes within hours or remains idle for days awaiting procurement. Stocking a verified, service-ready 6SE7041-2WL84-1JC0 is not merely a best practice — it is a fundamental element of any serious industrial maintenance strategy.

The MASTERDRIVES platform has been deployed across a wide range of heavy industrial applications including steel mills, cement plants, paper machines, mining conveyors, and chemical processing lines. The 6SE7041-2WL84-1JC0 variant, with its ruggedized design, is particularly suited to environments where standard drive modules would face accelerated degradation. When this unit fails or approaches end-of-life, the replacement window is narrow. Procurement engineers who have not pre-positioned this spare part often face extended lead times from standard distribution channels, making a reliable aftermarket source with tested inventory an essential part of the supply chain.

From a maintenance engineering perspective, the 6SE7041-2WL84-1JC0 does not operate in isolation. It is embedded within a broader electrical and control architecture that must be evaluated holistically during any replacement event. When this drive module is pulled for service, the surrounding system components should be inspected and, where appropriate, replaced proactively to prevent a secondary failure shortly after the primary repair is completed.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6SE7041-2WL84-1JC0, a thorough site inspection of the surrounding control cabinet is strongly recommended. Maintenance engineers should treat this event as an opportunity to audit the full drive system rather than performing a simple module swap. The following components are commonly found in the same electrical circuit or control enclosure and should be evaluated during the same maintenance window:

The SIMOVERT MASTERDRIVES power supply module (such as the 6SE70 series rectifier/regenerative unit) should be checked for capacitor aging, DC bus voltage stability, and thermal performance. A degraded power supply is a frequent root cause of repeated drive module failures and is often overlooked when only the output stage is replaced. Similarly, the DC link capacitor bank within the drive cabinet should be inspected for bulging, leakage, or elevated ESR, particularly in systems that have been in service for more than five years.

The SIMATIC S7 PLC or SIMOTION controller interfacing with this drive via PROFIBUS-DP or USS protocol should be verified for firmware compatibility and communication integrity after the module swap. A mismatch in parameter sets or drive firmware versions can cause unexpected faults even when the hardware replacement is mechanically correct. The PROFIBUS-DP communication module (CBP2 or equivalent) installed in the drive should also be inspected for connector wear and address configuration.

On the I/O side, the terminal block assemblies and signal wiring connected to the drive’s analog and digital I/O should be checked for loose terminations, insulation degradation, and correct shielding. In harsh environments, vibration-induced terminal loosening is a common secondary fault. The motor feedback encoder cable and connector should be inspected for continuity and shielding integrity, as encoder signal errors are a leading cause of drive trips in MASTERDRIVES installations.

The output filter or dV/dt filter installed between the drive and motor should be checked for thermal discoloration or component damage, especially if the original drive failure was associated with overcurrent or short-circuit events. The motor protection relay in the outgoing circuit should also be tested for correct trip settings relative to the motor nameplate data. Finally, the control panel HMI (such as an OP7 or TP177 panel) used for drive parameterization should be confirmed to be communicating correctly after the replacement, and the drive parameter set should be reloaded from a verified backup to ensure correct operation.

Site Replacement Workflow

Replacing the 6SE7041-2WL84-1JC0 in a live industrial environment requires a structured approach to minimize downtime and avoid introducing new faults during the replacement process. Before the replacement unit arrives on site, the maintenance team should retrieve the existing drive parameter set using the SIMOVERT MASTERDRIVES parameterization tool or the onboard operator panel, and save it to a PC or memory card. This parameter backup is essential — without it, recommissioning the replacement module will require a full parameter entry from the motor and application data sheets, which can add several hours to the recovery time.

Upon receipt of the replacement 6SE7041-2WL84-1JC0, verify the part number, firmware version label, and physical condition before installation. Units supplied by NINERMAS are tested prior to shipment and include a 12-month warranty, providing assurance that the unit is functional before it enters the cabinet. During installation, follow the MASTERDRIVES hardware installation manual for torque specifications on power terminals and ensure that the DC bus connections are made in the correct sequence to avoid inrush damage.

After installation, restore the parameter set from the backup and perform a no-load test before reconnecting the motor. Verify that all fault codes are cleared, that the drive responds correctly to speed reference signals from the PLC or DCS, and that the motor current and speed feedback are within expected ranges during a controlled ramp-up. Document the replacement event, including the date, the failed unit’s serial number, and the replacement unit’s serial number, for maintenance records and warranty tracking.

For facilities managing multiple MASTERDRIVES installations, establishing a minimum stock level of one 6SE7041-2WL84-1JC0 per critical drive line is a prudent inventory strategy. The cost of holding a single spare is typically recovered within the first hour of avoided downtime on a production-critical application.

Spare Parts Support FAQ

Q1: Is the 6SE7041-2WL84-1JC0 compatible with all SIMOVERT MASTERDRIVES cabinets?
The 6SE7041-2WL84-1JC0 is designed for the SIMOVERT MASTERDRIVES series and is compatible with the corresponding power and mechanical interface specifications of that platform. Compatibility should always be verified against the existing cabinet’s hardware configuration and firmware version before installation. NINERMAS can assist with compatibility verification based on your existing system documentation.

Q2: What testing is performed before shipment?
All units supplied by NINERMAS undergo functional testing prior to shipment to confirm that the module powers up correctly and that basic drive functions are operational. Each unit is shipped with documentation confirming its tested status. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: Can NINERMAS support long-term supply for legacy MASTERDRIVES systems?
Yes. NINERMAS maintains ongoing inventory of SIMOVERT MASTERDRIVES spare parts to support facilities operating legacy systems beyond the standard product lifecycle. For procurement engineers managing multi-year maintenance contracts, NINERMAS can discuss framework supply agreements to ensure consistent availability of critical spares including the 6SE7041-2WL84-1JC0 and related components.

Q4: What information should I provide when ordering to ensure I receive the correct part?
Please provide the full part number (6SE7041-2WL84-1JC0), the existing drive’s firmware version if known, and the application context (motor power rating, supply voltage, and any special environmental requirements). This information allows NINERMAS to confirm the correct variant and advise on any compatibility considerations before shipment.
