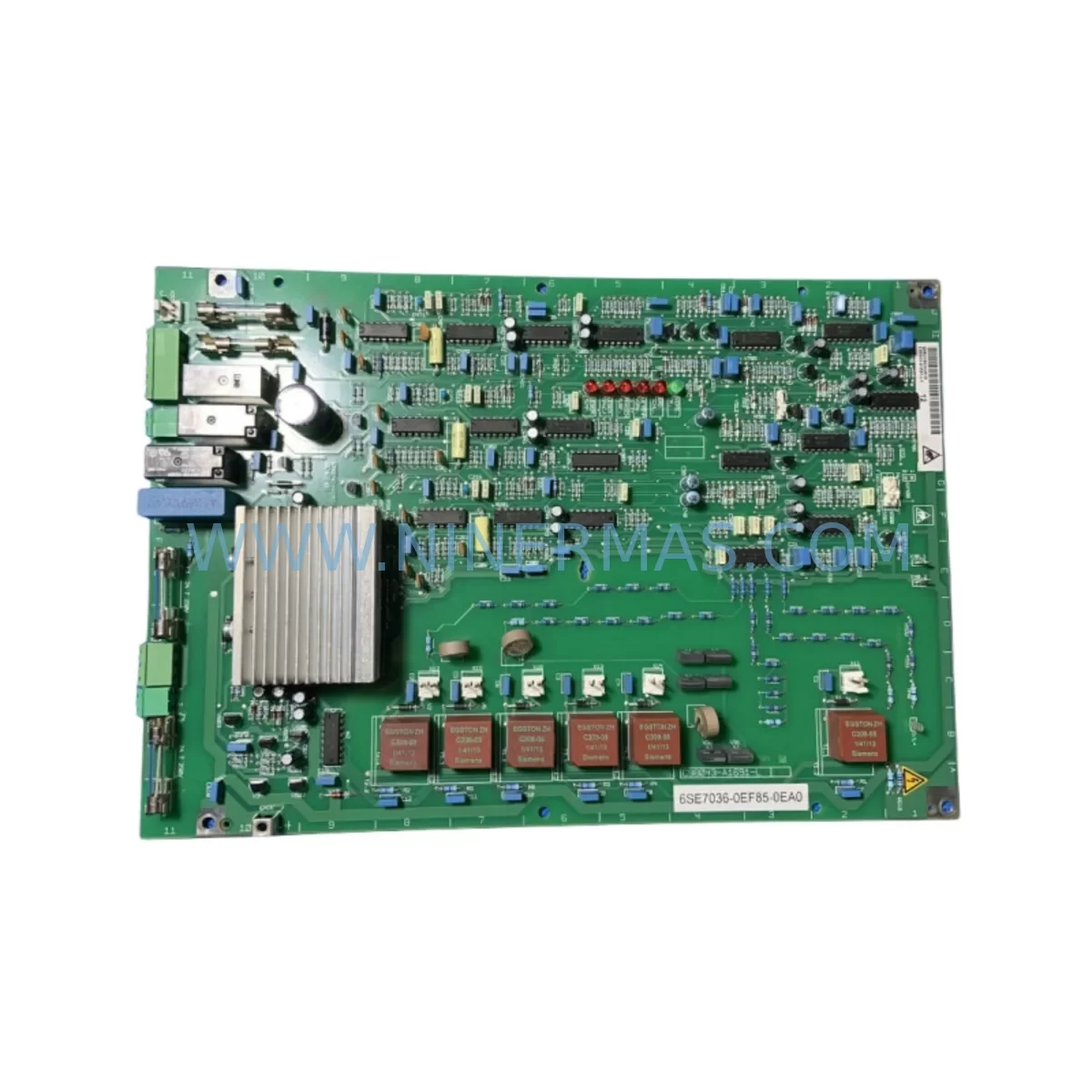

Siemens 6SE7036-0EF85-0EA0 Retrofit AC Drive SIMOVERT

Siemens 6SE7036-0EF85-0EA0 Retrofit-Compatible AC Drive for SIMOVERT MASTERDRIVES Legacy Systems

The Siemens 6SE7036-0EF85-0EA0 is a high-power AC drive unit from the SIMOVERT MASTERDRIVES series, engineered for demanding industrial applications in process and discrete manufacturing environments. As legacy SIMOVERT MASTERDRIVES installations approach end-of-support milestones, plant engineers and maintenance teams increasingly rely on verified retrofit-compatible units to extend operational life, avoid costly full-system replacements, and maintain production continuity. This unit is pre-shipment tested, carries a 12-month warranty, and is available from stock to support urgent spare parts programs and planned upgrade projects alike.

The 6SE7036-0EF85-0EA0 belongs to the SIMOVERT MASTERDRIVES Vector Control (VC) platform, designed for precise speed and torque regulation in motor-driven applications including pumps, compressors, conveyors, hoists, and extruders. Its robust power section and modular architecture make it a preferred choice for retrofit engineers who need to replace discontinued drives without redesigning the entire control cabinet.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a SIMOVERT MASTERDRIVES unit in an active production environment requires careful pre-planning to avoid extended downtime and configuration errors. The 6SE7036-0EF85-0EA0 is typically installed within a Siemens drive cabinet alongside companion components that must be evaluated as part of any retrofit scope.

Before initiating the swap, engineers should upload the full parameter set from the existing drive using DriveMonitor or the STARTER commissioning tool connected via the USS protocol or PROFIBUS interface. This parameter backup is critical — it captures motor data, ramp times, torque limits, and application-specific control word configurations that would otherwise require full recommissioning from scratch.

The power supply feeding the drive must be verified against the unit’s input voltage and current draw specifications. In many legacy cabinets, the Siemens 6SE7090-0XX84-0AB0 power supply module or equivalent DC link supply is shared across multiple drive axes; confirm that the DC bus capacity is sufficient after the replacement unit is energized. If the existing cabinet uses a 6SE7031 or 6SE7033 series unit on an adjacent axis, cross-check the DC bus coupling configuration to avoid inrush conflicts during startup.

Terminal wiring adaptation is one of the most time-sensitive steps. The control terminal block — typically the X101 and X102 terminal strips — must be mapped against the existing wiring diagram. Analog input scaling, digital input logic levels, and relay output assignments should be confirmed before the drive is powered. If the original installation used a 6SE7090-0XX84-2FA0 technology board or a CBP2 PROFIBUS communication board, verify that the replacement unit’s option slot configuration matches, or plan for board transfer from the outgoing unit.

For systems integrated into a Simatic S7-300 or S7-400 PLC network via PROFIBUS-DP, the drive’s node address and GSD file configuration must be preserved. If the control system uses a CP343-1 or CP443-1 communications processor, confirm that the drive’s PROFIBUS address is correctly assigned in the hardware configuration before going live. Any mismatch will result in a bus fault that prevents the PLC from recognizing the drive.

HMI screens connected via WinCC or a Simatic OP/TP panel that display drive status, speed feedback, or fault codes should be reviewed. Tag addresses linked to the drive’s process data objects (PDOs) may need to be re-validated after the replacement, particularly if the firmware version of the new unit differs from the original.

I/O expansion modules such as the 6SE7090-0XX84-2DA0 analog I/O board or encoder feedback modules should be inspected for compatibility with the replacement unit’s firmware. Encoder interface cards — particularly HTL/TTL pulse encoder boards — must be re-parameterized if the encoder resolution or signal type differs from the original configuration.

Finally, confirm the physical installation space: cabinet depth, DIN rail or mounting plate dimensions, and cable bend radius for the power cables. The 6SE7036-0EF85-0EA0 is a high-power unit and its physical footprint must be matched against the available cabinet space before the replacement unit is ordered.

Downtime Control During System Migration

Minimizing production downtime during a SIMOVERT MASTERDRIVES replacement requires a structured migration plan executed in defined phases. The goal is to reduce the live swap window to the shortest possible interval while protecting the integrity of the existing control program and field wiring.

Phase 1 — Pre-Shutdown Preparation: Complete the parameter backup, photograph all terminal wiring, and prepare the replacement unit with pre-loaded parameters before the maintenance window begins. Confirm that the new unit has been bench-tested and that all option boards are correctly seated. Prepare a rollback plan in case the replacement unit cannot be commissioned within the planned window — this may involve retaining the original unit as a standby spare.

Phase 2 — Controlled Shutdown: Ramp the drive to zero speed using the existing control system before issuing a stop command. Allow the DC bus to fully discharge before opening the cabinet. Follow Siemens lockout/tagout procedures and verify zero voltage on the DC bus terminals before touching any internal components.

Phase 3 — Physical Swap: Disconnect power and control terminals systematically, labeling each wire if not already documented. Remove the outgoing unit and install the replacement 6SE7036-0EF85-0EA0. Transfer any option boards (CBP2, technology boards, encoder interfaces) from the original unit if they are not already installed on the replacement. Reconnect terminals in reverse order of removal.

Phase 4 — Recommissioning: Power up the drive in isolation before reconnecting to the PROFIBUS network. Load the saved parameter set and perform a motor identification run if required. Verify analog and digital I/O signals against the control system before enabling the drive for production. Reconnect PROFIBUS and confirm that the PLC recognizes the drive without bus faults. Perform a no-load test run followed by a loaded test at reduced speed before returning to full production.

With proper preparation, the live swap window for a SIMOVERT MASTERDRIVES unit can typically be completed within a single planned maintenance shift, significantly reducing the risk of extended unplanned downtime.

Retrofit Support FAQ

Q1: Is the 6SE7036-0EF85-0EA0 a direct drop-in replacement for my existing SIMOVERT MASTERDRIVES unit?
A: In most cases, yes — provided the frame size, power rating, and option board configuration match your existing installation. We recommend confirming the full part number, firmware version, and option slot configuration before ordering. Our technical team can assist with compatibility verification based on your existing unit’s nameplate data.

Q2: Has this unit been tested before shipment?
A: Yes. Every unit undergoes a functional pre-shipment test under load conditions before dispatch. A test report is available upon request. The unit is covered by a 12-month warranty from the date of shipment.

Q3: What commissioning tools are required to configure the replacement drive?
A: Siemens DriveMonitor or STARTER software is required for parameter upload and commissioning. Connection is via USS protocol (serial) or PROFIBUS-DP. We recommend uploading the parameter set from the outgoing drive before removal to minimize recommissioning time.

Q4: Can you supply this unit from stock for urgent breakdown situations?
A: We maintain inventory of SIMOVERT MASTERDRIVES units to support urgent breakdown and planned maintenance programs. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead time for the 6SE7036-0EF85-0EA0.
