Siemens 6ES5454-4UA12 Safety-Reliable Digital Output SIMATIC S5

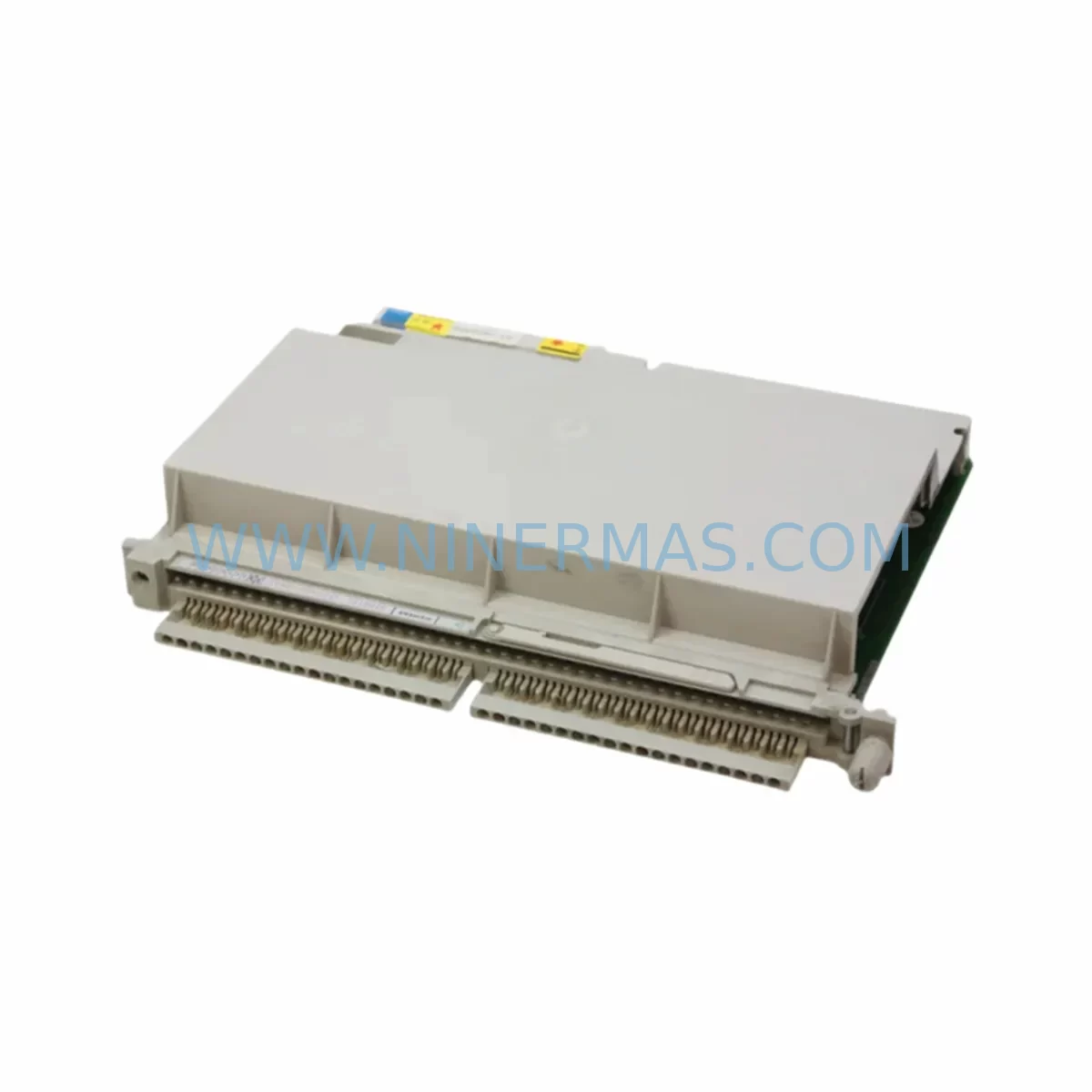

Siemens 6ES5454-4UA12 Safety-Reliable Digital Output Module for Critical Control Sites

The Siemens 6ES5454-4UA12 is a high-reliability digital output module designed for the SIMATIC S5 programmable logic controller platform — one of the most proven and widely deployed industrial automation architectures in continuous process industries worldwide. Engineered to deliver stable, interference-resistant signal switching in demanding environments, the 6ES5454-4UA12 is a mission-critical component for control cabinets operating in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and continuous manufacturing processes where unplanned downtime is simply not an option.

At NINERMAS, every 6ES5454-4UA12 unit is sourced from verified supply channels, subjected to outgoing inspection and functional verification testing before shipment, and backed by a 12-month warranty. Our inventory is maintained to support both emergency replacement and planned maintenance schedules, ensuring your critical control systems remain operational without extended lead times.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered SIMATIC S5 control cabinet, the 6ES5454-4UA12 digital output module does not operate in isolation — it is part of an integrated safety and reliability architecture. Its role is to translate CPU logic decisions into reliable field-level switching actions, driving actuators, solenoid valves, motor contactors, and indicator lamps with consistent signal integrity even under adverse conditions.

To maximize control cabinet uptime and minimize the risk of spurious trips or missed commands, the 6ES5454-4UA12 is typically deployed alongside complementary modules and components. The Siemens 6ES5431-4UA12 and 6ES5432-4UA00 digital input modules work in tandem with the output module to form a complete discrete I/O layer, ensuring that field feedback signals are accurately captured and acted upon without delay. In applications requiring analog process variable monitoring — such as temperature, pressure, or flow — the Siemens 6ES5464-4UA12 analog input module provides the necessary measurement channels within the same S5 rack architecture.

Power supply stability is a foundational requirement for safe output switching. Voltage fluctuations, surges, or momentary interruptions on the 24 VDC bus can cause false output activation or deactivation, leading to process upsets or equipment damage. The Siemens 6ES5955-3LC41 power supply module is engineered to deliver regulated, surge-protected DC power to the S5 rack, directly reducing the risk of output module malfunction due to power quality issues. For installations in environments with significant conducted or radiated electromagnetic interference — common in arc furnace facilities, variable frequency drive (VFD)-dense panels, or high-voltage switchgear rooms — additional EMC filtering at the cabinet entry point is strongly recommended to protect the 6ES5454-4UA12 and associated modules.

Communication integrity is equally critical in distributed control architectures. The Siemens 6ES5095-8MA02 SINEC L1 bus coupler and 6ES5734-3BD20 serial interface modules are commonly found in S5 systems where remote I/O expansion or supervisory SCADA connectivity is required. Any communication anomaly — whether caused by cable degradation, connector corrosion in humid environments, or bus termination faults — can result in the CPU losing visibility of output module status, creating a latent safety risk. Pairing the 6ES5454-4UA12 with properly maintained communication infrastructure ensures that output commands are transmitted and acknowledged reliably.

For safety interlock circuits — such as emergency stop loops, fire and gas system outputs, or turbine trip relays — the output channels of the 6ES5454-4UA12 are often wired through safety relays or force-guided relay modules to provide the mechanical contact redundancy required by IEC 62061 or EN ISO 13849 safety standards. This layered approach ensures that even in the event of an output transistor failure, the safety function is not compromised. Surge protection devices (SPDs) installed on output wiring further protect the module from field-side transients caused by inductive load switching — a common source of premature output module failure in heavy industrial environments.

Critical Industrial Safety Applications

The Siemens 6ES5454-4UA12 has established a long service record across the most demanding industrial sectors, where control system reliability is directly linked to personnel safety, environmental protection, and production continuity.

In petrochemical and refinery operations, the module is used to control critical valve actuators, pump motor starters, and flare system outputs. Its optocoupler isolation prevents ground loop currents from corrupting output signals in facilities where multiple earthing systems coexist. In power generation plants — including coal-fired, gas turbine, and hydroelectric stations — the 6ES5454-4UA12 drives turbine auxiliary systems, cooling water pump controls, and generator excitation outputs, where a single missed switching command can trigger a unit trip and significant revenue loss.

In underground and open-cut mining, the module operates in control panels exposed to vibration from blasting and heavy machinery, dust ingress, and wide temperature swings. Its robust construction and compliance with IEC vibration and shock standards make it suitable for conveyor drive control, ventilation fan switching, and dewatering pump management. Water and wastewater treatment facilities rely on the 6ES5454-4UA12 for dosing pump control, UV disinfection system switching, and sludge handling automation — applications where continuous operation is mandated by environmental regulations.

In metallurgical and steel production environments, the module controls rolling mill auxiliary drives, furnace burner management outputs, and cooling system valves in the presence of intense electromagnetic fields generated by induction heating equipment. Port and terminal automation systems use the 6ES5454-4UA12 in crane control panels and conveyor routing logic, where reliable output switching directly affects cargo throughput and crane safety interlocks. In continuous process manufacturing — including paper mills, cement plants, and chemical batch reactors — the module’s ability to maintain stable output states during power micro-interruptions and bus communication retries is essential for preventing batch loss and equipment damage.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the 6ES5454-4UA12?
Every 6ES5454-4UA12 unit sold by NINERMAS is covered by a 12-month warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, NINERMAS will provide a replacement unit or full refund. Our warranty reflects our confidence in the quality of our sourcing and inspection processes.

Q2: How is the 6ES5454-4UA12 tested before shipment?
All units undergo outgoing functional inspection prior to dispatch. This includes verification of output channel switching response, isolation integrity checks, and visual inspection for connector condition and board integrity. Units that do not pass inspection are not shipped. Test records are available upon request for critical procurement applications.

Q3: Is the 6ES5454-4UA12 compatible with all SIMATIC S5 CPU variants?
The 6ES5454-4UA12 is compatible with the SIMATIC S5-115U, S5-135U, and S5-155U central processing units when installed in the appropriate S5 central or expansion rack. Compatibility with specific CPU firmware versions and rack configurations should be verified against the Siemens SIMATIC S5 system manual. NINERMAS technical support can assist with compatibility queries prior to purchase.

Q4: Can NINERMAS support long-term and repeat supply of the 6ES5454-4UA12?
Yes. NINERMAS maintains dedicated inventory of SIMATIC S5 legacy modules, including the 6ES5454-4UA12, to support both emergency breakdown replacement and planned preventive maintenance programs. We understand that many S5-based systems remain in service for decades, and we are committed to providing reliable, long-term spare parts supply to keep your critical control systems operational. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your supply requirements.
