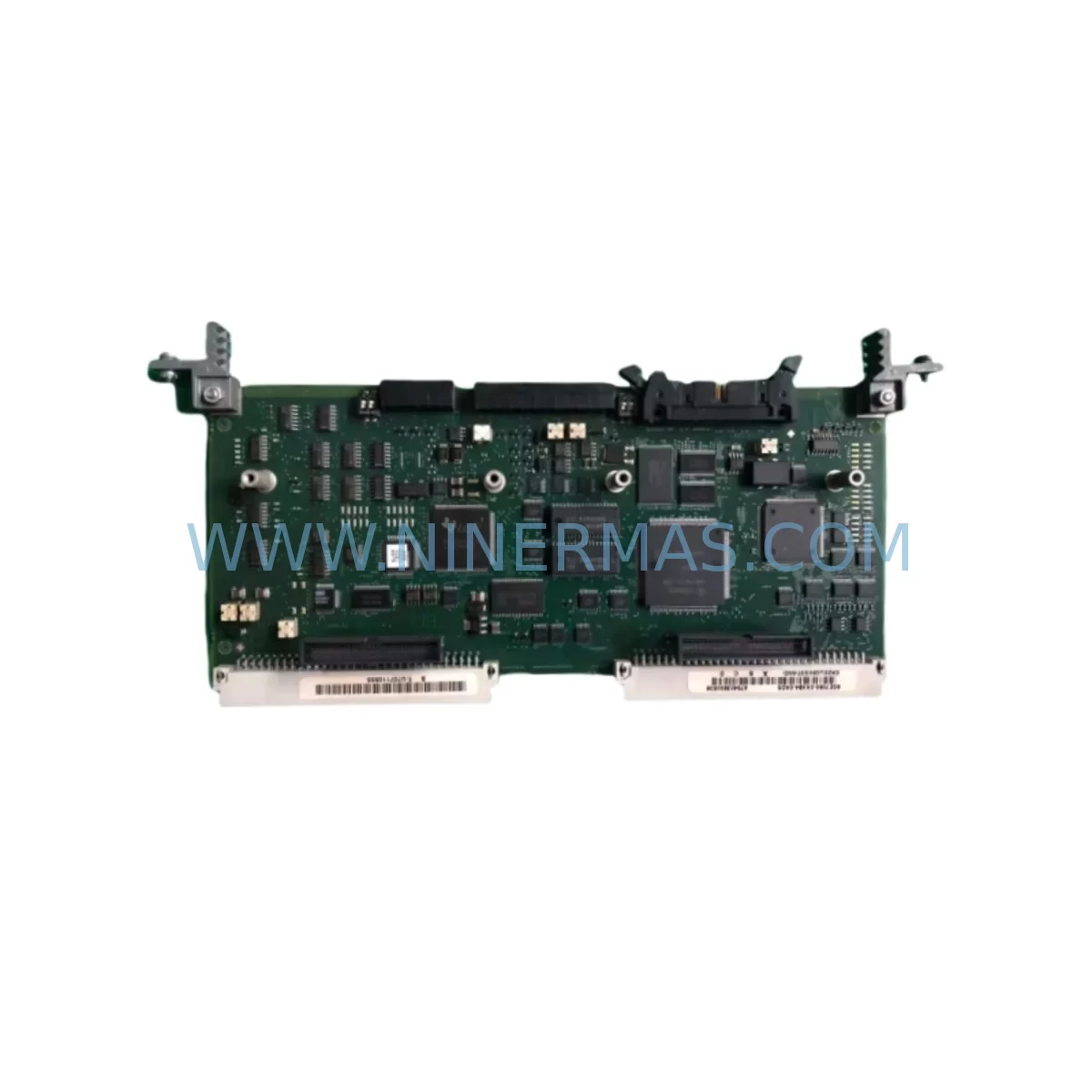

The Siemens 6SE7034-5HK84-1JC0 is a high-power AC drive unit from the SIMOVERT MASTERDRIVES Vector Control series, designed for demanding industrial applications including heavy-duty conveyor systems, compressors, pumps, extruders, and multi-motor drive trains. As production facilities worldwide face the challenge of maintaining aging automation infrastructure, the 6SE7034-5HK84-1JC0 has become a critical retrofit and replacement component for engineers seeking to extend the operational life of legacy Siemens drive systems without undertaking a full platform migration.

This unit operates within the SIMOVERT MASTERDRIVES 6SE70 platform, a series that Siemens has progressively phased out in favor of the SINAMICS S120 and SINAMICS G150 families. However, for facilities running existing 6SE70-based control cabinets, replacing a failed or end-of-life drive with the 6SE7034-5HK84-1JC0 remains the most cost-effective and lowest-risk path to restoring production continuity. NINERMAS maintains verified stock of this unit, pre-shipment tested and covered by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6SE7034-5HK84-1JC0 in an operational plant requires careful pre-planning to avoid extended downtime and configuration loss. Before the replacement unit arrives on-site, the maintenance team should use DriveMonitor or a compatible programming cable (e.g., the PC-Adapter USB or RS232 serial interface) to perform a full parameter backup of the existing drive. This backup captures all P-parameter sets, ramp profiles, torque limits, and motor data — information that would otherwise require hours of manual re-entry during commissioning.

The 6SE70 platform uses a modular rack architecture. In multi-axis installations, the 6SE7034-5HK84-1JC0 typically shares a common DC bus with companion inverter units such as the 6SE7031-8EF84-1JC0 or 6SE7033-2EG84-1JC0, and draws regulated DC voltage from a central rectifier/regenerative unit like the 6SE7036-0EE85-1AA0. Before isolating the faulty axis, confirm that the DC bus pre-charge circuit and the common rectifier unit are functioning correctly — a failed rectifier will cause repeated drive faults even after a successful module swap.

Terminal wiring on the MASTERDRIVES platform follows a consistent layout across the 6SE70 series. The control terminals (X101 for digital I/O, X102 for analog signals) and the power terminals (U1/V1/W1 input, U2/V2/W2 motor output) are clearly labeled. When re-terminating, pay close attention to the enable signal (terminal 63/64), the fault reset input, and any external speed reference signals connected to the analog input channels. If the original installation used a SIMATIC S7-300 or S7-400 PLC for sequencing, verify that the PROFIBUS DP address on the replacement drive matches the original node address — a mismatch will cause the PLC to report a DP slave fault and prevent the drive from receiving run commands.

For facilities that also operate SIMATIC HMI panels such as the TP177B or MP277, the drive status and fault codes are typically mapped to HMI screen tags via the PLC. After the drive swap, perform a short test run and confirm that the HMI displays correct speed feedback, current readings, and fault status. If the system uses a SINAMICS Link or USS protocol interface board (e.g., the SCI or CBD board), re-verify the baud rate and protocol settings before enabling the drive.

In cabinet upgrades where the 6SE7034-5HK84-1JC0 is being installed alongside newer components, ensure that the 24 VDC control power supply (such as a SITOP PSU100S or equivalent) has sufficient current capacity to support the additional control electronics. Signal isolators may be required if analog reference signals are shared between the new drive and legacy I/O modules from a SIMATIC ET 200M or ET 200S distributed I/O station. Proper shielding of encoder cables and analog signal lines is essential to prevent interference in high-power drive environments.

Downtime Control During System Migration

Minimizing production downtime during a MASTERDRIVES replacement requires a structured approach. Begin by scheduling the swap during a planned maintenance window and preparing all tools, documentation, and the replacement unit in advance. The 6SE7034-5HK84-1JC0 from NINERMAS is shipped pre-tested, which eliminates the risk of receiving a defective unit and reduces on-site commissioning time significantly.

Before powering down the cabinet, upload the complete parameter set from the existing drive using DriveMonitor. Store the backup file on a laptop and a USB drive. Label all terminal connections with adhesive markers before disconnecting — this is especially important for the motor thermistor input (KTY84 or PTC), the brake control relay output, and any external encoder feedback wiring connected to the SBP or SBM encoder evaluation board.

Once the replacement unit is installed and wired, restore the parameter backup before applying power. Perform a no-load test first: enable the drive without connecting the motor load, verify that the DC bus voltage is within specification, and confirm that no fault codes are active. Then reconnect the motor and perform a low-speed test run, monitoring current draw and checking for any mechanical resonance or vibration. Only after a successful low-speed test should the system be returned to full production speed.

For critical production lines where even a short unplanned outage is unacceptable, NINERMAS recommends maintaining a spare 6SE7034-5HK84-1JC0 unit on-site. Our team can assist with pre-configuration of the spare unit using your existing parameter backup, so that in the event of a failure, the swap can be completed in under two hours without requiring specialist commissioning support.

Retrofit Support FAQ

Q1: Is the 6SE7034-5HK84-1JC0 a direct drop-in replacement for other 6SE7034 variants?
A: The 6SE7034-5HK84-1JC0 is designed for direct slot replacement within the SIMOVERT MASTERDRIVES 6SE70 rack. However, the suffix codes (e.g., -1JC0) indicate specific option board configurations. Always verify that the option boards (communication, encoder evaluation, technology) match your existing installation before ordering. NINERMAS technical staff can assist with cross-reference verification.

Q2: Can I use my existing PROFIBUS DP wiring and node address after the swap?
A: Yes. The PROFIBUS DP node address is stored in the drive’s parameter set (P918). After restoring your parameter backup, the DP address will be retained. Confirm the address in DriveMonitor before enabling the drive on the network. If the CBP2 communication board is being reused from the original unit, no re-addressing is required.

Q3: What pre-shipment testing does NINERMAS perform on the 6SE7034-5HK84-1JC0?
A: Every unit undergoes a functional power-on test, DC bus voltage verification, control board communication check, and fault-free operation confirmation before dispatch. Units are packed in anti-static protective packaging with inspection documentation included. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the lead time and stock availability?
A: NINERMAS maintains ready stock of the 6SE7034-5HK84-1JC0 for immediate dispatch. Standard international shipping lead time is 3–7 business days depending on destination. For urgent requirements, express courier options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for real-time stock confirmation and shipping quotes.
