Siemens 6RY1803-0GA25 C98043-A7126-L100 Retrofit Control Module

Siemens 6RY1803-0GA25 C98043-A7126-L100 Retrofit Control Module: Legacy System Compatibility & Smooth Upgrade

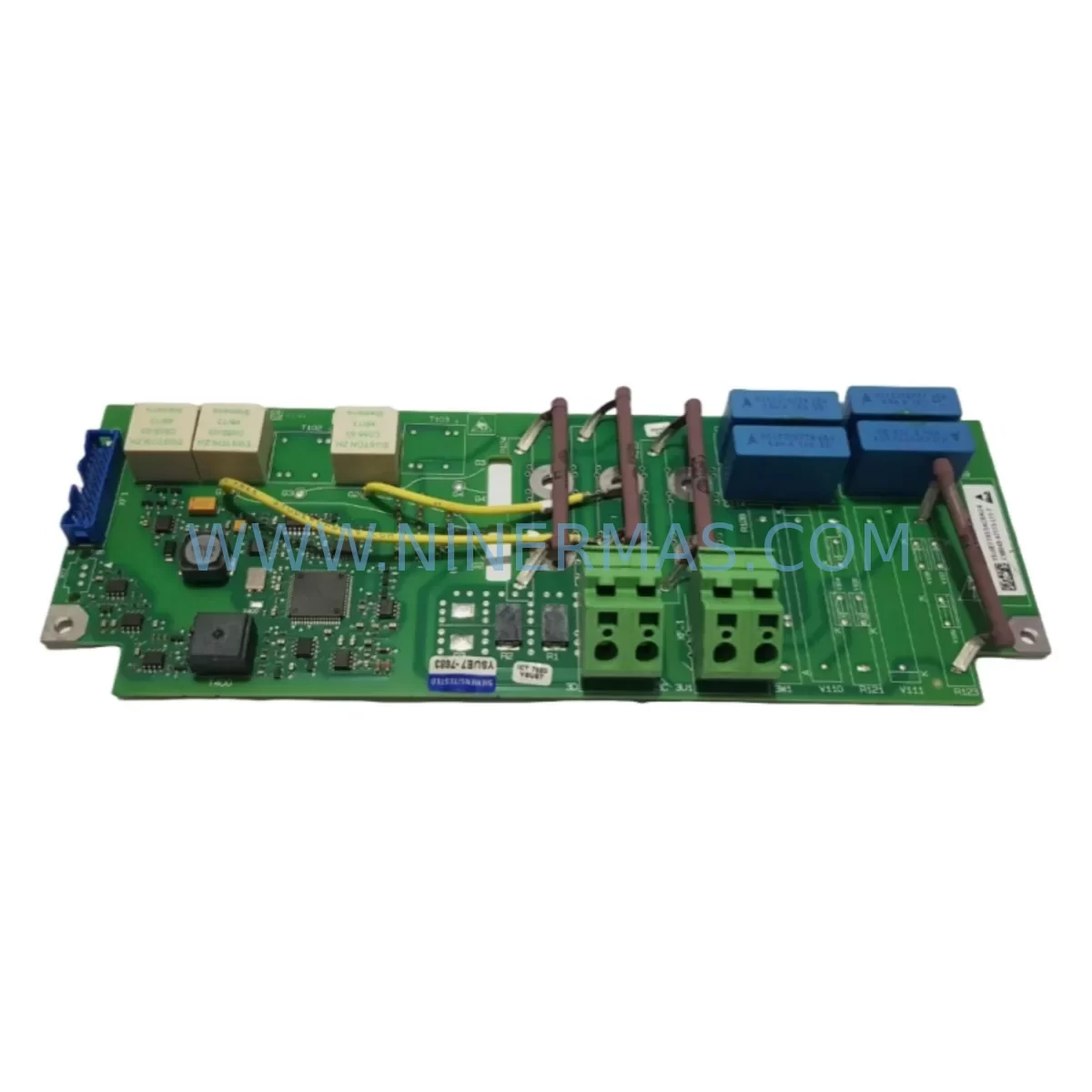

The Siemens 6RY1803-0GA25 (board reference C98043-A7126-L100) is a ruggedized control module originally designed for demanding industrial environments within the SIMOREG DC Master drive platform. As legacy SIMOREG 6RA24 and 6RA26 series converters reach end-of-life, this board remains a critical spare for plants that cannot afford full drive replacement. NINERMAS maintains verified stock of this module to support retrofit projects, emergency breakdowns, and planned maintenance cycles — each unit backed by a 12-month warranty and pre-shipment functional testing.

Whether you are stabilizing an aging paper mill drive line, maintaining a steel rolling mill converter, or upgrading a legacy crane control cabinet, the 6RY1803-0GA25 C98043-A7126-L100 provides a direct hardware path to restore drive function without rewriting the entire control architecture.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6RY1803-0GA25 C98043-A7126-L100 in an operational plant requires careful pre-work to avoid extended downtime. Before pulling the existing board, maintenance engineers should capture a full parameter backup using the SIMOREG parameter set upload function via the OP1S operator panel or a PC tool such as DriveMonitor. This ensures that all speed controller gains, current limits, ramp times, and field weakening curves are preserved and can be reloaded after the new board is seated.

Terminal wiring on the SIMOREG control board is dense. Photograph or document all X100, X101, and X102 terminal connections — including analog setpoint inputs, digital enable signals, and fault relay outputs — before disconnecting. If the drive cabinet also houses a Siemens 6SE70 inverter section or a separate field supply unit such as the 6RA7013, confirm that the interlock wiring between the converter and field supply remains intact during the board swap.

For plants running a distributed control architecture, the 6RY1803-0GA25 may interface with a Siemens S5-115U or S7-300 PLC via hardwired I/O or a PROFIBUS-DP link. If the existing PROFIBUS option board (C98043-A7002) is mounted on the failed control board, it must be transferred to the replacement unit — verify that the GSD file version and node address settings are preserved. In systems where the drive communicates with a Siemens OP7 or OP17 HMI panel, confirm that the USS baud rate and station address parameters match the panel configuration to avoid communication faults on first power-up.

Backplane slot position matters. In multi-drive cabinets using a common SIMOREG rack, each converter occupies a defined slot with a unique drive address. After installing the replacement 6RY1803-0GA25, verify that the address switches or parameter P918 (PROFIBUS address) are set correctly before enabling the drive. Incorrect addressing can cause bus conflicts that affect adjacent drives on the same rack, including companion units such as the 6RA2428 or 6RA2631.

Signal isolation is another consideration in older installations. If the plant uses analog speed references from a legacy DCS or a 4–20 mA current loop from a Siemens Moore APACS controller, a signal isolator or converter may be needed to match the input impedance of the new board. Similarly, if encoder feedback is used instead of a tachogenerator, confirm that the pulse encoder evaluation board (C98043-A7001) is present and correctly configured for the encoder line count.

For drives controlling hoisting or winding applications, the regenerative braking parameters and torque limits must be verified after board replacement. A controlled no-load test run at reduced speed is strongly recommended before returning the drive to full production load. This step protects both the mechanical load and the newly installed control board from stress caused by incorrect current controller tuning.

Downtime Control During System Migration

Minimizing production interruption during a SIMOREG control board replacement depends on preparation quality. The single most effective measure is having a verified replacement unit on-site before the planned maintenance window opens. NINERMAS ships tested units with standard lead times of 3–7 business days for in-stock items, with expedited options available for emergency breakdowns.

A structured swap procedure reduces the risk of extended downtime. Power down the drive following the correct de-energization sequence — disable the firing pulses, open the main contactor, discharge the DC bus capacitors, and lock out the incoming supply before touching any board. This sequence protects both personnel and the replacement module from transient damage.

Where possible, keep the original failed board intact and unmodified. If the replacement unit does not restore drive function immediately, the original board may still provide diagnostic clues — fault codes stored in the SIMOREG fault memory can be read even from a partially functional board using the OP1S panel. Retaining the original board also preserves the option of professional board-level repair as a fallback.

For critical production lines where even a planned shutdown is costly, consider maintaining a cold-standby spare in the control room. A pre-configured 6RY1803-0GA25 C98043-A7126-L100 with parameters pre-loaded reduces swap time to under 30 minutes in most installations. NINERMAS can supply pre-tested units with customer-specific parameter sets loaded on request, further compressing commissioning time and protecting the continuity of your production process.

After the board is installed and parameters are restored, perform a systematic commissioning check: verify the ready signal, check the fault display for any residual codes, run the drive at 10% speed in both directions, confirm speed feedback signal quality, and gradually ramp to full speed under controlled load conditions. Document the commissioning result and update the plant maintenance record before returning the drive to automatic control.

Retrofit Support FAQ

Q1: Is the 6RY1803-0GA25 C98043-A7126-L100 a direct drop-in replacement for earlier C98043-A7126 board revisions?
In most cases, yes. The L100 suffix denotes a hardware revision level. Earlier revisions (L1, L2, etc.) are generally forward-compatible in the same drive chassis, but you should verify the drive firmware version (parameter P070) to confirm compatibility. If the drive firmware is significantly older, a firmware update via the SIMOREG service interface may be required before the new board operates correctly.

Q2: What commissioning steps are required after installing the replacement board?
Reload the parameter backup via OP1S or DriveMonitor. Verify all analog and digital I/O signals at the X100/X101/X102 terminals. Check the speed feedback signal (tachogenerator voltage or encoder pulse count). Run a no-load test at reduced speed in both directions. Confirm that the drive reaches the correct speed setpoint and that current limits are within the motor nameplate ratings before returning to production.

Q3: Does NINERMAS provide pre-shipment testing for this module?
Yes. Every 6RY1803-0GA25 C98043-A7126-L100 unit shipped by NINERMAS undergoes functional verification before dispatch. Units are powered and checked for correct internal supply voltages, gate pulse output integrity, and communication port functionality. A test report is available on request. All units are covered by a 12-month warranty from the shipment date.

Q4: What is the typical lead time and what happens if the unit is not in stock?
