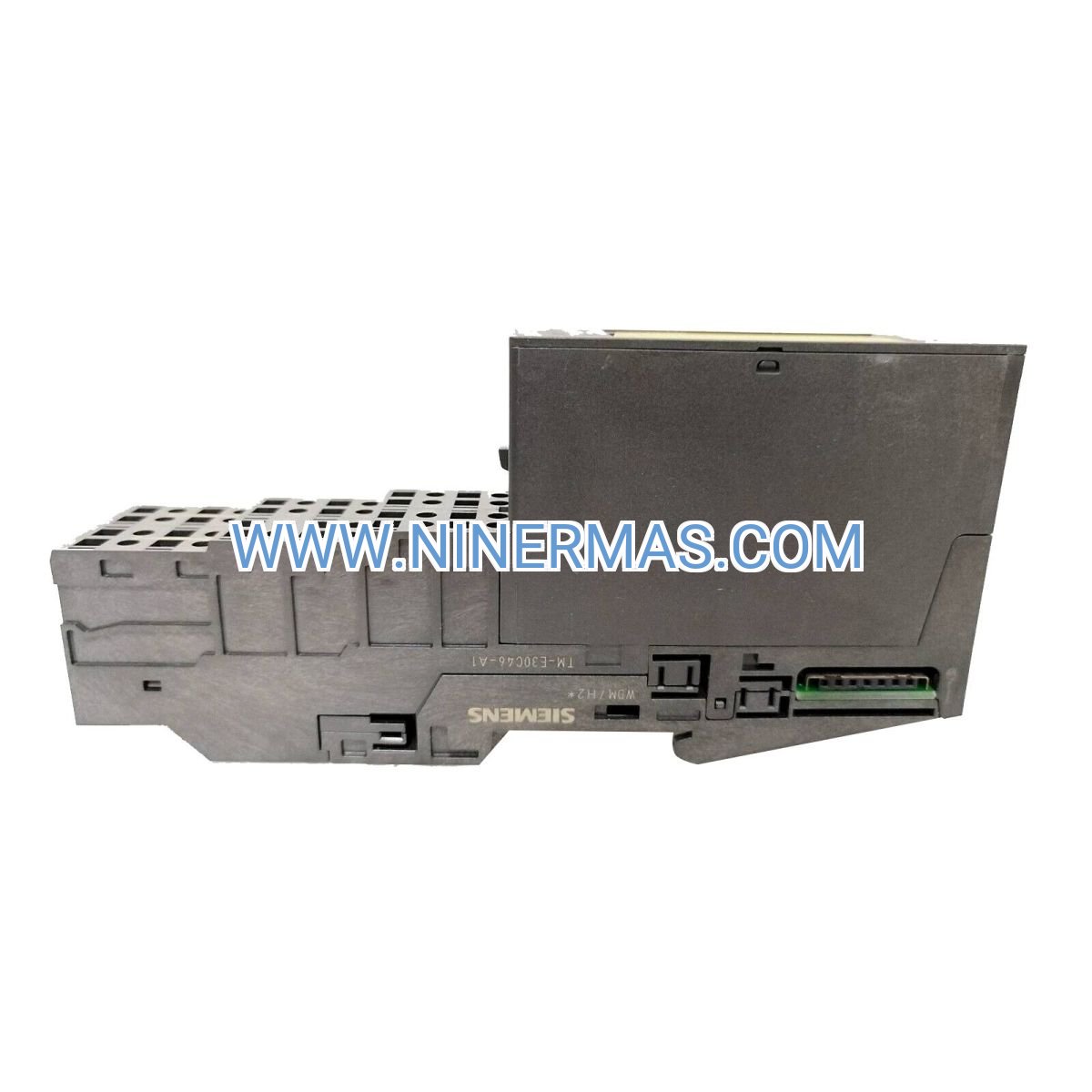

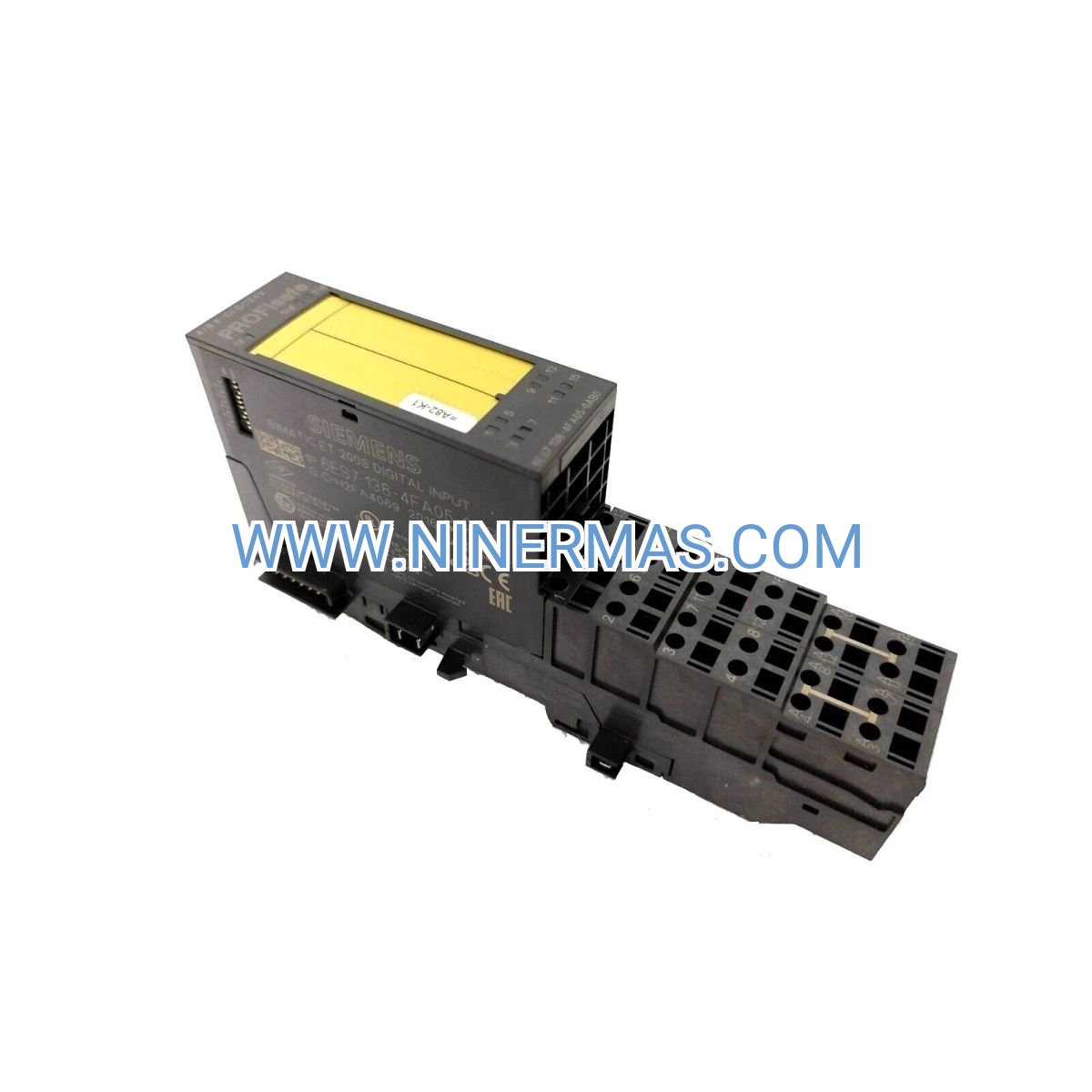

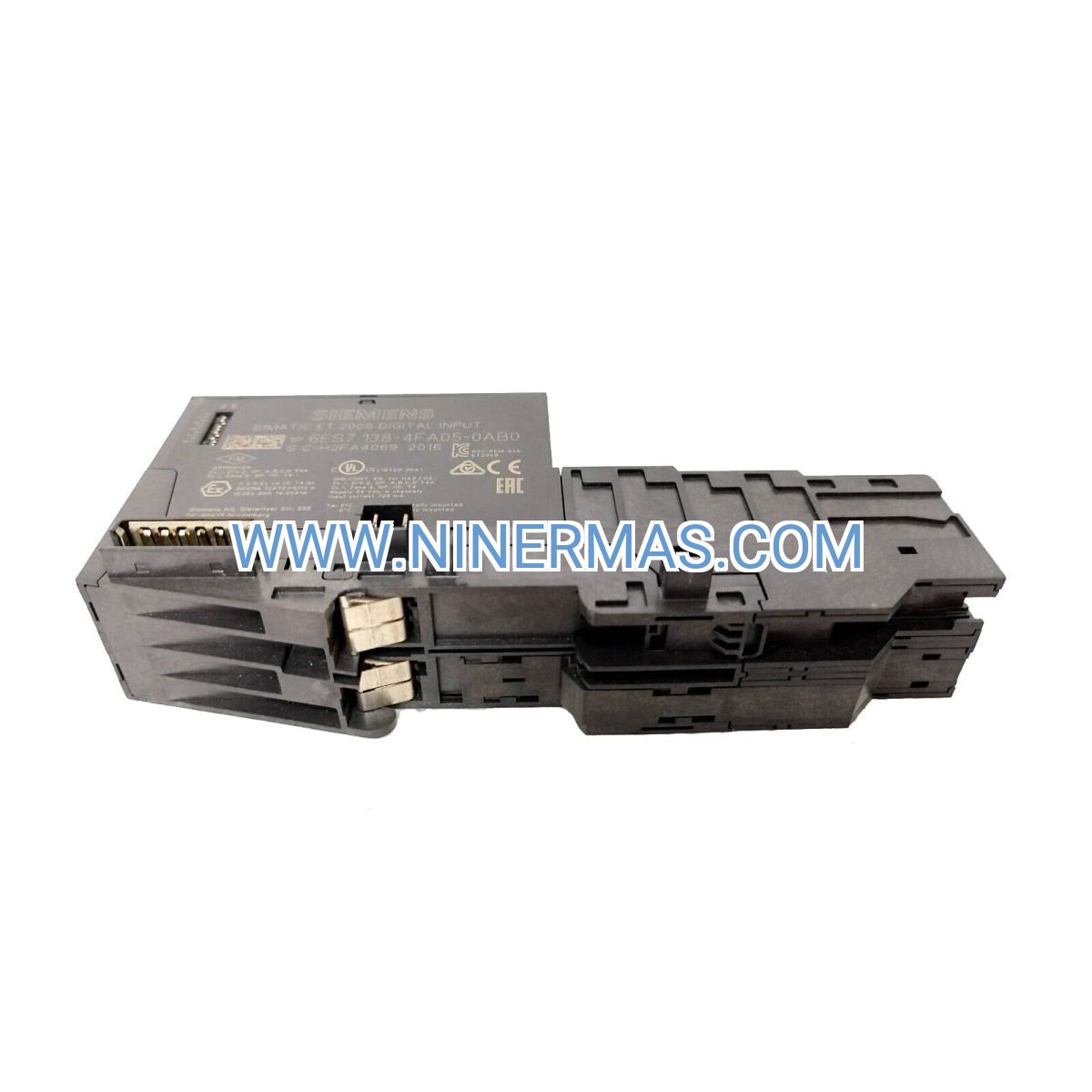

6ES7138-4FA05-0AB0 – Industrial-Grade PROFIsafe Electronics Module for Fail-Safe Control

The Siemens 6ES7138-4FA05-0AB0 represents a mission-critical component in modern safety automation architectures. Designed for ET200S distributed I/O systems, this fail-safe electronics module delivers SIL 3 and Performance Level e certified protection for personnel, equipment, and processes across manufacturing, energy, and process industries.

Built on proven PROFIsafe communication technology, the 6ES7138-4FA05-0AB0 enables deterministic safety data exchange over PROFINET and PROFIBUS networks. Its compact 15mm width and hot-swap capability make it ideal for space-constrained control cabinets requiring maximum uptime and flexible configuration.

Whether you're implementing emergency shutdown systems, safeguarding robotic work cells, or monitoring hazardous process conditions, this module provides the certified reliability and diagnostic intelligence demanded by safety-critical applications.

Core Features & Technical Advantages

→ Dual Safety Certification: Achieves SIL 3 per IEC 61508 and Performance Level e per ISO 13849-1, qualifying for the highest safety integrity applications in industrial automation

→ PROFIsafe Protocol Integration: Transmits fail-safe I/O data with black channel communication over standard PROFINET IO and PROFIBUS DP networks, eliminating dedicated safety wiring

→ Modular ET200S Architecture: Installs seamlessly alongside standard I/O modules on shared profile rails, reducing cabinet footprint by up to 40% compared to standalone safety systems

→ Hot-Swap Maintenance: Replace modules under power without halting production processes, critical for continuous manufacturing and 24/7 operations

→ Integrated Diagnostics: Multi-color LED indicators and TIA Portal integration provide real-time fault detection, reducing troubleshooting time by 60%

→ Wide Environmental Range: Operates reliably from 0°C to +60°C with IP20 protection, suitable for factory floor and controlled industrial environments

Industrial Application Scenarios

Emergency Stop & Machine Safety Systems
Deploy in packaging lines, CNC machining centers, and assembly automation where emergency stop buttons, safety relays, and guard interlocks require certified fail-safe monitoring. The module's 10-50ms response time meets stringent stop-time requirements for Category 4 safety circuits.

Process Industry Safety Instrumented Systems (SIS)
Implement in chemical reactors, distillation columns, and pipeline systems for burner management, high-integrity pressure protection (HIPPS), and emergency isolation valves. SIL 3 certification ensures compliance with IEC 61511 process safety standards.

Collaborative Robotics & AGV Safety Zones
Monitor safety laser scanners, area sensors, and speed supervision devices in human-robot collaboration workspaces. PROFIsafe communication enables safe reduced-speed operation and dynamic safety zone reconfiguration.

Material Handling & Conveyor Protection
Connect pull-cord switches, safety mats, and light curtains across warehouse automation and logistics systems. The module's distributed architecture reduces wiring costs by 50% in multi-zone conveyor installations.

Energy & Utilities Critical Infrastructure
Protect turbine control systems, substation automation, and renewable energy installations where safety failures could result in catastrophic equipment damage or environmental incidents.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 6ES7138-4FA05-0AB0 when your application requires SIL 3 / PL e safety integrity, PROFIsafe network integration, and compatibility with existing ET200S infrastructure. For applications requiring analog safety monitoring (temperature, pressure), combine with certified analog input modules. For lower safety integrity levels (SIL 2 / PL d), consider standard ET200S safety modules to optimize costs.

Extended Capabilities & System Integration

✓ TIA Portal Safety Advanced Programming: Configure fail-safe logic using graphical F-FBD/F-LAD languages with automatic safety code verification and documentation generation

✓ Redundant Controller Compatibility: Integrates with S7-1500H and S7-400H redundant safety controllers for fault-tolerant architectures in critical infrastructure

✓ Industrial IoT Connectivity: Export safety event logs and diagnostic data to SCADA systems, MES platforms, and cloud analytics via OPC UA and MQTT gateways

✓ Customization Options: Available with factory pre-configuration services including network addressing, safety parameters, and application-specific firmware for rapid commissioning

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock items via express courier with tracking
Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific parameters
Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and system design consultation
Documentation Package: Includes installation manual, safety certification documents, TIA Portal configuration files, and wiring diagrams

Frequently Asked Questions

What network protocols does the 6ES7138-4FA05-0AB0 PROFIsafe module support?
The module communicates via PROFIsafe protocol over both PROFINET IO and PROFIBUS DP networks when paired with compatible interface modules. This dual-protocol capability ensures compatibility with legacy PROFIBUS installations and modern PROFINET architectures.

Can I combine safety and standard I/O modules on the same ET200S station?
Yes, the ET200S system architecture allows mixing of PROFIsafe safety modules with standard digital, analog, and specialty I/O modules on a single profile rail. This reduces cabinet space requirements and simplifies wiring compared to separate safety and standard I/O systems.

What is the typical safety response time for emergency stop applications?
PROFIsafe communication achieves deterministic response times of 10-50 milliseconds depending on network cycle time configuration and controller scan rates. This meets Category 4 / PL e requirements for most machine safety applications per ISO 13849-1.

Does this module require special engineering software for configuration?
Configuration requires Siemens TIA Portal V13 or later with the Safety Advanced optional package. The software provides graphical programming tools (F-FBD, F-LAD), automatic safety code verification, and integrated diagnostics for fail-safe applications.

How does the hot-swap capability work without compromising safety integrity?
The ET200S backplane design includes passive backplane data exchange and module presence detection. When a module is removed, the safety controller automatically transitions to a safe state. Upon insertion of a replacement module, the system performs automatic parameter assignment and safety validation before resuming operation.

What certifications are required for using this module in hazardous area applications?
The 6ES7138-4FA05-0AB0 carries ATEX and IECEx certifications for use in Zone 2 / Division 2 hazardous locations when installed in appropriate enclosures. For Zone 1 / Division 1 applications, consult factory-certified intrinsically safe barrier solutions.

Order Your Certified Safety Solution Today

Protect your personnel, processes, and production assets with proven SIL 3 safety technology. The Siemens 6ES7138-4FA05-0AB0 PROFIsafe electronics module delivers the certified reliability and diagnostic intelligence required for modern safety-critical automation systems.

Contact our safety automation specialists for application consultation, system design support, and volume pricing.
