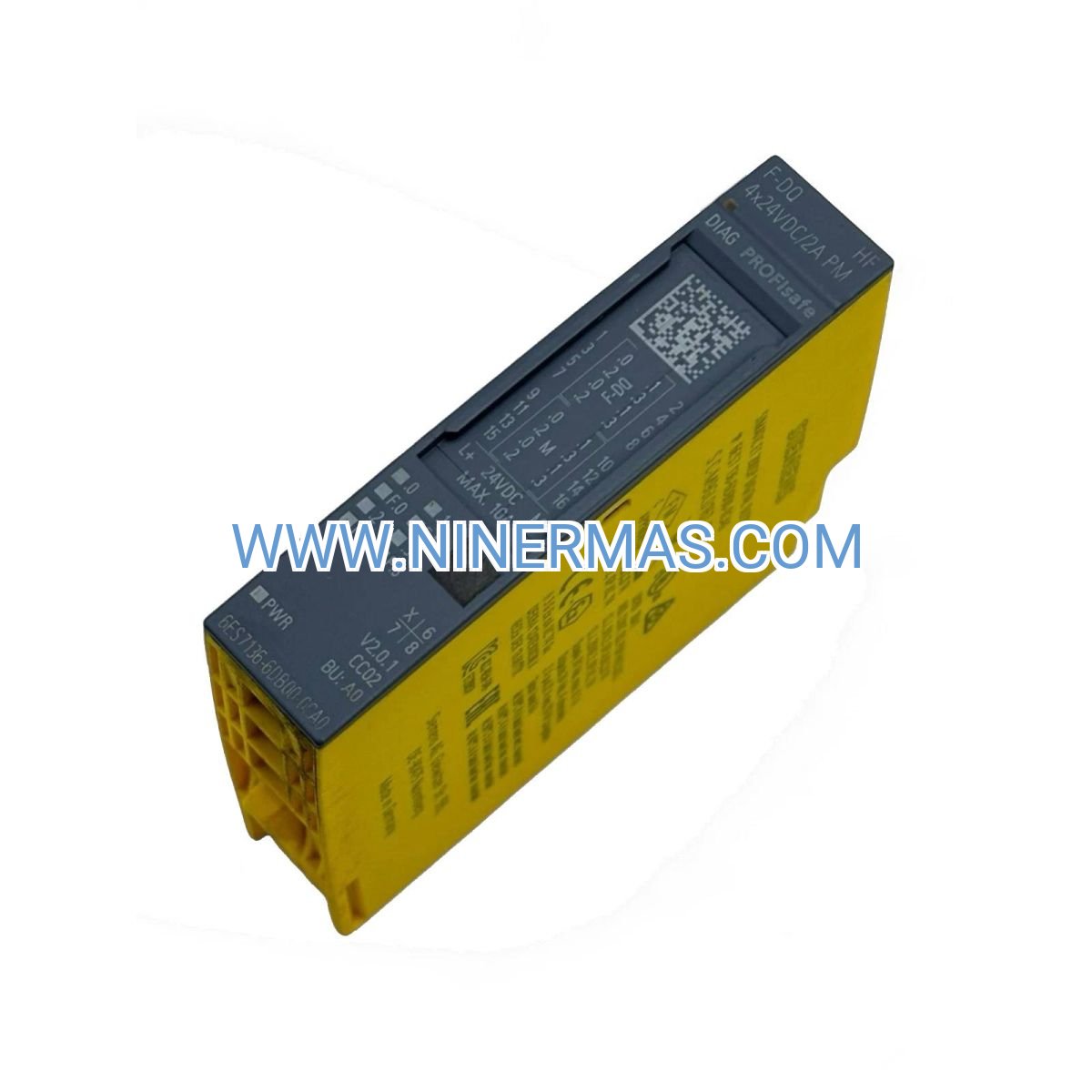

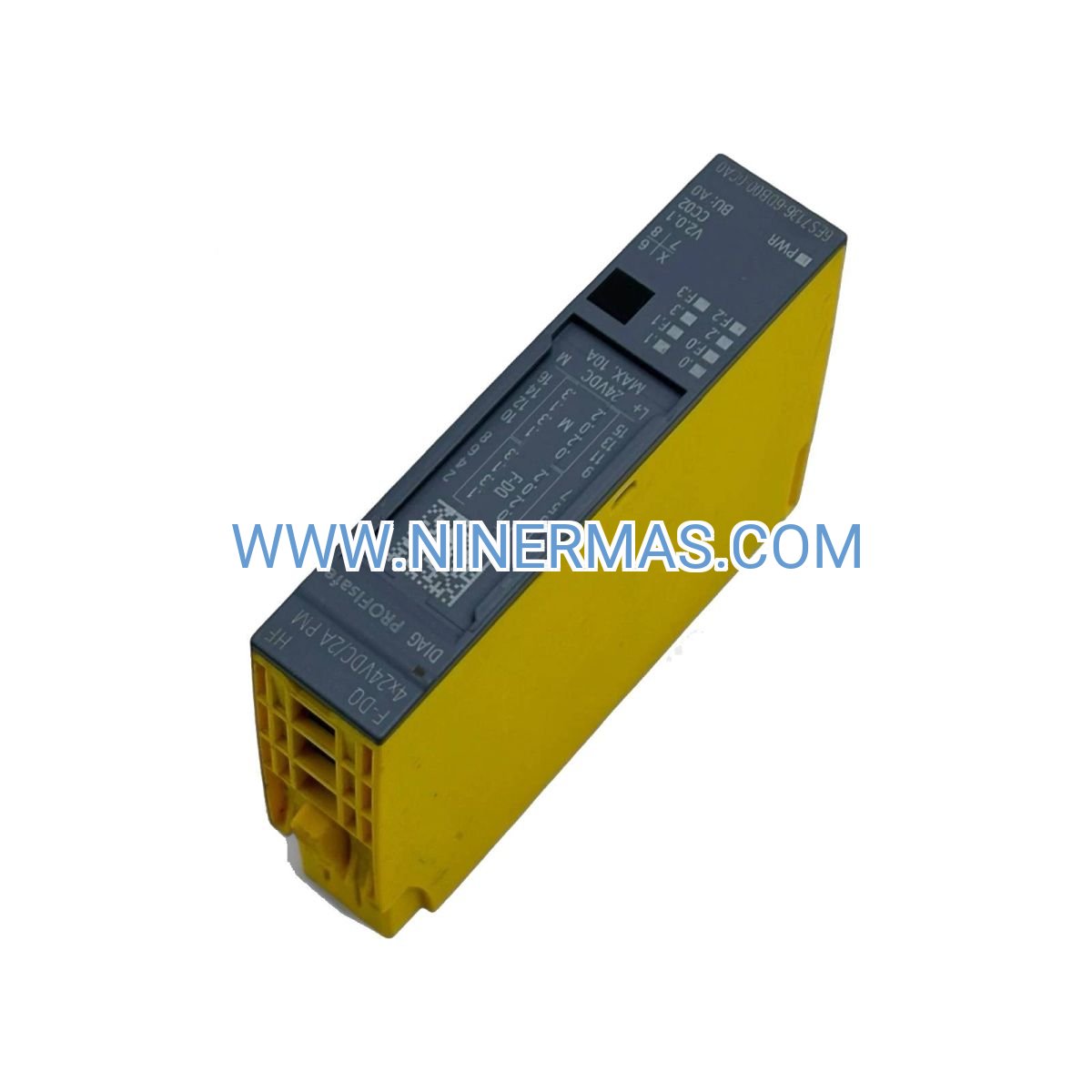

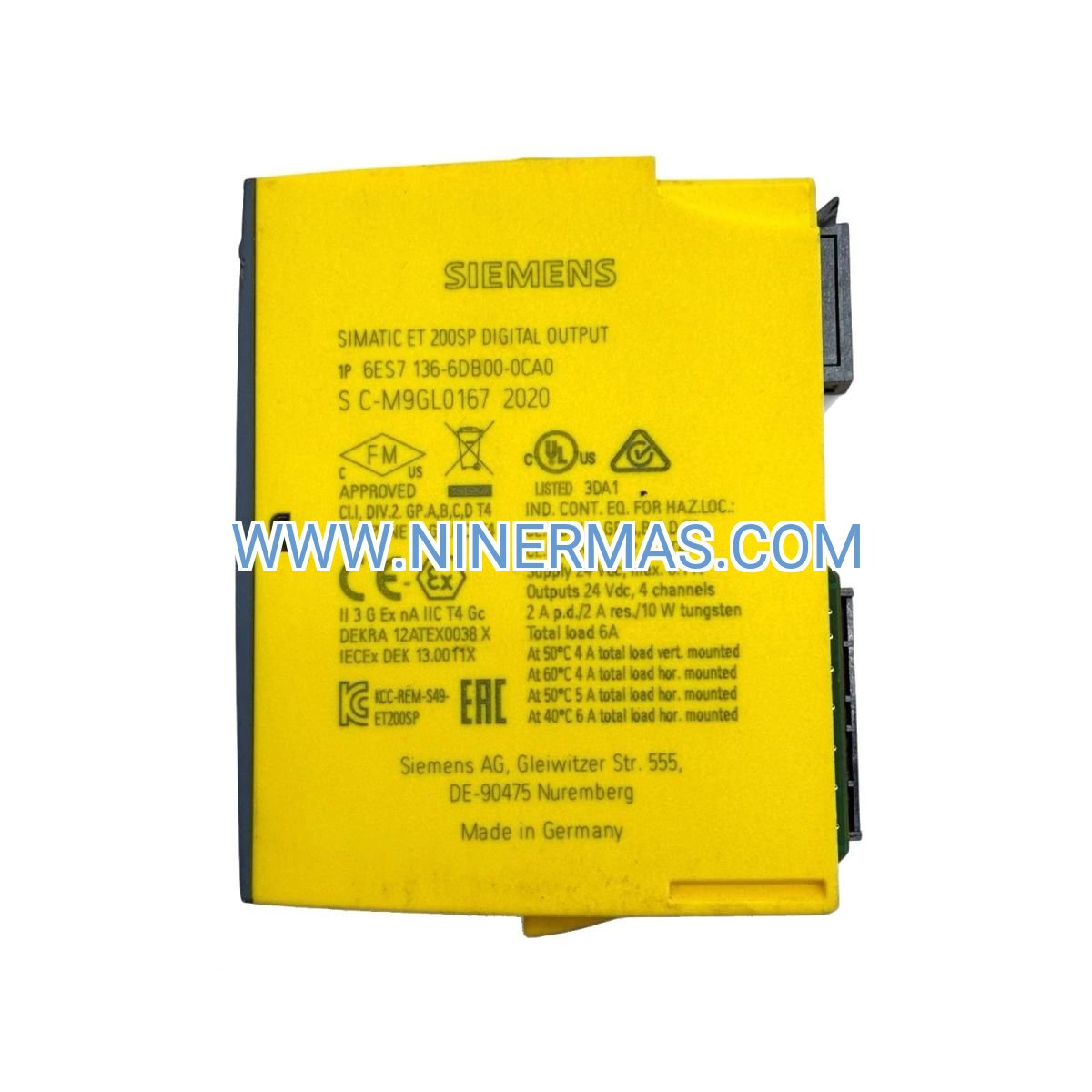

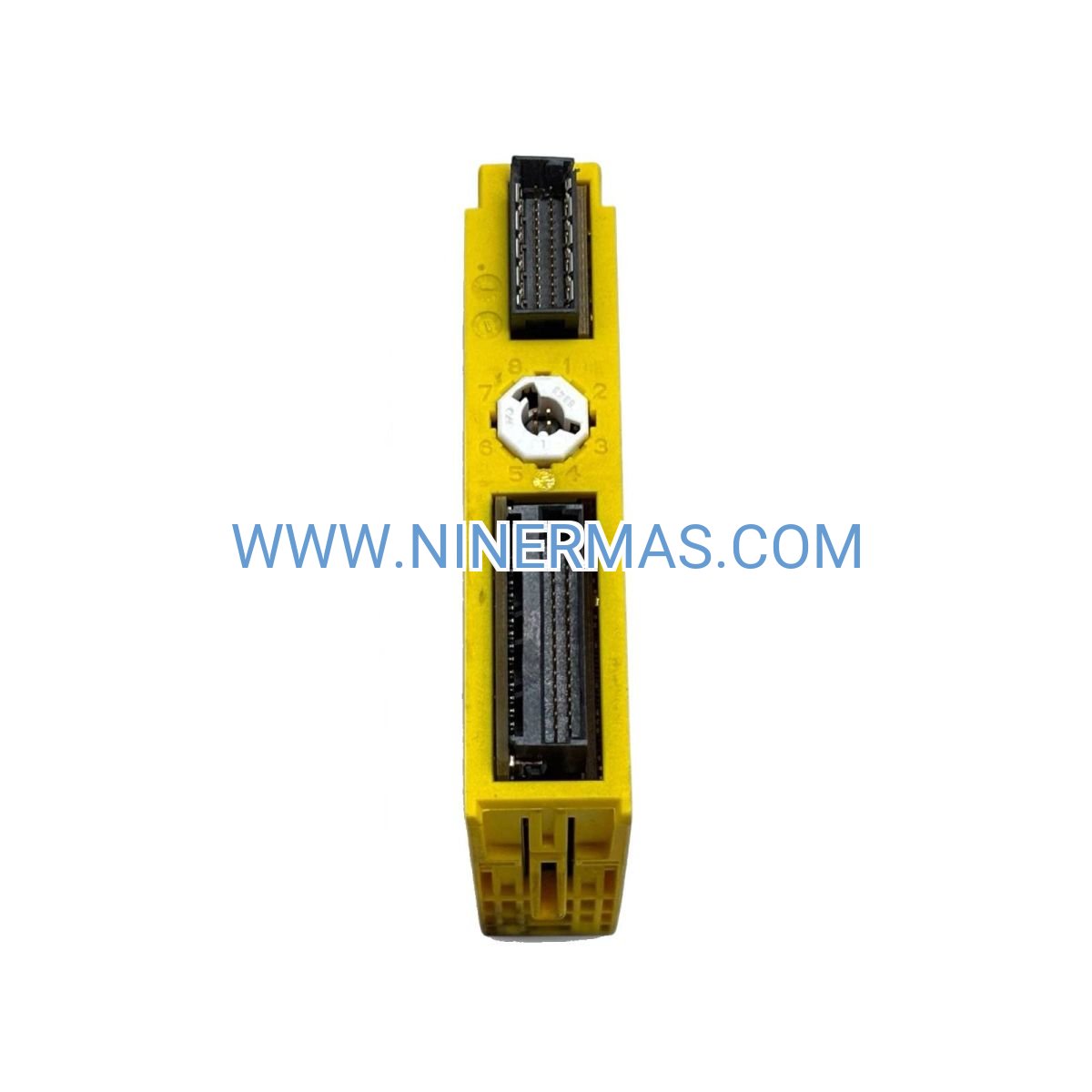

Siemens 6ES7136-6DB00-0CA0 F-DQ Safety Output Module (Industrial-Grade Fail-Safe Control)

The Siemens 6ES7136-6DB00-0CA0 represents cutting-edge safety automation technology for distributed control architectures. Engineered as a 4-channel fail-safe digital output module within the ET200SP family, this F-DQ 4x24VDC/2A PM unit delivers certified safety performance in the most demanding industrial environments. Certified to Performance Level e (PL e) per EN ISO 13849-1 and Safety Integrity Level 3 (SIL3) according to IEC 61508, this module ensures regulatory compliance across machinery safety and process safety applications.

Designed for space-critical installations, the ultra-compact 15mm width enables high-density cabinet layouts without compromising safety integrity. Each of the four independent channels provides 2A output capacity at 24V DC, sufficient to drive safety contactors, electromagnetic valves, warning devices, and brake systems directly. Push-in terminal technology accelerates installation while maintaining vibration-resistant connections essential for mobile machinery and high-shock environments.

Integration with SIMATIC Safety Integrated architecture through TIA Portal engineering software streamlines safety program development, validation, and documentation. Comprehensive channel-level diagnostics with detailed fault reporting minimize troubleshooting time and support predictive maintenance strategies. Whether you're upgrading legacy relay-based safety systems or designing new fail-safe automation solutions, this module delivers the reliability, flexibility, and certification required for modern industrial safety applications. Contact our engineering team today for application-specific guidance and rapid quotation.

Core Capabilities & Technical Advantages

→ Certified Safety Integrity: Dual certification to PL e (EN ISO 13849-1) and SIL3 (IEC 61508) ensures compliance with international machinery directives and functional safety standards, eliminating certification risks in global equipment deployments.

→ Maximum Cabinet Density: 15mm module width achieves up to 65% space reduction versus traditional safety relay systems, lowering cabinet costs and enabling compact machine designs with superior safety functionality.

→ Direct Load Driving: 2A per channel output capacity eliminates external amplification requirements for most safety loads including contactors, solenoid valves, and signaling devices, reducing component count and failure points.

→ Advanced Fault Detection: Integrated diagnostics monitor wire breaks, short circuits, overload conditions, and internal faults with channel-specific status reporting accessible via PROFINET/PROFIBUS communication.

→ Hot-Swap Serviceability: Front-accessible module replacement during operation maintains production continuity, with automatic configuration download from the safety controller upon module insertion.

→ Wide Environmental Range: -25°C to +60°C operating temperature and IP20 protection rating support installation in harsh industrial environments including foundries, chemical plants, and outdoor machinery applications.

Industry-Specific Application Solutions

✓ Automated Manufacturing Lines: Deploy in safety door monitoring systems, light curtain interfaces, and emergency stop circuits for packaging machinery, assembly robots, and material handling equipment. The module's fast response time and certified safety performance ensure worker protection while maintaining production throughput. Typical implementation controls safety contactors that interrupt power to servo drives and pneumatic systems when safety devices detect hazardous conditions.

✓ Process Industry Safety Systems: Implement in Safety Instrumented Systems (SIS) for chemical reactors, distillation columns, and pressure vessel protection. SIL3 certification supports IEC 61511 compliance for process safety applications requiring proven-in-use components. Common configurations include emergency shutdown valve control, burner management systems, and high-integrity pressure protection systems (HIPPS).

✓ Material Handling & Logistics: Integrate into conveyor safety systems, automated storage/retrieval systems (AS/RS), and sortation equipment. The module's compact design suits distributed safety architectures in large-scale logistics facilities where cabinet space is limited. Applications include zone isolation control, emergency stop propagation, and safe torque-off (STO) implementation for motor drives.

✓ Mobile Machinery & Construction Equipment: Apply in crane safety systems, tunnel boring machines, and mining equipment where vibration resistance and wide temperature range are critical. Push-in terminals maintain connection integrity under continuous vibration, while the module's diagnostic capabilities support remote monitoring in distributed mobile applications.

✓ Energy & Utilities Infrastructure: Utilize in wind turbine safety systems, substation automation, and power generation facilities requiring high-reliability fail-safe control. The module's proven-in-use status and long-term availability support critical infrastructure applications with 20+ year operational lifecycles.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires certified fail-safe output control with moderate current capacity (up to 2A per channel). For higher current requirements, consider parallel channel operation or external safety contactors. Applications demanding more than 4 safety outputs can combine multiple modules on the same ET200SP station. Ensure your safety controller supports the required number of F-I/O channels and that your base unit provides adequate auxiliary power distribution.

Extended Integration & Customization Options

IoT & Industry 4.0 Connectivity: Leverage PROFINET communication for integration with SCADA systems, MES platforms, and cloud-based analytics solutions. Safety diagnostic data streams to maintenance management systems enable condition-based servicing and safety system performance tracking. OPC UA server functionality (via S7-1500 controllers) provides standardized data access for third-party monitoring applications.

Advanced Safety Functions: Program complex safety logic including muting sequences, bypass management, and mode-dependent safety behavior using TIA Portal Safety Advanced engineering software. The module supports safety-related communication with distributed safety controllers for coordinated multi-zone safety systems.

Custom Configuration Services: Our engineering team provides pre-configured module programming, safety validation documentation, and application-specific testing to accelerate project commissioning. Custom cable assemblies, pre-mounted base units, and tested module sets available for volume projects.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock items ship within 24-48 hours via express courier with full tracking. Typical delivery to major industrial centers: 3-5 business days domestic, 7-10 days international.

Custom Configuration Lead Time: Pre-programmed modules with customer-specific safety logic: 5-7 business days from order confirmation.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical infrastructure applications.

Technical Support: Unlimited application engineering assistance including safety calculation validation, TIA Portal programming support, and troubleshooting guidance. Response time: <4 hours for critical production issues.

Documentation Package: Each module includes installation manual, safety certification documents, TIA Portal hardware catalog entry, and sample safety program templates. Complete system documentation services available for regulatory compliance submissions.

Frequently Asked Questions

What base unit configuration is required for this safety output module?
This module requires ET200SP base units with safety capability and integrated auxiliary power distribution. The BU15-P16+A0+2B base unit type provides optimal compatibility, supplying both backplane power and auxiliary 24V DC for output loads. Ensure your base unit selection matches the module's 15mm width and provides sufficient current capacity for your connected safety loads.

Can I mix safety and standard I/O modules on the same ET200SP station?
Yes, ET200SP architecture supports mixed safety and standard I/O configurations on a single station. Safety modules communicate via fail-safe PROFINET/PROFIBUS protocols while standard modules use conventional communication. This hybrid approach optimizes system costs by applying certified safety components only where required while using standard I/O for non-safety-related signals.

How does diagnostic capability reduce maintenance costs in safety systems?
Integrated channel-level diagnostics identify specific fault conditions (wire breaks, short circuits, overloads) with precise location information, eliminating time-consuming manual troubleshooting. Predictive fault detection alerts maintenance teams to degrading connections before safety system failures occur. Diagnostic data integration with CMMS platforms enables condition-based maintenance scheduling, reducing unnecessary preventive maintenance activities while improving safety system availability.

What programming software is needed for safety application development?
TIA Portal V17 or later with Safety Advanced option provides complete engineering environment for safety program development, simulation, and validation. The software includes safety-specific function blocks, automatic safety integrity calculation, and integrated documentation generation for regulatory compliance. Free trial versions available for evaluation and training purposes.

Is this module suitable for outdoor installation or harsh environments?
The module's -25°C to +60°C operating range and IP20 rating suit controlled industrial environments. For outdoor or wash-down applications, install within IP65-rated enclosures with appropriate environmental sealing. Conformal coating options available for high-humidity or corrosive atmosphere applications. Consult our application engineers for environment-specific installation recommendations.

How do I calculate safety integrity level for my complete safety function?
SIL/PL calculation requires analysis of the complete safety chain including sensors, logic solver, and final elements. While this module provides SIL3/PL e capability, your achieved safety level depends on architecture (1oo1, 1oo2, etc.), diagnostic coverage, proof test intervals, and component failure rates. We provide complimentary safety calculation validation services using industry-standard tools (SISTEMA, Safety Evaluation Tool) to verify your safety function meets required performance levels.

Request Technical Consultation

Selecting the optimal safety I/O configuration requires careful analysis of your application requirements, safety standards, and system architecture. Our certified safety engineers provide complimentary pre-sales consultation including safety concept review, component selection validation, and budget estimation. Contact us today with your project specifications for expert guidance and competitive quotation.
