SIEMENS 6ES5431-8MA11 Retrofit-Compatible Digital Input for Legacy

SIEMENS 6ES5431-8MA11 Retrofit-Compatible Digital Input Module for Legacy Automation Systems

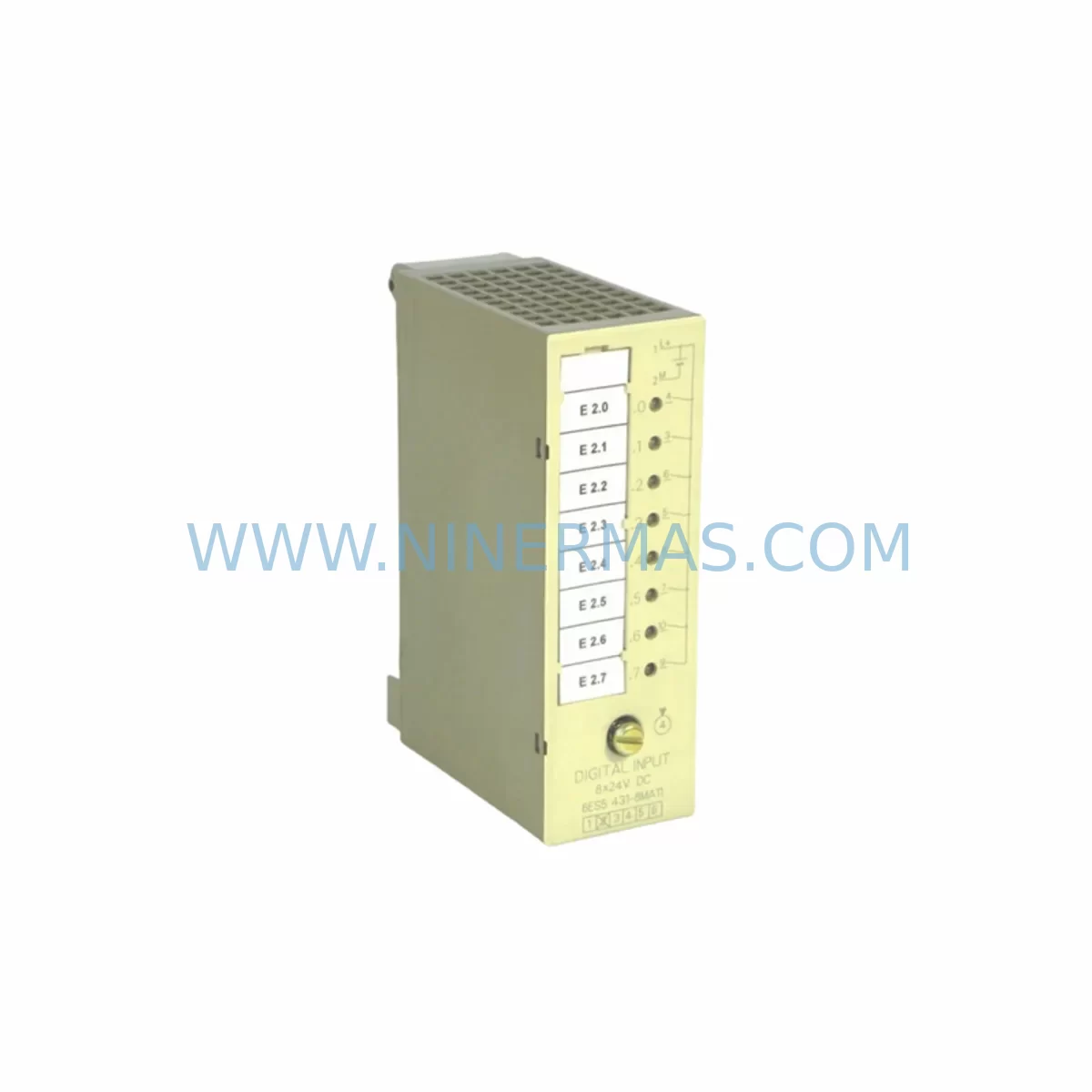

The SIEMENS 6ES5431-8MA11 is a ruggedized digital input module originally designed for the SIMATIC S5 programmable controller platform. As production lines age and original equipment manufacturers discontinue support for legacy hardware, the 6ES5431-8MA11 has become one of the most sought-after replacement and retrofit components in industrial automation. Whether you are maintaining an existing S5 installation, upgrading a control cabinet, or migrating toward a more modern control architecture, this module provides the electrical and mechanical compatibility required to keep your system operational with minimal disruption.

NINERMAS COMPANY LIMITED maintains verified inventory of the 6ES5431-8MA11 to support customers engaged in planned retrofits, emergency replacements, and long-term spare parts programs. Each unit is subject to pre-shipment functional testing and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6ES5431-8MA11 within a live or recently decommissioned S5 installation requires careful pre-work to avoid extended downtime and configuration errors. Before removing the existing module, engineers should document the current DIP switch address settings, photograph the terminal block wiring, and export the active STEP 5 program using a suitable programming cable such as the 6ES5734-1BD20 PC adapter. This ensures that the replacement module can be configured identically to the original without relying on memory or incomplete maintenance records.

The 6ES5431-8MA11 is typically installed in an S5-115U, S5-135U, or S5-155U central controller rack alongside other modules such as the 6ES5432-8MA11 digital output module, the 6ES5441-8MA11 analog input module, and the 6ES5451-8MR11 analog output module. In larger installations, the rack may also house a 6ES5095-8MA01 power supply module, which should be inspected for capacitor aging and output voltage stability before the retrofit is completed. If the installation includes remote I/O expansion via the 6ES5316-8MA12 interface module, the communication link between the central rack and remote stations must be verified after the module swap to confirm that all remote digital inputs are still being polled correctly.

Control cabinets undergoing broader modernization may also include a 6ES5955-3LC41 power supply unit or a 6ES5700-series CPU module. In these cases, it is advisable to assess whether the entire rack should be migrated to a SIMATIC S7-300 or S7-400 platform using Siemens migration tools, or whether a targeted module-level replacement is sufficient to extend the operational life of the existing system by another five to ten years. For installations where PROFIBUS communication has already been introduced at the supervisory level, a CP 5431 FMS/DP communications processor may be present in the rack, and its configuration should not be disturbed during the digital input module replacement.

Terminal block wiring for the 6ES5431-8MA11 follows the standard S5 front connector pinout. Installers should confirm that the 40-pin or 20-pin front connector is in good condition, that no terminals show signs of corrosion or loose crimps, and that cable shielding is properly grounded at the cabinet entry point. Signal isolation requirements should be reviewed if the input signals originate from field devices located more than 50 meters from the control cabinet, as long cable runs in industrial environments can introduce noise that affects digital input reliability.

Downtime Control During System Migration

One of the primary concerns when replacing a digital input module in a running production environment is minimizing the window during which the control system is offline. For a like-for-like replacement of the 6ES5431-8MA11, the physical swap can typically be completed in under 30 minutes if all preparatory steps have been taken in advance. The critical path includes powering down the rack in a controlled sequence, removing the front connector without disturbing adjacent wiring, extracting the faulty module, inserting the replacement unit, restoring the front connector, and powering the rack back up in the correct order.

Before the maintenance window begins, the STEP 5 program currently loaded in the CPU — whether a 6ES5948-3UA11, 6ES5944-3UA11, or another CPU variant — should be backed up to an offline programming device. This protects against the unlikely event that a power interruption during the swap corrupts the CPU memory. Once the replacement module is installed and the rack is powered, the STEP 5 online monitor should be used to verify that all input channels on the 6ES5431-8MA11 are reading correctly against known field device states before the system is returned to automatic operation.

For installations where even a brief interruption is unacceptable, a hot-standby or redundant I/O architecture may need to be considered as part of a longer-term modernization plan. In the short term, scheduling the replacement during a planned maintenance shutdown, coordinating with the production team to identify the lowest-impact time window, and having a tested spare module on hand before beginning work are the most effective strategies for controlling downtime risk. NINERMAS maintains ready stock of the 6ES5431-8MA11 to support customers who require fast delivery for emergency replacements, with standard lead times of one to three business days for in-stock units.

Retrofit Support FAQ

Q: Is the 6ES5431-8MA11 a direct drop-in replacement for my existing S5 digital input module?
A: Yes, provided your existing module is the same SKU or a functionally equivalent variant within the 6ES5431 family. Before installation, confirm that the input voltage range, channel count, and front connector type match your current wiring. No program changes are required for a like-for-like swap.

Q: Has this unit been tested before shipment?
A: All 6ES5431-8MA11 units supplied by NINERMAS undergo pre-shipment functional testing to verify that input channels respond correctly to signal stimulation. A test report is available upon request. Each unit is covered by a 12-month warranty from the date of shipment.

Q: Can I use this module in an S7 system or with PROFIBUS I/O?
A: The 6ES5431-8MA11 is designed for the SIMATIC S5 parallel backplane bus and is not directly compatible with S7 racks or PROFIBUS remote I/O stations. If you are migrating from S5 to S7, a protocol gateway or a full rack migration using S7-300 SM321 digital input modules would be required.

Q: What is your stock availability and delivery lead time?
A: NINERMAS maintains verified inventory of the 6ES5431-8MA11. Standard delivery is one to three business days for in-stock units. For large quantity requirements or long-term supply agreements, please contact our sales team to discuss scheduling and pricing.
