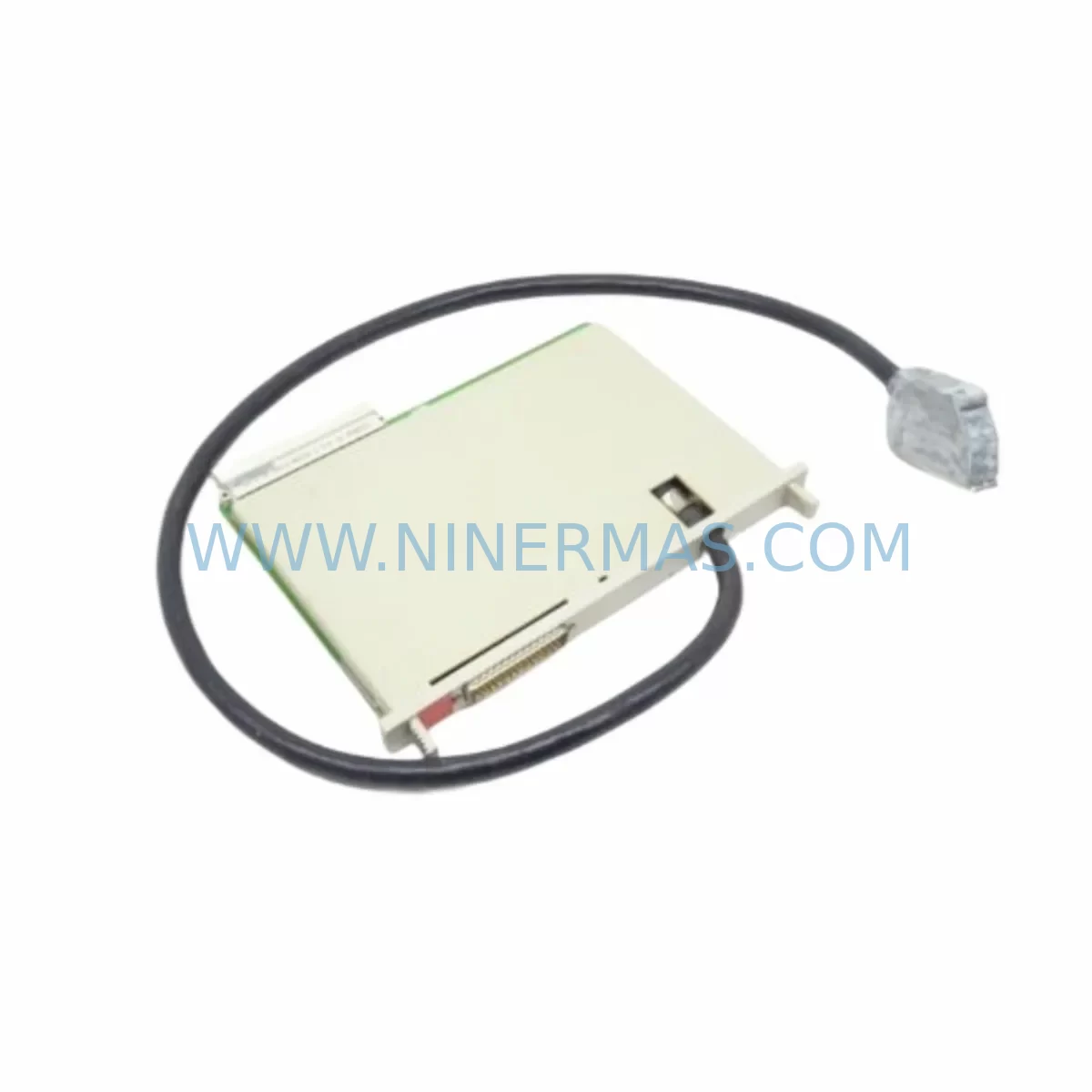

The Siemens 6ES5312-3AB31 IM312 Interface Module is a critical spare part for SIMATIC S5 PLC systems deployed across manufacturing, process control, and industrial automation environments. When a production line goes down due to a failed interface module, every minute of unplanned downtime translates directly into lost output and escalating recovery costs. Stocking a verified, service-ready 6ES5312-3AB31 replacement unit is the most effective strategy for minimizing mean time to repair (MTTR) and restoring system availability without compromising compatibility.

The IM312 serves as the communication backbone between the S5 central processing unit and expansion racks, enabling coordinated I/O management across distributed control cabinet configurations. Its failure typically manifests as rack communication loss, CPU fault flags, or complete I/O dropout — symptoms that demand immediate spare part substitution rather than extended diagnostic cycles. Maintenance engineers familiar with SIMATIC S5 architecture understand that the IM312 is not a component to source reactively; it belongs on the approved spare parts list for any facility running S5-300 or S5-400 series controllers.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES5312-3AB31 in a live S5 control cabinet is rarely an isolated task. Experienced maintenance engineers treat an IM312 replacement as an opportunity to audit the surrounding electrical environment and reduce the risk of repeat failures. Before returning the system to service, the following components in the same control cabinet or electrical circuit should be inspected or tested alongside the interface module replacement.

The S5 power supply module — typically a 6ES5955-3LC41 or 6ES5955-3LF41 — should be load-tested to confirm stable 5 VDC and 24 VDC rail output, as voltage sag is a common root cause of intermittent IM312 communication faults. The S5 backplane bus connector and rack slot contacts should be cleaned and inspected for oxidation or mechanical damage. If the system uses a 6ES5316-8MA12 IM316 send/receive module on the expansion side, its firmware revision and bus termination resistor status should be verified to match the IM312 configuration.

Digital and analog I/O modules — such as the 6ES5420-7LA11 digital input or 6ES5470-7LA12 analog output — connected through the expansion rack should be functionally tested after the interface module swap to confirm signal integrity. The S5 CPU module (e.g., 6ES5944-7UA12 or 6ES5948-7UA21) should be checked for active fault memory entries that may have accumulated during the communication outage. Any EPROM or memory submodule installed in the CPU should be verified for data integrity before restarting the control program.

For systems with PROFIBUS-DP or serial communication cards installed in adjacent slots, communication parameter settings should be re-confirmed after rack power cycling. Terminal blocks and field wiring connected to I/O modules in the expansion rack should be inspected for loose connections that may have been disturbed during the module replacement procedure. If the cabinet includes signal isolators or surge protection devices on analog input channels, their status indicators should be checked to rule out secondary damage from the original fault event. Finally, the UPS or 24 VDC buffer power supply feeding the control cabinet should be tested to ensure adequate hold-up time during future power interruptions — a common contributing factor to S5 interface module failures in aging installations.

Site Replacement Workflow

Replacing the Siemens 6ES5312-3AB31 on-site follows a structured sequence designed to minimize downtime and eliminate compatibility risk. Begin by placing the S5 CPU in STOP mode and documenting the current rack configuration, slot assignments, and any active fault codes stored in CPU diagnostic memory. Power down the affected expansion rack only — not the entire system — to allow other racks to remain operational if the process permits partial isolation.

Remove the failed IM312 module by releasing the front panel locking mechanism and disconnecting the 721-type interface cable. Install the replacement 6ES5312-3AB31 into the same rack slot, reconnect the interface cable, and verify that the bus termination switch setting matches the original module. Restore rack power and observe the module’s LED status indicators: the green RUN LED should illuminate within seconds of power-up, confirming successful bus initialization.

Return the CPU to RUN mode and monitor the first 10–15 scan cycles for any residual fault flags. Perform a functional test of all I/O points served by the expansion rack before releasing the line back to production. This workflow typically achieves full system restoration in under 30 minutes when a pre-tested replacement unit is available on-site — compared to 4–8 hours or more when the spare must be sourced reactively. For facilities managing multiple S5 racks, maintaining at least one 6ES5312-3AB31 per control room significantly reduces exposure to extended unplanned downtime.

Spare Parts Support FAQ

Q: Is the 6ES5312-3AB31 still available as a new original spare part?
A: Yes. NINERMAS maintains stock of the 6ES5312-3AB31 as a service-ready original spare. Each unit is individually tested before shipment to confirm bus communication function and LED status response. Long-term supply continuity is supported for facilities with ongoing S5 maintenance programs.

Q: How do I confirm compatibility before ordering?
A: The 6ES5312-3AB31 is compatible with SIMATIC S5-115U, S5-135U, and S5-155U systems using EU900 or EU183U expansion racks. Confirm your existing IM312 part number from the module label or your system documentation. If you are replacing an older IM312 variant, contact our technical team at sale@ninermas.com with your rack configuration details for pre-order compatibility verification.

Q: What does the 12-month warranty cover?
A: All 6ES5312-3AB31 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are supported with direct technical assistance and priority replacement dispatch to minimize any secondary downtime impact.

Q: Can NINERMAS support long-term spare parts procurement for S5 systems?
A: Yes. NINERMAS specializes in long-term supply of legacy industrial automation spare parts, including the full SIMATIC S5 module range. We support annual maintenance contracts, emergency stock programs, and scheduled procurement planning for facilities committed to extending the operational life of existing S5 installations. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your inventory requirements.
