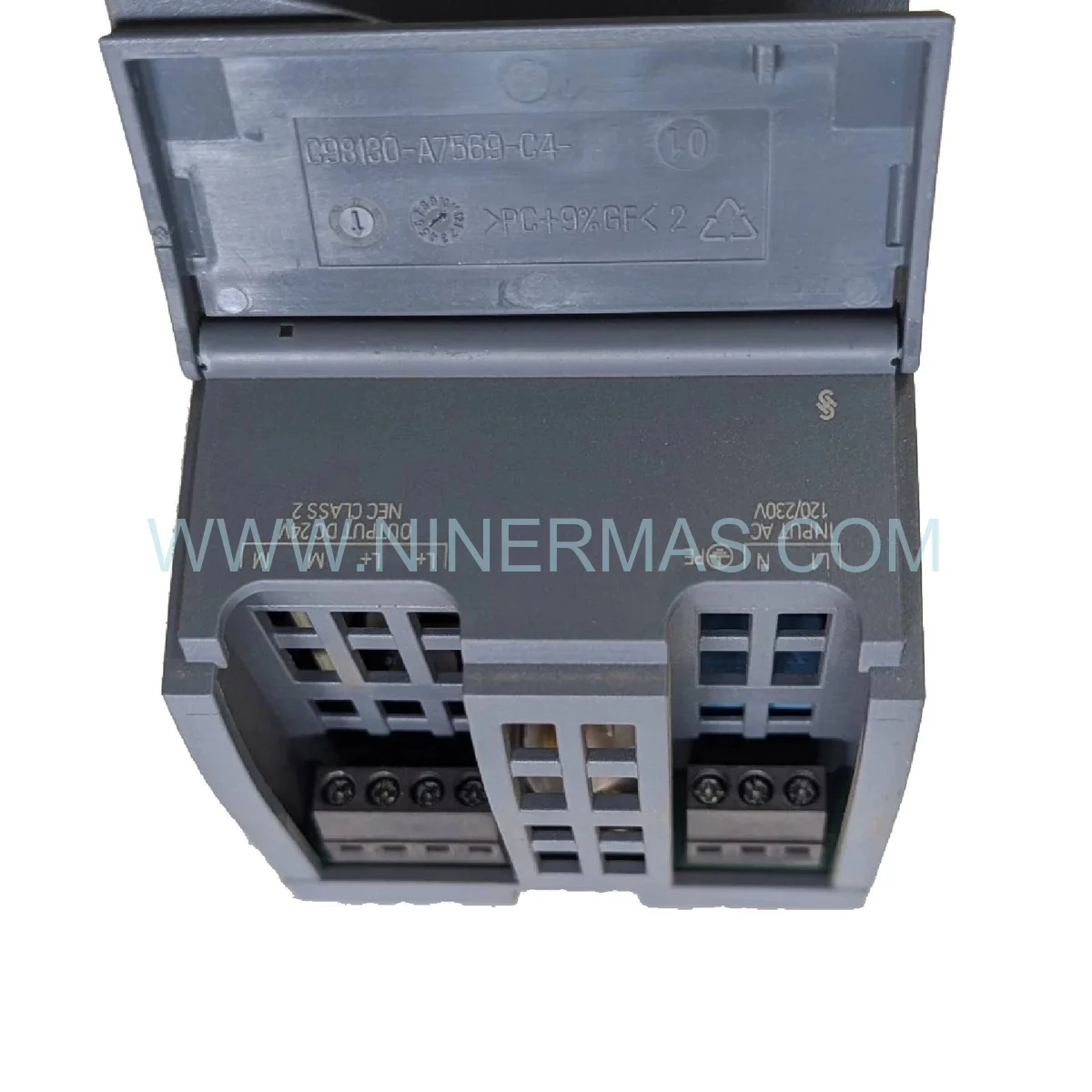

Siemens 6EP1332-1SH71 PM1207 | S7-1200 Retrofit Power Module 24V DC

Siemens 6EP1332-1SH71 PM1207 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and power generation facilities, the Siemens 6EP1332-1SH71 stands as a cornerstone component in any serious modernization initiative. This compact 24V DC / 2.5A stabilized power module is purpose-engineered for the SIMATIC S7-1200 platform, delivering the consistent, regulated power backbone that aging automation architectures desperately require when transitioning toward modern industrial networks. Its role in Performance Enhancement is not merely incremental — it is foundational, enabling facilities to extend operational lifespan while simultaneously preparing infrastructure for next-generation connectivity.

The Siemens 6EP1332-1SH71 excels precisely where legacy compatibility matters most. Its auto-sensing 120/230V AC wide-range input eliminates the manual voltage selection headaches that plague older power distribution designs, making it an ideal drop-in Hardware Upgrade for control cabinets originally built around discontinued or end-of-life (EOL) power units. Whether your facility is executing a phased DCS migration or maintaining a hybrid environment where legacy PLCs coexist with modern S7-1200 controllers, this module bridges the gap with zero-compromise power quality.

From a migration risk and cost perspective, deploying the 6EP1332-1SH71 as part of a Retrofit Solution dramatically reduces the financial exposure associated with full system overhauls. Its DIN rail form factor (35mm standard) ensures mechanical compatibility with existing cabinet infrastructure, while its MTBF exceeding 500,000 hours minimizes unplanned downtime during the critical transition window. The result: a lower total cost of migration, faster commissioning timelines, and a measurable reduction in operational risk for plant engineers and project managers alike.

Upgrade Highlights & Compatibility

✅ Wide-Range AC Input (120/230V Auto-Sensing): Eliminates manual reconfiguration — plug-and-play compatibility across global facility power standards, accelerating Seamless Integration into existing cabinet designs.

60W / 2.5A Regulated DC Output: Delivers rock-solid 24V DC ±3% stability, ensuring S7-1200 CPUs, I/O expansion modules, and field sensors operate within specification even under dynamic load conditions.

✅ Legacy Compatibility & Drop-In Retrofit: Standard 70mm DIN rail footprint matches legacy cabinet layouts — no mechanical modification required for most retrofit scenarios, reducing installation labor by up to 40%.

Built-In Overload & Short-Circuit Protection: Electronic current limiting safeguards both the new module and connected legacy hardware during fault events — critical for mixed old/new system environments.

✅ Future-Proofing via S7-1200 Ecosystem: Full compatibility with CPU 1211C through 1217C, all SM 1221/1222/1223 digital I/O, SM 1231/1234 analog modules, and CM 1241/1243 communication boards — your power infrastructure grows with your automation roadmap.

Certifications for Global Deployment: CE, UL, cUL, and FM approvals support international project rollouts without re-certification delays.

Modernization Use Cases & Success Stories

DCS Migration in Chemical Processing Plants: A regional chemical manufacturer replacing a 1990s-era distributed control system integrated the 6EP1332-1SH71 as the standardized power module across 48 new S7-1200 control nodes. The uniform 24V DC architecture simplified field wiring, reduced spare parts inventory complexity, and cut commissioning time per node by 35% compared to the legacy multi-voltage power distribution scheme.

Turbine Supervisory Instrumentation (TSI) System Upgrades: In power generation retrofit projects, where TSI systems monitor critical turbine parameters (vibration, speed, temperature), stable and clean DC power is non-negotiable. The 6EP1332-1SH71’s high efficiency (>87%) and low output ripple make it the preferred power source for S7-1200-based TSI modernization panels, replacing obsolete single-board power regulators that no longer meet modern EMC standards.

Automotive Assembly Line Modernization: A Tier-1 automotive supplier upgrading body-in-white welding stations from legacy relay-logic panels to S7-1200 PLC control deployed the 6EP1332-1SH71 across 120 control cabinets. The module’s 150% overload capacity for 5 seconds handled inrush currents from pneumatic actuators and servo drives during startup sequences — a critical requirement that eliminated nuisance tripping experienced with lower-spec alternatives.

Pharmaceutical Production Line Retrofit: GMP-compliant pharmaceutical facilities demand power supplies with documented reliability and traceable certification. The 6EP1332-1SH71’s UL/cUL approvals and MTBF >500,000 hours satisfied validation requirements, enabling a smooth IQ/OQ/PQ qualification process during a line modernization project — reducing validation documentation effort by an estimated 25%.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | **Siemens 6EP1332-1SH71** | | Product Series | SIMATIC S7-1200 PM1207 | | Lifecycle Status | Active (Current Production) | | Input Voltage Range | 120/230V AC ±15% (Auto-Sensing) | | Input Frequency | 47-63 Hz | | Output Voltage | 24V DC ±3% | | Output Current | 2.5A Continuous | | Output Power | 60W | | Efficiency | >87% at Nominal Load | | Overload Capacity | 150% for 5 Seconds | | Mounting Type | DIN Rail 35mm (Standard Legacy-Compatible) | | Width | 70mm (Drop-In Retrofit Footprint) | | Dimensions (W H D) | 70 — 125 — 120 mm | | Protection Rating | IP20 | | Operating Temperature | -25°C to +70°C | | MTBF | >500,000 Hours | | Certifications | CE, UL, cUL, FM | | Compatible CPUs | S7-1200: CPU 1211C / 1212C / 1214C / 1215C / 1217C | | Compatible I/O Modules | SM 1221 / 1222 / 1223 / 1231 / 1234 | | Compatible Comms | CM 1241 / 1243 | | Retrofit Application | DCS Migration, TSI Upgrade, Legacy Panel Replacement | | Weight | ~1 kg |

Supply Chain & Deployment Support

Original & Factory Sealed Units: Every Siemens 6EP1332-1SH71 supplied through our network is sourced as genuine, factory-sealed product with full manufacturer traceability. No refurbished, reconditioned, or grey-market units — critical for retrofit projects where component authenticity directly impacts system validation and warranty coverage.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and maintenance requirements. Express air freight options are available for emergency plant shutdowns, with typical lead times of 3-7 business days for most global destinations. All shipments include commercial invoice, packing list, and certificate of origin documentation for smooth customs clearance.

Technical Support for Obsolete & Legacy Hardware Environments: Our engineering support team specializes in mixed-generation automation environments. Whether you need guidance on integrating the 6EP1332-1SH71 into a cabinet originally designed for a discontinued power module, or require assistance with load calculations for a multi-node S7-1200 retrofit, our team provides pre-sales technical consultation and post-installation commissioning support.

12-Month Warranty: All units carry a comprehensive 12-month warranty covering manufacturing defects, with advance replacement options available for critical production environments to minimize retrofit project risk.

Retrofit FAQ (Upgrade Guide)

Q1: Will the 6EP1332-1SH71 physically fit in my existing control cabinet designed for an older power supply?
A: In the vast majority of retrofit scenarios, yes. The 6EP1332-1SH71 uses a standard 35mm DIN rail mount with a 70mm width profile — a form factor common across industrial control cabinets built over the past three decades. If your legacy power supply occupied a wider slot, the remaining space can be utilized for cable management or additional terminal blocks. We recommend verifying cabinet depth (minimum 120mm clearance required) before ordering.

Q2: How does the 6EP1332-1SH71 communicate with legacy PLCs or older SIMATIC S5/S7-300 systems during a phased migration?
A: The PM1207 is a power supply module, not a communication device — it provides the 24V DC power rail that both legacy and new S7-1200 controllers share during a phased cutover. This makes it an ideal bridge component: install it to power the new S7-1200 nodes while legacy systems remain operational on their existing power infrastructure, enabling a zero-downtime parallel-run migration strategy.

Q3: Are there approved substitute or alternative part numbers if the 6EP1332-1SH71 is temporarily unavailable?
A: Siemens’ recommended functional equivalent within the SITOP family is the 6EP1332-2BA20 (SITOP PSU100S, 24V/2.5A), which offers similar output specifications with a broader input range. However, for S7-1200 system-certified compatibility and optimal form factor, the 6EP1332-1SH71 remains the preferred specification. Always consult your system integrator before substituting power modules in validated or safety-rated installations.

Q4: Can I run two 6EP1332-1SH71 units in parallel to double the output current for larger retrofit panels?
A: Parallel operation of PM1207 units is not recommended by Siemens for current sharing without a dedicated load-sharing module, as slight output voltage differences between units can cause unequal current distribution. For retrofit panels requiring more than 2.5A at 24V DC, consider upgrading to the SITOP PSU100S 5A (6EP1333-2BA20) or PSU100S 10A (6EP1334-2BA20) as a single-unit solution.

Q5: What is the expected service life of the 6EP1332-1SH71 in a continuous 24/7 industrial environment?
A: With an MTBF exceeding 500,000 hours (approximately 57 years of theoretical mean time between failures), the 6EP1332-1SH71 is engineered for continuous industrial duty. In practice, electrolytic capacitor aging is the primary life-limiting factor in power supplies; operating within the specified temperature range (-25°C to +70°C) and ensuring adequate cabinet ventilation will maximize service life and protect your retrofit investment.

Q6: Does the 6EP1332-1SH71 support hot-swap replacement during live system operation?
A: Hot-swap capability depends on your system architecture. If your retrofit design includes redundant power feeds or UPS backup, the 6EP1332-1SH71 can be replaced under load without interrupting the 24V DC bus. In single-supply configurations, a brief controlled shutdown is required. We recommend designing retrofit panels with redundancy in mind for mission-critical applications — our engineering team can assist with redundancy architecture planning.
