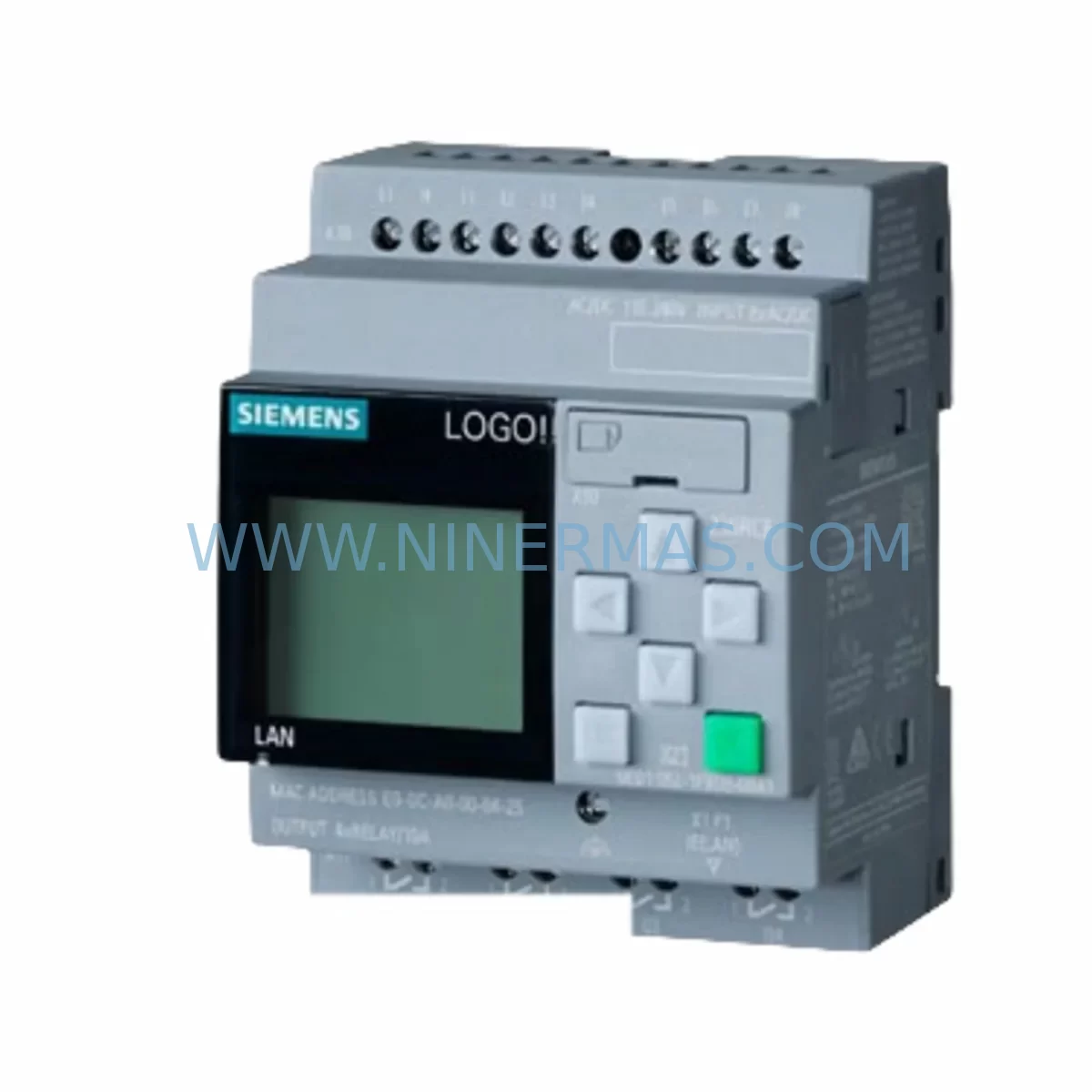

The Siemens 6ED1052-1FB08-0BA0 is a ruggedized LOGO! series logic module engineered for demanding industrial environments where reliability, compact footprint, and seamless backward compatibility are non-negotiable. As legacy control panels age and OEM support windows close, the 6ED1052-1FB08-0BA0 has become a preferred retrofit solution for maintenance engineers and system integrators tasked with extending the operational life of existing automation infrastructure without committing to a full platform migration.

This module operates on the LOGO! 8 platform architecture and is designed to replace discontinued or end-of-life predecessors in the LOGO! 0BA6 and 0BA7 generations. Its ruggedized housing tolerates wide ambient temperature ranges, vibration, and humidity levels commonly encountered in process plants, water treatment facilities, building automation cabinets, and discrete manufacturing lines — making it a dependable drop-in candidate where environmental stress has degraded older modules.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6ED1052-1FB08-0BA0 into a legacy panel begins well before the module arrives on site. Engineers should start by auditing the existing control cabinet for available DIN rail space — the module occupies 72 mm, and adjacent components such as the 6ED1055-1MB00-0BA2 LOGO! expansion module or a 6EP1331-1SH03 LOGO! Power 24 V DC power supply unit must be accounted for in the rail layout. If the original cabinet used a relay output variant, confirm whether the replacement transistor output is compatible with the connected actuator loads; inductive loads may require additional suppression circuits.

Terminal wiring should be documented before removal of the old module. The 6ED1052-1FB08-0BA0 shares the same screw terminal pitch as its predecessors, but wire labeling and ferrule sizing should be verified against the updated wiring diagram. Where the legacy system used a 6ED1057-4CA00-0AA0 LOGO! TD text display as a separate HMI panel, engineers should confirm whether the new module’s integrated display covers the required operator interface functions or whether the external display should be retained.

For systems that previously relied on serial communication to a SIMATIC S7-200 or a third-party SCADA via RS-485, the transition to LOGO! Net Ethernet requires an IP address plan and switch port allocation. In multi-node installations, the 6GK7342-5DA02-0XE0 communications processor or an unmanaged industrial Ethernet switch may be needed to bridge legacy serial segments. Where I/O expansion is required beyond the base module’s 8 DI / 4 DO, the 6ED1055-1NB10-0BA2 digital expansion module provides an additional 4 DI / 4 DO and mounts directly to the right side of the base unit on the same DIN rail without additional wiring harnesses.

Program migration from LOGO! Soft Comfort V7 to V8 is generally straightforward: export the existing .lsc project file, open it in V8, review any deprecated function blocks, and re-upload to the new module via Ethernet. Engineers should pay particular attention to time-of-day switch blocks and analog threshold functions, which may require parameter re-entry. Once the program is loaded, a full I/O loop test — verifying each input signal source and each output actuator response — should be completed before returning the panel to service. Where a 6ED1052-1CC08-0BA0 analog variant was previously installed for 0–10 V or 4–20 mA signal processing, confirm that the digital-only 1FB08 variant meets the revised control strategy or plan for an analog expansion module.

Downtime Control During System Migration

Minimizing production interruption during a LOGO! module swap requires a structured changeover plan. Begin by backing up the existing program to a PC running LOGO! Soft Comfort before any hardware is disturbed — this preserves the original logic as a rollback reference. If the panel controls a continuous process, coordinate the swap window with the operations team to align with a scheduled maintenance stop or a low-demand production period.

During the physical swap, label all terminal connections with numbered tags before disconnecting wires. The 6ED1052-1FB08-0BA0 can be mounted and wired while the old module is still in place if rail space permits, allowing pre-wiring verification before the final cutover. Once the new module is seated and wired, power up in isolation — disconnect output loads initially — and verify input signal states against the expected process conditions. Re-connect outputs one group at a time, confirming actuator response at each step.

For systems where control continuity is critical, consider deploying a 6ED1052-1MD08-0BA0 LOGO! 230 RC variant as a temporary bypass controller on a parallel rail segment, maintaining basic interlock logic while the primary module is being replaced. This approach is particularly effective in water treatment and HVAC applications where pump and valve interlocks must remain active. Once the primary module is commissioned and verified, the bypass unit can be removed and returned to spare stock. Total planned downtime for a straightforward swap — assuming the program is pre-loaded and terminals are pre-labeled — typically ranges from 45 minutes to 2 hours depending on cabinet complexity and I/O count.

Retrofit Support FAQ

Q1: Is the 6ED1052-1FB08-0BA0 a direct replacement for the 6ED1052-1FB00-0BA6?
The 1FB08-0BA0 (LOGO! 0BA8 generation) is functionally compatible with the 0BA6 generation in terms of I/O count and terminal layout, but it is not a plug-and-play swap. The program must be re-uploaded using LOGO! Soft Comfort V8, and the Ethernet communication parameters must be configured. Physical installation dimensions are identical, allowing direct DIN rail replacement.

Q2: What commissioning steps are required after installation?
After mounting and wiring, assign an IP address via the module’s front panel menu or LOGO! Soft Comfort. Upload the migrated program, verify all I/O addresses match the field wiring, perform a full loop test on all inputs and outputs, and confirm any time-based or analog threshold functions are operating within specification. Document the final configuration and store a backup copy of the program file.

Q3: Does the unit ship pre-tested, and what does the 12-month warranty cover?
Yes — every 6ED1052-1FB08-0BA0 unit is function-tested prior to shipment, including power-up verification and I/O continuity checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units damaged by incorrect wiring, overvoltage, or environmental exposure beyond rated specifications are excluded. Warranty claims are processed with return authorization and typically resolved within 10 business days.

Q4: What is the typical lead time and stock availability?
Stock is maintained for immediate dispatch. Standard orders ship within 1–3 business days. For bulk procurement or long-term supply agreements supporting lifecycle extension programs, contact our team to discuss committed stock arrangements and fixed lead-time contracts. We support multi-year spare parts programs for facilities managing large installed bases of LOGO! controllers.
