Siemens 6DR5220-0EM00-0AA0 SIPART PS2 Positioner | Retrofit & Upgrade

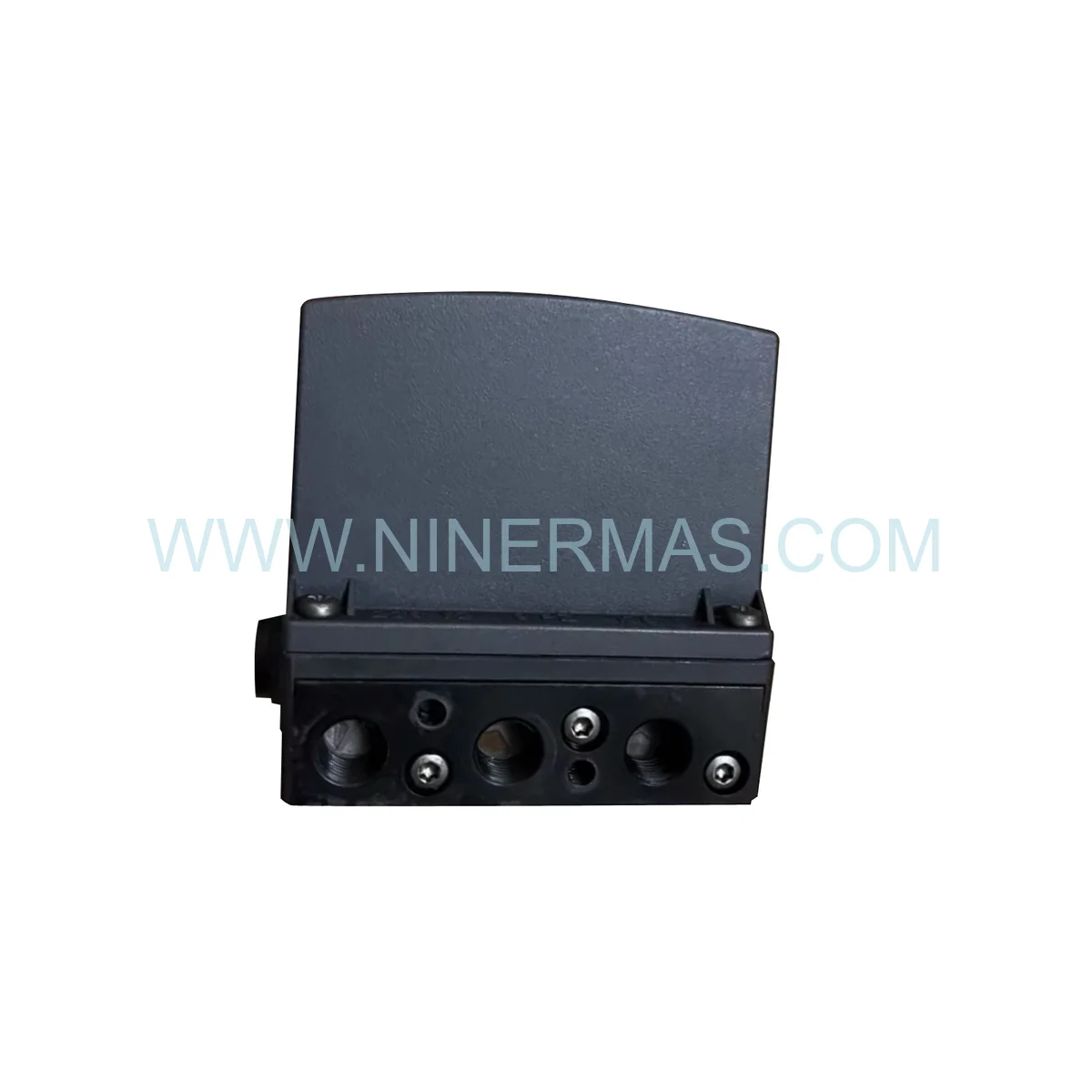

Siemens 6DR5220-0EM00-0AA0 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and energy facilities, the Siemens 6DR5220-0EM00-0AA0 stands out as a cornerstone hardware component for performance enhancement and service life extension. Whether you are modernizing a decades-old DCS infrastructure or reinforcing a turbine supervisory system, this smart electropneumatic positioner delivers the precision and intelligence required to bridge the gap between legacy control architectures and today’s digital process environments. Its role in reducing valve hunting, improving loop stability, and enabling HART-based remote diagnostics makes the 6DR5220-0EM00-0AA0 an indispensable asset in any phased migration strategy.

A critical advantage of this component in retrofit scenarios is its backward compatibility with existing pneumatic actuator frameworks. The 6DR5220-0EM00-0AA0 supports both linear and rotary actuator configurations and mounts directly per IEC 60534-6 / NAMUR standards — meaning it integrates into legacy valve assemblies without requiring costly mechanical redesign. This hardware upgrade path preserves existing infrastructure investments while delivering modern positioning accuracy and digital communication capability, making it the preferred choice for engineers seeking seamless integration without full system replacement.

From a migration risk and cost perspective, deploying the 6DR5220-0EM00-0AA0 as part of a phased retrofit solution significantly reduces project exposure. Its auto-calibration routine eliminates manual tuning, compressing commissioning timelines and minimizing production interruptions. For facilities operating on tight maintenance windows, this translates directly into lower total cost of ownership and a faster return on modernization investment.

Upgrade Highlights & Compatibility

✅ Drop-in Legacy Compatibility: Mounts to existing NAMUR / IEC 60534-6 actuator interfaces — no mechanical rework required for most valve assemblies.

HART Protocol Overlay: Enables two-way digital communication over existing 4-20mA wiring, eliminating the need for new signal cable infrastructure during system migration.

✅ Auto-Calibration for Rapid Deployment: Patented initialization routine self-adapts to actuator type and stroke range, reducing retrofit commissioning from hours to minutes.

Precision Performance Enhancement: ±0.25% positioning accuracy with piezo valve technology — a measurable upgrade over conventional pneumatic positioners in aging control loops.

✅ Future-Proofing via Predictive Diagnostics: Continuous self-monitoring of valve friction, air supply integrity, and actuator health supports condition-based maintenance strategies aligned with Industry 4.0 frameworks.

Wide Environmental Tolerance: Rated IP66/NEMA 4X with ATEX/IECEx/FM/CSA certification — compatible with hazardous area installations in existing plant layouts without zone reclassification.

Modernization Use Cases & Success Stories

DCS Migration in Refinery Operations: A major downstream refinery replacing its legacy pneumatic positioner fleet with the 6DR5220-0EM00-0AA0 achieved a 40% reduction in valve-related loop deviations within the first quarter post-retrofit. The HART communication layer allowed engineers to perform remote valve signature testing without shutting down critical distillation column control loops — a performance upgrade that would have been impossible with the original hardware.

Turbine Supervisory System (TSI) Retrofit: In combined-cycle power plants, aging steam bypass valve positioners frequently become the weakest link in turbine protection logic. By deploying the 6DR5220-0EM00-0AA0 as a direct replacement, plant engineers restored SIL 2-capable positioning performance to existing actuator assemblies, extending equipment service life by an estimated 8-12 years while deferring full turbine control system replacement.

Chemical Reactor Feed Control Upgrade: A specialty chemicals manufacturer integrated the 6DR5220-0EM00-0AA0 into its batch reactor feed valve network as part of a broader hardware upgrade initiative. The positioner’s explosion-proof rating (Zone 1 / Division 1) ensured full legacy compatibility with the existing hazardous area classification, while its diagnostic outputs fed directly into the plant’s new predictive maintenance platform — delivering seamless integration between old infrastructure and new digital tools.

Water Treatment Modernization: Municipal water authorities upgrading aging SCADA-linked valve networks have adopted the 6DR5220-0EM00-0AA0 as a retrofit solution for chemical dosing and pressure regulation stations. The positioner’s wide ambient temperature tolerance (-30°C to +80°C) ensures reliable operation in outdoor installations without additional environmental protection measures.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every Siemens 6DR5220-0EM00-0AA0 unit supplied through our network is sourced as genuine, factory-sealed hardware — critical for retrofit projects where counterfeit or refurbished components introduce unacceptable reliability risk in safety-critical loops.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and system migration timelines. Express air freight to major industrial hubs in North America, Europe, the Middle East, and Asia-Pacific ensures your project schedule is not held hostage by supply chain delays.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in legacy compatibility assessment — helping you evaluate whether the 6DR5220-0EM00-0AA0 is the right retrofit solution for your specific actuator, valve, and control system combination. We provide pre-shipment configuration consultation, HART parameter setup guidance, and post-installation commissioning support.

Warranty Coverage: 12-month warranty on all units covering manufacturing defects, with technical escalation support available for complex retrofit integration challenges.

Retrofit FAQ (Upgrade Guide)

Q: Will the 6DR5220-0EM00-0AA0 physically fit my existing actuator without bracket modifications?
A: In most cases, yes. The positioner is designed for direct mounting per IEC 60534-6 / NAMUR standards, which are widely adopted across legacy actuator platforms from major manufacturers. For non-NAMUR actuators, universal mounting kits (e.g., Siemens 6DR4004-8V series) are available to bridge the mechanical interface without custom fabrication.

Q: My existing control system uses a 4-20mA analog loop with no HART capability. Can I still use this positioner?
A: Absolutely. The 6DR5220-0EM00-0AA0 operates fully on standard 4-20mA analog signals — HART is an overlay protocol that adds digital communication capability without disrupting the analog control loop. You can deploy it today on your legacy system and activate HART diagnostics when your DCS migration reaches the digital communication phase.

Q: How does the new positioner communicate with our older DCS during the transition period?
A: The HART protocol operates simultaneously with the 4-20mA signal, meaning your legacy DCS continues to control the valve via analog while a HART handheld communicator or HART multiplexer provides access to diagnostic data. This dual-mode operation is the foundation of a low-risk, phased system migration strategy.

Q: Are there approved substitute models if the 6DR5220-0EM00-0AA0 is unavailable for an emergency retrofit?
A: Within the SIPART PS2 family, the 6DR5210-0EM00-0AA0 (single-acting variant) and 6DR5025-0EG00 (economy model) share the same mounting interface and HART communication architecture, making them viable interim retrofit solutions depending on actuator type and performance requirements. Contact our technical team for a compatibility assessment specific to your application.

Q: What is the expected service life extension when replacing a legacy positioner with the 6DR5220-0EM00-0AA0?
A: Based on field retrofit data from comparable SIPART PS2 deployments, facilities typically achieve 8-15 years of additional service life on existing valve and actuator assemblies. The positioner’s predictive diagnostics further extend this by enabling condition-based maintenance rather than time-based replacement cycles.

Q: Does this positioner support SIL-rated safety loops in our existing SIS architecture?
A: Yes. The 6DR5220-0EM00-0AA0 achieves SIL 2 capability per IEC 61508 when integrated with appropriate valve and actuator combinations. Siemens provides dedicated functional safety documentation (FMEDA reports, safety manuals) to support your SIL verification process — essential for retrofit projects within safety instrumented systems.
