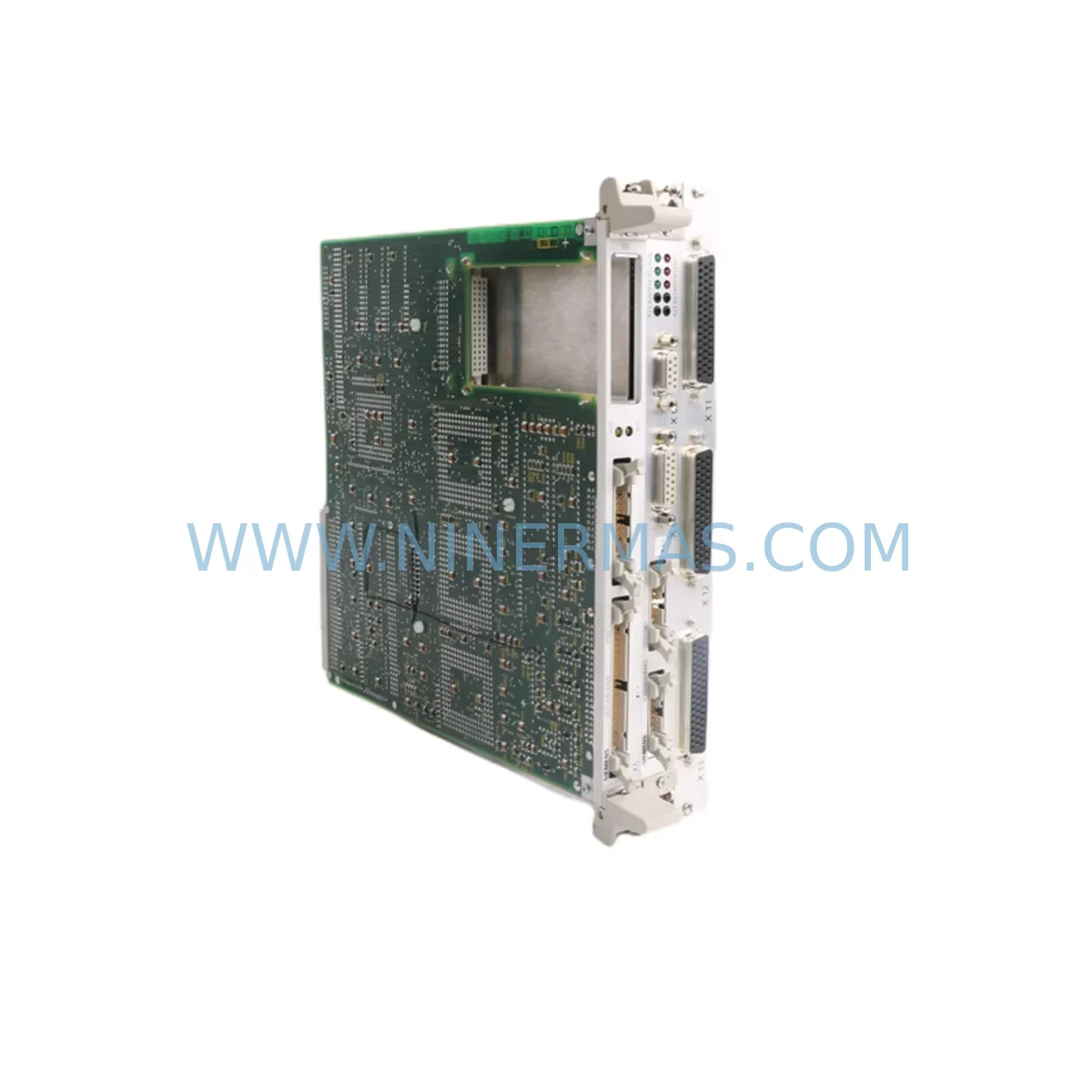

The SIEMENS 6DD2920-0AN1 is a processor and controller module originally designed for the SIMADYN D automation platform — a high-performance, rack-based control system widely deployed in heavy industry, power generation, rolling mills, and drive control applications throughout the 1990s and 2000s. As the SIMADYN D series has reached end-of-life and official Siemens support has been discontinued, the 6DD2920-0AN1 has become one of the most sought-after retrofit and replacement components for engineers tasked with keeping legacy automation infrastructure operational without a full system overhaul.

NINERMAS maintains verified stock of the 6DD2920-0AN1, fully tested prior to shipment, backed by a 12-month warranty, and available for rapid global dispatch. Whether you are managing an emergency breakdown, planning a phased modernization, or extending the service life of an existing SIMADYN D installation, this module provides a direct, low-disruption path forward.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing or upgrading a 6DD2920-0AN1 within a live SIMADYN D installation requires careful pre-planning across several interdependent system layers. Engineers should begin by auditing the existing rack configuration — the SIMADYN D system uses a modular backplane architecture, and the processor module’s slot position directly affects module addressing and inter-module communication. Before removing the existing unit, document all module addresses, I/O assignments, and communication link parameters currently active in the system.

Power supply capacity is a critical first checkpoint. The rack’s power supply module — often a 6DD1600-series PSU — must be verified to support the full load of all installed modules including the replacement 6DD2920-0AN1. Insufficient PSU headroom is a common cause of instability after retrofit work and is frequently overlooked during planning.

On the I/O side, the system’s analog and digital I/O modules — such as 6DD1606-series analog input/output boards and 6DD1607-series digital I/O modules — must remain correctly addressed and wired throughout the swap. Terminal wiring should be photographed and mapped before any disconnection. If the installation uses signal isolators or marshalling panels between field devices and the rack, these should be verified for signal range compatibility with the replacement module’s input specifications.

Communication architecture deserves particular attention in SIMADYN D retrofits. The platform typically communicates via CS275 bus or SINEC H1 Ethernet links to upstream SIMATIC S5 or early SIMATIC S7 controllers, as well as to operator stations running WinCC or older COROS LS-B HMI systems. When replacing the processor module, the communication node address and baud rate settings must be re-entered precisely, as these are not automatically retained from the failed unit. If the site is also migrating from CS275 to a modern PROFIBUS DP or PROFINET backbone as part of a broader upgrade, a CP communications processor module will need to be added to the rack alongside the 6DD2920-0AN1.

HMI screen mapping should also be reviewed. Older COROS or WinCC configurations reference specific data block addresses and module tags that are tied to the processor’s memory map. After installing the replacement module and reloading the application program via STRUC G or an equivalent programming interface, engineers should perform a full HMI tag validation to confirm that all process values are displaying correctly before returning the system to automatic operation.

For sites planning a longer-term migration toward SIMATIC S7-400 or S7-1500 platforms, the 6DD2920-0AN1 can serve as a stable interim solution while new control cabinets are engineered and tested in parallel. This phased approach — maintaining the SIMADYN D rack in service while the replacement platform is commissioned offline — is widely regarded as the most effective method for minimizing production downtime during major control system upgrades.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a processor module in a running industrial system. For the 6DD2920-0AN1, the recommended approach is to prepare the replacement module fully before the maintenance window begins. This means obtaining a verified backup of the existing application program — stored on a memory card or transferred to an engineering workstation via the STRUC G programming environment — so that the new module can be loaded and configured offline or immediately upon installation.

Where possible, the replacement module should be bench-tested with a representative I/O configuration before being installed in the live rack. This allows firmware compatibility, address configuration, and basic communication link establishment to be confirmed in a controlled environment, reducing the risk of extended troubleshooting during the actual maintenance window.

During the physical swap, the rack should be powered down in a controlled sequence — following the site’s lockout/tagout procedure — with all field devices placed in a safe state beforehand. After installation and program reload, a structured commissioning sequence should be followed: verify backplane communication first, then confirm I/O module status, then re-establish communication links to upstream controllers and HMI systems, and finally validate process values against known reference conditions before releasing the system to automatic control.

Maintaining a spare 6DD2920-0AN1 on-site as a cold standby is strongly recommended for critical applications. NINERMAS supports this strategy through its inventory supply program, offering verified, tested units with full documentation and 12-month warranty coverage, ensuring that future replacement events can be executed with confidence and minimal lead time.

Retrofit Support FAQ

Q: Is the 6DD2920-0AN1 a direct drop-in replacement for the existing processor in my SIMADYN D rack?
A: In most cases, yes — the 6DD2920-0AN1 is designed for the SIMADYN D backplane and occupies a standard processor slot. However, you should verify the firmware revision and hardware variant of your existing module against the replacement unit, as minor differences in memory capacity or communication interface options can exist across production batches. NINERMAS can assist with variant confirmation prior to shipment.

Q: Does NINERMAS test the 6DD2920-0AN1 before shipping?
A: Yes. All units supplied by NINERMAS undergo functional testing prior to dispatch. Each module is verified for basic operation and communication interface integrity. Units are shipped with test documentation and are covered by a 12-month warranty from the date of delivery.

Q: What programming tool is required to load my application onto the replacement module?
A: The SIMADYN D platform uses the STRUC G engineering software for application programming and download. The replacement 6DD2920-0AN1 must be configured with the correct module address and communication parameters before the application program is transferred. If you no longer have access to STRUC G, NINERMAS can advise on compatible programming interfaces and engineering support options.
