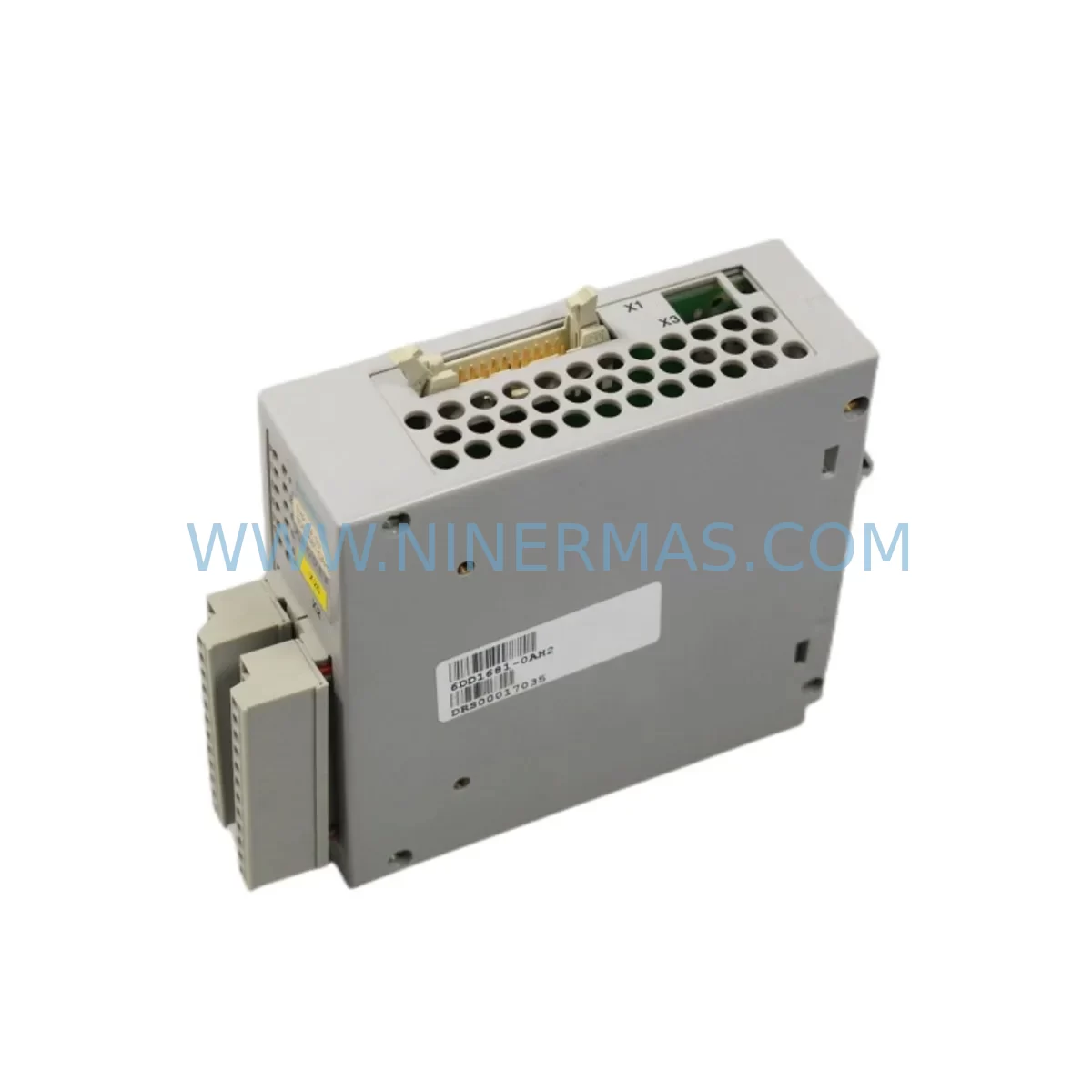

The Siemens 6DD1681-0AH2 is an original SA10 interface module designed for the SIMADYN D digital control system — a platform widely deployed in heavy industry, power generation, steel mills, paper machines, and large-scale drive systems. When this module fails or reaches end-of-service life, the consequences can be severe: unplanned downtime, production loss, and extended recovery time if a verified replacement is not immediately available. Sourcing a service-ready 6DD1681-0AH2 from a reliable industrial spare parts supplier is the most effective strategy to minimize mean time to repair (MTTR) and restore system operation without compromising control architecture integrity.

At NINERMAS, every 6DD1681-0AH2 unit is sourced from verified supply channels, inspected prior to dispatch, and shipped with full traceability documentation. Our 12-month warranty covers functional performance under normal industrial operating conditions, giving maintenance engineers and procurement teams the confidence to stock this module as a critical spare.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6DD1681-0AH2 in a SIMADYN D system is rarely an isolated task. Maintenance engineers working on SIMADYN D racks understand that the SA10 interface module operates in close coordination with several other components, and a thorough site inspection should accompany any module swap.

Begin by verifying the integrity of the SIMADYN D backplane itself — connector pins and slot contacts degrade over time, particularly in high-vibration or high-humidity environments. Alongside the SA10, inspect the PM5 or PM6 processor module, which handles the core computation tasks and communicates directly with the interface layer. If the processor module shows firmware version mismatches or memory faults, replacing the SA10 alone will not resolve system instability.

Check the 24 VDC power supply module feeding the subrack — voltage ripple or transient spikes are a common root cause of interface module failures. Modules such as the 6DD1607-0AA0 power supply card or equivalent rack PSU should be load-tested and inspected for capacitor aging. The CS10 or CS12 communication submodule should also be verified for correct addressing and signal integrity, as these work in tandem with the SA10 to route I/O data across the control network.

For systems connected to SIMATIC S5 or early S7 PLCs via serial links, inspect the CP 5431 or CP 5412 communication processors and their associated cables. Shielded twisted-pair signal cables between the SIMADYN D rack and field devices should be checked for insulation breakdown, especially in older installations. Terminal blocks and DIN rail-mounted relay modules in the same cabinet should be inspected for contact oxidation and loose terminations.

If the system includes analog I/O, review the AM10 or AM20 analog input/output modules for drift or calibration errors — these are frequently overlooked during interface module replacements but can cause process deviations after restart. Signal isolators on 4–20 mA loops connected to the SIMADYN D system should also be tested, as a failed isolator can inject noise that mimics interface module faults.

Finally, if the installation includes an OP17 or TP270 HMI panel communicating with the SIMADYN D controller, verify that the HMI communication parameters are correctly configured after the module replacement, as address conflicts can prevent successful system restart. Keeping a stocked spare of the 6DD1681-0AH2 alongside these associated components — power supply cards, communication modules, and I/O boards — forms the foundation of a resilient spare parts strategy for long-term SIMADYN D system operation.

Site Replacement Workflow

Replacing the 6DD1681-0AH2 on-site requires a structured approach to avoid secondary faults and ensure a clean system restart. Follow this workflow to minimize downtime and maintain system compatibility:

Step 1 — Pre-Replacement Verification: Before powering down, document the current system status: active alarms, communication states, and any logged fault codes from the SIMADYN D diagnostic interface. Photograph the module slot position and cable routing for reference during reinstallation.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. Power down the SIMADYN D subrack completely. Do not attempt hot-swap — the SA10 interface module requires a full power cycle for proper initialization.

Step 3 — Module Removal and Inspection: Remove the 6DD1681-0AH2 carefully, inspecting the backplane connector for bent pins or corrosion. Clean the slot contacts with appropriate electronic contact cleaner if contamination is present.

Step 4 — Replacement Installation: Insert the new 6DD1681-0AH2 firmly into the correct slot. Verify that the module is fully seated and the ejector levers are locked. Reconnect all cables in the original configuration.

Step 5 — Power-Up and Diagnostics: Restore power to the subrack. Monitor the module’s status LEDs during initialization. Access the SIMADYN D diagnostic software to confirm that the SA10 is recognized and communication is established without error codes.

Step 6 — Functional Test: Run a controlled functional test of the affected control loop or drive system before returning to full production. Verify I/O response, communication latency, and alarm states are within normal parameters.

This workflow supports rapid recovery from unplanned failures while also serving as the standard procedure for scheduled annual maintenance replacements, helping maintenance teams reduce average repair time and maintain system uptime targets.

Spare Parts Support FAQ

Q1: Is the 6DD1681-0AH2 still available as a new original part, or only as refurbished stock?
The Siemens 6DD1681-0AH2 is part of the SIMADYN D legacy product line, which has been discontinued by Siemens. However, original new-old-stock (NOS) and professionally tested units remain available through specialist industrial spare parts suppliers. NINERMAS sources and verifies each unit before shipment to ensure functional integrity equivalent to new condition.

Q2: How do I confirm compatibility with my specific SIMADYN D system configuration?
Compatibility depends on your subrack type, firmware version of the processor module, and the slot assignment defined in your system configuration file. Provide your full system order number or configuration documentation to our technical team at sale@ninermas.com, and we will confirm compatibility before shipment.

Q3: What does the 12-month warranty cover, and what is the replacement process if a fault occurs?
Our 12-month warranty covers functional failure under normal industrial operating conditions, excluding physical damage caused by incorrect installation, overvoltage events, or environmental factors outside the module’s rated specifications. In the event of a warranty claim, contact us with your order reference and fault description. We will arrange a replacement dispatch or technical support within 5 business days.

Q4: Can NINERMAS support long-term supply agreements for SIMADYN D spare parts?
Yes. We work with maintenance and procurement engineers to establish long-term supply agreements for critical SIMADYN D components, including the 6DD1681-0AH2 and associated modules. Long-term agreements include reserved stock allocation, priority dispatch, and fixed pricing to protect against market availability fluctuations for legacy industrial parts.
