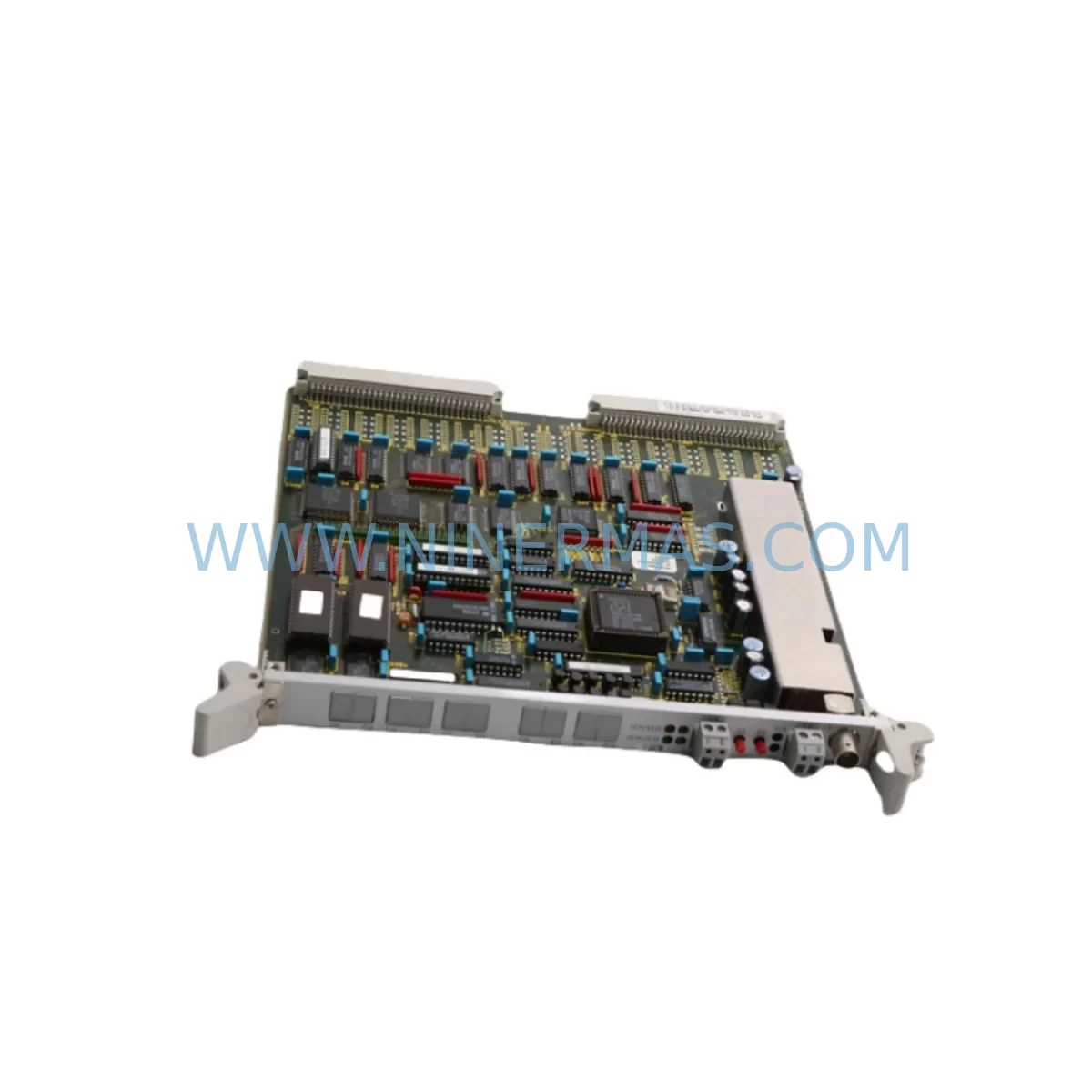

Siemens 6DD1611-0AF0 Retrofit-Compatible Mailbox Module

Siemens 6DD1611-0AF0 Retrofit-Compatible Mailbox Module: Legacy System Compatibility and Smooth Upgrade Path

The Siemens 6DD1611-0AF0 is a ruggedized inter-processor mailbox communication module originally designed for the SIMADYN D closed-loop control platform — one of Siemens’ most enduring high-performance drive and process control systems deployed across power generation, steel mills, paper machines, and heavy industrial applications. As the SIMADYN D platform has reached end-of-life and spare parts availability has tightened globally, the 6DD1611-0AF0 has become a critical retrofit component for engineers tasked with extending the operational life of existing control cabinets without full system replacement.

This module serves as the communication backbone between processor boards within the SIMADYN D rack architecture. It enables deterministic, low-latency data exchange between control tasks running on separate CPUs — a function that is essential for coordinated multi-axis drive control, cascade loop management, and real-time process interlocking. When this module fails or becomes unavailable, the entire control rack loses inter-processor synchronization, resulting in unplanned shutdowns and costly production interruptions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6DD1611-0AF0 within an active SIMADYN D installation requires careful pre-planning to avoid extended downtime and configuration errors. The first step is a full audit of the existing rack layout, identifying the slot position of the mailbox module and confirming the firmware versions of adjacent processor boards such as the PM5 or PM6 processor modules. Mismatched firmware between the mailbox module and the host processors is one of the most common causes of post-replacement communication faults.

Power supply integrity is equally critical. The SIMADYN D rack relies on dedicated PS module power supplies — typically the 6DD1607-0AA0 or equivalent PS-series units — to deliver stable 5V and 24V rails to all installed boards. Before inserting the replacement 6DD1611-0AF0, verify that the rack power supply is within specification and that no other modules are drawing excessive current. A degraded power supply can cause intermittent mailbox communication errors that are difficult to distinguish from a faulty module.

Terminal wiring and external signal connections should be documented before any module removal. While the 6DD1611-0AF0 itself communicates via the backplane bus, the surrounding modules — including AM series analog I/O modules and DM series digital I/O modules — may need to be temporarily unseated to access the mailbox module slot. All terminal block positions and cable labels should be photographed and recorded before disassembly.

For sites that have integrated SIMADYN D with higher-level SCADA or DCS systems via PROFIBUS DP communication interfaces, the retrofit plan must include a protocol migration checkpoint. The CS7 or IM308-C PROFIBUS interface modules connected to the SIMADYN D rack should be verified for compatibility with the replacement module’s communication timing. In some installations, the mailbox module coordinates data exchange between the local processor and the PROFIBUS master, making its correct initialization essential for maintaining fieldbus communication continuity.

HMI screens connected to the SIMADYN D system — whether legacy OP series operator panels or more modern TP/MP touch panel HMIs — should be tested after module replacement to confirm that all process variable displays, alarm setpoints, and control commands are functioning correctly. It is common for HMI tag mappings to reference internal mailbox data addresses, which may need to be re-verified after the module is re-initialized.

Where the retrofit scope extends beyond a single module replacement to a broader control cabinet upgrade, engineers often take the opportunity to replace aging 6DD1612-0AA0 or 6DD1612-0AB0 interface modules alongside the mailbox module, reducing the risk of secondary failures during the same maintenance window. Combining multiple module replacements in a single planned outage is a proven strategy for minimizing total lifecycle disruption.

For installations where the SIMADYN D platform is being phased out in favor of a modern SIMATIC S7-400 or S7-1500 controller, the 6DD1611-0AF0 replacement can serve as a bridge solution — maintaining the existing control architecture while the migration project is planned and budgeted. This approach avoids the risk of a forced emergency migration triggered by an unplanned hardware failure.

Downtime Control During System Migration

Minimizing downtime during a SIMADYN D mailbox module replacement begins with a structured pre-outage preparation protocol. All existing program logic stored on the processor modules should be backed up using the appropriate SIMADYN D programming and parameterization tools before any hardware is disturbed. This backup should include not only the control program but also all mailbox configuration parameters, inter-processor data exchange definitions, and drive parameter sets stored in connected MASTERDRIVES or SIMOREG DC Master drive units.

The physical replacement of the 6DD1611-0AF0 is typically a straightforward procedure once the rack is de-energized and the slot position is confirmed. The module is extracted using the standard SIMADYN D ejector mechanism, and the replacement unit is inserted and seated firmly against the backplane connector. Power is then restored to the rack, and the system is allowed to complete its self-test sequence before the engineering tool is connected for parameter verification.

Post-installation commissioning should follow a structured sequence: first confirm that the mailbox module is recognized by the rack’s processor boards, then verify inter-processor data exchange by monitoring mailbox register values in real time using the engineering tool. Only after successful communication verification should the control program be restarted and the process brought back online. This staged approach ensures that any residual configuration issues are identified before the system is returned to production, protecting both the equipment and the process.

For critical applications where even a brief interruption is unacceptable, a hot-standby or redundant rack configuration using a parallel SIMADYN D system can be used to maintain control continuity during the module swap. While this requires additional hardware investment, it eliminates the risk of production loss during the replacement procedure.

Retrofit Support FAQ

Q1: Is the 6DD1611-0AF0 a direct replacement for the original module, or are there hardware revisions to consider?
The 6DD1611-0AF0 has been produced across multiple hardware revisions. In most cases, later revisions are backward compatible with earlier rack configurations, but it is advisable to confirm the hardware revision of the existing module before ordering a replacement. Our team can assist with revision matching based on your rack serial number and existing module markings.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, the module must be recognized by the SIMADYN D rack during the power-on self-test. The engineering tool should then be used to verify mailbox configuration parameters and confirm that inter-processor data exchange is operating correctly. Drive parameter sets and control program logic should be verified before returning the system to automatic operation.

Q3: Can the 6DD1611-0AF0 be used in a SIMADYN D rack alongside other replacement modules from the same maintenance window?
Yes. The 6DD1611-0AF0 is designed to coexist with other SIMADYN D rack modules including processor boards, I/O modules, and interface modules. When replacing multiple modules simultaneously, it is recommended to restore power and verify each module’s self-test status individually before proceeding to full system commissioning.

Q4: What warranty and testing coverage is provided with this module?
All 6DD1611-0AF0 units supplied by NINERMAS are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Each unit undergoes a full functional pre-shipment test, and a test report is available upon request. In-stock units are available for immediate dispatch to minimize your system downtime.
