Siemens 6DD1606-4AB0 Retrofit IT42 Expansion Module Legacy

Siemens 6DD1606-4AB0 Retrofit-Compatible IT42 Expansion Module for Legacy SIMADYN Systems

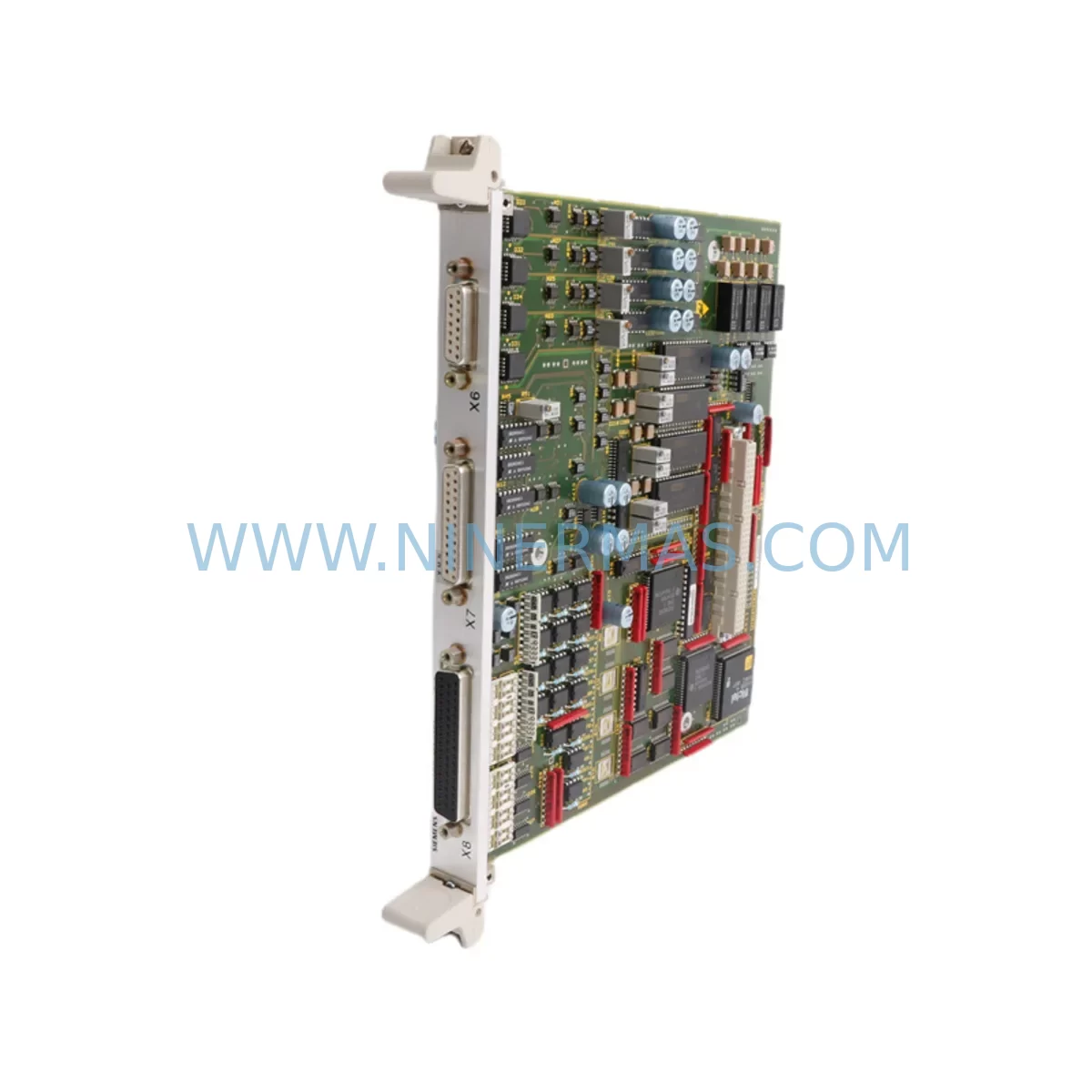

The Siemens 6DD1606-4AB0 is an IT42 Expansion Module designed for use within the SIMADYN D control platform — one of Siemens’ most widely deployed high-performance drive and process control systems in heavy industry. As SIMADYN D reaches end-of-life and spare parts become increasingly scarce, the 6DD1606-4AB0 remains a critical component for plants seeking to extend the operational life of existing control cabinets, maintain production continuity, and defer full system replacement.

At NINERMAS, we specialize in sourcing, testing, and supplying discontinued and hard-to-find industrial control modules including the 6DD1606-4AB0. Every unit undergoes functional verification and ships with a 12-month warranty, giving your maintenance and engineering teams confidence during retrofit planning and commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6DD1606-4AB0 within an active SIMADYN D installation requires careful pre-planning to avoid unplanned downtime and configuration errors. The IT42 Expansion Module typically handles additional I/O capacity within the SIMADYN D rack, and its failure or degradation can directly impact drive control loops, process interlocks, and feedback signal chains.

Before beginning the retrofit, engineers should document the full rack layout — including the position of the CS7 or CS12 central processor module, any co-installed IT41 or IT43 I/O modules, and the 6DD1682-0BC0 power supply module feeding the rack. Backplane slot addressing must be confirmed against the existing STEP 5 program to ensure the replacement 6DD1606-4AB0 is recognized at the correct logical address without requiring a full program reload.

Terminal wiring on the front connector should be photographed and mapped before disconnection. Signal types — including analog inputs, digital outputs, and encoder feedback channels — must be verified against the original engineering drawings. In cases where original documentation is unavailable, signal tracing from the field device back to the module terminal is recommended prior to shutdown.

If the retrofit is part of a broader control cabinet upgrade, consider whether adjacent modules such as the 6DD1607-0AA0 IT43 I/O module or 6DD1681-0BC0 communication interface module also require replacement. Upgrading multiple modules in a single planned outage reduces cumulative risk and minimizes total downtime across the project lifecycle.

For plants migrating from SIMADYN D toward a modern platform such as SIMATIC S7-400 or SINAMICS drive controllers, the 6DD1606-4AB0 can serve as a bridging solution — maintaining legacy control functionality while the new system is engineered, tested, and staged in parallel. This phased approach allows production to continue on the existing SIMADYN D platform while the migration is validated offline.

Where communication protocol migration is involved — for example, transitioning from SIMADYN D’s proprietary bus to PROFIBUS DP or PROFINET — a protocol gateway or communication bridge module may be required alongside the 6DD1606-4AB0 to maintain HMI connectivity and SCADA data integrity during the transition period. HMI screens linked to SIMADYN D tag addresses should be reviewed and updated to reflect any address changes introduced by the new module configuration.

Signal isolation requirements should also be assessed: in older installations, signal isolators or signal conditioners may have been installed between field devices and the IT42 module inputs. These should be retained or replaced with equivalent units to maintain signal integrity and protect the new module from field-side transients.

Programming cable compatibility is another consideration — the 6ES5 734-1BD20 or equivalent STEP 5 programming cable is typically required to access the SIMADYN D processor for address configuration and diagnostic readout after module replacement. Confirm cable and software availability before scheduling the maintenance window.

Downtime Control During System Migration

Minimizing downtime during a SIMADYN D module replacement or broader system migration is a primary concern for plant operations teams. The 6DD1606-4AB0 replacement can typically be completed within a planned maintenance window of 2–4 hours when pre-commissioning preparation is thorough.

Key steps to protect the original program logic include: creating a full STEP 5 program backup before any hardware changes; documenting all module addresses, I/O assignments, and parameter settings; and retaining the original CS7 or CS12 processor module in the rack during initial power-up to allow incremental validation of the new expansion module.

Where hot-swap capability is not available — as is typical in SIMADYN D racks — a controlled shutdown sequence should be agreed with the production team in advance. Drive systems connected to the SIMADYN D platform should be brought to a safe stop state, with all interlocks confirmed open, before rack power is removed. Upon restoration, a staged power-up sequence — rack PSU first, then processor, then expansion modules — reduces the risk of initialization errors and allows each module’s status LEDs to be checked individually before the system is returned to automatic control.

For critical production lines where even a 2-hour outage is unacceptable, a pre-configured spare rack — populated with a tested 6DD1606-4AB0 and matching CS7/CS12 processor — can be prepared offline and swapped as a complete assembly, reducing in-situ commissioning time to under 30 minutes. NINERMAS can support this approach by supplying pre-tested module sets with functional test documentation.

Retrofit Support FAQ

Q1: Is the 6DD1606-4AB0 a direct replacement for a failed IT42 module in my existing SIMADYN D rack?
In most SIMADYN D configurations, yes — the 6DD1606-4AB0 is a slot-compatible replacement for the IT42 Expansion Module. However, you should confirm the firmware revision of your existing CS7 or CS12 processor module to ensure compatibility. NINERMAS can advise on revision matching based on your system’s serial number or configuration data.

Q2: What commissioning steps are required after installing the 6DD1606-4AB0?
After physical installation and wiring reconnection, the module address must be verified or re-assigned using the STEP 5 toolset connected via programming cable. I/O signal scaling, analog input ranges, and digital output assignments should be confirmed against the original program before returning the system to automatic operation. A functional test under manual control is recommended before full auto mode is restored.

Q3: Does NINERMAS provide a warranty and functional test report for the 6DD1606-4AB0?
Yes. All units supplied by NINERMAS carry a 12-month warranty covering functional defects. A functional test report is available on request and can be provided prior to shipment to support your incoming inspection process.

Q4: What is the typical lead time and stock availability for the 6DD1606-4AB0?
NINERMAS maintains inventory of the 6DD1606-4AB0 and can confirm current stock availability upon inquiry. For urgent requirements, expedited shipping options are available. Contact our team at sale@ninermas.com or call +0086 187 5021 5667 to confirm availability and lead time for your specific requirement.
