Honeywell 8C-TDIL11 51306858-175 Retrofit Digital Input

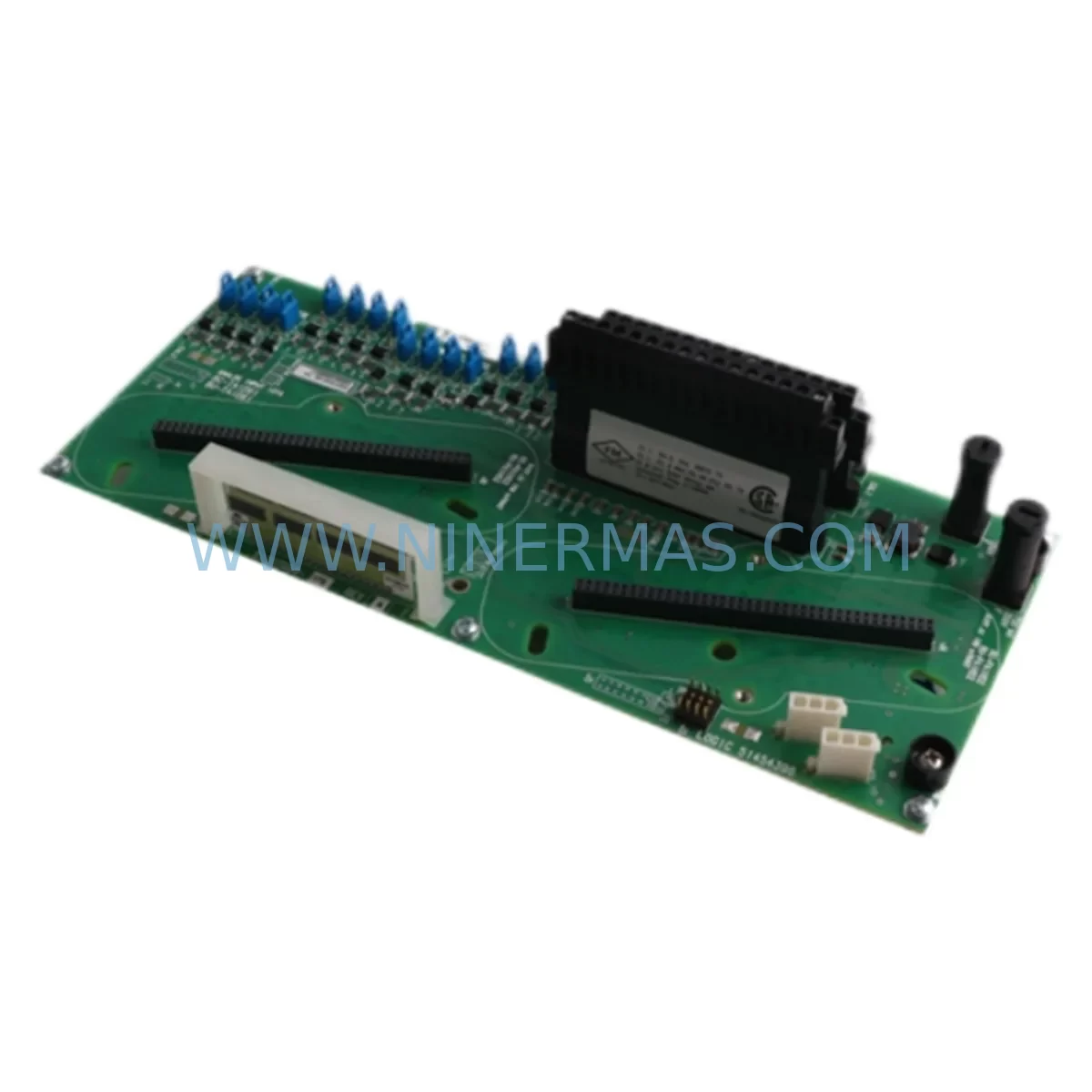

Honeywell 8C-TDIL11 51306858-175 Retrofit-Compatible Digital Input Board for Legacy DCS Systems

The Honeywell 8C-TDIL11 (P/N 51306858-175) is a ruggedized Series C digital input module engineered for use within Honeywell’s TDC 3000 and Experion PKS distributed control system platforms. As legacy automation infrastructure ages and OEM support windows close, this module has become a critical retrofit and replacement component for process plants, refineries, chemical facilities, and power generation sites operating aging control architectures. NINERMAS maintains verified stock of the 8C-TDIL11 to support planned turnarounds, emergency replacements, and phased system modernization programs — backed by a 12-month warranty and pre-shipment functional testing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 8C-TDIL11 into an ongoing retrofit or control system life extension project, engineers must account for the full scope of the Series C I/O subsystem. The module interfaces directly with the field termination assembly — typically an 8C-TAIX11 or equivalent FTA — which handles the physical wiring connections from field instruments. Before removal of the failed module, technicians should document all terminal assignments and verify that the FTA wiring harness is undamaged and correctly labeled.

In systems where the Honeywell TDC 3000 High-Performance Process Manager (HPM) or Advanced Process Manager (APM) serves as the primary controller, the 8C-TDIL11 communicates over the I/O Link bus. The I/O Link cable routing and termination resistors should be inspected during any module swap, particularly in installations where the original cabling dates back more than ten years. Signal integrity issues on the I/O Link can cause intermittent faults that are misdiagnosed as module failures.

For sites transitioning from TDC 3000 to Experion PKS, the 8C-TDIL11 is compatible with the Experion Series C I/O architecture, allowing existing I/O hardware to be retained during a phased migration. This significantly reduces the capital cost of migration by preserving field wiring, FTAs, and carrier assemblies. The Experion C300 Controller and associated IOTA (I/O Termination Assembly) infrastructure can coexist with legacy Series C modules during the transition window, enabling a live cutover strategy that minimizes process interruption.

Power budget verification is essential before adding or replacing modules in an existing I/O cabinet. The Series C power supply — such as the 8C-PCNT02 or equivalent redundant power conditioner — must have sufficient headroom to support the replacement module under full load. Technicians should measure rail voltage at the carrier before and after module insertion to confirm stability. In cabinets where multiple I/O modules are being replaced simultaneously, a full power audit is recommended.

Address configuration for the 8C-TDIL11 is slot-based, meaning the module inherits its logical address from its physical position in the carrier assembly. If the replacement module is installed in the same slot as the failed unit, no changes to the controller database or HMI tag assignments are required. However, if the slot position changes — for example, due to carrier damage requiring relocation — the corresponding point address in the Honeywell Control Builder or legacy Engineering Workstation (EWS) database must be updated, and all associated HMI faceplates referencing that point should be verified in the Experion Station or GUS (Global User Station) display environment.

For plants running parallel I/O expansion projects, the 8C-TDIL11 is commonly deployed alongside 8C-TDIL01 standard digital input modules and 8C-TDOA11 digital output modules within the same carrier rack. Mixed I/O configurations are supported within a single Series C carrier, provided the total power draw remains within the supply rating. Signal isolation between digital input channels is handled internally by the module, eliminating the need for external signal isolators in most standard 24 VDC field wiring configurations.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern during any DCS module replacement or system migration. For the 8C-TDIL11, the recommended replacement procedure begins with a full backup of the controller database and HMI configuration files before any hardware is disturbed. In Experion PKS environments, this means exporting the current Control Builder project and archiving the Experion Server database snapshot. For TDC 3000 installations, the HPM or APM program files should be saved to the Engineering Workstation before the I/O Link is interrupted.

Where process conditions permit, the affected I/O points should be placed in manual mode at the controller level before the module is removed. This prevents spurious trips or false alarms from propagating to the safety system or DCS alarm management layer during the swap window. In facilities with a Safety Instrumented System (SIS) interfaced to the DCS, the SIS engineer should be notified and a formal bypass authorization obtained before any digital input associated with a safety function is taken out of service.

The physical module swap itself — removing the failed 8C-TDIL11 and inserting the replacement — typically takes under five minutes in a properly labeled and accessible cabinet. Post-insertion, the controller will automatically recognize the module and restore communication within one to two scan cycles, provided the slot address is unchanged. A channel-by-channel functional verification should then be performed by cycling each connected field device and confirming the correct state change is reflected in the controller and HMI. This live verification step is included in NINERMAS’s recommended commissioning checklist, which is provided with each shipment.

For larger migration projects involving multiple Series C I/O modules, a staged replacement strategy — replacing modules rack by rack during scheduled maintenance windows — is strongly recommended over a full cutover approach. This preserves control continuity on unaffected process areas and allows the engineering team to validate each replaced module before proceeding to the next. NINERMAS can supply multiple units of the 8C-TDIL11 from verified stock to support batch replacement programs, with lead times confirmed at the time of order.

Retrofit Support FAQ

Q1: Is the 8C-TDIL11 (51306858-175) a direct replacement for my existing failed module?
Yes. The 8C-TDIL11 with part number 51306858-175 is a direct slot-compatible replacement for units of the same model. Confirm that your carrier assembly and FTA model are compatible with the TDIL11 variant before ordering. NINERMAS’s technical team can assist with cross-referencing your existing hardware configuration.

Q2: What pre-shipment testing is performed on the 8C-TDIL11?
Each unit undergoes functional power-on testing and channel verification before shipment. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects from the date of shipment.

Q3: Do I need to reconfigure my controller or HMI after replacing the module?
If the replacement module is installed in the same backplane slot as the failed unit, no controller database changes or HMI tag updates are required. The module address is slot-derived. If the slot position changes for any reason, the point address must be updated in Control Builder or the legacy EWS, and associated HMI displays should be verified.

Q4: What is the typical lead time and do you maintain stock?
NINERMAS maintains inventory of the 8C-TDIL11 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days depending on destination. For large-quantity orders or scheduled turnaround supply agreements, please contact our sales team directly to confirm availability and arrange priority shipment.
