Siemens 6DD1600-0AH0 Retrofit-Compatible PM Controller

Siemens 6DD1600-0AH0 Retrofit-Compatible PM Controller: Legacy System Compatibility & Smooth Upgrade

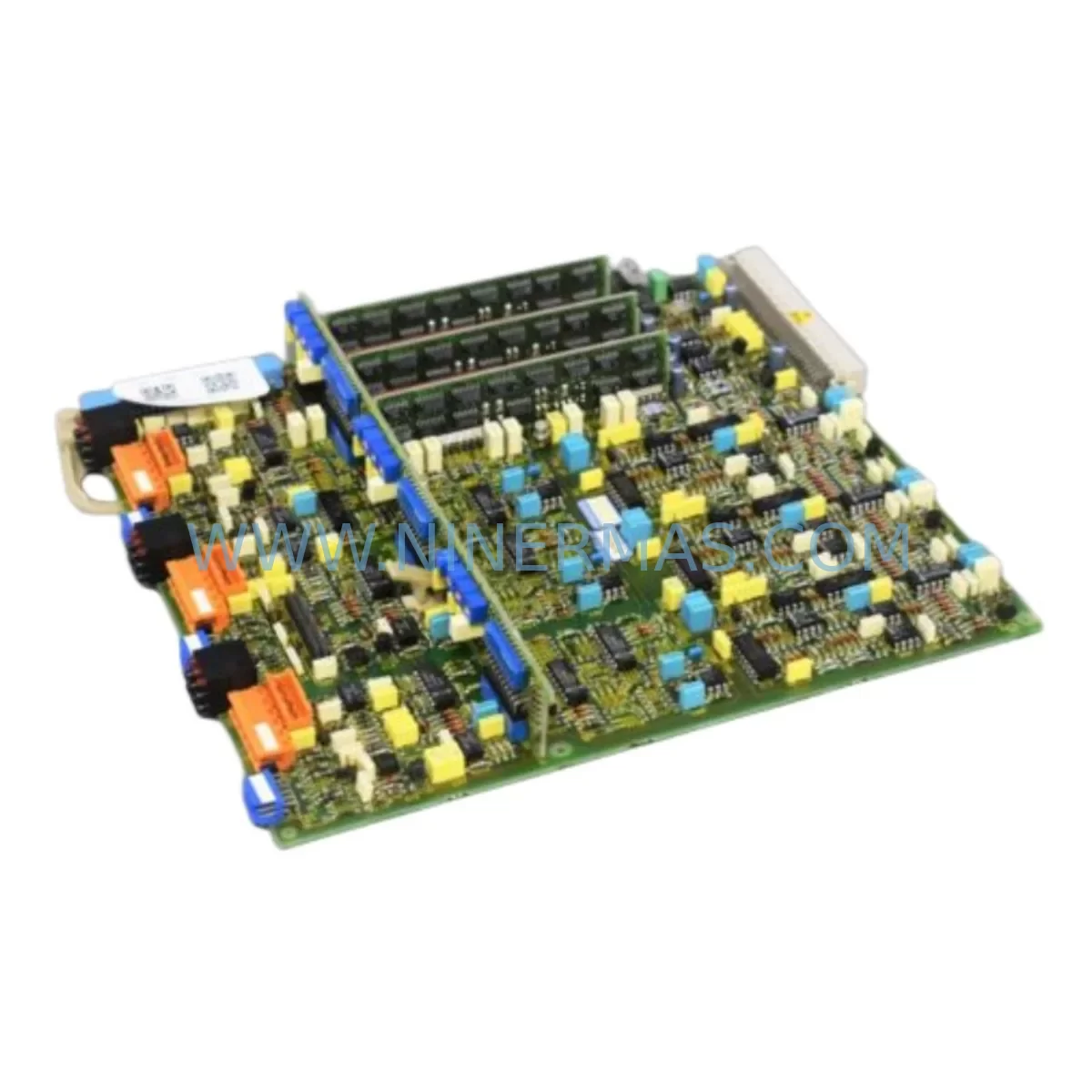

The Siemens 6DD1600-0AH0 is a processor module (PM) designed for the SIMADYN D control platform — a high-performance, rack-based automation system widely deployed in drive control, power generation, rolling mills, and heavy industrial applications throughout the 1990s and 2000s. As the SIMADYN D series has reached end-of-life status, the 6DD1600-0AH0 has become a critical retrofit and replacement component for facilities that continue to operate legacy control cabinets and cannot justify a full system migration at this time.

NINERMAS maintains verified stock of the 6DD1600-0AH0 to support customers engaged in planned maintenance, emergency breakdown recovery, and phased modernization programs. Each unit is inspected, function-tested, and shipped with a 12-month warranty covering hardware defects under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 6DD1600-0AH0, engineers must account for the full scope of the SIMADYN D architecture. The PM4 processor module does not operate in isolation — it communicates with analog and digital I/O modules mounted in the same CS7 or CS12 rack, and its program logic depends on correctly addressed signal channels. Before removing the failed or end-of-life processor, technicians should document all module slot assignments, terminal wiring diagrams, and any custom function block configurations stored in the existing unit.

Power supply integrity is the first checkpoint. The rack’s PS module — commonly a 6DD1681-0AE0 or equivalent — must be verified to deliver stable 24 VDC within tolerance before the replacement 6DD1600-0AH0 is inserted. An undersized or aging power supply is a frequent cause of repeated processor faults in legacy SIMADYN D installations and should be replaced proactively during the same maintenance window.

I/O expansion is another common requirement during SIMADYN D retrofits. Facilities that have added process points over the years may be running analog input modules such as the 6DD1607-0AA0 or digital output modules in adjacent rack slots. These modules retain their configuration independently, but their channel addresses must be re-verified against the reloaded application program after the PM swap to ensure correct signal mapping. Any mismatch between the program’s I/O table and the physical module addresses will result in process faults at startup.

Communication links require particular attention. SIMADYN D systems in drive applications are often connected to SIMOREG DC Master or SIMOVERT MASTERDRIVES units via serial or PROFIBUS links. After replacing the 6DD1600-0AH0, the communication parameters — baud rate, station address, telegram type — must be confirmed against the drive’s parameter set. In installations where a SIMATIC S5 or early SIMATIC S7 controller acts as a supervisory PLC, the inter-system communication mapping should be re-tested before returning the line to production.

HMI screens connected to the SIMADYN D system — whether legacy SIMATIC Panel PCs, OP series operator panels, or third-party SCADA workstations — typically communicate via defined data block addresses. A processor module replacement does not alter these addresses if the same application software is reloaded, but the HMI connection should be verified live during commissioning to confirm that all process values, setpoints, and alarm states are displaying correctly.

For installations where the 6DD1600-0AH0 is part of a broader migration from SIMADYN D toward a modern SIMATIC S7-400 or S7-1500 platform, the retrofit may also involve installing a CP communication processor to bridge legacy SINEC H1 segments, or deploying a signal isolator to condition analog signals from existing field instruments that were wired for the original SIMADYN D input range. Programming cables and the STRUC G engineering tool are required for any application software transfer or modification on the SIMADYN D side.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any facility replacing a SIMADYN D processor module in an active production environment. The recommended approach is to prepare the replacement 6DD1600-0AH0 fully before the maintenance window begins. This means loading the application software onto the new module in a bench environment where possible, verifying the program version against the last known good backup, and confirming that all hardware configuration parameters match the installed rack.

During the physical swap, the original module should be removed only after the controlled shutdown sequence has been completed and the rack power has been isolated. Terminal wiring connected directly to the processor module — if any — should be photographed and labeled before disconnection. The replacement module is then inserted into the same rack slot, power is restored, and the system is brought up in a monitored state before process control is handed back to automatic mode.

Where a full processor swap is not feasible during a short maintenance window, some facilities choose to run parallel verification: the replacement 6DD1600-0AH0 is pre-configured and held on standby, with the actual swap deferred to a planned shutdown. This approach protects the original program logic and keeps the control system running on the proven hardware until the scheduled outage. NINERMAS can support this strategy by holding reserved stock against a purchase order, ensuring the replacement unit is available when the maintenance window opens.

After the swap, the commissioning sequence should follow the original system documentation: verify rack power, confirm module ready status, check I/O channel responses against known process conditions, test communication links to connected drives and supervisory systems, and confirm HMI display accuracy before releasing the system to operators. A structured commissioning checklist reduces the risk of overlooked faults and shortens the time between power-on and production restart.
