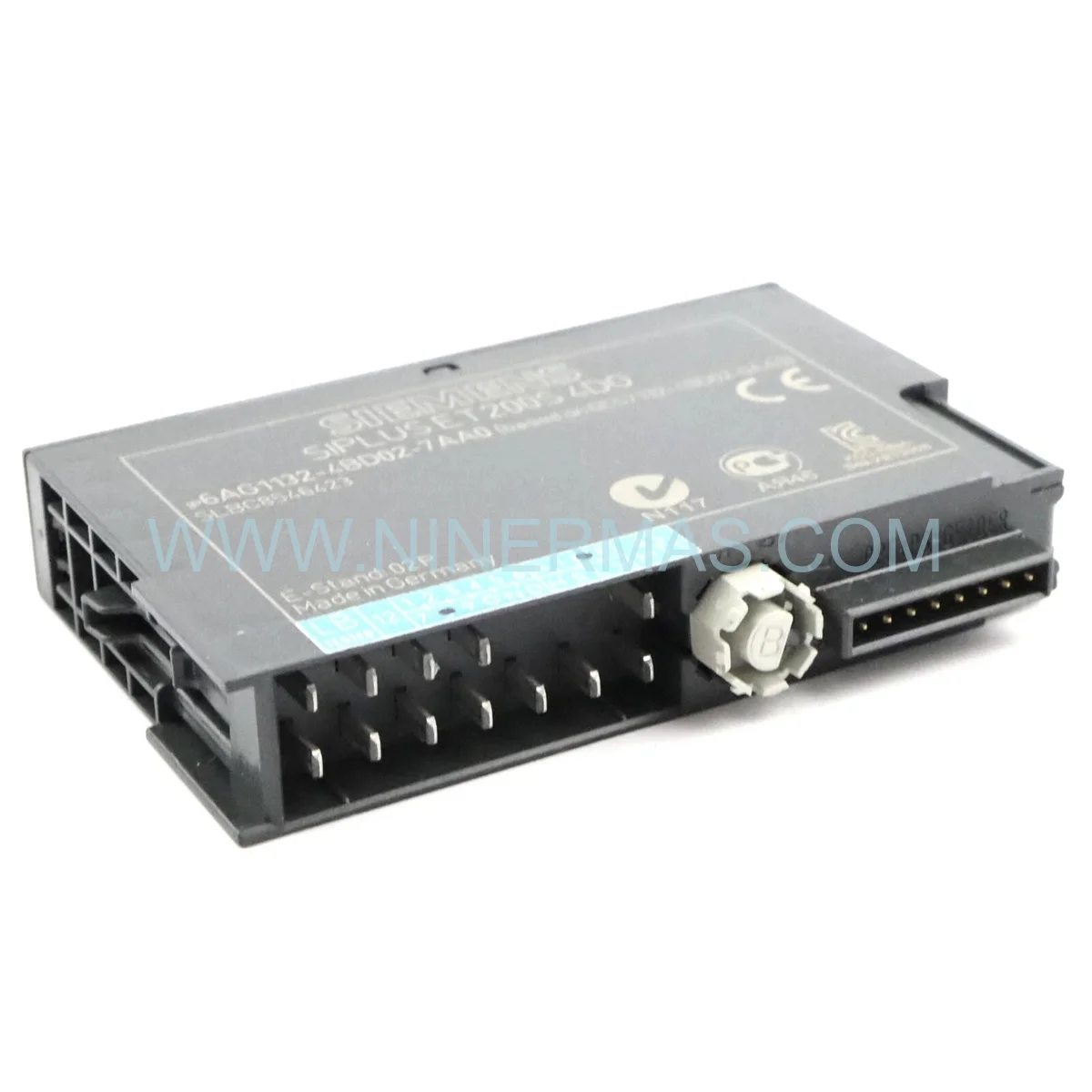

Siemens 6AG1132-4BD02-7AA0 SIPLUS ET 200S 4DQ Relay Output Module

Siemens SIPLUS ET 200S 6AG1132-4BD02-7AA0 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing distributed control architectures, the 6AG1132-4BD02-7AA0 represents a cornerstone of process optimization in environments where system availability is non-negotiable. This ruggedized relay output module integrates seamlessly into ET 200S distributed I/O stations, enabling mission-critical switching operations across chemical dosing lines, turbine auxiliary circuits, and high-availability conveyor systems. Its role in sustaining operational excellence cannot be overstated — every millisecond of unplanned downtime translates directly into production loss.

Engineered to withstand the harshest industrial conditions, the 6AG1132-4BD02-7AA0 carries factory-applied conformal coating rated to Class 3C3/3S3, providing robust resistance against condensation, corrosive gases, and biological contamination. Installation in environments ranging from -25°C to +70°C is fully supported without supplementary enclosures. Field engineers should note that push-in spring terminals (0.5-2.5 mm²) eliminate tool dependency during wiring, significantly reducing commissioning time and human error on the plant floor.

Maintaining a strategic inventory of this module as a critical spare part is a fundamental tenet of any mature reliability program. As a legacy-compatible automation component within the ET 200S ecosystem, sourcing delays can cascade into extended outages. Securing verified, original-stock units ensures your maintenance team can execute rapid board-swap procedures and restore system integration without waiting on extended lead times.

Key Operational Features

4-Channel Relay Output (SPDT): Independently switchable changeover contacts rated 2A at 230V AC / 2A at 30V DC per channel — ideal for valve actuators, alarm circuits, and motor starters.
Extended Temperature Range: Continuous operation from -25°C to +70°C, exceeding standard ET 200S module ratings for high-availability deployments.
Conformal Coating (3C3/3S3): Factory-sealed protection against chemical vapors, humidity, and particulate contamination — no additional protective housing required.
Galvanic Isolation: Full electrical separation between control logic and field loads, protecting PLC backplane circuitry from voltage transients and ground loops.
Seamless Integration: Plug-and-play compatibility with PROFIBUS DP and PROFINET ET 200S stations; auto-configured via SIMATIC STEP 7 / TIA Portal.
Hot-Swap Capability: Supports module replacement under live system conditions, enabling zero-downtime maintenance in high-availability production cells.
Per-Channel Diagnostic LEDs: Real-time status indication accelerates fault isolation and reduces mean time to repair (MTTR).

Maintenance & Performance Benchmarks

The 6AG1132-4BD02-7AA0 is architected to support both small-scale machine-level I/O nodes and large distributed control networks spanning multiple ET 200S stations across a plant. In redundancy-critical architectures, this module can be deployed in parallel switching configurations where dual-path relay logic ensures no single point of failure interrupts process continuity.

For facilities operating under IEC 61511 functional safety frameworks, the relay outputs provide the galvanic isolation necessary to interface with safety instrumented systems (SIS) without compromising SIL integrity. Maintenance intervals are extended by the conformal coating, which eliminates the corrosion-driven contact degradation common in standard relay modules exposed to aggressive atmospheres. Field benchmarks indicate a measurable reduction in unplanned maintenance events when SIPLUS-grade modules replace standard variants in corrosive or high-humidity zones.

System integrators working across multi-vendor automation environments will find the module’s broad switching voltage range (5-230V AC/DC) eliminates the need for intermediate signal converters, streamlining system integration and reducing panel footprint. This directly contributes to operational excellence by simplifying the overall I/O architecture.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6AG1132-4BD02-7AA0 dispatched from our inventory is shipped in Original Factory Packaging, complete with manufacturer labeling, traceability documentation, and anti-static protection. This guarantees authenticity and preserves the module’s conformal coating integrity during transit — a critical consideration for components destined for harsh-environment deployment.

For time-sensitive plant shutdowns and emergency maintenance windows, same-day dispatch is available on in-stock units (subject to order cutoff times). Our global supply network specializes in sourcing EOL (End-of-Life) and legacy automation components, ensuring that facilities running older ET 200S configurations are not forced into costly system-wide upgrades due to parts obsolescence. Worldwide express logistics options are available to all major industrial regions, with full shipment tracking provided from dispatch to delivery.

Engineering Support & FAQ

Q: What are the step-by-step installation requirements for the 6AG1132-4BD02-7AA0?
A: Mount the module onto an ET 200S terminal module (e.g., 6ES7193-4BD20-0AA0) in the correct slot position. Connect field wiring via push-in spring terminals — no tools required for conductors up to 2.5 mm². Configure the module in SIMATIC STEP 7 or TIA Portal by adding it to the ET 200S hardware configuration. Download the configuration to the interface module and verify per-channel LED status on power-up.

Q: Which firmware versions are compatible with this module?
A: The 6AG1132-4BD02-7AA0 is compatible with ET 200S interface modules running firmware V3.0 and above. It is fully supported in STEP 7 V5.5 SP4+ and TIA Portal V13 SP1 and later. No firmware resides on the relay output module itself — compatibility is governed by the interface module and GSD/GSDML files.

Q: Can this module be used in SIL-rated safety applications?
A: The 6AG1132-4BD02-7AA0 is a standard (non-F-rated) relay output module. For SIL 2/3 safety instrumented systems, Siemens F-rated ET 200S modules with T V certification are required. However, this module can serve as a non-safety actuator interface in mixed-architecture panels where the safety logic resides upstream.

Q: How does the warranty claim process work?
A: All units carry a 1-year warranty from date of invoice. To initiate a claim, contact our technical support team with the order reference, module serial number, and a description of the fault symptom. Our engineers will conduct a remote diagnostic assessment before authorizing a return merchandise authorization (RMA). Replacement units are dispatched within 48 hours of confirmed fault verification.

Q: What is the maximum cable length for relay output field wiring?
A: Siemens does not specify a hard maximum cable length for relay output wiring on this module. In practice, cable runs should be kept under 200m for inductive loads to minimize voltage drop and EMI coupling. For longer runs or highly inductive loads, install RC snubber circuits or varistors at the load terminals to suppress switching transients.

Q: Is the 6AG1132-4BD02-7AA0 interchangeable with the standard 6ES7132-4BD02-0AA0?
A: Yes — the SIPLUS 6AG1132-4BD02-7AA0 is a drop-in replacement for the standard 6ES7132-4BD02-0AA0 in terms of mechanical form factor, electrical interface, and software configuration. The SIPLUS variant adds conformal coating and extended temperature qualification, making it the preferred upgrade for installations in demanding environments.
