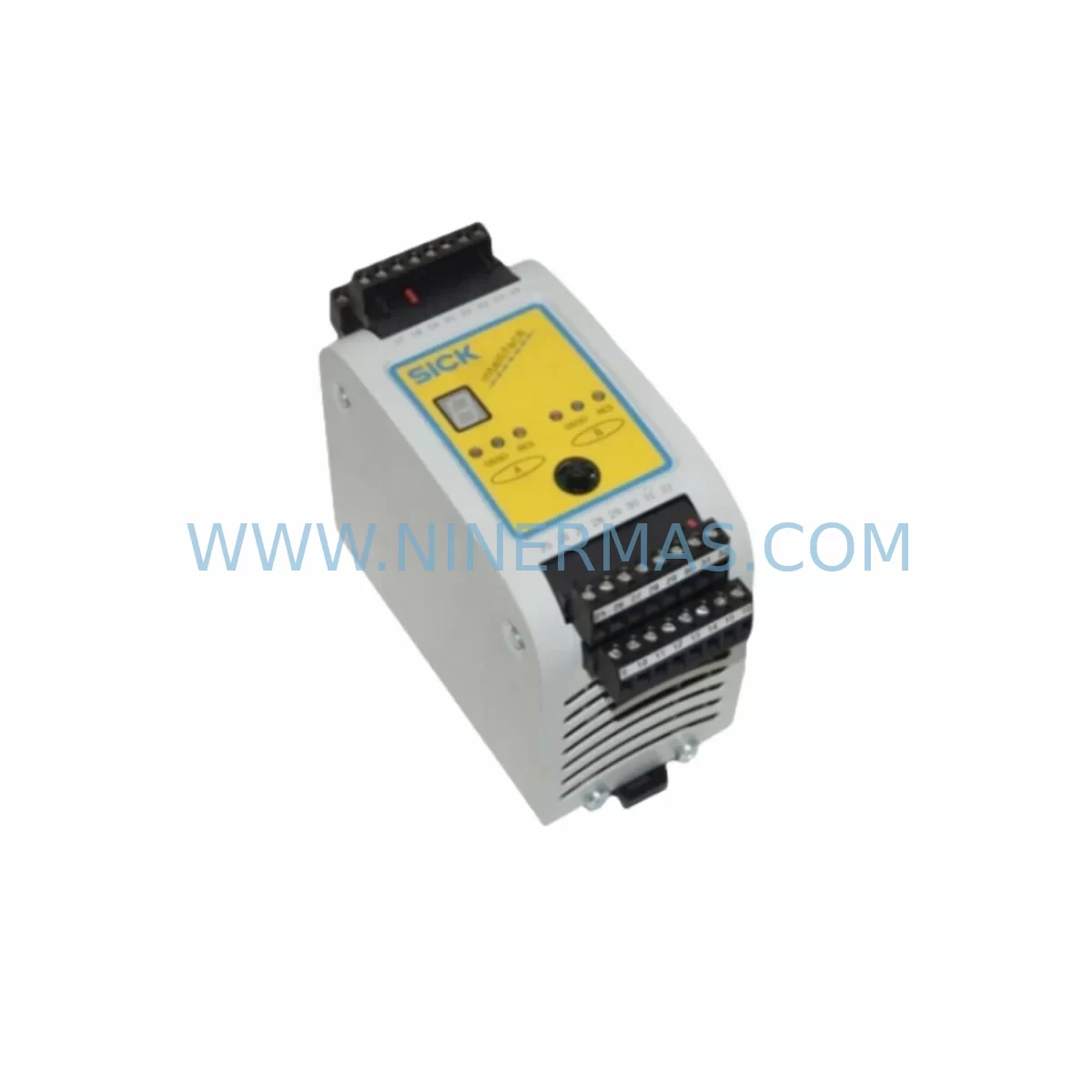

SICK UE440-A0410 Retrofit-Compatible Safety Controller

SICK UE440-A0410 Retrofit-Compatible Safety Controller: Seamless Legacy System Modernization

The SICK UE440-A0410 is a ruggedized, DIN-rail-mounted safety controller engineered for demanding industrial environments where reliability, signal integrity, and functional safety are non-negotiable. As legacy safety relay systems and older programmable safety controllers reach end-of-life, the UE440-A0410 has become a preferred retrofit solution for plant engineers and maintenance teams seeking a drop-in-compatible upgrade path that preserves existing wiring infrastructure, minimizes downtime, and maintains SIL 2 / PLd safety integrity levels across the control architecture.

NINERMAS supplies the SICK UE440-A0410 from verified stock, with each unit undergoing pre-shipment functional testing and shipped with a 12-month warranty. Our inventory program supports long-term spare parts commitments for customers managing multi-year maintenance contracts on legacy automation lines.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the SICK UE440-A0410 into an existing safety architecture, the retrofit scope typically extends beyond the controller itself. Engineers must audit the full safety loop: from the field device inputs — such as SICK C4000 safety light curtains, SICK S3000 laser scanners, or two-hand control stations — through the safety controller logic, and out to the final control elements including safety contactors, motor starters, and pneumatic valve solenoids.

In many legacy panel designs, the UE440-A0410 replaces older single-function safety relays that were wired in series across multiple zones. The UE440 series consolidates this logic into a single configurable unit, reducing panel footprint and simplifying terminal block layouts. During the retrofit, technicians should verify that the existing 24 V DC power supply rail — often shared with a SICK PSU or third-party DIN rail power supply — can sustain the inrush and steady-state current draw of the new controller alongside any co-installed SICK Flexi Soft safety modules or I/O expansion units.

For systems using SICK Flexi Soft modular safety controllers (e.g., FX3-CPU or FX3-XTIO I/O modules), the UE440-A0410 can serve as a standalone zone controller for lower-complexity safety functions, offloading logic from the main Flexi Soft CPU and reducing program complexity. In such configurations, the terminal wiring between the UE440 output contacts and the Flexi Soft input modules must be verified for correct OSSD signal routing and cross-fault detection compatibility.

Panel space is a frequent constraint in retrofit projects. The UE440-A0410’s compact DIN rail form factor — typically 22.5 mm wide — allows it to be installed in existing control cabinets without requiring new enclosure fabrication. However, engineers should confirm clearance for adjacent components such as SICK WL series photoelectric sensors used for position feedback, terminal blocks, and cable duct routing before finalizing the mechanical layout.

Where the legacy system used hardwired safety relay chains with no diagnostic feedback, upgrading to the UE440-A0410 also enables basic diagnostic output signals that can be wired to a PLC input card — for example, a Siemens S7-300 DI module or an Allen-Bradley 1756 ControlLogix digital input — allowing the main control system to monitor safety relay state without modifying the safety-rated circuit itself. This diagnostic integration is particularly valuable in facilities transitioning toward IIoT-enabled maintenance workflows.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any safety system retrofit. The SICK UE440-A0410 supports a structured migration approach that allows pre-configuration and bench testing before the planned maintenance window begins. Using SICK Safety Designer software, the replacement controller can be fully configured, logic-verified, and output-tested on the bench against the original wiring diagram — eliminating the need for on-machine programming during the cutover window.

Prior to the cutover, the maintenance team should photograph and document all existing terminal connections, confirm the safety function test procedures with the machine OEM or safety engineer, and prepare a rollback plan in case the new controller requires additional configuration. The original safety relay or controller should be retained and stored as a temporary fallback unit until the new UE440-A0410 has completed its first full safety validation cycle on the live machine.

During the physical swap, the dual-channel input wiring from field devices — E-stop buttons, safety gate switches, or SICK i10 interlock switches — should be transferred terminal by terminal, with continuity checks performed at each step. Output contacts driving safety contactors or SICK safety outputs should be verified for correct NC/NO configuration before energizing the circuit. The entire cutover sequence, from power-down to first validated safety function test, typically requires 2–4 hours for a single-zone safety circuit when the replacement controller has been pre-configured.

Post-installation, the safety validation record must be updated to reflect the new controller model, firmware version, and configuration file reference. NINERMAS provides a pre-shipment test certificate with each UE440-A0410 unit, which can be included in the machine technical file to support CE marking documentation and machinery directive compliance records.

Retrofit Support FAQ

Q1: Is the SICK UE440-A0410 a direct replacement for older SICK UE10 or UE12 safety relays?
The UE440-A0410 is functionally compatible with the safety logic previously handled by UE10 and UE12 series relays, but it is not a pin-for-pin drop-in replacement. Terminal mapping and wiring adaptation will be required. NINERMAS can provide a wiring comparison guide upon request to support the transition.

Q2: Can the UE440-A0410 be configured without SICK-proprietary software?
No. The UE440-A0410 requires SICK Safety Designer for logic configuration and validation. The software is available as a free download from SICK’s official support portal. NINERMAS recommends completing the configuration and validation on a bench unit before the planned installation window.

Q3: What does the pre-shipment test cover?
Each SICK UE440-A0410 supplied by NINERMAS undergoes a functional output verification test confirming safety relay contact operation, input channel response, and power supply acceptance within rated tolerance. A test certificate is included with shipment documentation.

Q4: What is the warranty coverage and lead time?
NINERMAS provides a 12-month warranty on all SICK UE440-A0410 units from the date of shipment. Units are dispatched from verified stock with typical lead times of 3–7 business days. For volume orders or long-term spare parts programs, contact our sales team to discuss stock commitment arrangements.
