BOSCH SM 10/20-TA 055128-111 Safety-Reliable Servo Drive

BOSCH SM 10/20-TA 055128-111: Safety-Reliable Servo Drive for Critical Industrial Control Sites

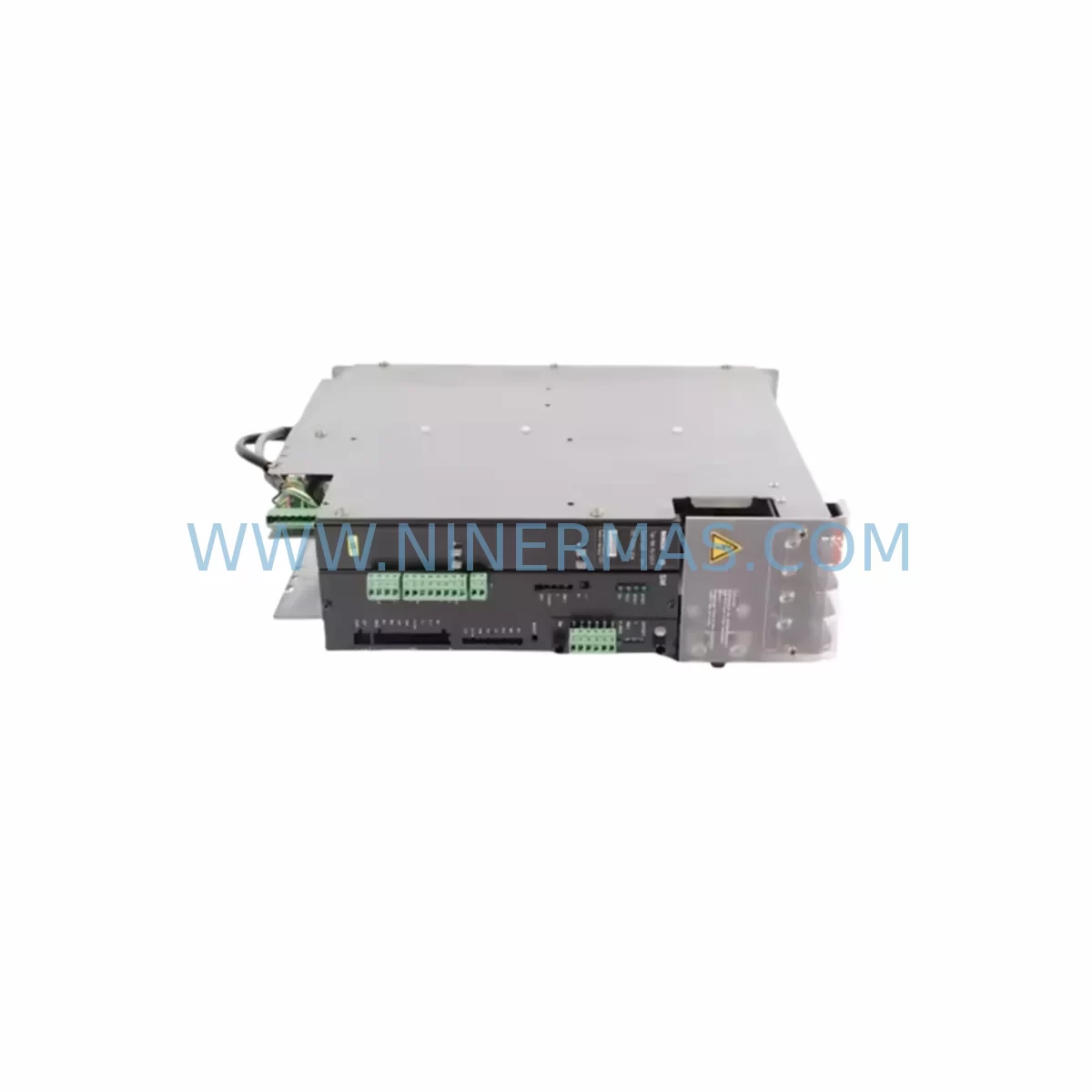

The BOSCH SM 10/20-TA 055128-111 is a high-performance servo drive from Bosch’s proven SM Series, engineered to deliver uninterrupted motion control in the most demanding industrial environments. Designed for critical control cabinets where safety, signal integrity, and continuous uptime are non-negotiable, this unit provides plant engineers and maintenance teams with a dependable replacement solution backed by a 12-month warranty and full pre-shipment testing.

In continuous production facilities — including petrochemical plants, power generation stations, metallurgical processing lines, and port logistics systems — servo drive failures can trigger cascading shutdowns, safety interlock activations, and costly unplanned downtime. The SM 10/20-TA 055128-111 is purpose-built to eliminate these risks, offering robust protection against the electrical and mechanical stresses that degrade lesser components over time.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinet architectures, a single failed servo drive can compromise an entire safety interlock chain. The BOSCH SM 10/20-TA 055128-111 is designed to integrate seamlessly into existing Bosch drive systems, reducing the risk of control interruption, signal drift, and unplanned axis faults.

For complete drive system protection, this unit is commonly deployed alongside the Bosch CLC-D02.1 controller module, which manages multi-axis coordination and provides real-time fault diagnostics. Power supply stability is ensured by pairing the SM 10/20-TA with a Bosch HVR02.2 power supply unit or equivalent DC bus capacitor module, which buffers voltage transients and prevents drive trips during grid fluctuations common in heavy industrial environments.

In high electromagnetic interference (EMI) environments — such as those found near large variable frequency drives, arc furnaces, or high-current bus bars — the SM 10/20-TA 055128-111’s integrated EMC filter works in conjunction with external Bosch NFD line filters and shielded motor cables to suppress conducted and radiated interference. This combination prevents signal drift on encoder feedback lines and eliminates spurious fault trips that can halt production.

For safety circuit integrity, the drive’s Safe Torque Off (STO) input is designed to interface directly with Pilz PNOZ safety relays or equivalent IEC 62061-compliant safety controllers, ensuring that emergency stop commands are executed within the required response time without requiring software intervention. This hardware-level safety architecture is critical in applications where a delayed stop response could result in personnel injury or equipment damage.

Communication reliability is maintained through the drive’s fieldbus interface, which supports integration with Bosch Rexroth SERCOS III or PROFIBUS DP master controllers. In installations where legacy PROFIBUS networks are still in service, the SM 10/20-TA provides stable cyclic data exchange even under high bus load conditions, preventing communication timeouts that could trigger safety shutdowns.

Additional cabinet-level protection is achieved by installing Phoenix Contact surge protection devices (SPDs) on the incoming AC supply and Weidmüller terminal block fuse holders on individual drive supply branches. These components, combined with the SM 10/20-TA’s internal overcurrent protection, create a layered defense against surge events caused by nearby lightning strikes or utility switching transients.

For thermal management in high-ambient-temperature enclosures, the drive is typically paired with Rittal TopTherm cabinet coolers or forced-air fan units to maintain internal temperatures within the drive’s rated operating range, preventing thermal derating and premature component aging.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where servo-driven valve actuators and compressor control systems must operate without interruption, the SM 10/20-TA 055128-111 provides the torque precision and fault tolerance required to maintain safe process conditions. Its STO function ensures that drives can be safely de-energized during maintenance without full system shutdown, supporting zone-based safety architectures common in ATEX-classified areas.

Power Generation & Substation Control: Servo drives in turbine governor systems and excitation control panels are exposed to severe electrical noise from high-voltage switching equipment. The SM 10/20-TA’s EMC-hardened design and stable encoder interface maintain precise speed and position control even in the presence of high-frequency interference, preventing governor instability that could lead to grid frequency deviations.

Mining & Mineral Processing: In underground and surface mining operations, servo drives controlling conveyor positioning systems, drill feed mechanisms, and ore sorting equipment must withstand high levels of dust, vibration, and humidity. When installed in sealed, climate-controlled control cabinets, the SM 10/20-TA delivers reliable performance in these harsh conditions, with its robust hardware design minimizing mean time between failures (MTBF) in high-cycle applications.

Water & Wastewater Treatment: Pump and blower servo systems in water treatment facilities require precise flow control and reliable operation across wide load ranges. The SM 10/20-TA’s dynamic torque response and stable current regulation ensure accurate dosing pump positioning and aeration blower speed control, reducing the risk of process upsets that could affect water quality compliance.

Metallurgy & Steel Production: Rolling mill and continuous casting servo systems demand the highest levels of drive reliability and dynamic response. The SM 10/20-TA’s peak current capability (20 A) supports high-inertia load acceleration without drive trips, while its thermal protection circuitry prevents damage during extended high-load cycles common in hot rolling applications.

Port & Marine Logistics: Crane positioning systems and ship-to-shore conveyor drives in port environments are exposed to salt air, high humidity, and wide temperature variations. The SM 10/20-TA, when installed in appropriately rated enclosures, provides the motion control precision required for safe container handling operations, with its hardware enable input supporting integration with crane safety management systems.

Safety and Quality FAQ

Q1: What warranty coverage does the BOSCH SM 10/20-TA 055128-111 carry?
Every unit supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported by our technical team, and replacement units are dispatched promptly to minimize your site downtime.

Q2: How is each unit tested before shipment?
All SM 10/20-TA 055128-111 units undergo 100% pre-shipment functional verification, including power-on testing, parameter integrity checks, and output current verification. Units that do not meet Bosch OEM specifications are rejected before dispatch, ensuring that every unit you receive is field-ready.

Q3: Is this unit a direct drop-in replacement for the original Bosch SM 10/20-TA?
Yes. The SM 10/20-TA 055128-111 is an original Bosch SM Series servo drive and is fully compatible with existing Bosch SM Series servo systems, including MSK, MKD, and MHD series servo motors. No parameter re-engineering or mechanical modification is required for standard replacement applications. Our technical team can provide commissioning guidance if required.

Q4: Can NINERMAS guarantee long-term supply of this part?
NINERMAS maintains dedicated inventory reserves for critical Bosch SM Series components, including the SM 10/20-TA 055128-111, to support long-term maintenance programs for plants operating legacy Bosch drive systems. We actively source from authorized distribution channels and can provide scheduled supply agreements for customers with ongoing spare parts requirements.
