Bosch CLC-D02.2 Retrofit-Compatible Positioning Control Card

Bosch CLC-D02.2 Retrofit-Compatible Positioning Control Card: Legacy System Compatibility and Smooth Upgrade

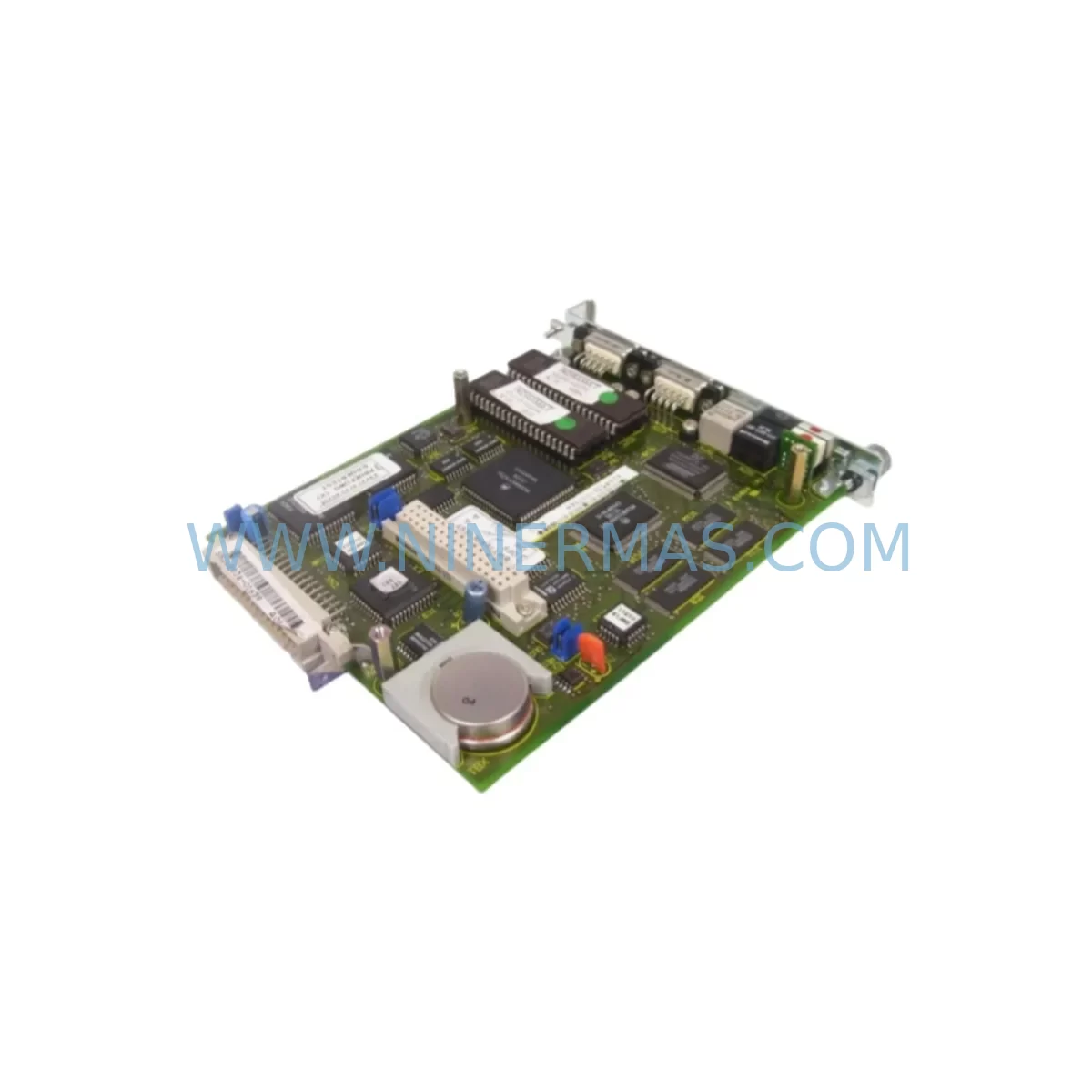

The Bosch CLC-D02.2 is a positioning control card engineered for use within Bosch’s CLC series industrial control platform. As legacy automation systems in processing, packaging, machine tool, and press-line environments continue to operate well beyond their original design life, the CLC-D02.2 has become a critical spare part for maintenance engineers and system integrators tasked with keeping aging control architectures operational without committing to a full platform migration.

This card performs closed-loop positioning control functions within the CLC rack-based architecture, interfacing directly with servo drives, encoder feedback modules, and the central CPU via the CLC backplane bus. Its role in coordinating axis positioning, interpolation commands, and real-time feedback makes it a non-negotiable component in multi-axis machine tool retrofits, transfer line upgrades, and press automation modernization projects.

For facilities operating Bosch CLC-based control cabinets — particularly those built around the CLC-D01, CLC-D03, or CLC-R01 rack assemblies — the CLC-D02.2 represents a direct-fit replacement that avoids the cost and downtime associated with full controller replacement. Engineers can slot the card into the existing backplane, restore axis parameters from the original program backup, and resume production with minimal disruption to the HMI interface or PLC ladder logic.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the CLC-D02.2 into an existing control cabinet begins with a thorough audit of the surrounding hardware. In most legacy Bosch CLC installations, the positioning card operates alongside a CLC-PS01 or CLC-PS02 power supply module that feeds the backplane logic rail. Before inserting the replacement card, engineers should verify that the power supply is delivering stable 24 VDC within tolerance — a degraded power module is a common root cause of positioning card failures and should be inspected or replaced concurrently.

The backplane itself — typically a CLC-R01 or CLC-R02 rack assembly — must be inspected for damaged bus connectors, oxidized contacts, or cracked PCB traces before the new card is seated. A faulty backplane will cause intermittent communication faults that are difficult to distinguish from card-level failures during commissioning.

On the drive side, the CLC-D02.2 typically interfaces with Bosch SM series servo drives or legacy Bosch SD series amplifiers, depending on the machine generation. Engineers should confirm that the analog command signal wiring (±10 V reference) or SERCOS fiber-optic ring connections are intact and correctly terminated. If the installation uses SERCOS communication, the ring topology must be verified — a single broken fiber segment will prevent all drives on the ring from receiving position commands.

Encoder feedback wiring from the motor or linear scale to the CLC-D02.2 front terminals must be checked for shielding continuity and correct differential signal levels. In older installations, degraded encoder cables are a frequent source of positioning errors that are incorrectly attributed to the control card. Replacing the card without inspecting the encoder wiring may result in repeated faults after commissioning.

For systems that also include Bosch CLC-A01 or CLC-A02 analog I/O modules in the same rack, the slot addressing must be confirmed against the original machine program. CLC slot assignments are typically fixed in the control software, and inserting the replacement card into an incorrect slot will cause address conflicts that prevent the axis from being recognized by the CPU.

Where the control cabinet also houses a Bosch CC220 or CC320 CNC controller as the supervisory platform, the axis configuration data stored in the CNC must be verified to match the replacement card’s parameter set. Axis gain values, following error limits, and software travel limits should be restored from the original machine backup before enabling the axis in automatic mode.

In installations where an HMI panel — such as a Bosch DP3 or DP5 operator panel — is connected to the CLC system, the HMI screen layouts and axis status displays should be tested after card replacement to confirm that position feedback values are being correctly transmitted and displayed. Discrepancies in the HMI readout after replacement are typically caused by incorrect encoder resolution settings in the card parameters rather than hardware faults.

Downtime Control During System Migration

Minimizing production downtime during a CLC-D02.2 replacement requires careful pre-planning. The most effective approach is to perform a full parameter backup of the existing card — including axis gain tables, encoder resolution settings, software limits, and drive interface configuration — before the faulty card is removed. This backup should be stored both on the programming PC and on a removable medium kept with the machine documentation.

Where the original card has failed completely and a parameter backup is unavailable, engineers should consult the original machine commissioning documentation or contact the machine builder for the axis parameter set. Attempting to recommission the axis from default parameters without reference data significantly extends downtime and increases the risk of mechanical damage during the initial axis movement tests.

For facilities with multiple CLC-based machines, maintaining a small buffer stock of CLC-D02.2 cards — along with CLC-PS01 power supply modules and CLC-R01 rack assemblies — provides a rapid-response capability that can reduce unplanned downtime from days to hours. A pre-tested spare card with a known-good parameter set loaded can be swapped in during a planned maintenance window, with the faulty card returned for repair or held as a secondary spare.

During the physical card swap, the machine should be de-energized at the main isolator and the backplane bus should be allowed to discharge before the card is removed. Static precautions are essential — the CLC-D02.2 contains sensitive positioning logic circuitry that can be damaged by electrostatic discharge during handling. After insertion, the card should be powered up with the drive enable signal inhibited, and the axis parameters should be loaded and verified before the drive is enabled for the first time.

Final commissioning should include a low-speed manual jog test across the full axis travel range, followed by a verification of the position feedback accuracy at multiple reference points. Only after these checks should the machine be returned to automatic cycle operation.
