Siemens C98043-A1600-L1-14 Safety-Reliable Control Board

Siemens C98043-A1600-L1-14 Safety-Reliable Control Board for Critical Control Sites

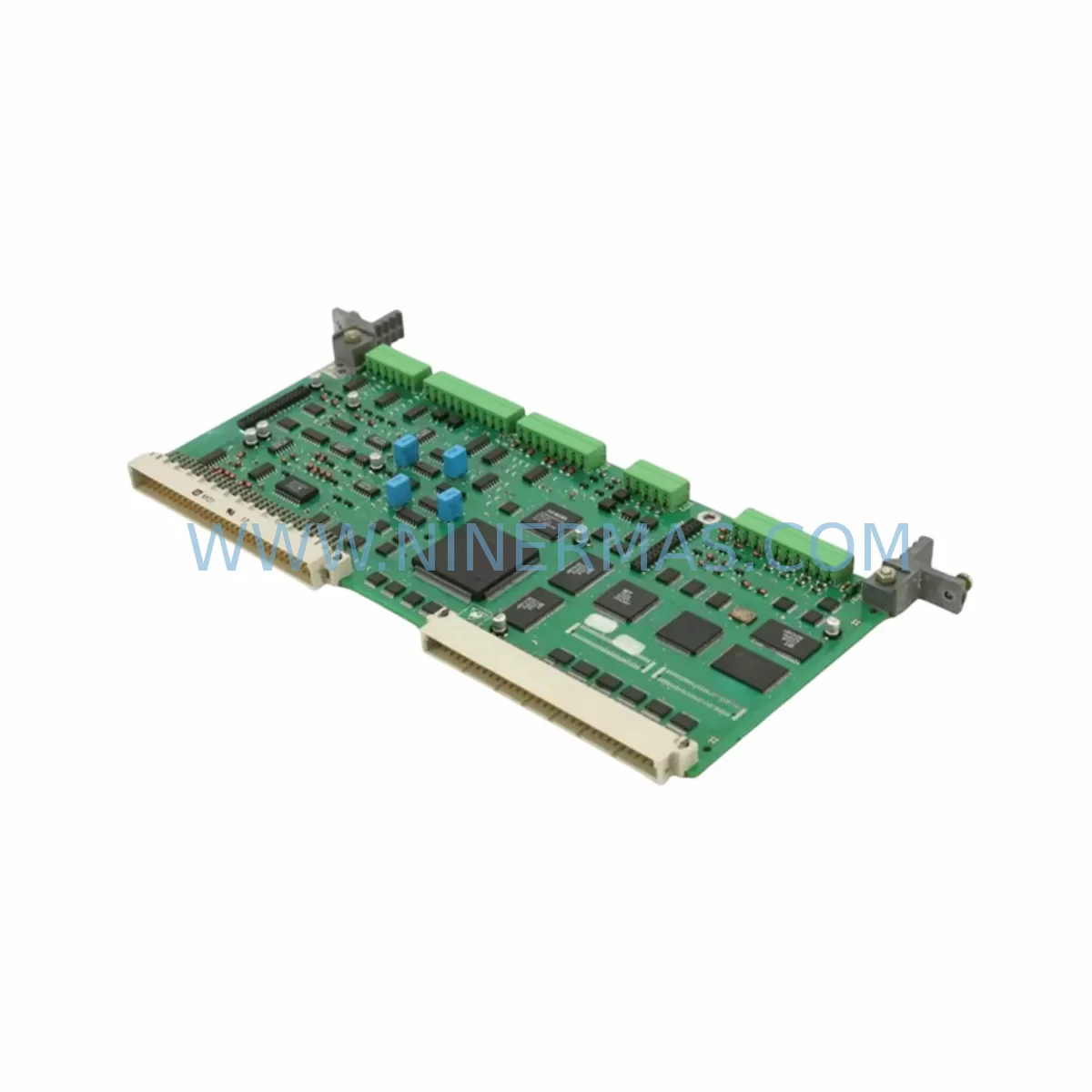

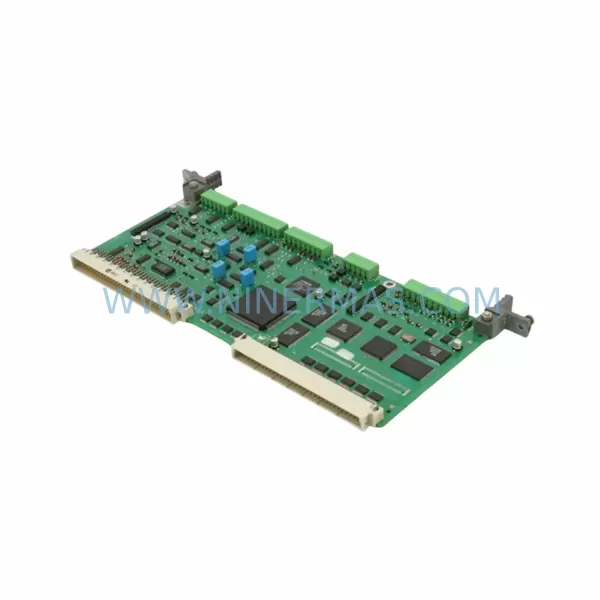

The Siemens C98043-A1600-L1-14 is a ruggedized control motherboard module engineered for demanding industrial environments where control continuity, signal integrity, and system safety are non-negotiable. Designed for integration within Siemens SIMOREG DC Master drive systems, this board serves as the central processing and control backbone for high-power DC drive cabinets deployed across continuous production lines, critical interlock circuits, and heavy-duty motor control centers.

In facilities where unplanned downtime carries severe operational and financial consequences — such as petrochemical refineries, steel rolling mills, mining hoists, and port crane systems — the C98043-A1600-L1-14 delivers the stability and fault tolerance required to sustain safe, uninterrupted drive operation. Its ruggedized construction addresses the core failure modes that compromise control reliability in harsh field environments: electromagnetic interference (EMI), power supply fluctuation, thermal stress, mechanical vibration, and moisture ingress.

The board’s signal processing architecture is optimized to minimize control loop latency and prevent signal drift, ensuring that speed reference commands, current feedback signals, and firing pulse outputs remain accurate under variable load conditions. This is especially critical in applications involving regenerative braking, four-quadrant operation, or precision tension control, where even minor signal deviations can trigger nuisance trips or unsafe motor behavior.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a SIMOREG-based DC drive cabinet, the C98043-A1600-L1-14 motherboard does not operate in isolation — it functions as the command center for a tightly integrated assembly of control, power, and protection components. Understanding its role within the broader cabinet architecture is essential for effective risk reduction and system reliability planning.

The motherboard interfaces directly with the Siemens C98043-A1601 pulse amplifier board, which translates the firing commands generated by the C98043-A1600-L1-14 into gate signals for the thyristor bridge. Any degradation in the motherboard’s firing pulse accuracy can propagate to the thyristor stack, causing commutation failures or asymmetric current distribution — a risk that is eliminated when the C98043-A1600-L1-14 is maintained in verified working condition.

On the power supply side, the control board relies on a stable 24 VDC rail delivered through the SIMOREG internal power supply module. Voltage ripple or transient spikes on this rail — often caused by nearby contactor switching or capacitor bank discharge — can corrupt the board’s microprocessor operation. Pairing the C98043-A1600-L1-14 with a high-quality Siemens SITOP PSU300M 24 VDC stabilized power supply or equivalent surge-protected supply significantly reduces this risk in high-noise cabinet environments.

For communication-intensive applications, the C98043-A1600-L1-14 supports integration with the Siemens CBC (Communication Board CBC) for PROFIBUS DP connectivity, enabling real-time speed setpoint transmission and diagnostic data exchange with the plant DCS or SCADA system. In environments with long cable runs or multiple drive nodes on a single PROFIBUS segment, proper termination resistors and shielded twisted-pair cables are essential to prevent bus collisions and communication timeouts that could trigger emergency stops.

The Siemens C98043-A1603 technology board is another key companion module, providing extended closed-loop control functions such as dancer roll tension control and winder/unwinder regulation. When the C98043-A1600-L1-14 motherboard is replaced during a planned maintenance window, simultaneous inspection of the C98043-A1603 and the C98043-A1604 interface board is recommended to ensure the entire control chain is verified before recommissioning.

Surge protection at the cabinet input — using devices such as the Siemens 3RV motor protection circuit breaker or coordinated 3RT contactor assemblies — further reduces the risk of transient overvoltage events reaching the sensitive control electronics on the C98043-A1600-L1-14. In mining and port applications where the supply network is subject to frequent switching transients, this upstream protection layer is a critical element of the overall cabinet safety strategy.

Finally, for facilities operating under IEC 61508 or IEC 62061 functional safety frameworks, the C98043-A1600-L1-14 should be documented as a safety-relevant component within the drive system’s safety case, with defined inspection intervals, replacement criteria, and spare parts holding requirements aligned to the system’s SIL target.

Critical Industrial Safety Applications

The Siemens C98043-A1600-L1-14 control motherboard is deployed across a wide range of critical industrial sectors where DC drive reliability directly impacts process safety and production continuity.

In petrochemical and refinery environments, SIMOREG DC drives equipped with the C98043-A1600-L1-14 control compressor motors, boiler feed pumps, and crude distillation column drives. These applications demand zero-tolerance for control interruption, as an uncontrolled motor trip can trigger pressure relief events or process upsets with serious safety implications.

In electric power generation facilities, the board controls excitation systems and auxiliary drive motors for cooling fans and fuel handling conveyors. Reliable firing pulse generation from the C98043-A1600-L1-14 ensures that these auxiliary systems remain available during peak generation periods and grid disturbance events.

In mining and mineral processing operations, SIMOREG drives with C98043-A1600-L1-14 motherboards power hoist drives, conveyor belt systems, and ball mill drives. The ruggedized construction of this board is particularly valued in underground mining environments where dust, humidity, and vibration levels exceed standard industrial ratings.

In water and wastewater treatment plants, the board supports variable-speed pump drives that must maintain precise flow control across wide load ranges. Signal drift or control board failure in these applications can result in overflow events or treatment process failures with environmental and regulatory consequences.

In metallurgical and steel rolling mills, the C98043-A1600-L1-14 is a critical component in rolling mill main drive systems, where four-quadrant DC drive control is required for precise tension and speed regulation across multiple mill stands. The board’s ability to maintain firing pulse accuracy under high thermal and electromagnetic stress conditions is essential for product quality and mill safety.

In port and marine applications, SIMOREG drives with this control board power crane hoist and travel drives, where load holding accuracy and controlled deceleration are direct safety requirements. The board’s EMI resistance is particularly important in port environments where high-power crane drives, diesel generators, and radio communication systems create a complex electromagnetic environment.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the C98043-A1600-L1-14?
All C98043-A1600-L1-14 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with the Siemens SIMOREG application environment. Warranty claims are supported with direct technical assistance and priority replacement dispatch.

Q2: What pre-shipment testing is performed on each unit?
Every C98043-A1600-L1-14 module undergoes functional verification testing prior to shipment, including power-on self-test, signal output verification, and visual inspection for component condition and PCB integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the C98043-A1600-L1-14 compatible with all SIMOREG 6RA70 variants?
The C98043-A1600-L1-14 is designed for use within the Siemens SIMOREG DC Master 6RA70 series. Compatibility with specific drive ratings and firmware versions should be confirmed against the drive’s existing board revision and software release. NINERMAS technical support can assist with cross-referencing board revisions to ensure correct fit before installation.

Q4: Can long-term supply and stock reservation be arranged for maintenance programs?
Yes. NINERMAS supports long-term spare parts programs for the C98043-A1600-L1-14, including stock reservation agreements for facilities with planned maintenance schedules or lifecycle extension programs. Contact our team to discuss volume commitments, lead time guarantees, and multi-year supply arrangements tailored to your plant’s operational requirements.
