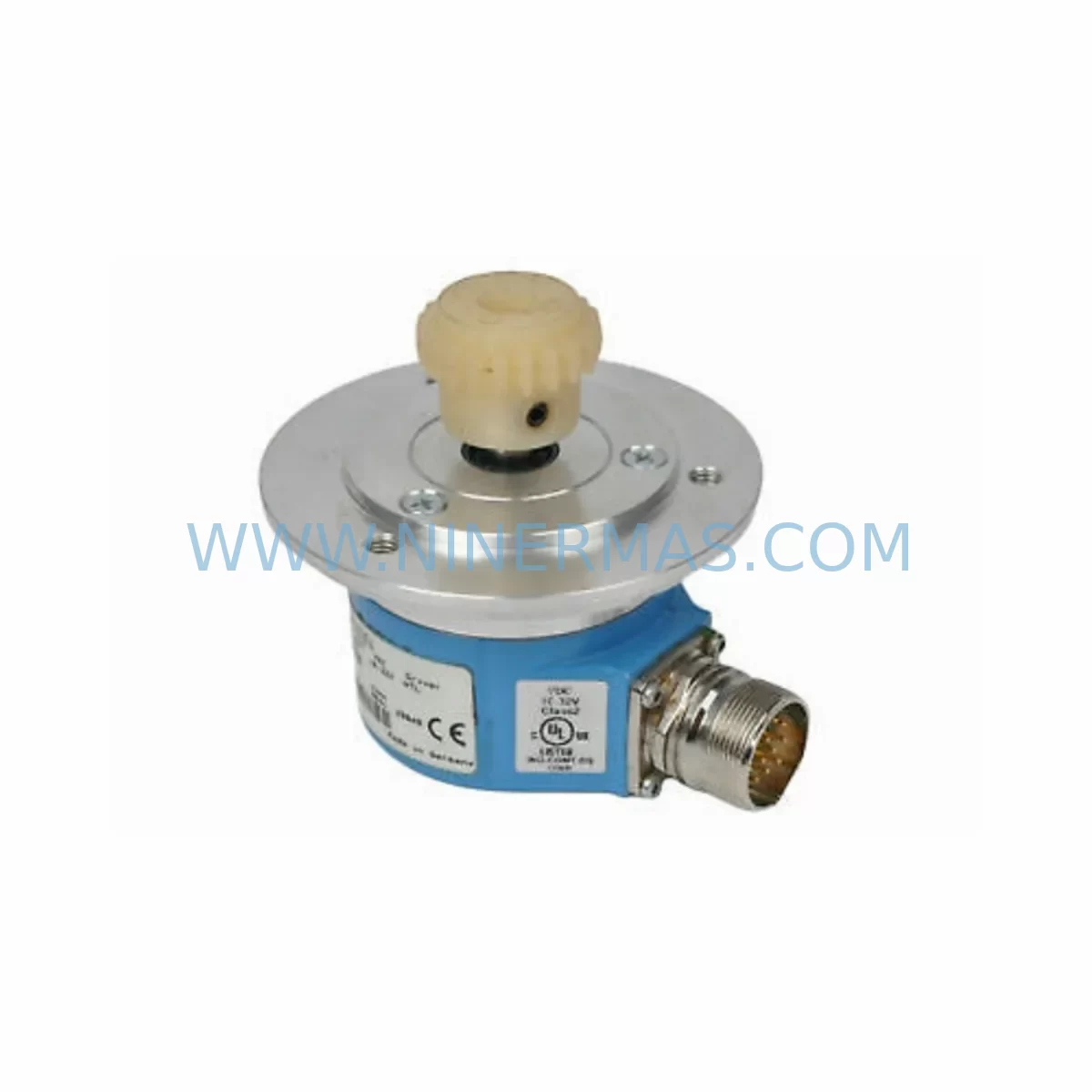

The SICK DRS60-E4M01024 is a high-resolution incremental rotary encoder from SICK’s proven DRS60 series, engineered for demanding industrial environments where legacy control systems must continue operating reliably. With 1024 pulses per revolution (PPR), a robust shaft design, and broad electrical compatibility, this encoder is a direct retrofit candidate for aging automation lines that were originally built around discontinued or end-of-life sensing components. Whether your facility is managing a controlled phase-out of older Siemens S5 or S7-300 PLCs, upgrading a legacy Mitsubishi MELSEC rack, or migrating from an obsolete Omron C200H control cabinet, the DRS60-E4M01024 provides a mechanically and electrically compatible upgrade path that minimises re-engineering effort and downtime exposure.

Industrial maintenance teams sourcing spare parts for legacy systems face a consistent challenge: original components are discontinued, lead times stretch to months, and counterfeit parts circulate in the grey market. NINERMAS maintains verified inventory of the DRS60-E4M01024 with full traceability, pre-shipment functional testing, and a 12-month warranty — giving procurement engineers and plant managers the confidence to plan scheduled maintenance windows without emergency sourcing risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful encoder replacement in a live production environment requires more than a mechanical swap. Before removing the original encoder, document the existing wiring termination at the PLC counter module — typically a SICK CDM490 connection module or equivalent terminal block — and photograph the cable routing and strain relief arrangement. If the control system uses a Siemens FM350-1 or FM350-2 high-speed counter module, verify that the module’s input filter settings and encoder type configuration match the DRS60-E4M01024’s HTL push-pull output. Mismatched signal levels are the most common commissioning error in encoder retrofit projects.

For systems where the encoder feeds a servo drive — such as a legacy Lenze 8400 or SEW MOVITRAC frequency inverter — confirm that the drive’s encoder evaluation card accepts the 1024 PPR resolution and HTL signal standard. Some older drives require a dedicated encoder adapter or signal conditioner between the DRS60-E4M01024 output and the drive’s feedback input terminal. In these cases, a SICK signal isolator or a third-party HTL-to-TTL converter module should be included in the retrofit bill of materials.

When the DRS60-E4M01024 is installed in a multi-axis system sharing a common backplane — for example, a Siemens ET 200M distributed I/O rack or a Beckhoff EtherCAT terminal strip — address assignment and module sequencing must be verified before powering up. The encoder itself does not carry a fieldbus address, but the counter module or motion controller that reads its signals must be correctly parameterised in the hardware configuration (HW Config in STEP 7 or TIA Portal). Backup the existing PLC program and hardware configuration before making any changes.

Cable integrity is frequently overlooked during encoder replacement. The original SICK DOL-1205-G02M connection cable or equivalent shielded encoder cable should be inspected for insulation damage, connector corrosion, and shield continuity. A degraded cable shield is a primary source of noise-induced counting errors, particularly in environments with variable-frequency drives generating high-frequency EMI. Replace the cable if any doubt exists — the cost is negligible compared to a production stoppage caused by intermittent encoder faults.

If the retrofit is part of a broader control system migration — for instance, moving from a legacy Siemens S7-300 with IM153 interface modules to a modern S7-1500 with ET 200SP I/O — the DRS60-E4M01024 can be retained as the field sensing element while the counter evaluation logic is re-implemented in the new controller. The SICK AFS60A absolute encoder or the DFS60B-S4PA10000 incremental encoder may be considered as alternative sensing options if the new system architecture benefits from higher resolution or SSI/BiSS-C absolute feedback. However, for a like-for-like replacement that preserves existing program logic and HMI screen scaling, the DRS60-E4M01024 remains the lowest-risk choice.

HMI screen updates are often required when encoder PPR or scaling changes. If the original system used a SICK PGT-08-S handheld programming tool or a panel-mounted operator interface linked to the encoder’s position data, verify that all display tags, alarm thresholds, and recipe parameters referencing encoder counts are updated to reflect the new scaling. Failure to update HMI scaling is a common source of post-retrofit production quality issues that are difficult to diagnose without a systematic commissioning checklist.

Downtime Control During System Migration

Minimising unplanned downtime during an encoder retrofit requires a structured pre-outage preparation process. Begin by staging all replacement components — including the DRS60-E4M01024, replacement cable, coupling, and any required signal converters — at the work site before the maintenance window opens. Confirm that the PLC program backup is current and stored on an external device independent of the control cabinet. If the system uses a SICK CDM490 or similar connection module, pre-wire the new encoder cable to a temporary terminal block so that the final connection can be made in minutes rather than hours.

During the outage, follow a defined sequence: isolate power, remove the original encoder, install the DRS60-E4M01024 with correct coupling alignment, route and terminate the new cable, restore power, and verify encoder signal quality at the PLC input before releasing the machine to production. Use an oscilloscope or the PLC’s diagnostic buffer to confirm clean A/B/Z pulse trains at the expected frequency before closing the cabinet. Document the as-installed wiring in the updated electrical schematic to support future maintenance.

For systems where a cold restart is not acceptable — such as continuous process lines or cleanroom environments — consider a parallel commissioning approach: install the DRS60-E4M01024 alongside the original encoder on a test rig or spare axis, validate signal quality and program response, then execute the final swap during a planned micro-stoppage. This approach is particularly effective when the retrofit is part of a phased upgrade programme affecting multiple axes or control cabinets over an extended period.

NINERMAS ships the DRS60-E4M01024 with a pre-shipment functional test report, confirming that the encoder meets SICK’s original output specifications. This eliminates the risk of receiving a non-functional unit during a time-critical maintenance window and supports the 12-month warranty claim process if a field failure occurs within the coverage period.

Retrofit Support FAQ

Q1: Is the DRS60-E4M01024 a direct drop-in replacement for other DRS60 variants with different PPR ratings?
A: The DRS60-E4M01024 shares the same mechanical form factor and electrical interface as other DRS60 series encoders, but the 1024 PPR resolution is specific to this model. If your existing system uses a different PPR variant — such as a 500 PPR or 2048 PPR model — you must update the PLC counter module scaling parameters and verify that the drive or motion controller accepts the new resolution. In most cases, the program modification is limited to a single scaling constant, but a full commissioning check is recommended before returning the machine to production.

Q2: What wiring checks are required before powering up the replacement encoder?
A: Verify supply voltage polarity, confirm A/B/Z channel termination at the PLC counter input, check shield grounding at one end only (typically the control cabinet end), and confirm that the cable is routed away from high-voltage conductors and VFD output cables. Use a multimeter to verify continuity and insulation resistance before applying power. If the system uses a SICK connection module, confirm that the module’s terminal assignment matches the DRS60-E4M01024 pinout.

Q3: How is compatibility with legacy Siemens, Mitsubishi, or Omron PLC systems verified?
A: The DRS60-E4M01024 outputs standard HTL incremental signals (A, B, Z) that are compatible with virtually all PLC high-speed counter modules from major manufacturers. Compatibility depends on the counter module’s input voltage range (10–30 V HTL is widely supported), maximum input frequency (verify against maximum shaft speed × 1024 PPR), and signal type selection (HTL vs TTL). NINERMAS can provide technical support to confirm compatibility with your specific counter module model before shipment.

Q4: What does the 12-month warranty cover, and how is a claim processed?
A: The 12-month warranty covers functional failure of the DRS60-E4M01024 under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified environmental range. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference, installation date, and a description of the failure symptom. NINERMAS will arrange inspection and, where the failure is confirmed as a manufacturing defect, provide a replacement unit or credit note.
