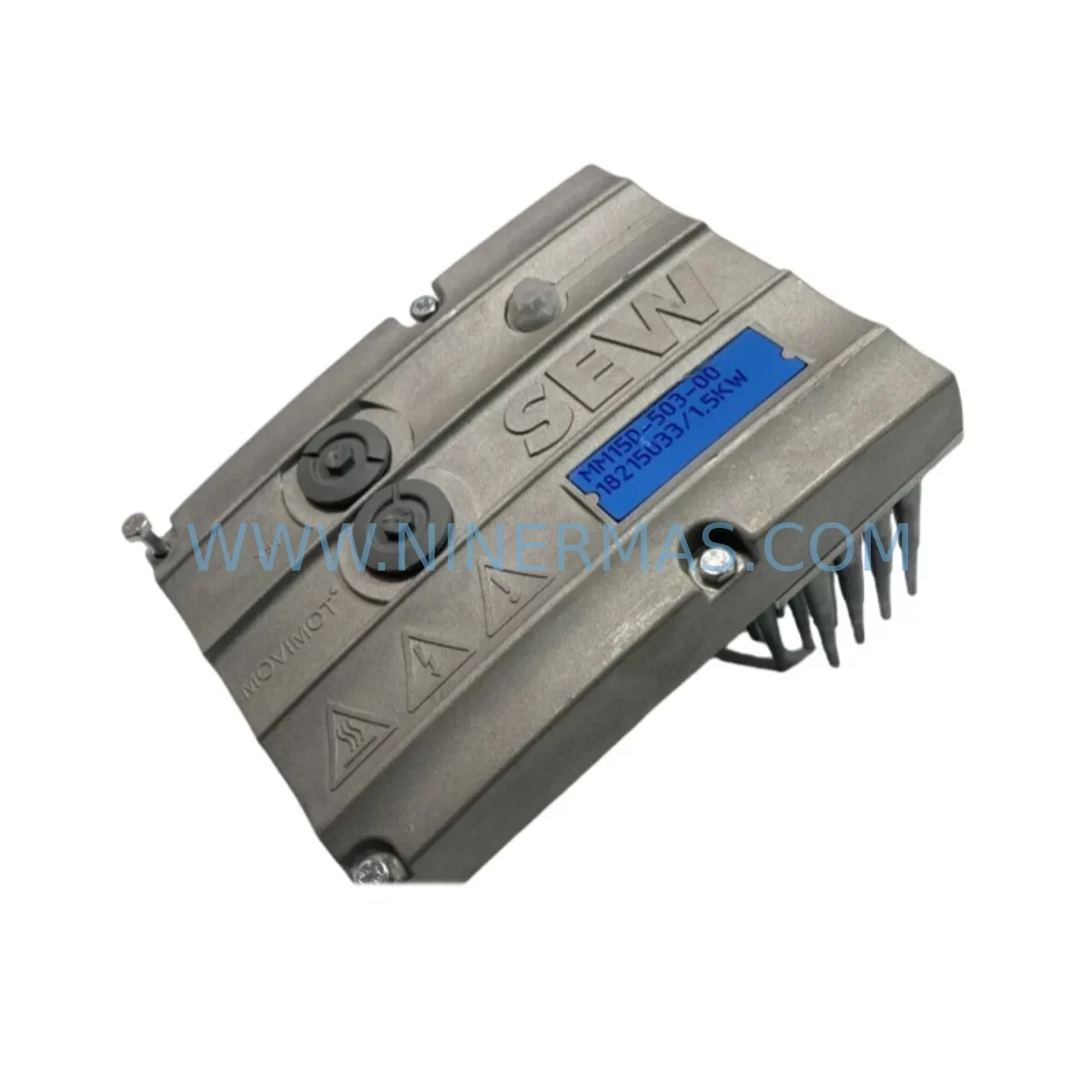

The SEW-EURODRIVE MM15D-503-00 is a MOVIDRIVE series inverter drive engineered for demanding industrial motion control applications. As legacy automation lines age and OEM support for discontinued drive models becomes increasingly scarce, the MM15D-503-00 remains one of the most sought-after retrofit-compatible units for engineers managing older SEW-EURODRIVE control architectures. Whether you are replacing a failed unit on a production line, upgrading a control cabinet to extend its operational life, or migrating from an end-of-life drive platform, the MM15D-503-00 provides a reliable, verified-compatible solution backed by a 12-month warranty.

NINERMAS COMPANY LIMITED maintains dedicated inventory of the SEW MM15D-503-00 to support long-term spare parts programs for customers across manufacturing, material handling, food processing, and heavy industry sectors. Our pre-shipment testing protocol ensures every unit is functionally verified before dispatch, minimising commissioning risk and protecting your production schedule.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MM15D-503-00 into an existing control architecture requires a structured pre-retrofit assessment. Engineers should begin by auditing the full drive cabinet inventory: document every installed component including the SEW-EURODRIVE MOVIDRIVE MDX60B or MDX61B base unit, any installed option cards such as the DFP21B PROFIBUS DP card or DFE24B EtherNet/IP card, the DBG60B operator keypad, and the UWS21B serial interface module used for PC-based parameter management.

Power supply verification is a critical first step. Confirm that the existing 24 V DC control power supply — often a Phoenix Contact or WAGO rail-mount PSU — can sustain the control logic load during drive initialisation. Insufficient control voltage during startup is a common cause of retrofit commissioning failures that is frequently misdiagnosed as a drive fault.

Terminal wiring adaptation is the next priority. The MM15D-503-00 uses the standard SEW X1 (power), X2 (motor), and X3 (control) terminal arrangement. When replacing an older MOVIDRIVE A-series unit, engineers must carefully remap the binary input assignments — particularly the /FAULT RESET signal on X13 and the ENABLE signal — as terminal numbering conventions differ between MOVIDRIVE A and MOVIDRIVE B generations. A wiring comparison table drawn from the original cabinet schematic will prevent miswiring and protect both the drive and the connected motor.

For systems using I/O expansion, the DIO11B digital I/O extension module or the AIO11B analogue I/O module may already be installed in the existing cabinet. These modules are compatible with the MM15D-503-00 and can be retained during the retrofit, avoiding the cost and downtime associated with full I/O rewiring. Similarly, if the existing system uses a MOVI-PLC® motion controller for coordinated multi-axis control, the MM15D-503-00 can be re-integrated into the MOVI-PLC® topology via the existing SBus or PROFIBUS network without requiring controller reprogramming, provided the drive address and baud rate settings are preserved.

Communication protocol migration deserves particular attention in multi-drive systems. Where the legacy network uses RS-485 MOVILINK® at 9600 baud, the MM15D-503-00 supports the same protocol natively. For sites migrating toward EtherNet/IP or PROFINET, the appropriate SEW option card must be sourced and installed prior to commissioning. In either case, the PLC program — whether running on a Siemens S7-300, S7-400, or a third-party controller — should be backed up and the drive function block (FB) parameters verified against the new unit’s firmware version before the system is returned to service.

Installation space confirmation is often overlooked until the replacement unit arrives on site. The MM15D-503-00 Size 3 chassis requires adequate vertical clearance for convection cooling. If the original cabinet was designed around a smaller drive chassis, a panel modification or supplementary cooling fan may be required. This should be assessed during the pre-retrofit site survey, not during the maintenance window.

Downtime Control During System Migration

Minimising production downtime during a drive replacement is the primary concern for maintenance engineers and plant managers alike. A well-executed MM15D-503-00 retrofit can be completed within a planned maintenance window of two to four hours when the following preparation steps are completed in advance.

Before the maintenance window opens, use MOVITOOLS® MotionStudio connected via the USB11A PC interface cable to upload and save the complete parameter set from the existing drive. Store this backup on a dedicated engineering laptop and verify the file integrity. This parameter backup is your insurance policy: if commissioning of the replacement unit encounters unexpected behaviour, the saved parameter set allows rapid restoration of the original drive configuration — or direct transfer to the MM15D-503-00 — without manual re-entry of dozens of application-specific parameters.

During the maintenance window, follow a structured swap sequence: isolate and lock out the incoming supply, discharge the DC bus (allow a minimum of five minutes after isolation), disconnect motor cables at X2, remove control wiring at X3 (photograph terminal assignments before removal), extract the legacy unit, mount the MM15D-503-00, reconnect control wiring, reconnect motor cables, and restore the option card if applicable. Do not restore mains power until all terminal connections have been independently verified against the wiring diagram.

On power restoration, perform a no-load motor test before reconnecting the mechanical load. Monitor the drive display for fault codes — F07 (motor overcurrent) and F43 (speed deviation) are the most common faults encountered during first-run commissioning of a replacement drive and are typically resolved by adjusting the motor nameplate data parameters (P301–P308) and the speed controller gain (P320). Once the no-load test is satisfactory, reconnect the load and perform a supervised production run at reduced speed before returning the system to full automatic operation.

Throughout the migration, maintain continuous communication with the control room to ensure that any upstream PLC watchdog timers or SCADA alarm thresholds are temporarily adjusted to prevent nuisance trips during the commissioning phase. Restore all alarm setpoints to their original values before signing off the work order.

Retrofit Support FAQ

Q1: Is the MM15D-503-00 a direct drop-in replacement for older MOVIDRIVE A-series units of the same power rating?
The MM15D-503-00 is mechanically and electrically compatible with MOVIDRIVE B-series installations of equivalent power rating. When replacing a MOVIDRIVE A-series unit, terminal remapping is required for binary inputs and the enable circuit. Parameter migration via MOVITOOLS® MotionStudio is strongly recommended rather than manual re-entry. NINERMAS provides a pre-shipment functional test report with every unit to confirm operational readiness before the replacement window.

Q2: Can the existing PROFIBUS DP option card be reused in the MM15D-503-00?
Yes, provided the option card is a DFP21B or compatible MOVIDRIVE B-series fieldbus card. Remove the card from the legacy unit carefully, inspect the connector pins for damage, and reinstall in the MM15D-503-00 option slot. Verify the PROFIBUS node address (P881) matches the address configured in the PLC hardware configuration. No changes to the PLC program are required if the GSD file and drive address remain unchanged.

Q3: What is the lead time and warranty coverage for the MM15D-503-00?
NINERMAS maintains ready stock of the MM15D-503-00 to support urgent replacement requirements. Standard dispatch is within 3–5 business days for stocked units, with express options available. Every unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. A pre-shipment test report is included with each order.

Q4: What commissioning support is available after installation?
NINERMAS technical support is available via email and phone to assist with parameter configuration, fault code diagnosis, and wiring verification during the commissioning phase. For complex multi-drive or MOVI-PLC® integrated systems, we recommend sharing the saved parameter backup file and the cabinet wiring schematic with our technical team prior to the maintenance window so that any compatibility issues can be identified and resolved before the replacement unit is installed on site.
