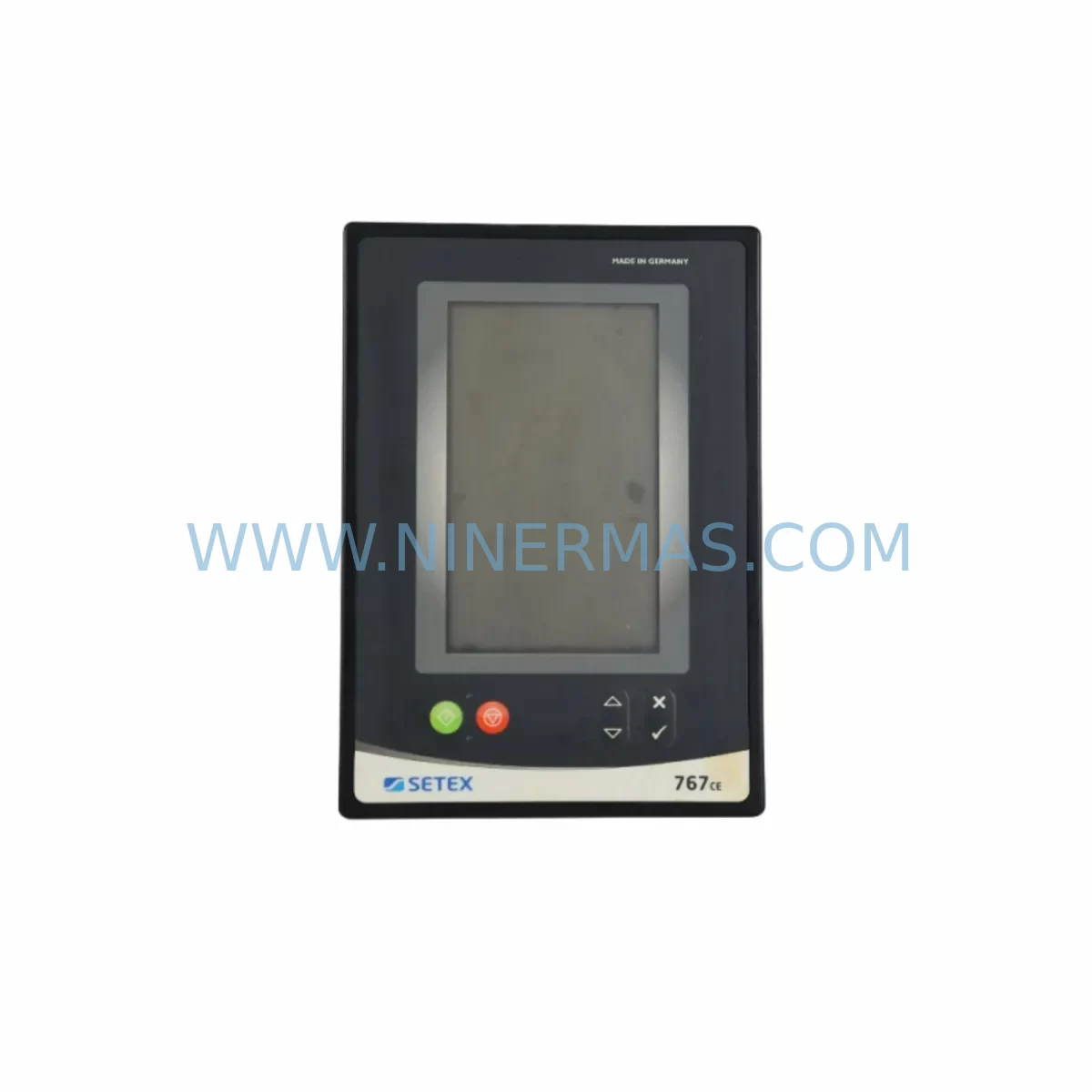

The SETEX 767CE is a ruggedized HMI display module engineered for continuous operation in demanding industrial environments. As the primary operator interface in SETEX 700 Series control panels, the 767CE enables real-time process visualization, alarm acknowledgment, and parameter adjustment directly on the plant floor. When this module fails or degrades, production lines face immediate downtime risk — sourcing a verified, pre-tested original replacement is the fastest path to restoring normal operations.

At NINERMAS, every SETEX 767CE unit is inspected and functionally tested before dispatch. We maintain dedicated stock of this module to support emergency replacement, planned annual overhauls, and strategic spare parts inventory programs. Our 12-month warranty covers manufacturing defects and ensures your maintenance team has full recourse if any issue arises post-installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SETEX 767CE is rarely an isolated task. Maintenance engineers and procurement teams working on SETEX 700 Series panels should treat this replacement as an opportunity to audit the surrounding control architecture. The 767CE interfaces directly with the panel’s 24 VDC power supply module — any voltage instability or ripple from an aging PSU can accelerate display degradation and should be checked before commissioning the new unit.

The SETEX 700 Series communication backplane and internal bus connectors are common wear points in panels that have operated for five or more years. Inspect connector pins and ribbon cables for oxidation or mechanical fatigue. If the 767CE communicates via a serial RS-485 interface, verify cable shielding and termination resistors are intact — signal noise is a leading cause of display lockups that are often misdiagnosed as screen module failure.

For panels integrated into broader PLC or DCS architectures, confirm that the digital I/O module feeding status signals to the HMI is functioning correctly. A faulty analog signal conditioner or signal isolation module can cause erroneous readings on the new display, creating confusion during commissioning. Similarly, if the panel includes a SETEX relay output module, test all relay contacts for continuity and correct switching before closing the cabinet.

Procurement engineers building annual spare parts kits for SETEX 700 Series installations should also consider stocking the 24 VDC panel fuse holders and fuse links, DIN rail terminal block assemblies, and surge protection modules for signal and power lines. These low-cost components are frequently overlooked until they cause a secondary fault after an HMI replacement. Including a spare membrane keypad or operator input panel compatible with the 767CE is also advisable for sites with high operator interaction frequency.

For facilities running legacy SETEX systems alongside modern SCADA infrastructure, a protocol converter or serial gateway module may be present in the cabinet. Confirm its firmware and configuration are backed up before any panel work begins. Finally, review the UPS or battery backup unit powering the control panel — an undersized or degraded UPS is a common root cause of HMI module damage during power transients.

Site Replacement Workflow

Step 1 — Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the panel and confirm zero voltage at the 767CE power terminals before removal.

Step 2 — Documentation: Photograph all wiring connections, label cables, and record the current firmware version displayed on the existing screen (if still functional). This prevents configuration loss during the swap.

Step 3 — Removal: Release the panel-mount retaining clips or screws per the SETEX 700 Series installation guide. Disconnect the power harness and communication cable carefully to avoid pin damage.

Step 4 — Inspection: Before installing the replacement 767CE, inspect the mounting cutout for corrosion, gasket integrity, and any signs of moisture ingress. Replace the front panel gasket if compressed or cracked.

Step 5 — Installation: Connect the communication cable first, then the power harness. Seat the module firmly and secure all retaining hardware to the specified torque.

Step 6 — Commissioning: Re-energize the panel and verify the 767CE powers on, displays the correct startup screen, and communicates with the host system. Confirm all process values, alarms, and operator inputs respond correctly before returning the line to production.

Step 7 — Documentation Close-out: Update the equipment maintenance log with the replacement date, new unit serial number, and warranty expiry. Retain the original failed unit for root cause analysis if required by your quality system.
