Schneider XBTGT2220 Safety-Reliable HMI for Critical Control Sites

Schneider XBTGT2220 Safety-Reliable HMI for Critical Control Sites

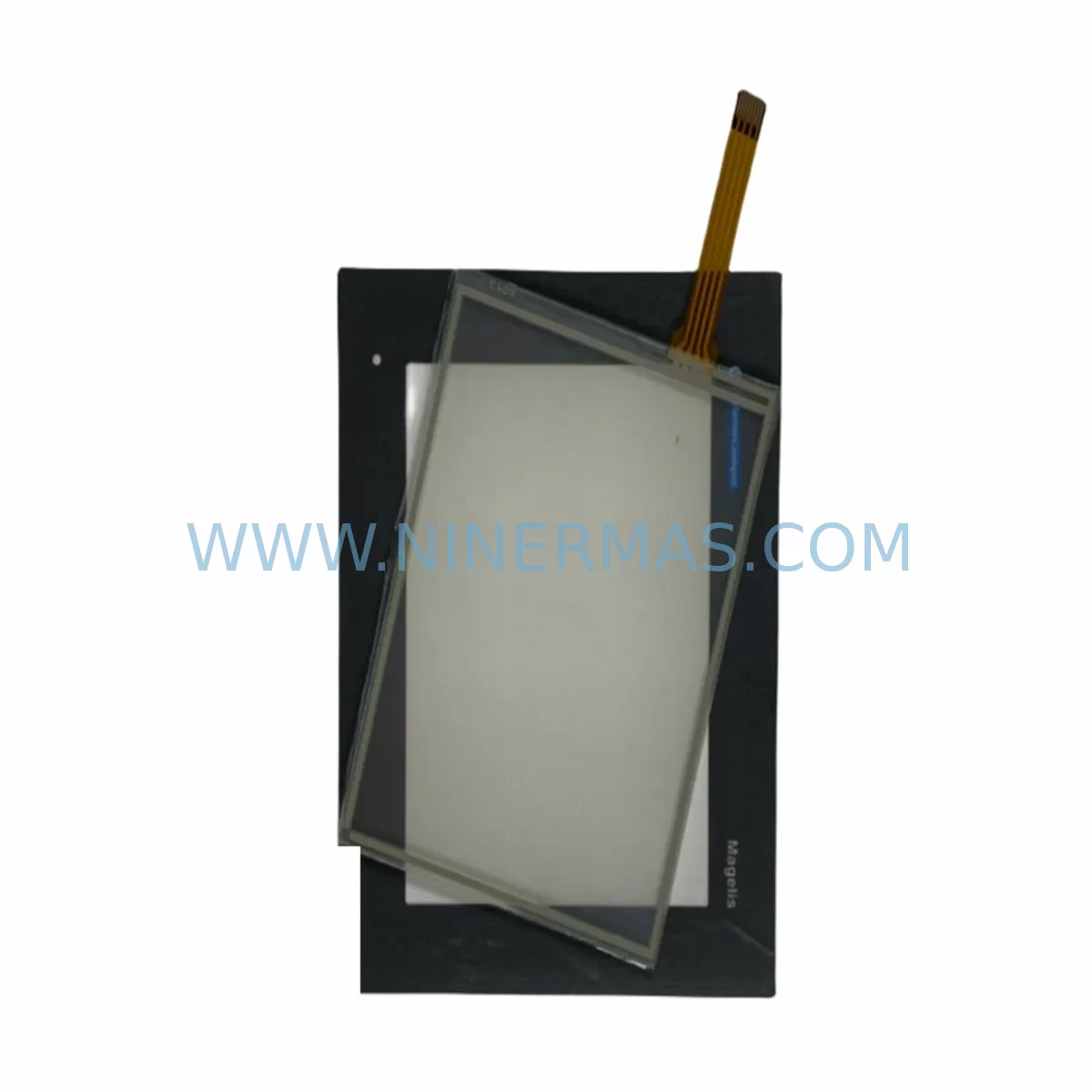

The Schneider Electric XBTGT2220 is a high-performance Magelis XBT GT Series Human Machine Interface (HMI) panel engineered for demanding industrial environments where control continuity, operator safety, and system reliability are non-negotiable. Designed to serve as the primary visualization and interaction node in critical control cabinets, the XBTGT2220 delivers stable, responsive touchscreen operation across continuous production lines, safety interlock systems, heavy-duty motor control centers, and hazardous-area supervisory stations.

At NINERMAS, every XBTGT2220 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — ensuring your procurement team can plan spare-parts programs with confidence and minimal unplanned downtime risk.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets, the HMI is the operator’s primary window into process health — and a failure at this interface can cascade into production stoppages, safety interlock bypasses, or delayed fault response. The XBTGT2220 mitigates these risks through its robust multi-protocol communication architecture, which maintains stable data exchange with PLCs such as the Schneider Modicon M340 and Modicon M580 series via Modbus TCP or EtherNet/IP, even under high electromagnetic interference conditions common in variable frequency drive (VFD) environments.

Power supply stability is equally critical. Pairing the XBTGT2220 with a Schneider ABL8REM24030 regulated 24 VDC power supply or equivalent DIN-rail PSU ensures the HMI receives clean, surge-protected power, reducing the risk of display freeze, data corruption, or unexpected reboot during peak load switching. For additional surge protection at the cabinet entry point, a Schneider IPRD40r surge protective device is recommended to absorb transient overvoltages from lightning or grid switching events.

Communication integrity between the XBTGT2220 and field devices is protected through proper RS-485 line termination and shielded cabling. In multi-node Modbus RTU networks, signal drift and bus contention are common failure modes; using Schneider VW3A8306 communication cards or dedicated RS-485 repeaters maintains signal integrity across long cable runs in large petrochemical or power generation facilities. For Ethernet-based architectures, a Schneider ConneXium managed Ethernet switch provides VLAN segmentation and port mirroring to isolate HMI traffic from general plant network congestion.

Safety interlock reliability is further enhanced when the XBTGT2220 operates alongside Schneider Preventa XPS safety relays or Telemecanique XPSAF safety modules, which handle emergency stop (E-stop) and light curtain monitoring independently of the HMI visualization layer. This separation of safety logic from operator interface ensures that even a temporary HMI fault does not compromise the integrity of the safety instrumented function (SIF). For door interlock and access control in high-voltage cabinets, Schneider XCSPA safety interlock switches provide a reliable mechanical barrier that complements the XBTGT2220’s supervisory role.

In dusty, humid, or high-vibration environments — such as cement plants, mining headframes, or offshore platforms — the XBTGT2220’s IP65-rated front panel and IEC 60068-2-6 vibration compliance ensure sustained legibility and touchscreen responsiveness. Complementary protection for other cabinet components, such as Schneider GV2 motor circuit breakers for motor branch protection and Schneider LC1D contactor series for load switching, rounds out a fully coordinated, safety-optimized control cabinet architecture.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The XBTGT2220 serves as the local operator panel for pump skid control, valve position monitoring, and emergency shutdown (ESD) status visualization. Its EMC immunity and sealed front panel make it suitable for Zone 2 classified areas when installed in purged or pressurized enclosures, providing operators with real-time process data without exposing sensitive electronics to flammable atmospheres.

Power Generation & Substation Automation: In thermal power plants and grid substations, the XBTGT2220 interfaces with protection relays and SCADA gateways to display breaker status, transformer load, and alarm histories. Its Modbus TCP and EtherNet/IP support enables seamless integration into IEC 61850-compatible substation automation architectures, reducing the risk of communication blackouts during grid fault events.

Mining & Mineral Processing: Conveyor belt control, crusher monitoring, and ventilation fan management in underground or open-pit mining operations demand HMIs that withstand constant vibration, coal dust ingress, and wide temperature swings. The XBTGT2220’s rugged construction and IP65 protection make it a reliable replacement for aging operator panels in legacy mining control systems, extending equipment lifecycle without full system redesign.

Water & Wastewater Treatment: Municipal water treatment facilities rely on continuous pump and dosing system operation. The XBTGT2220 provides operators with clear visualization of flow rates, chemical dosing levels, and tank levels, while its multi-protocol support allows integration with both legacy Modbus RTU RTUs and modern Ethernet-based SCADA platforms — minimizing the risk of treatment process interruption due to HMI failure.

Metallurgy & Steel Manufacturing: High-temperature furnace control, rolling mill supervision, and ladle crane management expose HMIs to intense radiated heat and electromagnetic noise from large induction furnaces. The XBTGT2220’s thermal operating range and EMI hardening ensure stable display and control response in these extreme conditions, supporting safe metal processing operations.

Port & Material Handling Automation: Container crane control rooms and bulk material conveyor systems require HMIs that can handle frequent operator interactions, high-cycle touchscreen use, and exposure to salt-laden marine air. The XBTGT2220’s sealed touchscreen and corrosion-resistant front bezel support long-term deployment in port logistics environments where unplanned HMI downtime directly impacts cargo throughput.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the XBTGT2220?
Every XBTGT2220 unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our warranty commitment reflects our confidence in the quality of our sourcing and pre-shipment testing processes.

Q2: Is the XBTGT2220 tested before shipment?
Yes. All units undergo pre-shipment functional verification, including power-on testing, display integrity checks, and communication port validation. This ensures that every XBTGT2220 arrives at your facility ready for installation, reducing commissioning time and the risk of DOA (dead-on-arrival) failures in critical control environments.

Q3: Is the XBTGT2220 compatible with existing Schneider Magelis XBT GT projects?
The XBTGT2220 is fully compatible with Vijeo Designer application projects developed for the Magelis XBT GT platform. Existing HMI programs can be transferred directly via USB or Ethernet without modification, making it an ideal drop-in replacement for failed or end-of-life units in operational plants — minimizing engineering rework and production downtime.

Q4: Can NINERMAS support long-term spare parts supply for the XBTGT2220?
Yes. NINERMAS specializes in long-lifecycle spare parts programs for industrial automation components, including legacy and current-generation Schneider Electric HMI panels. We maintain stock commitments for high-priority SKUs and can support scheduled procurement plans, blanket orders, and emergency supply requests — ensuring your maintenance team always has a reliable source for critical spare parts.
