Schneider TSXDSZ32R5 Safety-Reliable Extension Module

Schneider TSXDSZ32R5 Safety-Reliable Extension Module for Critical Control Sites

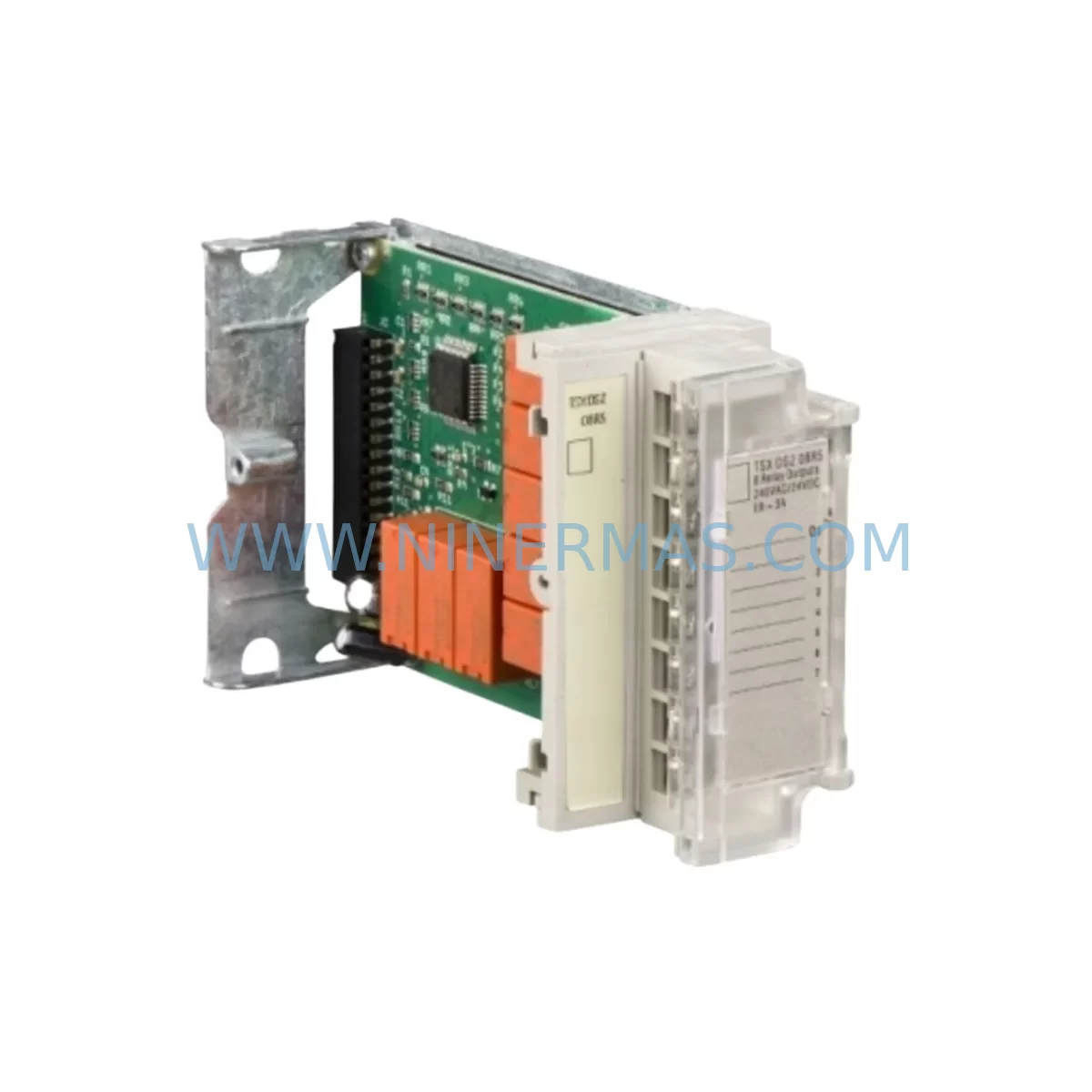

The Schneider Electric TSXDSZ32R5 is a high-integrity discrete I/O extension module engineered for the TSX Premium programmable logic controller platform. Designed to operate reliably in demanding industrial environments — including continuous process plants, heavy-duty control cabinets, high electromagnetic interference zones, and safety-critical interlock circuits — the TSXDSZ32R5 delivers consistent signal integrity and deterministic I/O response where control interruption is not an option. NINERMAS stocks verified original units with a 12-month warranty and full pre-shipment functional testing, ensuring every module dispatched is ready for immediate field deployment.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets serving continuous production lines, every I/O module in the safety chain must perform without hesitation. The TSXDSZ32R5 integrates directly into the TSX Premium rack — typically alongside the TSXP57454M or TSXP57554M CPU modules — and extends the controller’s discrete I/O capacity without introducing additional communication latency or signal drift. Its relay output design makes it particularly well-suited for driving contactors, solenoid valves, motor starters, and safety relay coils in interlock circuits where a missed output transition could trigger an unplanned shutdown or, worse, a hazardous condition.

Power supply stability is a foundational requirement for any safety-critical cabinet. The TSXDSZ32R5 operates reliably when paired with a TSXPSY2600M or TSXPSY5500M rack power supply module, which provides regulated 24 VDC backplane power with built-in overload and short-circuit protection. For field-side power, a dedicated 24 VDC SITOP or equivalent DIN-rail power supply with surge protection is recommended to prevent voltage transients from propagating into the relay output circuits.

In high electromagnetic interference environments — common in arc furnace control rooms, variable frequency drive (VFD) panels, and heavy motor control centers — the TSXDSZ32R5’s IEC 61000-4 compliant EMC design suppresses conducted and radiated interference that would otherwise cause spurious output toggling or input misreads. When combined with a TSXCAY33 analog output module and a TSXASY800 high-density analog input module in the same rack, the system maintains signal coherence across both discrete and analog control loops simultaneously.

For applications requiring distributed I/O over long cable runs — such as remote pump stations, substation RTU panels, or offshore platform junction boxes — the TSXDSZ32R5 can be deployed in a remote rack connected via a TSXETY110 Ethernet module or a TSXSCP114 serial communication module, maintaining deterministic scan cycle performance even under network load. This architecture eliminates the need for additional marshalling panels and reduces the number of field cable terminations, directly lowering the probability of wiring-induced faults.

Surge protection at the field terminal level is equally critical. Pairing the TSXDSZ32R5 with DIN-rail mounted surge protective devices (SPDs) on each output group — particularly in outdoor substations, water treatment pump stations, and port crane control panels — prevents lightning-induced transients from damaging relay contacts or corrupting the backplane bus. A TSXDMZ28DR discrete mixed I/O module installed in an adjacent slot can serve as a redundant monitoring channel, providing cross-verification of critical output states without additional wiring complexity.

Preventive maintenance planning is simplified by NINERMAS’s long-term spare parts stocking program. Holding a buffer stock of TSXDSZ32R5 modules — alongside compatible TSXRKY6 extension racks and TSXPSY2600M power supplies — ensures that mean time to repair (MTTR) targets are met even during global supply disruptions. Each unit shipped by NINERMAS undergoes a documented pre-shipment functional test covering output relay actuation, input signal recognition, and backplane communication handshake verification.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation and catalytic cracking units, the TSXDSZ32R5 controls emergency shutdown (ESD) valve actuators and burner management system (BMS) outputs. Its relay contacts handle the inductive loads of solenoid-operated safety valves rated for SIL 2 interlock loops, where contact bounce suppression and defined de-energize-to-trip (DTT) logic are mandatory. The module’s operating temperature range covers the elevated ambient conditions found in heat exchanger control rooms without requiring additional cooling provisions.

Electric Power Generation & Transmission: In thermal power plant auxiliary control systems — including boiler feed pump control, induced draft fan sequencing, and generator excitation panel interlocks — the TSXDSZ32R5 provides the discrete output capacity needed to drive protection relay trip coils and alarm annunciator panels. Its IEC 61131-2 compliance ensures compatibility with the deterministic scan cycles required by power plant DCS migration projects where TSX Premium PLCs serve as unit controllers.

Mining & Mineral Processing: Underground conveyor belt control systems and surface crusher plant automation rely on the TSXDSZ32R5 for belt misalignment trip outputs, pull-cord emergency stop acknowledgment, and dust suppression system activation. The module’s vibration and shock resistance ratings — verified to IEC 60068-2-6 and IEC 60068-2-27 — make it suitable for installation in mobile crushing plant control panels subject to continuous mechanical vibration.

Water & Wastewater Treatment: Municipal water treatment SCADA systems use the TSXDSZ32R5 to control chlorination dosing pump enable signals, UV disinfection system interlocks, and high-level overflow alarm outputs. In humid pump station environments with condensation risk, the module’s non-condensing humidity rating and conformal coating options provide the moisture resistance needed for reliable year-round operation without heater elements.

Metallurgy & Steel Production: In electric arc furnace (EAF) auxiliary control panels and continuous casting machine automation, the TSXDSZ32R5 manages electrode positioning interlock outputs and mold oscillation control signals. The high EMI environment generated by EAF transformer switching is mitigated by the module’s burst and surge immunity, preventing nuisance trips that would interrupt the casting sequence and result in costly scrap losses.

Port & Marine Applications: Ship-to-shore crane control systems and bulk material handling terminals deploy the TSXDSZ32R5 for hoist brake release outputs, anti-collision system interlocks, and load cell overload trip signals. The module’s wide operating temperature range accommodates the seasonal ambient extremes experienced in open-air port environments from Arctic terminals to tropical bulk terminals.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the TSXDSZ32R5?
All TSXDSZ32R5 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority dispatch of a replacement unit to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every TSXDSZ32R5 undergoes a documented functional verification test before dispatch. This includes relay output actuation testing on all 32 channels, input signal recognition verification, backplane communication handshake confirmation, and visual inspection for contact condition and connector integrity. Test records are available upon request for quality audit purposes.

Q3: Is the TSXDSZ32R5 compatible with all TSX Premium rack configurations?
Yes. The TSXDSZ32R5 is compatible with all standard TSX Premium extension racks including the TSXRKY4, TSXRKY6, TSXRKY8, and TSXRKY12. It communicates via the TSX Premium X-bus backplane and is recognized automatically by Unity Pro and PL7 Pro programming software without requiring additional configuration steps.

Q4: Can NINERMAS support long-term procurement planning for critical spare parts?
Yes. NINERMAS operates a dedicated long-term spare parts stocking program for TSX Premium series components. Customers with critical production assets can arrange forward stock commitments for the TSXDSZ32R5 and associated modules, ensuring guaranteed availability throughout the planned lifecycle of their control system — typically 10 to 15 years beyond the original manufacturer’s last order date.
