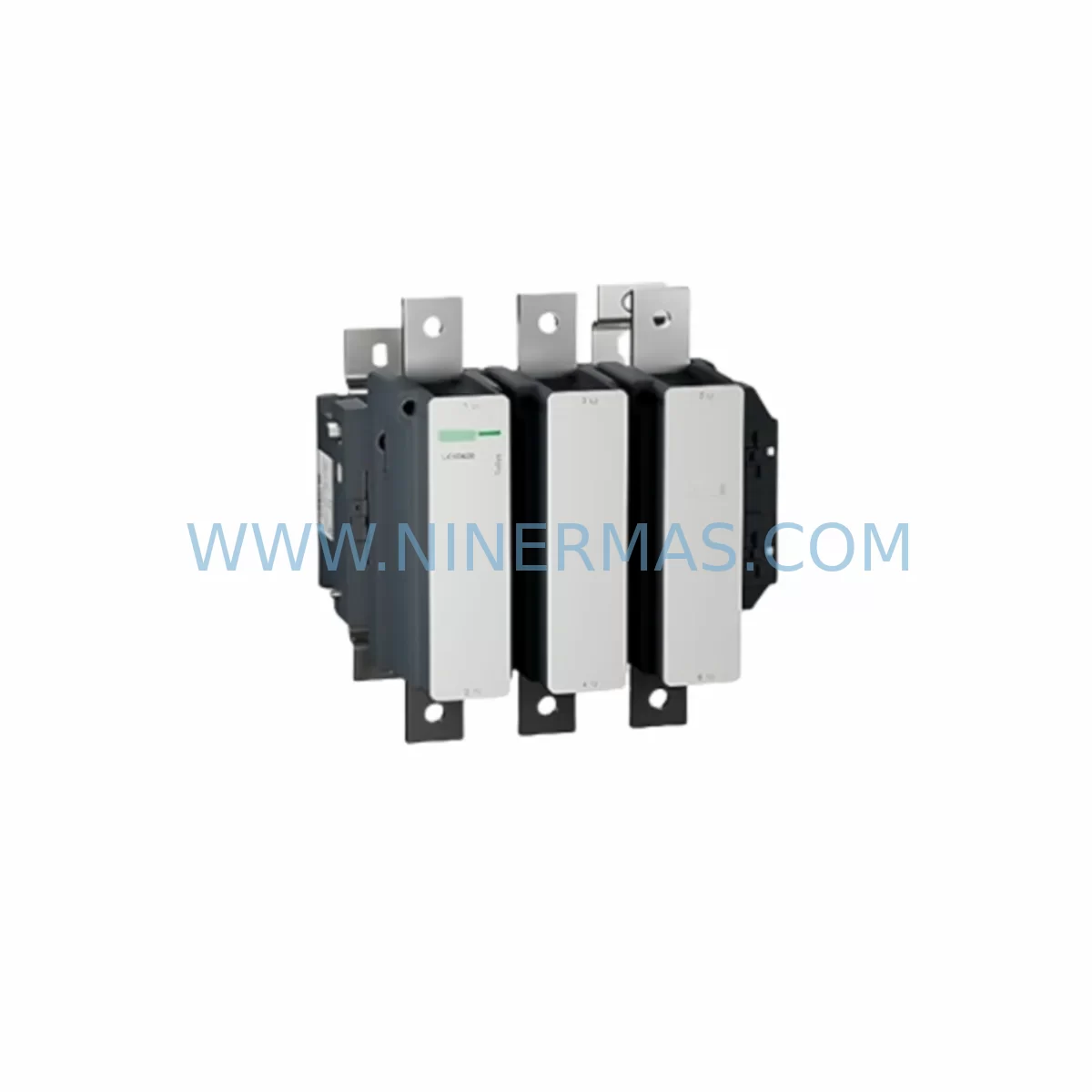

The Schneider Electric LC1D620M7C is a high-capacity AC contactor from the renowned TeSys D series, engineered for safety-critical switching and motor control in demanding industrial environments. Rated at 620A and designed for AC-3 duty cycles, this contactor delivers consistent, reliable performance in continuous production lines, critical interlock circuits, and heavy-duty motor control centers (MCCs) where unplanned downtime carries significant operational and safety consequences. With its robust silver-alloy contact system, reinforced arc chute design, and wide coil voltage tolerance, the LC1D620M7C is purpose-built to minimize control interruption, prevent spurious tripping, and sustain stable switching performance across thousands of operating cycles — even in the harshest field conditions.

At NINERMAS, every LC1D620M7C unit undergoes pre-shipment functional testing and coil energization verification before dispatch. Stock is maintained on a long-term supply program to support lifecycle extension projects, planned maintenance shutdowns, and emergency spare parts replacement. All units are covered by a 12-month warranty from the date of shipment.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes motor control centers and critical interlock panels, the LC1D620M7C serves as the primary switching element — but its safety performance is only as strong as the surrounding protection architecture. To achieve full control cabinet risk reduction, the LC1D620M7C is typically deployed alongside a Schneider Electric LRD (TeSys D) thermal overload relay, which provides motor winding protection against sustained overcurrent and phase imbalance. For upstream short-circuit protection, a Schneider GV2 or GV3 motor circuit breaker is integrated to provide coordinated protection and reduce fault propagation risk across the MCC bus.

In applications involving variable-speed drives or soft starters, the LC1D620M7C is often used as a bypass or isolation contactor in conjunction with Schneider ATV series drives (such as the ATV630 or ATV930), ensuring that the drive can be safely isolated during maintenance without interrupting the broader control loop. For safety-rated interlock circuits, the contactor is frequently paired with a Schneider Preventa XPS safety relay or a Modicon M580 safety PLC, which monitors the auxiliary contact feedback to confirm contactor state before permitting process restart.

Surge and transient protection is addressed by installing Schneider LA4DA2U RC suppressor modules directly across the coil terminals, significantly reducing voltage spikes that can cause coil insulation degradation and premature contact welding — a critical concern in high-cycle applications such as compressor control or conveyor drive switching. In environments with significant harmonic distortion or power quality issues, a Schneider AccuSine PCS+ active harmonic filter upstream of the MCC further stabilizes the supply voltage within the coil’s operating tolerance band.

For distributed control architectures, the LC1D620M7C’s auxiliary contacts are wired back to Schneider Modicon STB or TM3 I/O modules, providing real-time contactor status feedback to the SCADA or DCS layer. This closed-loop monitoring strategy is essential for detecting contact welding, coil failure, or mechanical jam conditions before they escalate into process safety incidents. In hazardous area installations, the contactor is housed in Schneider PrismaSeT or Okken MCC enclosures rated for the appropriate ingress protection and arc flash containment requirements of the site.

Critical Industrial Safety Applications

The LC1D620M7C is deployed across a broad spectrum of safety-critical industrial sectors where motor control reliability directly impacts process integrity and personnel safety.

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units, compressor trains, and cooling water pump stations, the LC1D620M7C controls large induction motors that must not trip spuriously. Its high mechanical endurance and wide coil voltage tolerance make it suitable for sites with fluctuating generator-backed power supplies. The contactor’s robust arc extinction capability prevents contact erosion during frequent start-stop cycles on pump and fan motors.

Power Generation and Substation Auxiliary Systems: In coal-fired, gas turbine, and hydroelectric power plants, the LC1D620M7C is used in auxiliary motor control panels for boiler feed pumps, induced draft fans, and cooling tower motors. Its compliance with IEC 60947-4-1 and compatibility with Schneider’s Masterpact and Compact NSX circuit breakers ensures coordinated protection across the entire LV switchgear assembly.

Mining and Mineral Processing: Underground and surface mining operations subject electrical equipment to extreme vibration, dust ingress, and humidity. The LC1D620M7C’s sealed contact chamber and vibration-resistant construction (IEC 60068-2-6) make it a preferred choice for conveyor drive panels, crusher motor starters, and ventilation fan control in coal mines and metal ore processing facilities.

Water and Wastewater Treatment: Municipal and industrial water treatment plants rely on the LC1D620M7C for pump station motor control, where reliable starting and stopping of submersible and centrifugal pumps is essential for maintaining flow rates and preventing overflow events. The contactor’s long electrical endurance supports the high switching frequency typical of level-controlled pump applications.

Metallurgy and Steel Production: In electric arc furnace (EAF) auxiliary systems, rolling mill drives, and ladle transfer car controls, the LC1D620M7C handles the high inrush currents and frequent switching demands of heavy industrial loads. Its silver-alloy contacts resist welding under high-current make conditions, reducing the risk of stuck-closed failures that could prevent emergency motor shutdown.

Port and Marine Applications: Container crane drives, ship-to-shore loader motors, and vessel auxiliary systems require contactors that can withstand salt-laden air, high humidity, and continuous vibration from vessel movement. The LC1D620M7C, when installed in appropriately rated enclosures, provides the switching reliability required for these demanding maritime environments.
