Schneider LC1D25M7C Safety-Reliable Contactor for Critical Control

Schneider LC1D25M7C Safety-Reliable Contactor for Critical Control Sites

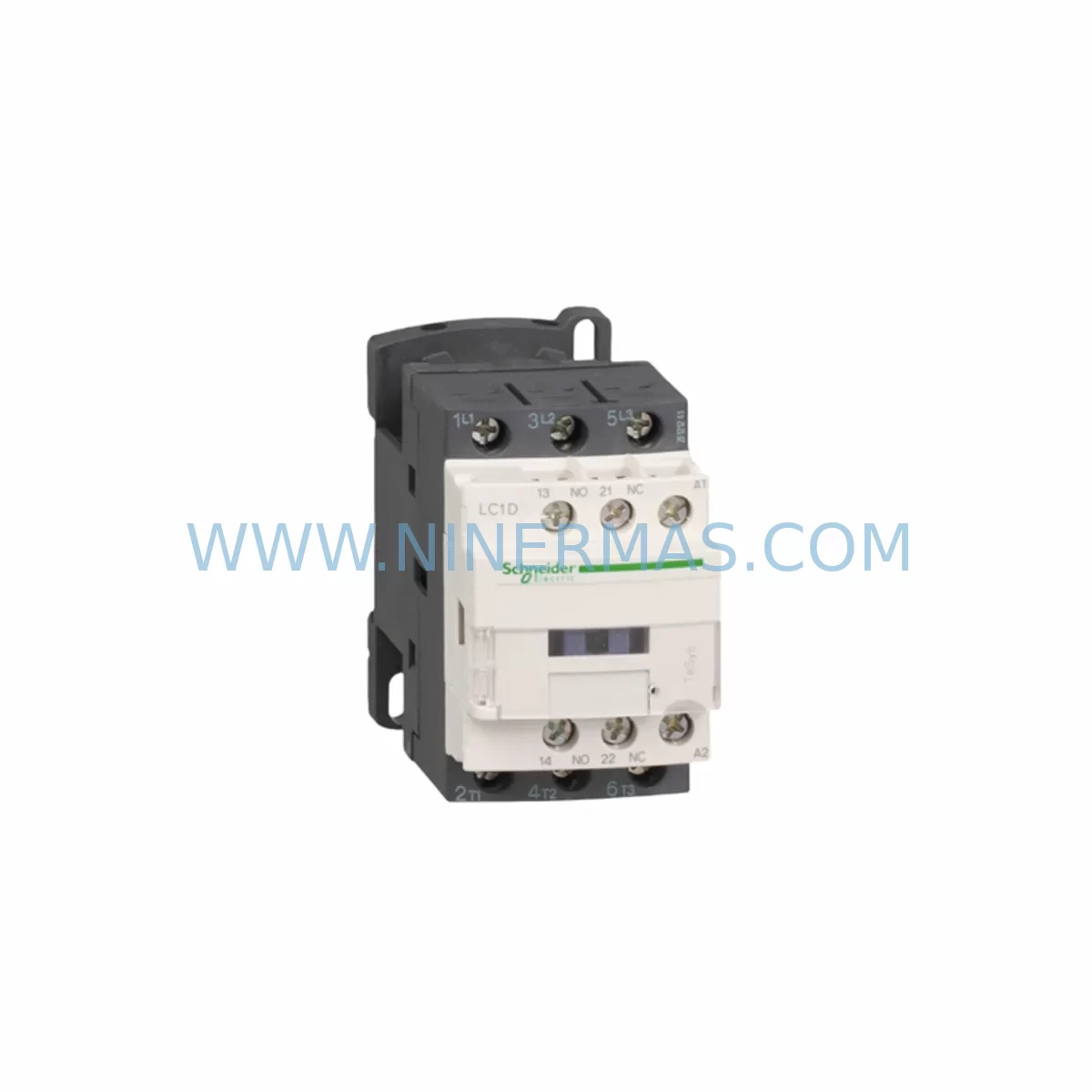

The Schneider Electric LC1D25M7C is a TeSys D series 25A three-pole AC contactor rated at 220V AC coil voltage, engineered for deployment in the most demanding industrial control environments. Designed to meet the rigorous requirements of continuous production lines, critical interlock circuits, and heavy-duty motor control centers, the LC1D25M7C delivers the switching reliability and electromagnetic compatibility that safety-critical field sites demand. At NINERMAS, every unit is sourced through verified supply channels, pre-shipment tested, and backed by a 12-month warranty.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets, a single component failure can cascade into unplanned shutdowns, process upsets, or — in safety-critical applications — hazardous conditions. The LC1D25M7C is engineered to anchor the motor control section of your panel with proven switching integrity. Its silver-alloy contact tips resist welding under inrush conditions, and the reinforced coil design maintains reliable pull-in and drop-out even when supply voltage fluctuates between 85% and 110% of nominal — a common challenge in remote substations and heavy industrial facilities.

For complete protection of the motor branch circuit, the LC1D25M7C is typically paired with a Schneider GV2ME16 manual motor starter or a GV3ME40 motor circuit breaker to provide coordinated short-circuit and overload protection. In applications requiring thermal overload relay protection, the LRD22 overload relay (16–24 A range) mounts directly onto the LC1D25M7C without additional wiring adapters, forming a compact and certified starter assembly.

Where reversing duty or star-delta starting is required, two LC1D25M7C units can be mechanically and electrically interlocked using the LA9D11 mechanical interlock kit, eliminating the risk of simultaneous energization and phase-to-phase faults. For applications demanding safety relay integration — such as emergency stop circuits per IEC 62061 or EN ISO 13849 — the contactor’s auxiliary contact block can interface directly with a Schneider XPSAC5121 safety relay module, enabling monitored stop category 0 or 1 functions.

On the power supply side, pairing the LC1D25M7C with a Schneider ABL8REM24050 regulated SMPS (24 VDC, 5 A) ensures that the control circuit coil voltage remains stable even during mains disturbances, preventing nuisance drop-outs in high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace bays. For surge protection at the cabinet entry point, a Schneider IPRD40r surge protective device on the incoming supply rail guards against transient overvoltages that could otherwise damage contactor coil insulation over time.

Communication-level protection is equally important in networked control architectures. When the LC1D25M7C is supervised via a Schneider TM3DI16 digital input expansion module on a Modicon M221 or M241 PLC, proper shielding and ferrite suppression on the I/O wiring prevents signal drift caused by contactor switching transients. Incorporating a Schneider BMXNOE0100 Ethernet communication module in the PLC rack enables real-time contactor status monitoring and predictive maintenance alerts, reducing the risk of undetected contact wear in unmanned substations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units and compressor stations, the LC1D25M7C controls pump motors and agitator drives within classified hazardous areas (Zone 2 / Division 2 panels). Its high mechanical endurance ensures reliable operation across millions of switching cycles without contact degradation, supporting the uninterrupted production schedules that refinery operations demand.

Power Generation & Substation Auxiliary Systems: Thermal and hydroelectric power plants rely on auxiliary motor control centers (MCCs) to drive cooling fans, lube oil pumps, and excitation system components. The LC1D25M7C’s certified dielectric strength and surge immunity make it a dependable choice for 6 kV substation auxiliary panels where voltage transients from bus switching are a constant concern.

Mining & Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme vibration, coal dust ingress, and humidity. Installed within sealed MCC enclosures, the LC1D25M7C drives conveyor belt motors, crusher drives, and ventilation fans, where its robust contact pressure mechanism prevents false tripping under the mechanical shock loads typical of blasting operations.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate pump stations around the clock. The LC1D25M7C’s long electrical endurance rating supports the frequent start-stop cycles of submersible pumps and aeration blowers, while its compact TeSys D footprint simplifies panel layout in space-constrained pump house control rooms.

Metallurgy & Steel Mills: Rolling mill auxiliary drives, ladle transfer cars, and fume extraction systems in steelmaking plants demand contactors that can withstand high ambient temperatures and electromagnetic interference from large DC drives. The LC1D25M7C’s IEC 61000-4-5 surge immunity and wide operating temperature range make it a reliable choice for these thermally and electrically harsh environments.

Port & Marine Applications: Ship-to-shore crane control panels and vessel engine room MCCs require components certified to international marine standards. The LC1D25M7C’s IEC/EN 60947-4-1 certification and corrosion-resistant construction support deployment in salt-air environments, controlling hoist motors, ballast pumps, and HVAC compressors aboard vessels and at port facilities.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the LC1D25M7C?
Every LC1D25M7C supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. If the unit exhibits any manufacturing defect or functional failure under normal operating conditions within this period, we provide free replacement or full refund — no questions asked.

Q2: How is each unit tested before shipment?
All LC1D25M7C contactors undergo pre-shipment inspection including coil continuity verification, contact resistance measurement, and mechanical operation check. Units are packaged in anti-static, moisture-proof packaging with individual serial number traceability to ensure you receive a fully functional, factory-condition component.

Q3: Is the LC1D25M7C compatible with existing TeSys D accessories and overload relays?
Yes. The LC1D25M7C is fully compatible with the complete TeSys D accessory ecosystem, including LRD-series thermal overload relays, LAD-series auxiliary contact blocks, and LA9D-series mechanical interlock kits. No adapter plates or special tools are required for assembly, ensuring seamless integration into existing panel designs.

Q4: Can NINERMAS guarantee long-term supply for ongoing maintenance and spare parts programs?
NINERMAS maintains dedicated stock of the LC1D25M7C and related TeSys D series components to support planned maintenance shutdowns, emergency breakdowns, and annual spare parts procurement programs. We offer stable pricing agreements and priority allocation for customers with recurring demand, ensuring your critical control sites are never left waiting for essential replacement parts.
