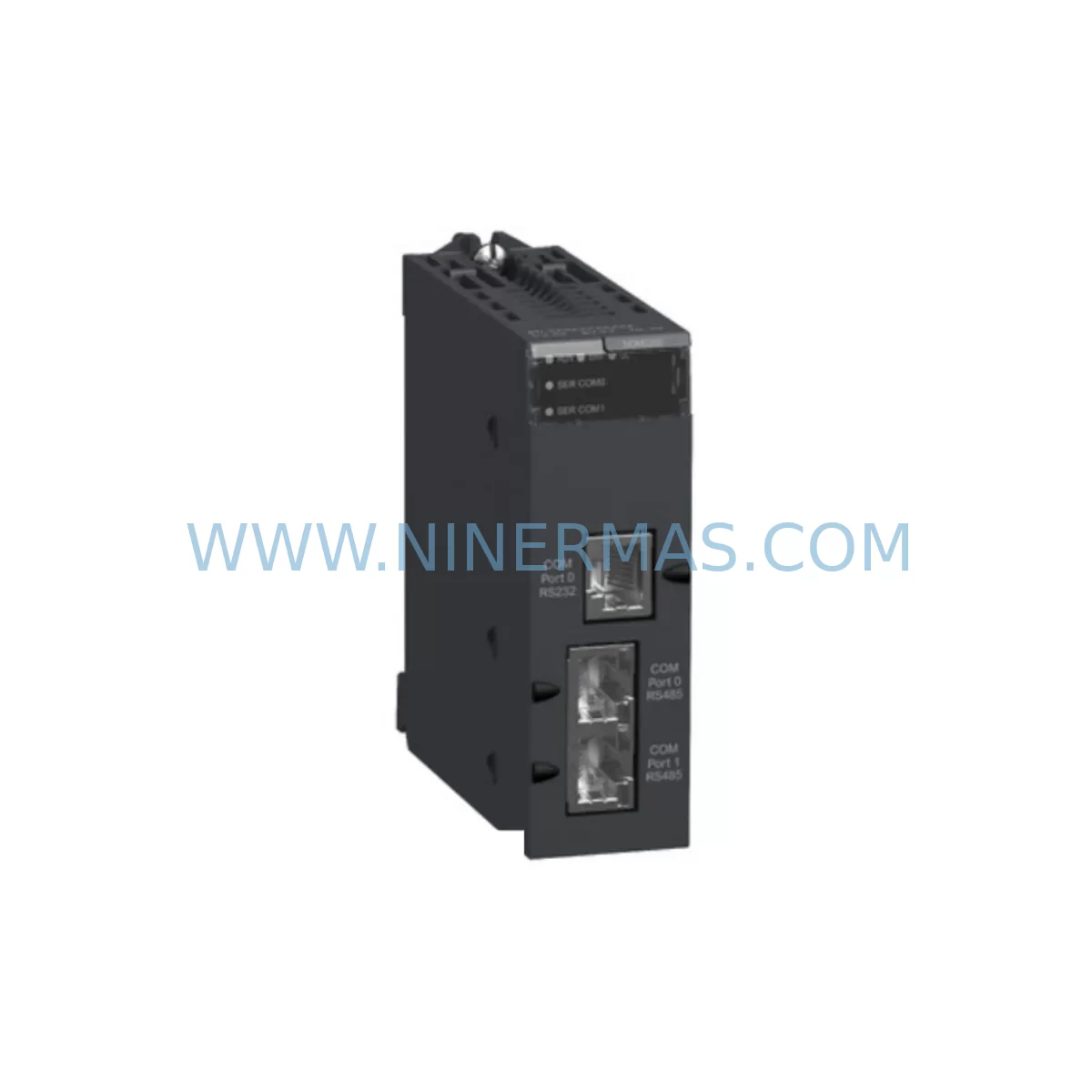

The Schneider Electric BMXNOM0200 is a dedicated serial communication module engineered for the Modicon M340 programmable logic controller platform. Designed to operate continuously in demanding industrial environments, this module delivers RS-485 and RS-232 serial connectivity with the signal integrity, noise immunity, and protocol flexibility required for safety-critical control architectures. Whether deployed in petrochemical processing, power generation, mining, water treatment, metallurgy, or continuous manufacturing, the BMXNOM0200 provides the communication backbone that keeps control loops stable, responsive, and protected against unplanned downtime.

In modern industrial facilities, serial communication remains the foundation of legacy device integration — connecting variable frequency drives, intelligent motor controllers, remote I/O stations, flow computers, and third-party safety relays to the central PLC. The BMXNOM0200 supports Modbus RTU, Modbus ASCII, and character mode protocols, enabling seamless integration with a broad ecosystem of field instruments without gateway overhead or protocol conversion latency. This direct, deterministic communication path is essential in applications where signal delay or data corruption could trigger a process upset, a safety interlock failure, or an unplanned shutdown.

Installed within the Modicon M340 backplane — typically alongside the BMXP342020 CPU module and BMXCPS3500H power supply — the BMXNOM0200 draws its operating power from the rack bus, eliminating the need for external power wiring and reducing the risk of ground loops or power-induced noise. The module’s galvanic isolation on the RS-485 port protects both the PLC rack and connected field devices from surge events, common-mode voltage transients, and ground potential differences that are common in heavy industrial environments such as arc furnace control rooms, variable-speed drive cabinets, and high-voltage switchgear panels.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Effective risk reduction in a Modicon M340 control cabinet begins with a holistic view of every module’s role in the safety and communication chain. The BMXNOM0200 serial communication module anchors the field device integration layer, but its reliability is directly dependent on the stability of the surrounding hardware ecosystem.

The BMXCPS3500H power supply module is the first line of defense against power-induced faults. Its regulated 24 VDC output with built-in surge protection ensures that the BMXNOM0200 and all co-resident modules — including the BMXP342020 CPU and BMXNOE0110 Ethernet communication module — receive clean, stable power even during grid fluctuations, motor start transients, or capacitor bank switching events. A power supply failure or voltage sag that goes undetected can cause the BMXNOM0200 to drop its serial link, resulting in Modbus timeout errors, watchdog trips, or loss of drive speed reference signals in a variable frequency drive application.

On the I/O side, digital input modules such as the BMXDDI1602 and digital output modules such as the BMXDDO1602 work in concert with the BMXNOM0200 to form a complete control and interlock architecture. Safety-critical signals — emergency stop status, valve position feedback, pressure switch states — are hardwired through the digital I/O layer, while process setpoints, device diagnostics, and parameter updates travel over the serial link managed by the BMXNOM0200. This separation of hardwired safety signals from serial process data is a fundamental principle of functional safety design in IEC 62061 and IEC 61511 compliant installations.

Analog measurement integrity is equally important. The BMXAMI0410 analog input module captures 4–20 mA signals from pressure transmitters, temperature sensors, and flow meters. If the BMXNOM0200 serial link to a remote I/O station or intelligent transmitter is interrupted — due to cable damage, connector corrosion, or EMI-induced bit errors — the CPU may lose redundant process data, increasing the risk of a missed alarm or a delayed safety response. Regular communication diagnostics, cable shielding practices, and the use of ferrite cores on RS-485 cables are recommended to maintain link integrity in high-EMI environments.

For applications requiring high-speed pulse counting or encoder feedback — such as conveyor speed control or rotary kiln positioning — the BMXEHC0200 high-speed counter module complements the BMXNOM0200 by handling time-critical signals locally on the backplane, offloading the CPU scan cycle and ensuring that serial communication latency does not affect motion control accuracy. The BMXXBP0800 backplane provides the physical and electrical foundation for this multi-module architecture, with its robust bus connectors rated for thousands of insertion cycles and its conformal coating option for humid or corrosive environments.

Field wiring termination quality is often overlooked as a source of serial communication faults. The BMXFTW301 terminal block accessory ensures secure, vibration-resistant wire termination at the module connector, reducing the risk of intermittent contact failures that can cause sporadic Modbus errors, CRC mismatches, or communication timeouts that are difficult to diagnose during normal operation but can escalate into process upsets during peak production periods.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units, catalytic crackers, and gas compression stations, the BMXNOM0200 provides the serial communication link between the Modicon M340 PLC and field-mounted smart transmitters, HART-enabled valve positioners, and remote I/O panels located in hazardous area junction boxes. The module’s EMC compliance and galvanic isolation are essential in environments where high-voltage cable trays, variable frequency drives for pump and compressor control, and high-current motor starters generate significant electromagnetic interference.

Power Generation and Substation Automation: In thermal power plants, hydroelectric stations, and grid substations, the BMXNOM0200 enables Modbus RTU communication with protection relays, energy meters, and transformer monitoring units. Its deterministic serial communication ensures that protection trip signals, breaker status data, and power quality measurements are transmitted reliably to the SCADA system, supporting both normal operations and fault response procedures.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The BMXNOM0200’s compliance with IEC 60068 environmental standards makes it suitable for deployment in conveyor control panels, crusher automation cabinets, and ventilation fan control systems where communication reliability directly affects both production throughput and personnel safety.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems rely on Modbus RTU communication to integrate dosing pump controllers, UV disinfection units, and remote lift station panels. The BMXNOM0200 provides the reliable serial link that ensures chemical dosing accuracy, alarm transmission, and remote monitoring continuity — critical for regulatory compliance and public health protection.

Metallurgy and Steel Production: In electric arc furnace control, rolling mill automation, and continuous casting lines, the BMXNOM0200 operates in environments with extreme electromagnetic interference from high-current bus bars, thyristor drives, and induction heating systems. Its robust isolation and EMC design allow it to maintain stable Modbus communication with drive controllers, pyrometers, and tension measurement systems even under these severe electrical conditions.
