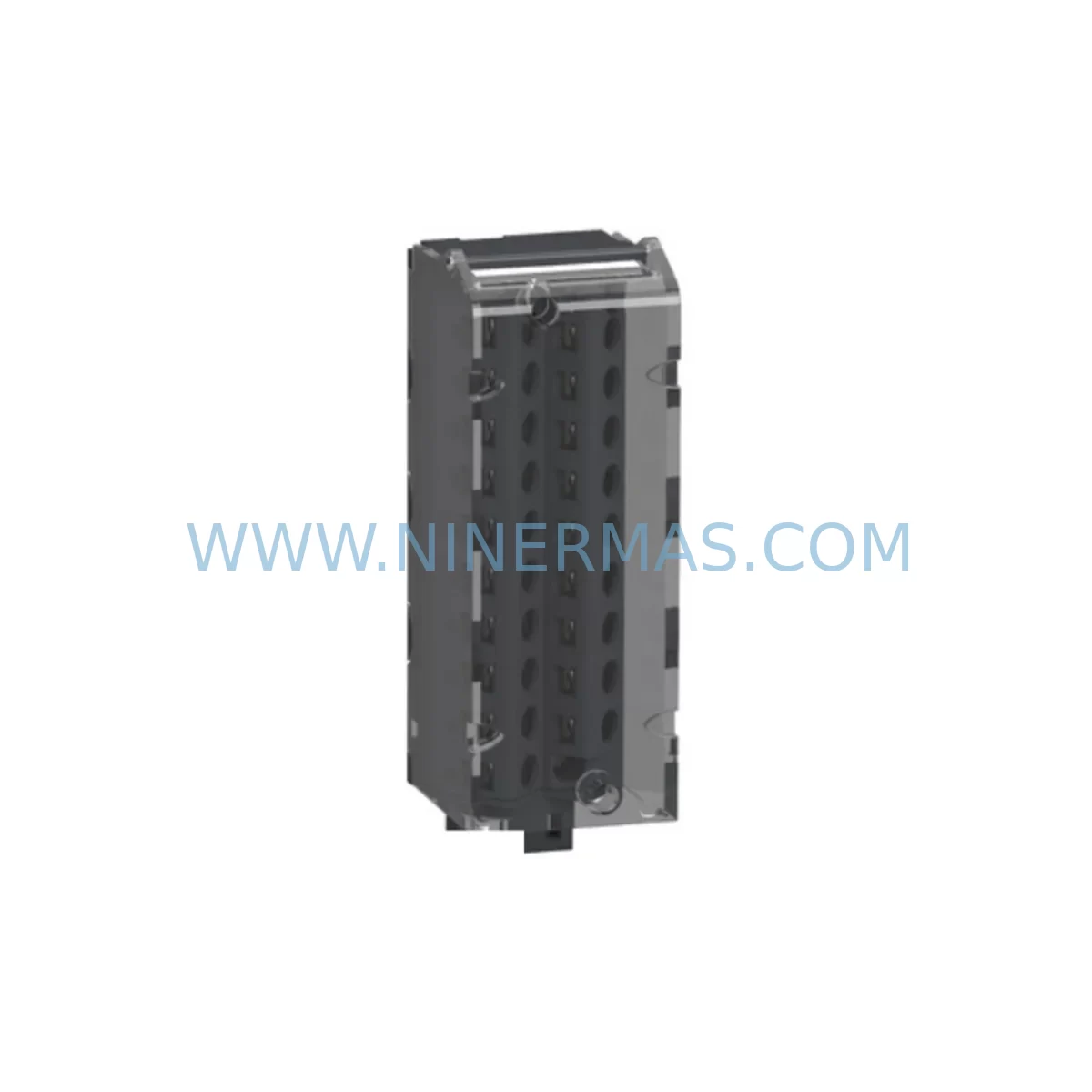

The Schneider Electric BMXFTB2010 is a 20-pin screw-type terminal block engineered for the Modicon M340 PLC platform, delivering dependable signal integrity and mechanical robustness in safety-critical industrial control environments. Designed to interface directly with M340 I/O modules, the BMXFTB2010 provides a secure, vibration-resistant field wiring connection that minimises the risk of signal loss, contact degradation, and unplanned control interruptions across continuous production and hazardous process sites.

In industries where control loop availability is non-negotiable — petrochemical refining, electric power generation, water treatment, metallurgical processing, and heavy manufacturing — the quality of every field wiring termination directly influences system safety. The BMXFTB2010 addresses this by offering a robust screw-clamp design that maintains consistent contact force under thermal cycling, mechanical vibration, and high-humidity conditions, reducing the probability of intermittent faults that can trigger nuisance trips or, worse, undetected signal drift in safety instrumented systems.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Reliable field termination is only one layer of a comprehensive control cabinet protection strategy. In a well-engineered M340-based control system, the BMXFTB2010 works in concert with a range of complementary components to deliver end-to-end signal integrity and power stability.

At the processing core, the BMXP342020 CPU module governs programme execution and deterministic scan cycles. Any degradation in field wiring — loose terminals, oxidised contacts, or vibration-induced intermittent connections — can introduce spurious input states that corrupt the CPU’s process image, leading to incorrect output commands or safety function failures. The BMXFTB2010’s screw-clamp design eliminates this risk at the termination layer.

Power quality is equally critical. The BMXCPS3500 power supply module provides regulated 24 V DC to the M340 backplane, and voltage ripple or transient surges caused by poor earthing at field terminal blocks can propagate into the power rail. Ensuring that all BMXFTB2010 terminations are correctly torqued and earthed reduces the risk of conducted interference reaching the BMXXBP0800 backplane and its hosted modules.

On the I/O side, discrete input modules such as the BMXDDI1602 and discrete output modules such as the BMXDDO1602 rely on the BMXFTB2010 for their field connections. In safety interlock circuits — emergency stop loops, valve position feedback, or motor protection relay contacts — a single unreliable termination can cause a missed trip or a spurious shutdown. The BMXFTB2010’s consistent contact resistance ensures that these critical binary signals are faithfully transmitted to the CPU.

For analogue measurement loops in process control, the BMXAMI0410 analogue input module handles 4–20 mA and voltage signals from field transmitters. Signal drift caused by high-resistance terminations — a common failure mode in humid or corrosive environments — is mitigated by the BMXFTB2010’s robust screw-clamp contact. This is particularly important in flow, pressure, and temperature measurement loops where even a small signal offset can lead to incorrect process control actions.

Network communication integrity is maintained by the BMXNOE0100 Ethernet communication module, which connects the M340 system to SCADA, DCS, or MES layers. While the NOE0100 operates independently of field terminal blocks, its reliable operation depends on a stable power and earthing environment — conditions that are directly influenced by the quality of all field wiring terminations in the cabinet.

For applications requiring an alternative terminal block configuration, the BMXFTB2820 offers a 28-pin variant for higher-density I/O modules, and the BMXFCW301 pre-wired cable assembly provides a rapid connection option for time-critical maintenance scenarios. Together with the BMXFTB2010, these accessories form a complete field wiring ecosystem for the M340 platform.

In legacy migration projects where Modicon Quantum hardware is being phased out, the BMXFTB2010 is frequently specified alongside retained Quantum power supply modules such as the 140CPS11420 during transition periods, ensuring that the new M340 control layer maintains a clean, reliable interface to existing field instrumentation.

Critical Industrial Safety Applications

The BMXFTB2010 is deployed across a broad spectrum of safety-critical industrial environments where control system availability directly affects personnel safety, environmental protection, and production continuity.

In petrochemical and refining facilities, the terminal block is used in burner management system (BMS) panels, emergency shutdown (ESD) cabinets, and compressor control systems. These applications demand zero-tolerance for intermittent connections, as a missed flame detection signal or a spurious valve command can trigger a major process hazard. The BMXFTB2010’s vibration-resistant screw termination is well-suited to the mechanical environment of rotating machinery skids.

In electric power generation and transmission, M340-based protection relay panels and substation automation systems rely on the BMXFTB2010 for binary input terminations from current transformers, voltage transformers, and circuit breaker auxiliary contacts. The terminal block’s rated voltage and current capacity are appropriate for the signal levels encountered in these applications.

In mining and mineral processing, where high dust concentrations, moisture ingress, and continuous vibration are standard operating conditions, the BMXFTB2010’s IP20 rating (when properly housed in a sealed enclosure) and IEC 60068-compliant vibration and shock resistance ensure long-term connection reliability in conveyor control, crusher protection, and ventilation safety systems.

In water and wastewater treatment, the terminal block is used in pump station control panels, chemical dosing systems, and SCADA-connected RTU cabinets. The non-condensing humidity rating supports operation in pump houses and wet well environments where ambient moisture levels are elevated.

In metallurgical and steel production facilities, the BMXFTB2010 is specified for rolling mill control cabinets, furnace temperature regulation systems, and crane control panels, where thermal cycling and electromagnetic interference from large motor drives are persistent challenges to signal integrity.

Safety and Quality FAQ

Q1: What warranty coverage does the BMXFTB2010 carry when purchased from NINERMAS?
All BMXFTB2010 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. NINERMAS maintains reserved inventory to support rapid warranty replacement, minimising downtime at critical control sites.

Q2: What pre-shipment testing is performed on the BMXFTB2010?
Each unit undergoes functional verification prior to dispatch, including contact resistance measurement and mechanical inspection of the screw-clamp mechanism. This process ensures that only fully serviceable units are shipped, reducing the risk of infant mortality failures in safety-critical applications.

Q3: Is the BMXFTB2010 compatible with all Modicon M340 I/O modules?
The BMXFTB2010 is designed for M340 I/O modules with a 20-pin connector interface. Compatibility should be verified against the specific module reference using Schneider Electric’s product documentation. For modules requiring a different pin count, the BMXFTB2820 or other BMX series terminal blocks may be appropriate. NINERMAS technical support can assist with compatibility confirmation prior to order placement.

Q4: Can NINERMAS guarantee long-term supply of the BMXFTB2010 for ongoing maintenance programmes?
Yes. NINERMAS maintains a reserved stock programme for high-demand M340 accessories including the BMXFTB2010, supporting customers with planned maintenance schedules, multi-year spare parts agreements, and emergency replacement requirements. Long-term supply commitments are available upon request to ensure predictable lead times and eliminate the risk of stockouts at critical production sites.
