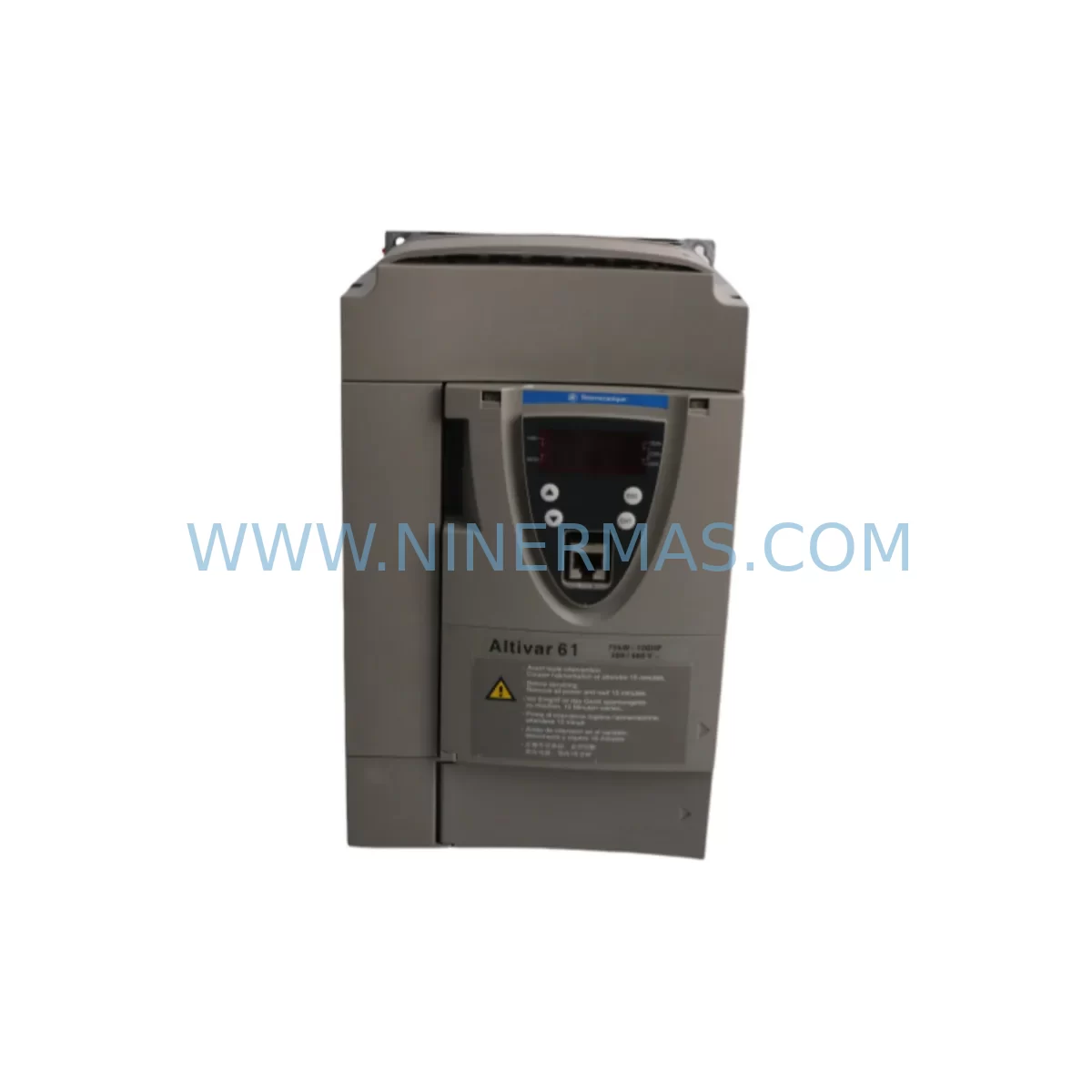

The Schneider Electric ATV61HU75N4 is a 7.5 kW / 10 HP Altivar 61 series variable frequency drive (VFD) engineered for safety-critical industrial environments where unplanned downtime, control loop interruption, or motor runaway carry serious operational and safety consequences. Rated for 380–480 V three-phase input, this drive delivers precise, stable speed regulation across a wide range of motor loads — from centrifugal pumps and compressors to heavy-duty conveyor systems and industrial fans. Its robust design addresses the core reliability demands of continuous production facilities: resistance to electrical noise, tolerance of voltage fluctuations, and stable communication under adverse field conditions.

At NINERMAS, every ATV61HU75N4 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Ready stock is maintained to support urgent spare parts replacement and retrofit projects across global industrial sites.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinets — whether managing a petrochemical reactor feed pump, a water treatment aeration blower, or a steel mill rolling line — the ATV61HU75N4 serves as the speed regulation backbone. Its integrated EMC filter suppresses conducted interference that would otherwise corrupt signals across co-located devices such as Modicon M340 PLCs (e.g., BMX P34 2020 CPU) and BMXNOE0100 Ethernet communication modules, both of which share the same cabinet backplane in many process automation architectures.

Power quality is a persistent risk in heavy industrial environments. Voltage sags, surges, and harmonic distortion from large motor starts can destabilize the entire control bus. Pairing the ATV61HU75N4 with a BMXCPS3500 24 VDC power supply module and an upstream Schneider ABL8 regulated SMPS creates a layered power conditioning strategy that protects both the drive and the surrounding I/O infrastructure. For applications requiring safe-state enforcement during emergency stop events, integrating Schneider Preventa XPS safety relays (such as the XPSAF5130) into the drive’s fault relay output circuit ensures that motor coast-to-stop or controlled deceleration is executed reliably without relay chatter or spurious trips.

Motor branch circuit protection is equally critical. Upstream of the ATV61HU75N4, Tesys GV2ME motor circuit breakers provide coordinated short-circuit and overload protection, reducing the risk of cascade failures that could take an entire production line offline. For multi-drive cabinets, Schneider Harmony REXL relay modules handle auxiliary control logic — interlocking, sequencing, and alarm annunciation — without introducing additional noise sources into the drive’s analog reference inputs.

Where fieldbus communication is required, the ATV61HU75N4 supports optional Profibus DP VW3A3607 and DeviceNet VW3A3608 communication cards, enabling seamless integration into existing DCS or SCADA architectures. This eliminates the need for costly signal converters and reduces the number of potential failure points in the communication chain. For sites already operating Altivar 71 ATV71HU75N4Z drives in parallel circuits, the ATV61HU75N4 offers a functionally compatible replacement path, preserving existing wiring and parameter structures while restoring full operational capability.

Finally, for cabinet thermal management — a leading cause of drive premature failure in high-ambient environments — coordinating the ATV61HU75N4’s internal fan with external Schneider NSYCVF cooling fan units maintains airflow within the safe operating envelope, preventing thermal derating events that manifest as unexplained speed instability or nuisance trips.

Critical Industrial Safety Applications

Petrochemical & Refinery: The ATV61HU75N4 controls feed pumps, cooling water circulation, and compressor auxiliaries in ATEX-adjacent control rooms. Its overvoltage and phase-loss protection prevents uncontrolled motor runaway in flammable atmosphere proximity zones, where a mechanical failure can escalate rapidly.

Power Generation & Utilities: In coal-fired and gas turbine auxiliary systems, this drive manages induced draft fans, boiler feed pump auxiliaries, and cooling tower fans. Its ability to maintain stable speed under fluctuating grid conditions — common during load-shedding events — is essential for continuous plant availability.

Mining & Mineral Processing: Conveyor belt drives, slurry pump stations, and ore crusher auxiliaries in underground and open-pit mining environments demand drives that tolerate high dust ingress, vibration, and wide ambient temperature swings. The ATV61HU75N4’s robust thermal management and configurable motor protection thresholds make it a reliable choice for these demanding conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment plants rely on variable-speed aeration blowers and effluent transfer pumps operating 24/7. The drive’s energy-saving quadratic V/f profile reduces pump energy consumption by up to 50% at partial load while maintaining the precise flow control required for biological treatment process stability.

Metallurgy & Steel: Rolling mill auxiliary drives, fume extraction fans, and hydraulic pump stations in steel plants require drives capable of withstanding intense electromagnetic interference from arc furnaces and induction heaters. The ATV61HU75N4’s built-in EMC filter and shielded cable compatibility directly address this challenge.

Port & Marine: Crane hoist auxiliaries, ballast pump systems, and HVAC drives aboard vessels and at port terminals benefit from the drive’s wide voltage tolerance and salt-air-resistant conformal coating options, ensuring reliable operation in corrosive coastal environments.
