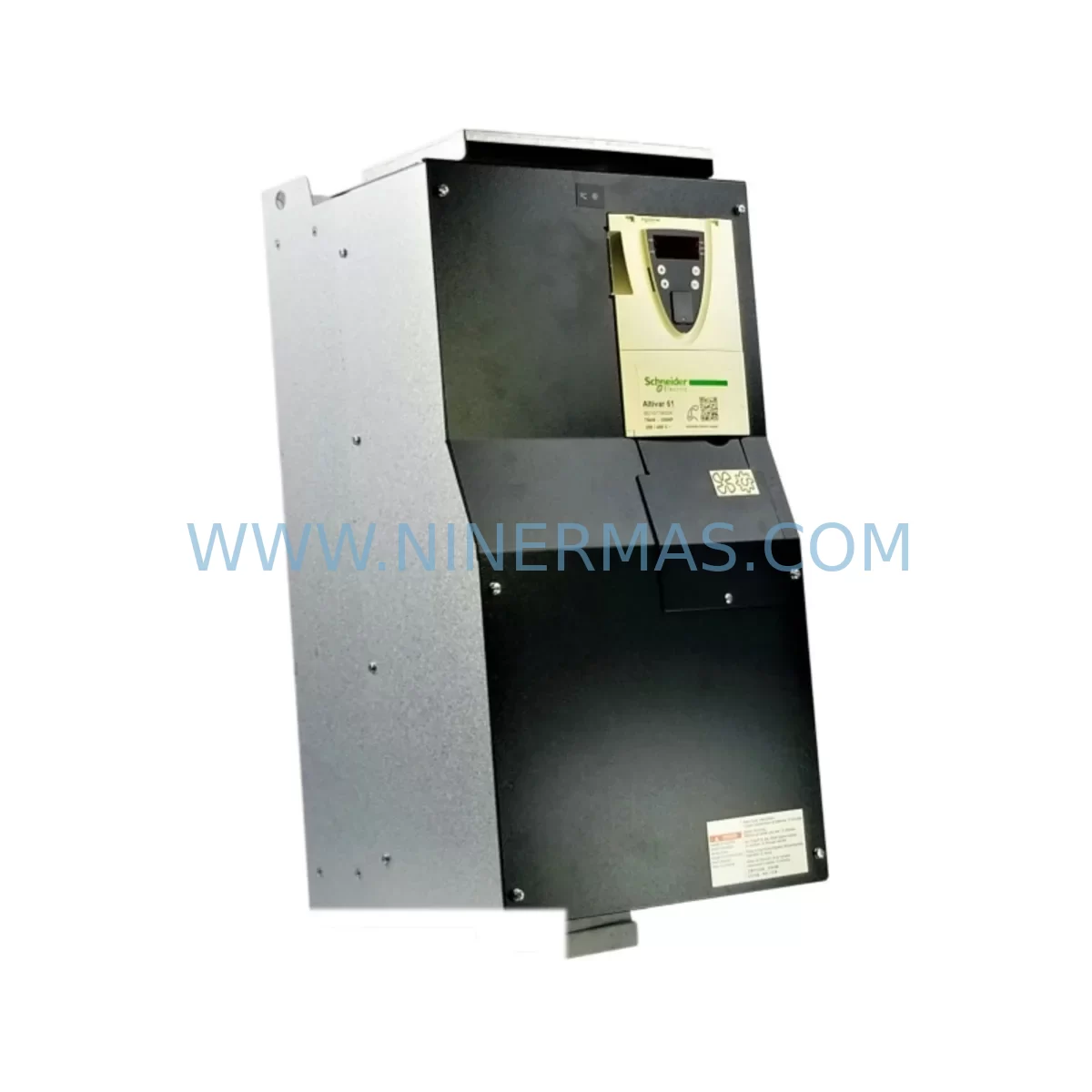

The Schneider Electric ATV61HD75N4 is a 75kW / 400V three-phase Variable Frequency Drive (VFD) from the renowned Altivar 61 series, engineered specifically for demanding pump and fan applications in continuous production environments. At NINERMAS, every ATV61HD75N4 unit is sourced from verified supply channels, pre-shipment tested, and backed by a 12-month warranty — ensuring your critical control sites receive a drive that performs from day one and keeps performing under the harshest industrial conditions.

In high-stakes industrial facilities — petrochemical plants, power generation stations, mining operations, water treatment works, metallurgical smelters, port logistics systems, and continuous manufacturing lines — an unplanned drive failure is never just an inconvenience. It triggers cascading shutdowns, safety interlock activations, and costly production losses. The ATV61HD75N4 is designed to eliminate exactly these risks through robust hardware architecture, advanced motor control algorithms, and comprehensive built-in protection functions that guard both the drive and the connected motor against the full spectrum of electrical and environmental hazards.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the ATV61HD75N4 within a well-engineered control cabinet architecture is the foundation of long-term operational safety. In a typical heavy-duty motor control center (MCC), the drive works in concert with a range of protective and conditioning components. Upstream, a Schneider Electric GV7 motor circuit breaker or a properly rated NSX series MCCB provides short-circuit and overload protection before power reaches the drive’s input terminals. Line reactors — such as the Schneider VW3A4551 input choke — are strongly recommended to limit harmonic distortion and protect the drive’s rectifier bridge from supply-side voltage spikes and notching, which are common in facilities sharing bus bars with large welding machines or heavy motor starters.

On the output side, a dV/dt output filter or sine wave filter (e.g., Schneider VW3A4720 series) protects motor winding insulation from the steep voltage rise times generated by PWM switching, a critical consideration when cable runs exceed 50 metres or when rewound motors are in service. For safety interlock circuits, the ATV61HD75N4’s dedicated Safe Torque Off (STO) input — when wired to a Schneider Preventa XPSAF safety relay or equivalent SIL 2-rated safety module — enables the drive to be brought to a safe, torque-free state without removing main power, dramatically reducing the risk of uncontrolled motor coast-down during emergency stop events.

Power quality in industrial environments is rarely ideal. Surge protection devices such as the Schneider iPRD series SPD installed at the cabinet’s incoming supply protect the ATV61HD75N4 from transient overvoltages caused by lightning strikes, capacitor bank switching, or nearby heavy equipment. For facilities with unstable grid supplies, pairing the drive with an APC Easy UPS 3S or equivalent industrial UPS on the control voltage rail ensures that the drive’s control board, HMI, and communication modules remain powered through brief supply interruptions, preventing nuisance trips and preserving process state. Communication integrity is maintained through proper shielded cable routing and, where Modbus RTU or Profibus DP networks are used, through Schneider TSXSCA50 or equivalent bus termination resistors and surge-protected repeaters to prevent signal reflection and data corruption in high-EMI environments.

Thermal management within the cabinet is equally critical. The ATV61HD75N4 generates significant heat at full load; pairing it with a correctly sized Schneider ClimaSys cabinet cooling unit or forced-ventilation system maintains the ambient temperature within the drive’s rated operating window, preventing thermal derating and extending component life. For dusty or humid environments such as cement plants, grain processing facilities, or coastal installations, specifying an IP54-rated enclosure variant or installing the drive within a sealed, climate-controlled enclosure with a Schneider ClimaSys CU condensation heater prevents moisture ingress and particulate contamination — two of the leading causes of premature drive failure in field installations.

Critical Industrial Safety Applications

The ATV61HD75N4 is purpose-built for pump and fan load profiles, making it indispensable across a wide range of safety-critical industrial sectors. In petrochemical and refinery operations, it controls cooling water circulation pumps, process gas blowers, and crude transfer pump stations where any unplanned stop risks process upset, pressure excursion, or hazardous material release. The drive’s PID control loop maintains precise flow and pressure setpoints, while its flying restart capability allows seamless reconnection to a spinning motor after a brief power interruption — eliminating the mechanical shock and water hammer that can damage pipework and pump seals.

In power generation facilities — both thermal and renewable — the ATV61HD75N4 manages boiler feed pump auxiliaries, cooling tower fans, and condenser water pumps. Its ability to operate reliably across a wide input voltage range (380–480 V ±10%) makes it tolerant of the voltage fluctuations common in generator-fed island grids. For mining and mineral processing applications, the drive controls ventilation fans in underground headings, dewatering pump stations, and conveyor drive systems, where continuous operation is a safety imperative and any drive failure must be immediately alarmed and reported to the SCADA system via Modbus or Profibus.

Water and wastewater treatment plants rely on the ATV61HD75N4 for raw water intake pumps, aeration blowers, and sludge transfer pumps. Energy savings of 30–50% compared to fixed-speed operation are routinely achieved through the drive’s quadratic V/F characteristic, while the built-in motor thermal protection prevents pump motor burnout during low-flow or blocked-impeller conditions. In metallurgical and steel mill environments, where electromagnetic interference from arc furnaces and induction heaters is extreme, the drive’s robust EMC filter and shielded construction maintain stable operation and communication integrity even in the most electrically hostile plant areas.

Port and marine applications — including ship-to-shore crane auxiliary drives, ballast pump systems, and HVAC fans aboard vessels — benefit from the ATV61HD75N4’s wide operating temperature range and vibration tolerance. For continuous manufacturing lines in food processing, paper mills, and textile plants, the drive’s smooth acceleration and deceleration ramps protect mechanical couplings, gearboxes, and conveyor belts from shock loading, extending the service life of the entire drivetrain and reducing unplanned maintenance interventions.

Safety and Quality FAQ

Q1: What does the 12-month warranty from NINERMAS cover for the ATV61HD75N4?
The 12-month warranty covers all manufacturing defects and component failures under normal operating conditions from the date of shipment. NINERMAS provides direct technical support, and in the event of a confirmed warranty claim, we arrange replacement or repair without additional charge. Our warranty process is straightforward — contact sale@ninermas.com with your order reference and a brief fault description to initiate a claim.

Q2: What pre-shipment testing is performed on each ATV61HD75N4 unit?
Every ATV61HD75N4 dispatched from NINERMAS undergoes a functional power-on test to verify display operation, parameter access, and basic drive response before packaging. Units are inspected for physical integrity, correct firmware version, and completeness of accessories. This process ensures that no DOA (dead-on-arrival) units reach your site, reducing commissioning delays and safety risks associated with installing untested equipment in critical control positions.

Q3: Is the ATV61HD75N4 compatible with existing Altivar 61 installations and third-party control systems?
Yes. The ATV61HD75N4 is fully compatible with the Altivar 61 product family and can be configured using the standard SoMove PC software or the optional Altivar 61 remote keypad (VW3A1101). Its Modbus RTU port is compatible with all major PLC brands including Schneider Modicon M340, M580, Siemens S7 series, and Allen-Bradley ControlLogix via appropriate communication gateways. Optional fieldbus cards enable Profibus DP, CANopen, and DeviceNet integration for legacy DCS and SCADA architectures.

Q4: Can NINERMAS guarantee long-term supply and spare parts availability for the ATV61HD75N4?
NINERMAS maintains stock of the ATV61HD75N4 and key Altivar 61 series accessories to support both new installations and ongoing maintenance programs. We understand that industrial facilities require assured spare parts availability to meet their planned maintenance schedules and emergency replacement needs. For high-volume or long-term supply agreements, please contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss framework pricing and reserved stock arrangements.
