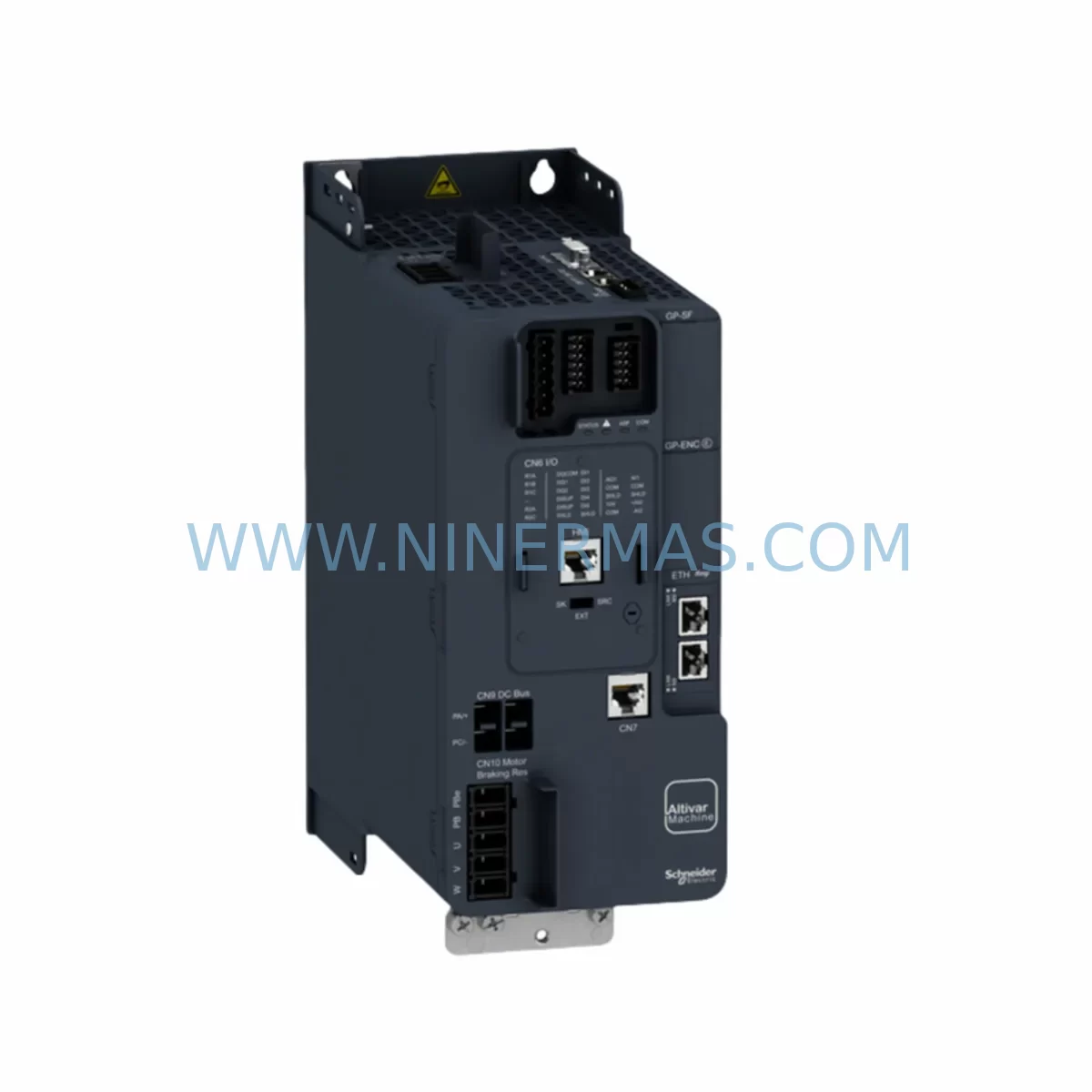

The Schneider Electric ATV340D11N4 is an 11 kW (15 HP), 380–480 V three-phase variable frequency drive from the Altivar 340 series, engineered for demanding industrial environments where control continuity, personnel safety, and process reliability are non-negotiable. Designed to meet the rigorous requirements of continuous production lines, critical interlock circuits, and heavy-duty motor control panels, the ATV340D11N4 delivers stable, interference-resistant motor speed regulation even under high electromagnetic interference, dusty or humid atmospheres, elevated ambient temperatures, and persistent mechanical vibration.

In critical industrial facilities — including petrochemical plants, power generation stations, mining operations, water treatment works, metallurgical mills, port logistics systems, and continuous process manufacturing — unplanned motor stoppages translate directly into production loss, safety incidents, and costly emergency maintenance. The ATV340D11N4 addresses these risks through its robust hardware architecture, integrated protective functions, and proven field reliability, making it a preferred spare and replacement drive for lifecycle extension programs across Schneider Electric Altivar installations worldwide.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Effective risk reduction in a motor control cabinet built around the ATV340D11N4 requires a layered approach that addresses power quality, signal integrity, thermal management, and communication reliability simultaneously. On the power input side, pairing the drive with a Schneider Electric Altivar ATV340 line reactor or a dedicated Schneider Electric ABL8 power supply module significantly attenuates voltage surges and harmonic distortion that would otherwise stress the drive’s DC bus capacitors and shorten service life. For installations in areas prone to lightning strikes or utility switching transients, a Schneider Electric Acti9 iQuick PRD surge protection device installed upstream of the drive provides the first line of defence against impulse overvoltages.

Within the control circuit, the ATV340D11N4’s onboard Safe Torque Off (STO) function integrates directly with Schneider Electric Preventa XPS safety relay modules to form a certified SIL 2 safety loop, eliminating the need for external contactors in many emergency-stop architectures and reducing the number of mechanical components that can fail. For applications requiring precise process feedback, the drive’s analog input channels accept signals from Schneider Electric Harmony XB5 pushbutton stations and field-mounted sensors without additional signal conditioning, minimising the risk of signal drift caused by long cable runs in high-EMI environments.

Communication reliability is maintained through the drive’s native Modbus RTU port, which connects seamlessly to Schneider Electric Modicon M221 or M241 PLCs for real-time speed reference, fault diagnostics, and remote parameter adjustment — all without interrupting the motor control loop. In larger distributed control architectures, an optional VW3A3616 EtherNet/IP communication card enables integration with plant-level SCADA systems, providing continuous drive health monitoring and predictive maintenance data. Thermal management within the enclosure is supported by pairing the drive with Schneider Electric ClimaSys cooling units or filtered fan kits, ensuring that ambient temperature inside the panel remains within the drive’s rated operating window even in high-ambient industrial halls.

For motor branch protection, upstream Schneider Electric GV2 or GV3 motor circuit breakers provide coordinated short-circuit and overload protection, while Schneider Electric TeSys D LC1D contactors handle bypass or star-delta switching duties in multi-drive panels. This coordinated component selection — drive, safety relay, PLC, surge protection, and motor protection — forms a complete, validated control cabinet solution that minimises unplanned downtime and supports rapid fault isolation during maintenance windows.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units, compressor trains, and pump stations, the ATV340D11N4 controls motor speed with the precision required to maintain stable flow rates and process pressures. Its STO function supports zone-classified emergency shutdown systems, and its sealed electronics resist hydrocarbon vapours and corrosive atmospheres that degrade standard drives prematurely.

Power Generation and Utilities: Cooling water pump drives, forced-draft fan controls, and auxiliary motor systems in thermal and hydroelectric power stations demand drives that can sustain operation through grid disturbances. The ATV340D11N4’s built-in EMC filter and robust DC bus design maintain stable output during voltage sags and brief supply interruptions, protecting turbine auxiliary systems from control interruptions that could trigger costly unit trips.

Mining and Mineral Processing: Conveyor belt drives, crusher feed systems, and slurry pump controls in underground and open-cut mining operations are exposed to extreme dust loading, vibration, and wide ambient temperature swings. The ATV340D11N4’s IP21 enclosure (upgradeable to IP55) and vibration-rated internal components sustain reliable operation in these conditions, while its overload capacity handles the high starting torques characteristic of heavy mineral processing loads.

Water and Wastewater Treatment: Variable-speed control of submersible pumps, aeration blowers, and sludge transfer pumps in municipal and industrial water treatment facilities reduces energy consumption and mechanical wear. The drive’s PID control capability enables closed-loop pressure and flow regulation, eliminating pressure surges that damage pipework and valves in distribution networks.

Metallurgy and Steel Mills: Rolling mill auxiliary drives, furnace atmosphere fan controls, and cooling bed conveyors in steel and aluminium production require drives capable of sustained high-cycle operation under thermal stress. The ATV340D11N4’s derating characteristics and thermal protection algorithms prevent nuisance trips during peak production periods, supporting continuous cast and rolling schedules.

Port Logistics and Ship-to-Shore Equipment: Container crane hoist and travel drives, ship unloader conveyors, and bulk material handling systems in port environments are exposed to salt-laden air, high humidity, and wide load variations. The drive’s corrosion-resistant construction and robust braking transistor support the regenerative braking demands of crane hoist applications, reducing mechanical brake wear and improving cycle efficiency.

Safety and Quality FAQ

Q1: What warranty coverage does the ATV340D11N4 carry?
Every ATV340D11N4 unit supplied by Ninermas carries a 12-month warranty from the date of shipment. Coverage includes functional defects identified under normal operating conditions. Each unit undergoes documented pre-shipment functional testing to verify output voltage, control response, and protective function operation before dispatch.

Q2: How is the unit tested before shipment?
Units are subjected to a structured pre-shipment inspection protocol that includes power-on verification, output phase balance check, STO function test, and parameter default confirmation. Test records are retained and available upon request. This process ensures that every drive arrives at site in verified working condition, reducing commissioning time and eliminating infant-mortality failures.

Q3: Is the ATV340D11N4 compatible with existing Altivar 340 installations?
Yes. The ATV340D11N4 is a direct form-fit-function replacement for existing Altivar 340 11 kW 400 V installations. Mounting dimensions, terminal assignments, and parameter structures are consistent across the Altivar 340 range, enabling drop-in replacement without panel modification or PLC reprogramming in the majority of applications. Compatibility with optional communication cards (VW3A3616, VW3A3608, VW3A3601) is maintained.

Q4: Can long-term supply be guaranteed for lifecycle extension programs?
Ninermas operates a committed stock program for Schneider Electric Altivar 340 series drives, including the ATV340D11N4, supporting plant lifecycle extension and planned maintenance schedules. Customers with multi-year spare parts requirements are invited to contact our team to discuss volume reservation, lead time commitments, and consignment stock arrangements that eliminate emergency procurement risk.
