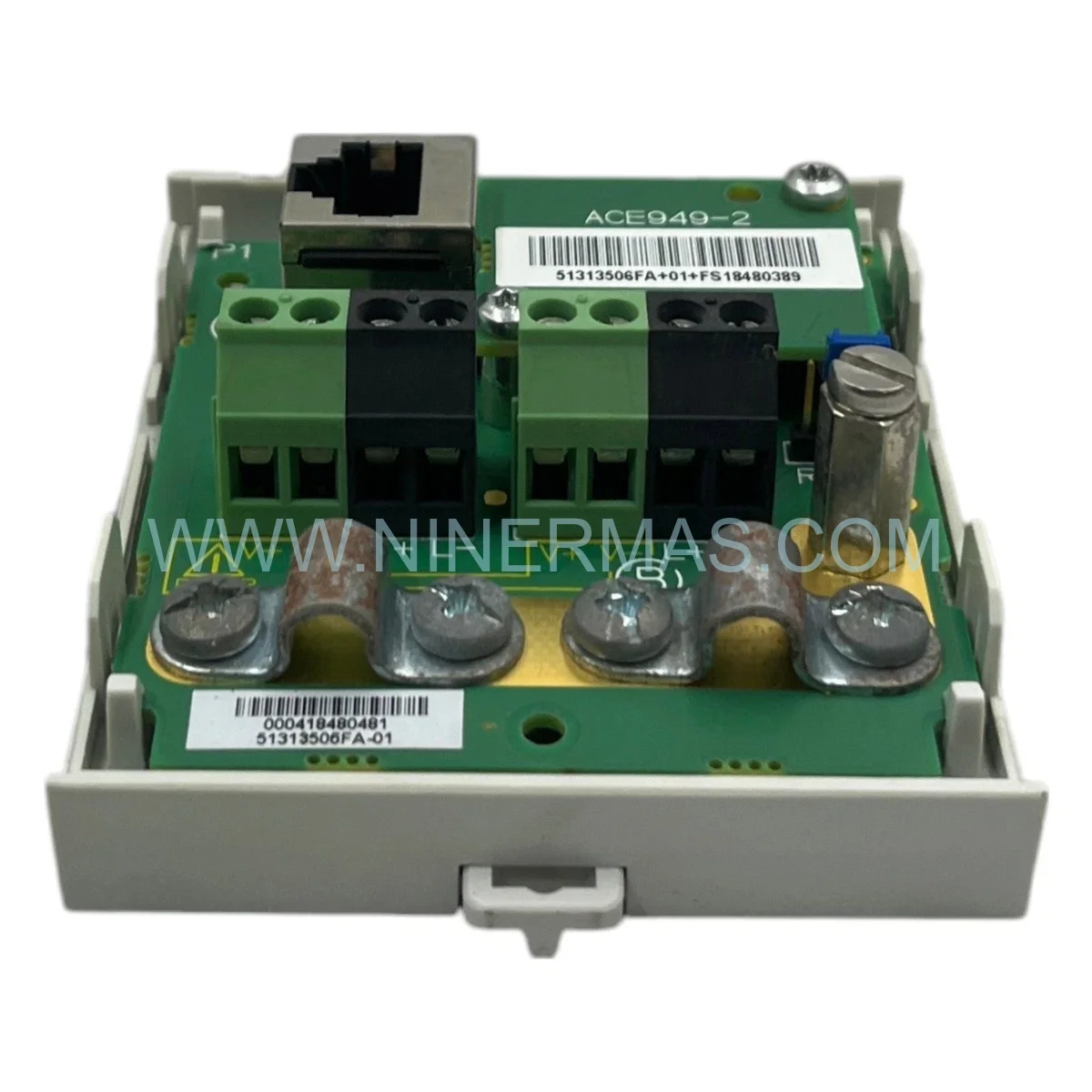

Schneider ACE949-2 | RS485 Retrofit Interface for Sepam Relay Modernization

Schneider ACE949-2 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing the modernization of aging power distribution and protection infrastructures, the Schneider ACE949-2 stands out as a mission-critical enabler for system performance enhancement. In facilities where Sepam series protection relays form the backbone of electrical safety, the ACE949-2 delivers the RS485 communication bridge that transforms isolated, legacy relay installations into fully networked, data-driven assets — without requiring costly panel replacements or full system overhauls.

A defining advantage of the Schneider ACE949-2 is its inherent legacy compatibility with Sepam 20, 40, 60, and 80 series relays — the very platforms that power engineers have relied upon for decades. Rather than forcing a disruptive rip-and-replace migration, this interface module serves as the upgrade path core, enabling Modbus RTU protocol integration into existing relay hardware. This means your proven protection logic remains intact while your communication architecture leaps forward into modern SCADA and DCS environments.

From a migration risk and cost perspective, deploying the ACE949-2 as part of a phased retrofit strategy dramatically reduces project exposure. Installation is non-invasive, leveraging the Sepam relay’s existing backplane power supply and screw terminal connectivity. Engineering teams avoid the downtime penalties and re-commissioning costs associated with full relay replacement, while simultaneously gaining real-time data visibility, remote diagnostics capability, and the foundation for predictive maintenance programs.

Upgrade Highlights & Compatibility

Drop-in Legacy Compatibility: Directly interfaces with Sepam 20, 40, 60 & 80 series — no relay firmware modification required.
? Modbus RTU Performance: Configurable baud rates from 4800 to 38400 bps ensure optimized throughput for your network architecture.
Galvanic Isolation: Protects relay electronics from ground loops and voltage transients — critical in electrically noisy industrial environments.
? Multi-Drop Network Efficiency: Supports up to 32 addressable devices on a single RS485 bus, maximizing infrastructure ROI.
Future-Proofing via Open Protocol: Modbus RTU’s universal adoption ensures long-term integration with next-generation SCADA, EMS, and IIoT platforms.
? Simplified Cabling: 2-wire half-duplex topology reduces installation complexity and lowers total retrofit project cost.

Modernization Use Cases & Success Stories

DCS Integration in Power Generation Plants: Aging coal and gas-fired power stations frequently operate Sepam 60 and 80 series relays in generator and transformer protection schemes. By deploying the ACE949-2 as the RS485 retrofit interface, plant engineers have successfully integrated these relays into modern Distributed Control Systems (DCS), achieving centralized alarm management, automated event logging, and remote parameter adjustment — all without relay replacement. The result: a performance leap from isolated protection to fully networked, condition-monitored assets.

TSI Modernization in Turbine Monitoring: In turbine supervisory instrumentation (TSI) environments, real-time relay status data is essential for vibration correlation and trip analysis. The ACE949-2 enables Sepam 40 series relays to feed live protection data directly into TSI platforms via Modbus RTU, closing the data gap between electrical protection and mechanical condition monitoring. Retrofit projects in petrochemical facilities have reported measurable reductions in unplanned outage duration following this integration.

Substation Automation Upgrades: Medium-voltage switchgear substations undergoing IEC 61850 migration programs often retain Sepam relays as the protection layer while upgrading communication infrastructure. The ACE949-2 serves as the seamless integration bridge, connecting legacy Sepam hardware to modern RTUs and protocol converters, preserving capital investment while enabling full SCADA visibility and remote control capability.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every ACE949-2 unit is sourced as genuine Schneider Electric product, factory sealed and quality-verified — ensuring full compatibility and reliability in safety-critical protection applications. No grey-market or refurbished units.

Expedited Global Logistics: Recognizing that retrofit and maintenance projects operate under tight commissioning windows, we maintain ready stock with expedited international shipping to support urgent deployment timelines across Asia, Europe, the Middle East, and the Americas.

Technical Support for Legacy & Obsolete Hardware: Our engineering support team specializes in legacy Schneider Sepam system integration. Whether you are migrating from a standalone protection scheme to a networked SCADA architecture, or maintaining an existing Modbus RTU network, we provide pre-sales configuration guidance, installation documentation, and post-deployment troubleshooting support.

Retrofit FAQ (Upgrade Guide)

Q: Is the ACE949-2 physically compatible with all Sepam relay panel cutouts and mounting configurations?
A: The ACE949-2 is designed as a plug-in accessory module for the Sepam relay series, connecting directly to the relay’s dedicated communication port. It does not require additional panel cutouts or mounting hardware, making it ideal for space-constrained retrofit installations in existing switchgear panels.

Q: How does the ACE949-2 handle communication between new SCADA systems and older Sepam relay firmware versions?
A: The module implements the Modbus RTU protocol at the physical RS485 layer, which is firmware-agnostic on the SCADA side. Older Sepam relay firmware versions retain full Modbus RTU register map compatibility, ensuring seamless integration without requiring relay firmware upgrades in most retrofit scenarios.

Q: What are the recommended cable specifications for long-distance RS485 runs in industrial environments?
A: For optimal signal integrity, use twisted-pair shielded cable (minimum 24 AWG) with 120-ohm characteristic impedance. Install 120-ohm termination resistors at both ends of the bus. Cable runs up to 1200 meters are supported at 4800 bps; reduce maximum distance proportionally at higher baud rates.

Q: Can the ACE949-2 serve as a direct replacement for older Schneider RS485 communication accessories in legacy Sepam installations?
A: Yes. The ACE949-2 is the current active replacement for earlier Sepam RS485 interface accessories. It maintains backward compatibility with existing Modbus RTU network configurations, allowing direct substitution without reconfiguring the host SCADA or DCS communication parameters.

Q: How many ACE949-2 modules can be deployed on a single RS485 network segment, and what are the addressing constraints?
A: A single RS485 bus segment supports up to 32 Modbus RTU devices. Each ACE949-2-equipped Sepam relay is assigned a unique Modbus slave address (1-247) via the SFT2841 configuration software, enabling granular device identification and polling within large multi-relay protection networks.

Q: What documentation and engineering support is available for first-time ACE949-2 retrofit deployments?
A: We provide access to Schneider Electric’s official ACE949-2 installation guide, Sepam Modbus RTU register maps, and network wiring diagrams. Our technical support team is available for pre-commissioning consultation, helping retrofit project teams validate network topology, address assignments, and SCADA integration parameters before go-live.
