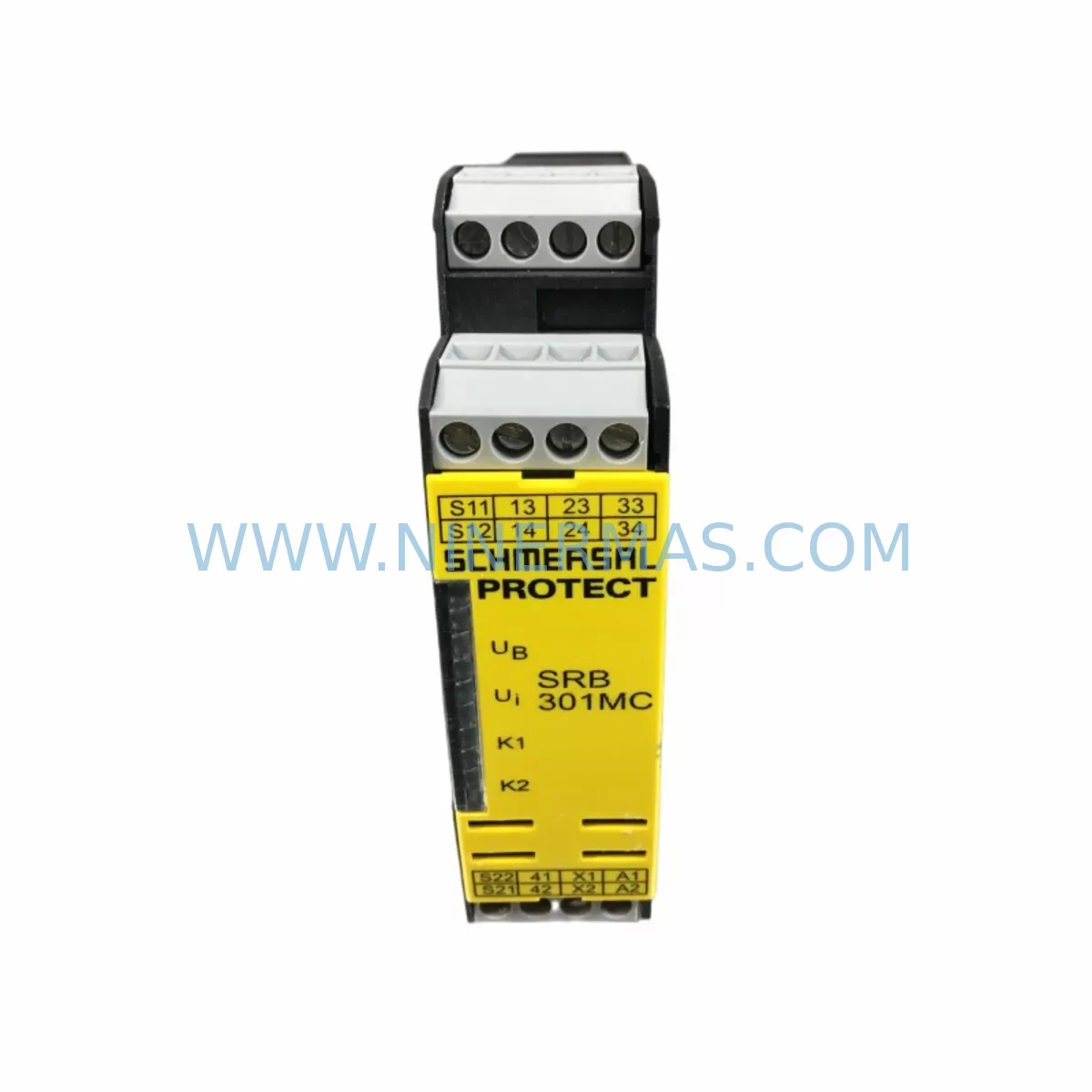

The SCHMERSAL SRB301MC is a dual-channel safety relay module from the SRB3 Series, engineered for functional safety applications in industrial automation environments. Designed to monitor emergency stop circuits, safety door interlocks, light curtains, and two-hand control devices, the SRB301MC delivers reliable safety switching performance in compliance with IEC 62061 and ISO 13849-1 up to PLe / SIL3. As a service-ready spare part sourced through NINERMAS, this unit is fully tested, traceable, and backed by a 12-month warranty — making it the preferred choice for maintenance engineers managing critical machine safety systems.

Unplanned downtime caused by a failed safety relay can halt an entire production line within seconds. The SRB301MC is a high-demand replacement component in automotive assembly, packaging machinery, press control, robotic cells, and conveyor systems where functional safety is non-negotiable. Keeping a verified spare in your control cabinet inventory is one of the most cost-effective strategies for minimizing mean time to repair (MTTR) and maintaining regulatory compliance during audits.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the SRB301MC, the safety relay itself is rarely the only component that requires attention. A thorough control cabinet inspection during the same maintenance window dramatically reduces the risk of repeat downtime events and improves overall system reliability.

Begin by inspecting the 24 VDC power supply module feeding the safety circuit — a degraded power supply with voltage ripple or insufficient current capacity is a common root cause of intermittent safety relay faults. Verify output voltage under load and check for capacitor aging indicators. Alongside the power supply, examine the terminal blocks and wiring harness connected to the SRB301MC’s input and output channels. Loose terminals, corroded contacts, or undersized conductors on the safety loop can cause nuisance tripping that is often misdiagnosed as relay failure.

The dual-channel input wiring should be traced back to the emergency stop button assembly or SCHMERSAL safety door switch (such as the AZ 16 or BNS 33 series) to confirm contact integrity and cable shielding continuity. If the machine uses a light curtain or safety mat as the monitored input device, verify the OSSD output signals are within specification before commissioning the new SRB301MC — a degraded safety sensor can damage a new relay module within hours of restart.

On the output side, inspect the safety contactors or power contactors controlled by the SRB301MC’s NO safety contacts. Contact erosion on downstream contactors is a leading cause of premature safety relay wear. If the machine uses a SCHMERSAL SRB400 or SRB301ST in a cascaded safety architecture, verify the inter-relay wiring and feedback loop (EDM circuit) is intact before restoring power.

For systems integrated with a PLC or safety PLC, check the diagnostic input signal from the SRB301MC’s auxiliary NC contact — this signal is typically wired to a digital input module for fault logging. Confirm the I/O module is reading the correct state and that no latched fault codes are present in the controller. In older installations, signal isolators or relay output modules may be inserted between the SRB301MC and the PLC input; these should be tested for signal integrity and isolation resistance.

If the control cabinet includes an HMI panel with a safety reset button, verify the reset circuit wiring to the SRB301MC’s manual restart input (S33/S34). A faulty reset pushbutton or broken cable in this circuit will prevent the safety relay from re-enabling after an E-stop event, causing unnecessary production delays. Finally, check the fuse or circuit breaker protecting the 24 VDC safety circuit — replace any fuse that shows signs of thermal stress or has blown repeatedly, as this indicates an underlying wiring fault rather than a component failure.

Maintaining a structured spare parts kit that includes the SRB301MC alongside compatible safety switches, contactors, terminal blocks, and power supply modules ensures your team can execute a complete safety circuit restoration in a single maintenance shift — minimizing production loss and keeping your safety compliance documentation current.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the control cabinet and apply LOTO procedures per your site safety plan. Confirm zero energy state on all circuits before opening the cabinet door.

Step 2 — Document Existing Wiring: Photograph or sketch the existing SRB301MC terminal connections (A1, A2, S11, S12, S21, S22, S33, S34, 13/14, 23/24, 33/34, 41/42) before disconnecting any wires. Cross-reference with the original machine wiring diagram to confirm channel assignment and restart mode configuration.

Step 3 — Remove the Faulty Unit: Loosen terminal screws and remove all conductors. Unclip the module from the DIN rail. Inspect the rail and adjacent modules for heat damage or contamination.

Step 4 — Install the SCHMERSAL SRB301MC Spare: Clip the new unit onto the 35 mm DIN rail. Reconnect all conductors per the documented wiring layout. Confirm the restart mode jumper or selector switch matches the original configuration (manual restart is required for Category 4 / PLe applications).

Step 5 — Functional Verification: Restore 24 VDC supply. Confirm the power LED illuminates. Actuate the monitored safety device (E-stop or door switch) and verify the SRB301MC drops out correctly. Reset the relay and confirm all safety output contacts close. Log the replacement in your maintenance management system (CMMS) with the new unit’s serial number and installation date.

Step 6 — System Handover: Notify the production supervisor that the safety circuit has been restored and validated. Update the spare parts inventory to trigger reorder of a replacement SRB301MC for future use.

This workflow is compatible with direct replacement of legacy SCHMERSAL safety relay models and supports seamless integration into existing SRB3 Series safety architectures without requiring PLC program changes or safety function re-validation in most standard applications.

Spare Parts Support FAQ

Q1: What is the service life of the SCHMERSAL SRB301MC, and when should it be proactively replaced?
SCHMERSAL rates the SRB301MC for a designed service life based on the B10d value of its safety contacts under rated load. In typical industrial applications with moderate switching frequency, proactive replacement every 5 years or upon first signs of nuisance tripping, slow response, or contact resistance increase is recommended. NINERMAS maintains stock of the SRB301MC to support planned maintenance cycles and emergency replacements with a 12-month warranty on every unit shipped.

Q2: How do I confirm compatibility between the SRB301MC and my existing safety circuit before installation?
Verify the following: (1) supply voltage matches 24 VDC, (2) the monitored input device (E-stop, door switch, light curtain) provides a dual-channel potential-free contact output compatible with the SRB301MC’s S11/S12 and S21/S22 inputs, (3) the downstream load on the safety output contacts does not exceed the rated switching capacity, and (4) the restart mode (manual/automatic) matches your machine’s safety function requirements per ISO 13849-1. If you are replacing a different SCHMERSAL SRB3 variant, contact NINERMAS for a compatibility confirmation before ordering.

Q3: Does NINERMAS test the SRB301MC before shipment, and what documentation is provided?
Yes. Every SRB301MC unit shipped by NINERMAS undergoes functional testing including power-on verification, input channel monitoring test, safety output contact continuity check, and cross-fault detection validation. Units are shipped with a test record and, where available, original manufacturer documentation. The 12-month warranty covers functional failure under normal operating conditions from the date of shipment.

Q4: Can NINERMAS support long-term supply of the SRB301MC for multi-site maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation components, including safety relays, I/O modules, power supplies, and communication modules from leading automation brands. For multi-site procurement programs or annual blanket orders, contact our sales team to discuss reserved stock arrangements, lead time guarantees, and volume pricing. We support maintenance engineers and procurement teams with consistent supply continuity for both current-production and discontinued part numbers.
